About this product
- Materials: Aluminum, etc
- Size: 1010*1060*930
- Color: Red
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: Aluminum, etc
- Size: 1010*1060*930
- Color: Red
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | Aluminum, etc |
|---|---|
| Size | 1010*1060*930 |
| Color | Red |
Product details
| Materials | Aluminum, etc |
|---|---|
| Size | 1010*1060*930 |
| Color | Red |
From the supplier

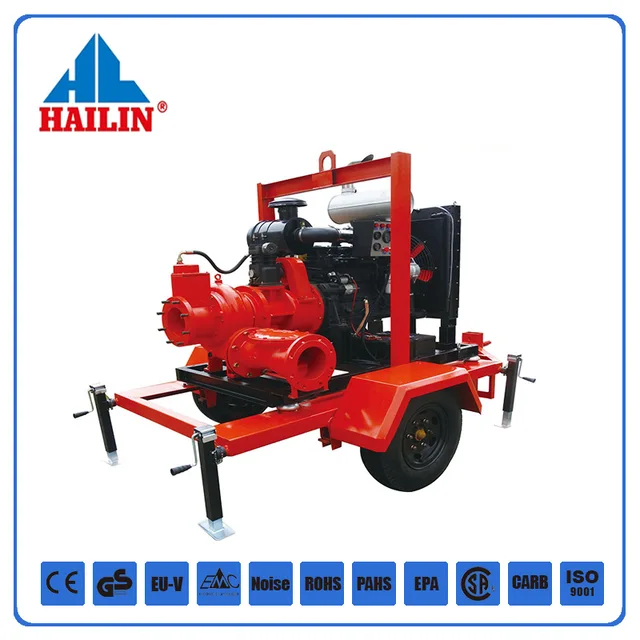

PRODUCT INTRODUCTION
-Sturdy and durable cast iron material
-Pump integrated with air compressor, external jet device, mechanical seal lubricated separately
and check valve, automatic start without water injection, self-priming time sinificantly reduced.
-In order to reduce power loss, air compressor assemble with cluth, can stop after thr pump operated.
-Adopt high quality silicon carbide mechanical seal
-WP200 impeller made by cast steel, special impeller design brings high efficiency and high head with large flow rate
-TP200 impeller made by spheroidal graphite cast iron, 10 times better wear-resisting performance than standard cast iron.
-TP200 max solids handling 70mm
-Can also be powered by electric motor
SPECIFICATION
Model
WP200
TP200
Inlet Inch (mm)
8" (200mm)
8" (200mm)
Outlet Inch (mm)
8" (200mm)
8" (200mm)
Max. Head (m)
60
51
Suction Lift (m)
8
8
Max Flow (L/min)
590
625
Pump Body
Cast Iron
Cast Iron
Impeller
Cast Steel
Spheroidal Graphite Cast Iron
Mechanical Seal
Silicon Carbide
Silicon Carbide
Driving Power (kw)
92
80
Working Speed (rpm)
2200
2200
Dimension (L*W*H) (mm)
1010*1060*930
1010*1060*930
Weight (kg)
396
392
PRODUCTION LINE
