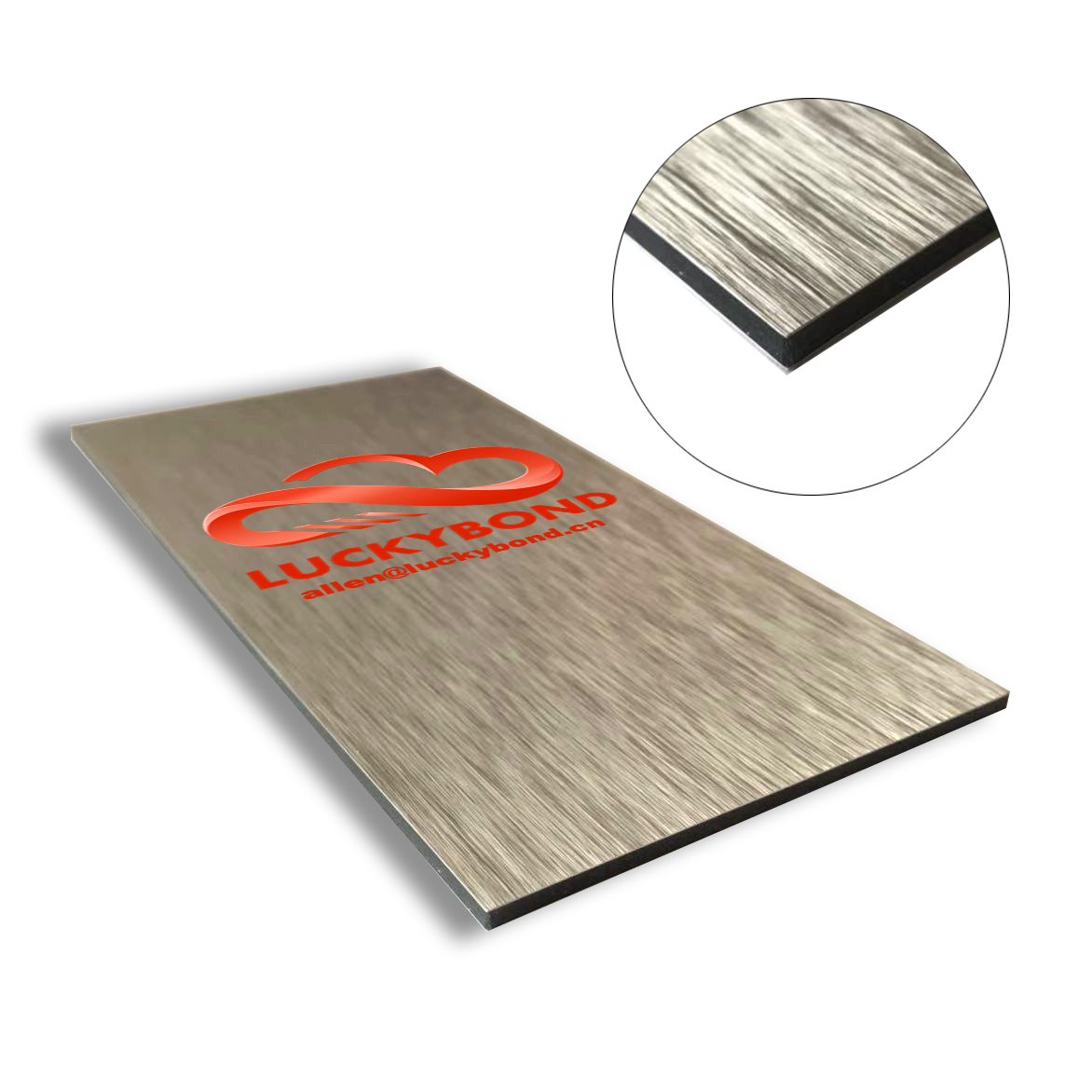

3mm Brushed Aluminium Composite panel
- FOB goods (200)
- $5,000
- Ocean freight + handling (2.0 CBM)
- $940
- US duty (3.5%)
- $175
- Section 301 tariff (25.0%)
- $1,250
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
3mm Brushed Aluminium Composite panel
- FOB goods (200)
- $5,000
- Ocean freight + handling (2.0 CBM)
- $940
- US duty (3.5%)
- $175
- Section 301 tariff (25.0%)
- $1,250
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Aluminum and Plastic
- Size: 1220*2440

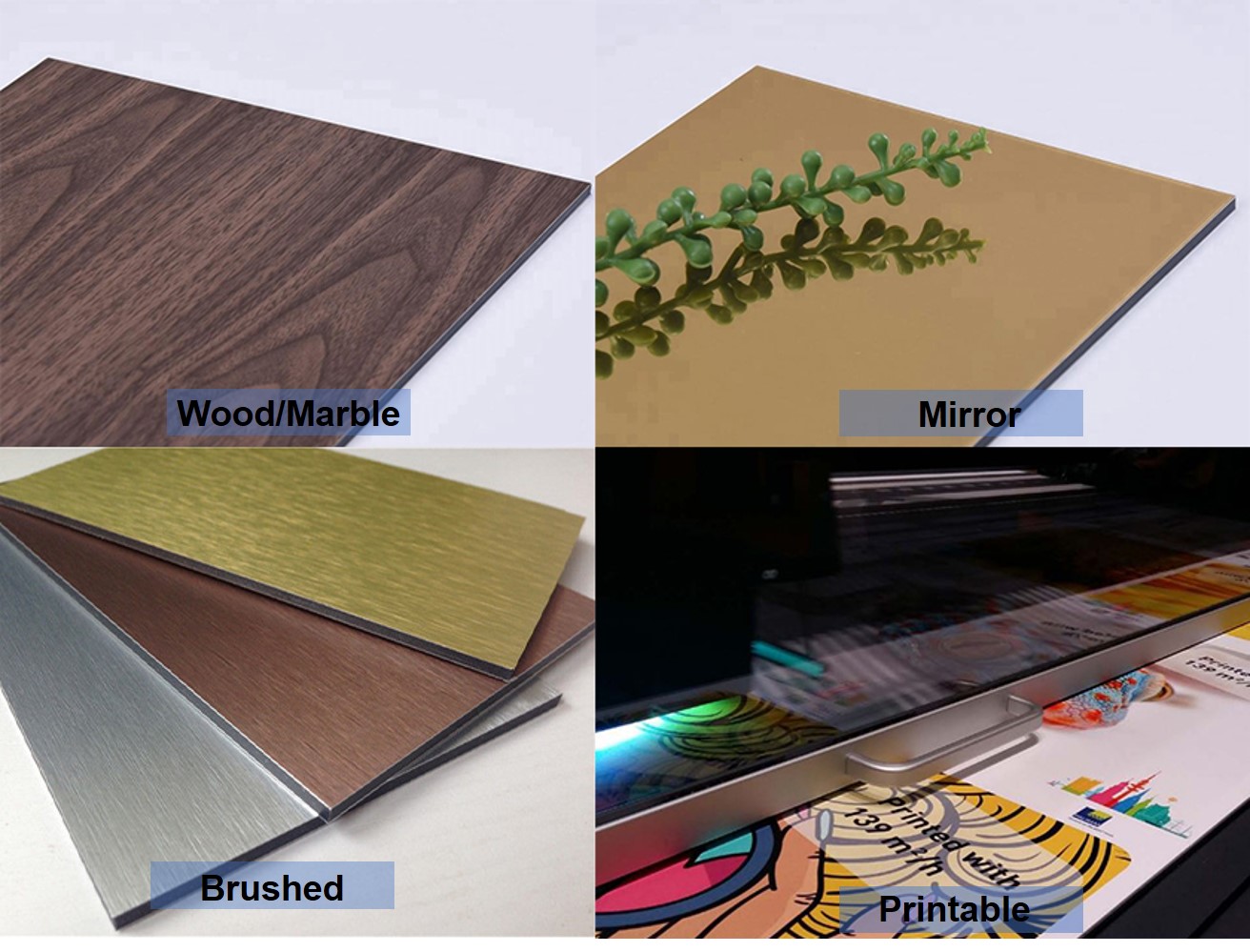

- Color: Solid color, Brushed, Mirror, Wood, Granite
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminum and Plastic
- Size: 1220*2440
- Color: Solid color, Brushed, Mirror, Wood, Granite
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminum and Plastic |
|---|---|
| Size | 1220*2440 |
| Color | Solid color, Brushed, Mirror, Wood, Granite |
From the supplier
Taizhou Baiyun Jixiang Decorative Materials Co., Ltd.
Located in Taizhou, which is a prosperous seaside city, our factory was established in 1983 and is one of municipal key enterprises. Our factory specializes in Aluminum Composite Panel, PVC Wall Panel& Cornice and PVC Foam Board, and it covers 20000 square meters total areas, and 23000 square meters of building areas. With rich production experience, strong technical force, complete production equipment and strict quality-supervising measures, we are now a large-scale joint-stock enterprise and a member of China Building Materials Industry Association, with subsidiary of Luckybond Brand.
Production Lines
Coil Storage
ACP Warehouse
Panel ThicknessUnits2mm3mm4mmThickness of Aluminum Layersmm0.21/0.210.21/0.210.4/0.4WeightKg/m²3.1/3.44.0/4.34.9/5.2Section Modulus Wcm³/m0.510.811.11Rigidity(E.I)KNcm³/m3458651620Alloy of Aluminum Layers
AA1100H18Tensile Strength of AluminumN/mm²Rm: I 45-I 850.2% Proof StressN/mm²Rp 0.2: 110- 175Elongation%A50＞3%Liner Thermal Expansion
2.0 mm/m(100℃ temperature difference)Lacquering
Coil Coating. Fluorocarbon(e.g.PE)Gloss(initial value)%30-90
Pencil Hardness
2HTemperature resistance℃-50~ +80Coating Thickness
18μmT-bend
2TAdhesion
grade 0.1mm*1mm*100/100 w/o fall offSolvent Resistance
Beearable 100times（butannone)Impact Resistance
1/2φ*500g*30cm no ripBoil water Resistance
2h*98℃ no changeColor difference
△E≤2.0Luckybond Building GradeThicknessUnit4mm6mm
Thickness of Aluminum Layer’s Weightmm0.5
WeightKg/m²7.510.5
Fabrication widthmm1220-1520
Section Modulus(W)cm³/m1.752
Rigidity(E· l)KNcm²/m24003100
Alloy
EN AW-3003A
Temper of Cover Sheets
H 18/ H22
Modulus of elasticityN /mm²70000
Tensile Strength of cover sheetsN /mm²Rm ≧ 130
Proof Stress (0.2%)N /mm²Rp0.2 ≧90
Elongation%A50≧5
Liner Thermal Expansion
2.4 mm/m bei 100℃ temperature difference
Lacquering
Coil Coating. Fluorocarbon(e.g. PVDF)
Gloss(initial value)%30-45
Pencil hardness
2H
Temperature resistance℃-50~ +80
Certifications
SGS
CE
ISO9001

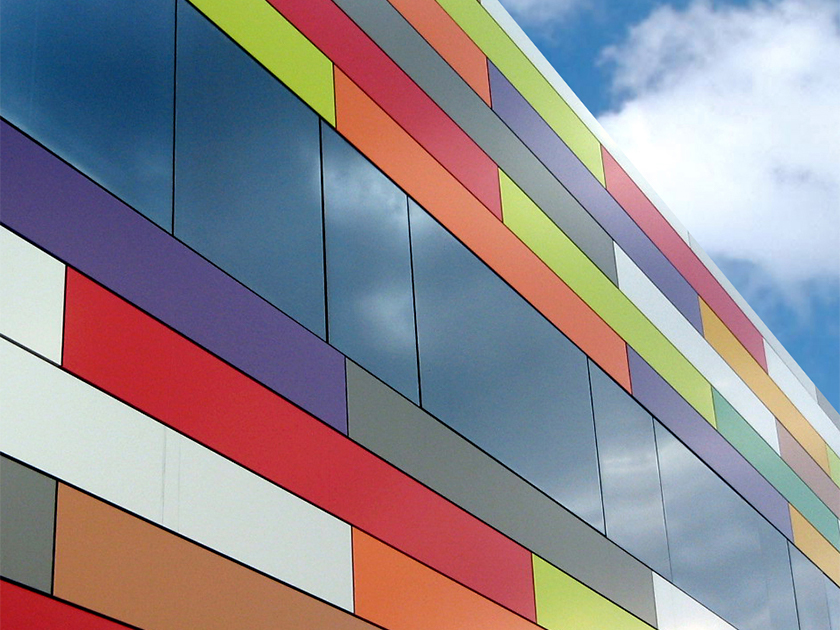

Facade
Shopfront
UV Printing
Q: What's the available panel size and thickness?
A: Thickness:3mm 6mm; 3 and 4mm recommend.
Length: For convenient transportation, less than 5800mm is recommended
Aluminum thickness:0.7---0.5mm
Width: 1220---1570mm;1220mm,1250mm,1500mm are recommended
Q: What's the feature of LUCKYBOND ACP?
A: Flatness: Superior flatness with high rigidity compared with solid aluminum panels.
Coating Quality: Uniform color and smooth coating from a continuous coil coating and a unique coating method
Lightweight: Lighter than solid metals of equivalent rigidity.
Fire Performance: LUCKYBOND ACP is a fire-rated material that meets fire-safety codes of building materials in most countries.
Workability: Easy to process by ordinary machines and tools for fabrication .
Q: Are custom finishes are available?
A: Custom colors are available with the minimum quantity of 800m2
Q: What about the delivery time of LUCKYBOND ACP?
A: For normal sizes, it will take 7-15days. after receive the prepayment For special sizes, it will be more than 15 days.
Q: Can LUCKYBOND ACP be recycled?
A: LUCKYBOND ACP is a recyclable material. Both aluminum and the core material can be reused.
Q: What is the largest size LUCKYBOND aluminum composite panel can be?
A: The widest size of LUCKYBOND Aluminum composite panel can be 1570mm, length is without limitation.
Q: What field is LUCKYBOND ACP used for?
A: Exterior applications as: Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations.
Interior applications as: Wall cladding, ceilings, bathrooms, kitchens and balconies.
Advertisement and market applications as: Display platforms, signboards, fascias and shop fronts etc.
Transport industry applications
Q: Is LUCKYBOND ACP suitable for floor?
A: LUCKYBOND ACP is not suitable for such applications in terms of the hardness of its surface. The surface of LUCKYBOND ACP is coated with fluorocarbon or polyester coating which is not hard enough for floor.
Q: What will happen with LUCKYBOND ACP if lightning hits the building?
A: Generally speaking, external cladding panels conduct electricity, which is finally grounded to earth through the sub-structure. Therefore, basically the lightning electricity will flow to the ground and nothing will happen to the building. But the impact of lightning is so strong that the panel and its adjoining panels might be damaged.
Q: What will happen with LUCKYBOND ACP in the event of earthquake?
A: According to our deforming test due to shearing force like and earthquake, the shearing force is absorbed in the panel deflection and LUCKYBOND ACP panel is completely restored to the original position after the shearing force is eliminated.
