About this product
- Materials: Carbon steel
- Size: 13000*2500*2850
- Color: Yellow or other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
About this product
- Materials: Carbon steel
- Size: 13000*2500*2850
- Color: Yellow or other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
Product details
| Materials | Carbon steel |
|---|---|
| Size | 13000*2500*2850 |
| Color | Yellow or other |
Product details
| Materials | Carbon steel |
|---|---|
| Size | 13000*2500*2850 |
| Color | Yellow or other |
From the supplier

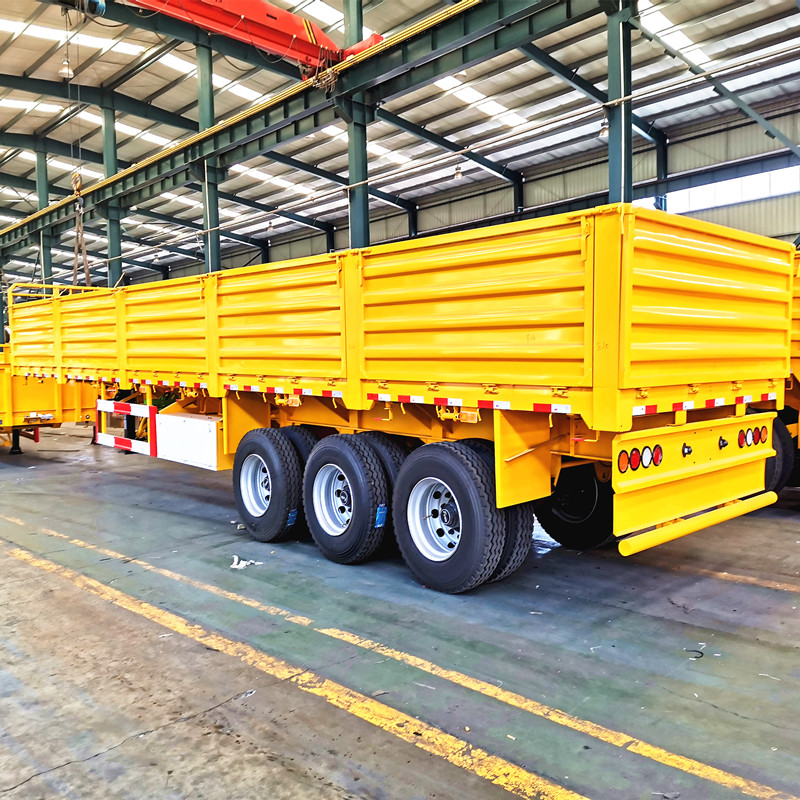

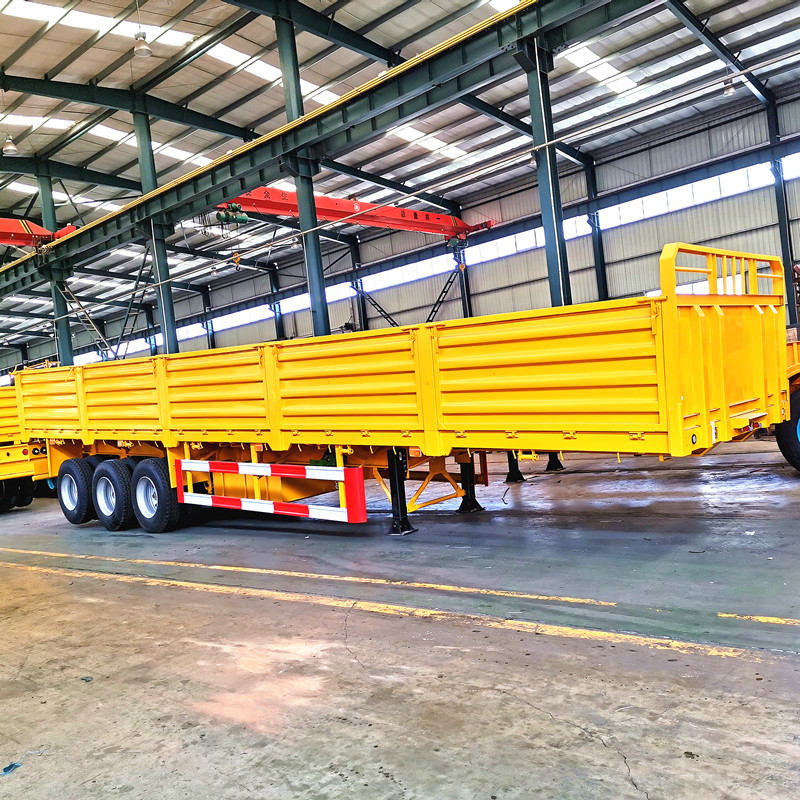

3axles Horizontal side wall semi trailer
40ft 3 axles side wall semi trailer
Dimension
13000mm*2650mm*3050mm
Loading Capacity (T)
50 T
Axle
3 axles, 13 T FUWA / Tongya
Rim
9.00-22.5 (special for export market)
Tire
12R22.5,13 pieces（including 1 spare tire）
Suspension
Mechanical America Type
Spring leaf
90(W)mm*13(Thick)mm*10 Layer
King pin
brand JOST optional
Support leg
JOST brand optional
Main beam
Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel
Side beam
Q235 16# channel steel
Platform
3mm diamond platform or 3mm flat platform
Side wall
Height is 1000mm, Horizontal corrugated
Twist Locks
12 pieces(Lifting type)
Brake chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tanks
ABS
Without (optional)
Valve
WABCO
Light
LED light
Voltage
24V
Receptacle
7 ways (7 wire harness)
Tool box
1 piece
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive primer, 2 coats of final paint, 1 coat of wax.
Shipping Terms
By bulk cargo carrier, RORO or 40HQ container
We have R & D team, we can desgin the trailer according to your requirements.
More information please contact us freely. website: www.trailerfactory.cn
Our production line and workshop show:
