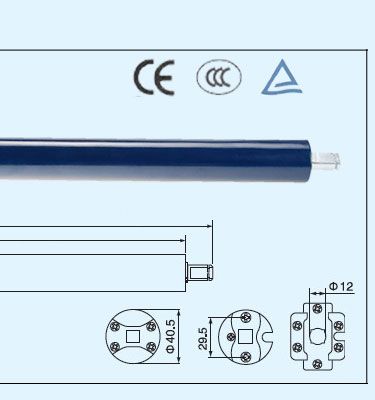

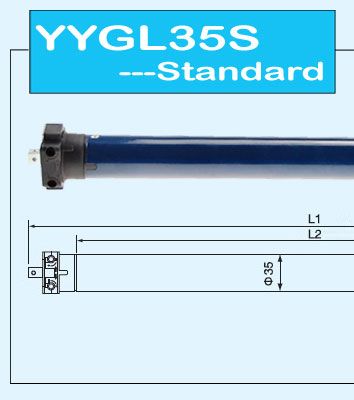

Technical ParameterModelRated Torque
(Nm)Rated Speed
(rpm)Tube Diameter (mm)Rated Voltage (V)Rated Frequency (Hz)Rated Power Input
(W)Rated Current (A)Running Time
(min)Protection Index
(IP)Max number of turn
(turns)Tube Length
(mm)Motor Length
(mm) AC 120V/60HzYYGL35S-3/3333335120601201.04 ≥4IP4439450523YYGL35S-6/1661635120601201.04 ≥4IP4439450523YYGL35S-6/3363335120601601.32 ≥4IP4439450523YYGL35S-10/20102035120601601.32 ≥4IP4439450523 AC 230V/50HzYYGL35S-3/283283523050950.41 ≥4IP4439450523YYGL35S-6/1461435230501060.46 ≥4IP4439450523YYGL35S-6/2862835230501150.5 ≥4IP4439450523YYGL35S-10/17101735230501260.56 ≥4IP4439450523

Product feature and usage
*Tubular motors are the driving force behind roller shutters,awning and garage doors.The products work quietly when in operation, are easy to conceal,compact in size and a whisk to install.
*In European countries,the motorized roller shutters,awnings,sun-shade and garage doors are widely used in offices,houses,hotels,restaurants,exhibition halls,and other places.
*To prolong its using life,the motor bears an over-heating protection device inside,it will stop automatically during long time working with temperature rising too high and will resume operation when temperature comes down.
 Functional feature
a. Single-phase asynchronous motor;
b. High torque, constant speed, heavy load capacity;
c. Working time is more than than 4min;
d. Mechanical limit switch, easy adjustment.
e. Flexible control mode, working with Huate's controllers, single control, group control and packet control can be achieved.35 series feature
1. There are different tubuar motor type to be chosen. such like standard, built-in receiver and electronic type to choose from;
2. Double surface brake system, reducer option 3Nm/28rpm, 6Nm/14rpm, 6Nm/28rpm, 10Nm/17rpm;
3. Clever design, simple appearance;
4. Easy installation, durable and safety;
5. Mechanical limit switch is sensitive and accurate, easy to adjust;
6. Low mechanical noise, energy saving;
7. Small but powerful, compact structure;Standard Accessories

Crown
No.HTH01

Drive wheel
No.HTL05

Bracket
No.HTZ28

L shape clip
HTOC03

Regulator
No.HTR04

Split pin

Accessories Installation

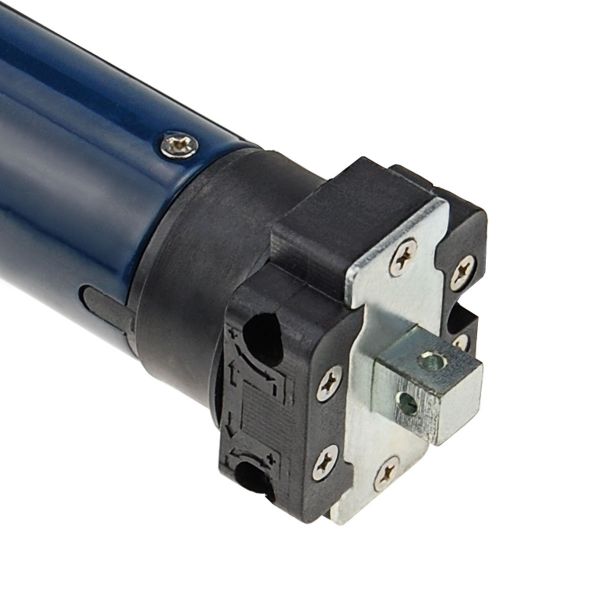

Limit switch head: smart design, excellent workmanship.

The output shaft

Motor wiring: 1. Connect  the motor to the controller; 2. Rated voltage: 230V AC, 120V AC, according to installation instructions.

Motor appearance: steel tube, electrostatic spraying. The
color can be customized with minimum order quantity 3000pcs.

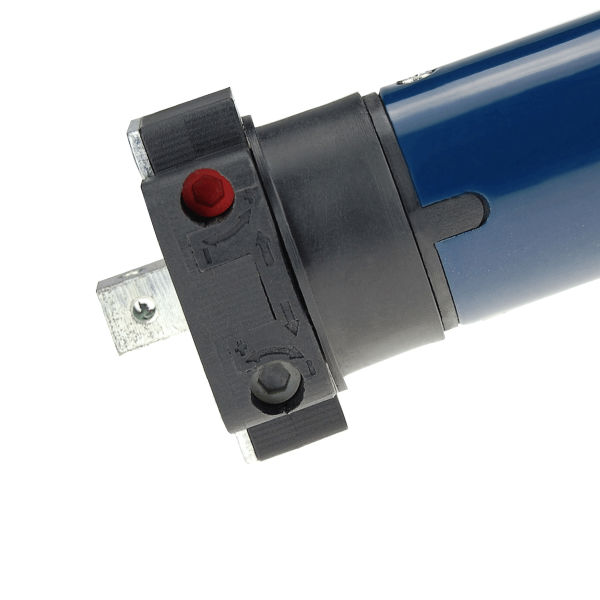

Limit Switch Regulation Switch on the motor and observe the running direction.

The arrow means tubular motor rotation direction. When rotate as pic 1 and you want to decrease the limit range, please put regulator/screwdrive to hole,turn to the minus direction until tubular motor stops, if you want to increase the limit range, turn to the plus direction. When rotate as pic 2 and you want to decrease the limit range, please put regulator to  hole, turn to the minus direction until it stops, if you want to increase the limit range, turn to the plus direction.

Note: Do not regulate limit switch when tubular motor is not installed, it may damage the motor.

Motorized Roller Shutter

Motorized Roller Blinds

Motorized awning

Projection Screen



Electric motor is an mechanical equipment that converts electrical energy into mechanical energy.

1. Working principle
When tubular motor is connected to power supply, the brake will be automatically released, meantime the rotor will run at 2800rpm. The speed is reduced by reducer and output the final speed. With drive wheel, the driving force is transferred to roller tube thus make the roller shutters and blinds up and down. While the crown connected to mechanical limit switch, the movement will be represented by the nut of the limit switch. When the nuts touch the microswitch, the limit switch stops the electricity and the brake system will immediately stop tubular motor from running.

2. Structure: it consists of four main parts: Limit switch, brake, motor, reducer.

3. Construction Theory4. Count and Choose(1) Door sheet weight:
Door sheet weight = single slat weight * square meter
For length 2m, width 3m, 6kg/square meter
Door sheet weight=3*2*6=36kg
(2) Choosing tubular motor model:
Torque (Nm) = force (N) * Roller tube radius (m) = G*R
For door sheet weight 36kg, roller tube diameter 70mm
G = 36*9.8 = 352.8N  R = 70/2/1000 = 0.035m
Torque = 352.8*0.035 = 12.348Nm
So, 15Nm or 20Nm is OK.
Note: The torque you choose must be bigger than the calculated one(3) Choosing limit switch:
Number of turn = height of door or window (mm) / roller tube diameter (mm) / 3.14
For 4m height door, roller tube diameter 70mm
Number of turn = 4000 / 70 / 3.14 = 18.2(turn)
Note: The max number of turn you choose must be bigger than the calculated one
Note:Standard type, mechanical type, built-in receiver type have max number of turn, while Electronic type not. But due to thermal protection, running time limit is ¡Ý4min. So the number of turn for Electronic type is motor speed * 4min. Application

  ● Do not store tubular motor with strong acid and alkali or dirty & eroding materials.  ● Do not use tubular motor in humid or damp environments.  ● Do not start tubuar motor frequently or overload it as it might reduce its operation state.  ● Do not turn the regulating knob or the driving sleeve at non-operation state.  ● If you wish to open the roller shutters under poeer-off circumstance,you may choose the M series
products which carries manual functions ,and do not forget to invite professionals to install the
     handing bar and locks.And please note that the manual function does not work in the power-on condition.  ● Deep the product number and data plate in safety place.

When the door sheet and the tube were already fixed,in case the customer needs to drill tithing tubular motor space,the drill bin should not tough the motor shell(the suggested drill  length out of the drill chuck be less than 15min);the stretching rivet is recommended for fixing. In case the screw might be used,the clearance between the screw tip and the motor shell should be more than 5mm,or the motor might be damaged.

For security,there is a yellow and green coloured earth line among the in-lines,customer should put it to earth before using the motor.



The tube and the driving adapter should be evenly fixed with 4pieces of 4*10 sunk head self-threading screws and the screw tip should not penetrate though the internal surface of the crown might damage the internal geared ring.

The fit clearance between the drive adapter outer edge and the internal dia of the tubes should not exceed 1mm.



The tube adapter and idler should be evenly fixed with 4pieces of 5*20 sunk-head self-threading screws(for 59 series)respectively in the radial direction;and the screws should be fixed in the middle of the adapter and the middle of the idler in axial direction.

Choose the rigtht crown and drive adapter before installation,do not hammer the motor into the tube.Trouble And Solutions

No

Trouble

Possible Reasons

Solutions & Suggestions

1

Press the controller down button,the shutter moves upward instead
of downwardLine connection oppositeExchange the connection head between the brown and black line

2

The driving adapter can only rotate in one direction when the power is onThe switch of the other direction is offRotate the crown toward the rotating direction of the driving adapter

3

When power is switched on,the motor refuses to work or starts sloelya. Voltage too low
b. Errors in line connection
c. Overload
d. Installation errorsa. Regulate the voltage to the rated
b. Check the lines and correct it
c. Install the load relevant to the rated torque
d. Reinstall the motor

4

Sudden stop of the operating operating motorRated operating time(4min) exceededAfter approximately 20 minutes,it will resume automatically when the motor cools down

5

The motor stops operation and path length cannot be increasedThe spacing has been adjusted to the maximumRomove the motor and rotate the crown towards the inverse direction several rounds(according to the practical need).Then put it into the tube and adjust to the necessary spacing position

6

Unexpected noise emitted during shutter rollingThe tube too long,which causes the tightness between the rolling shutter and the bracke in bothtIf the idler is flexible users may cut a little of the tube with a saw,to loosen the tightness between the bracket and roller shutter
