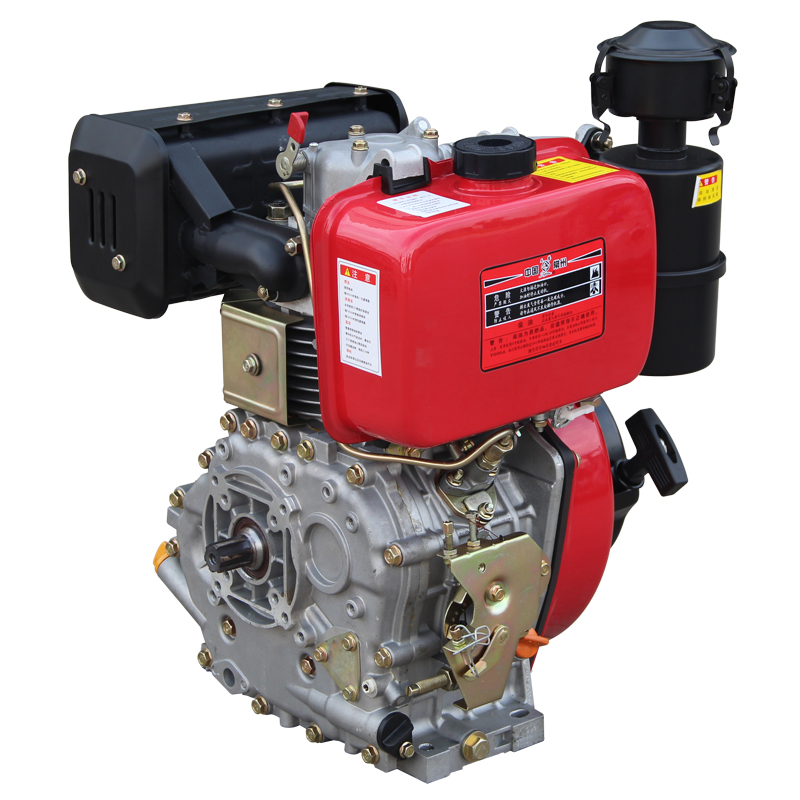

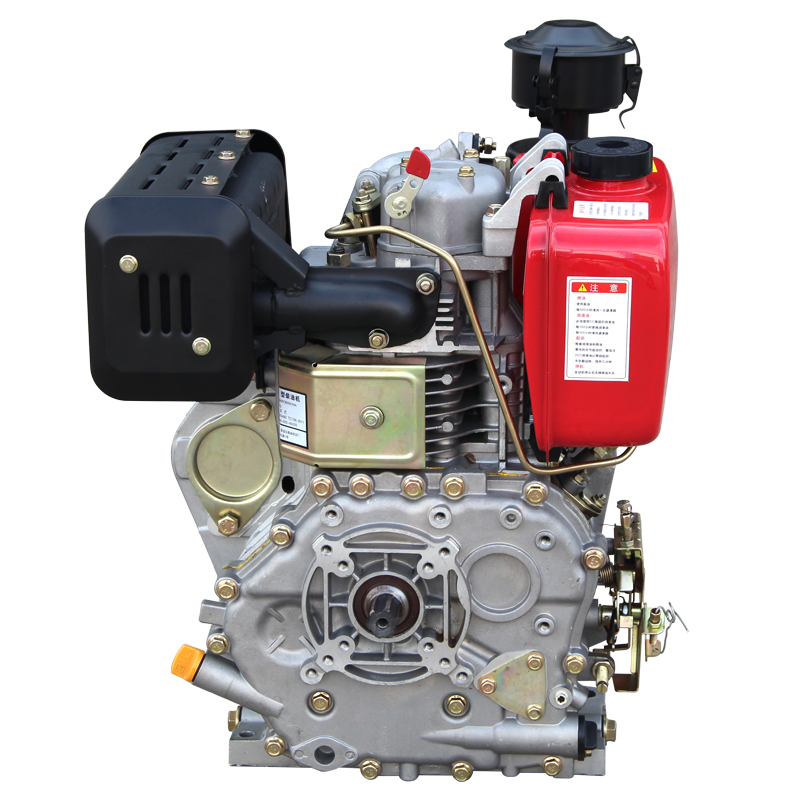

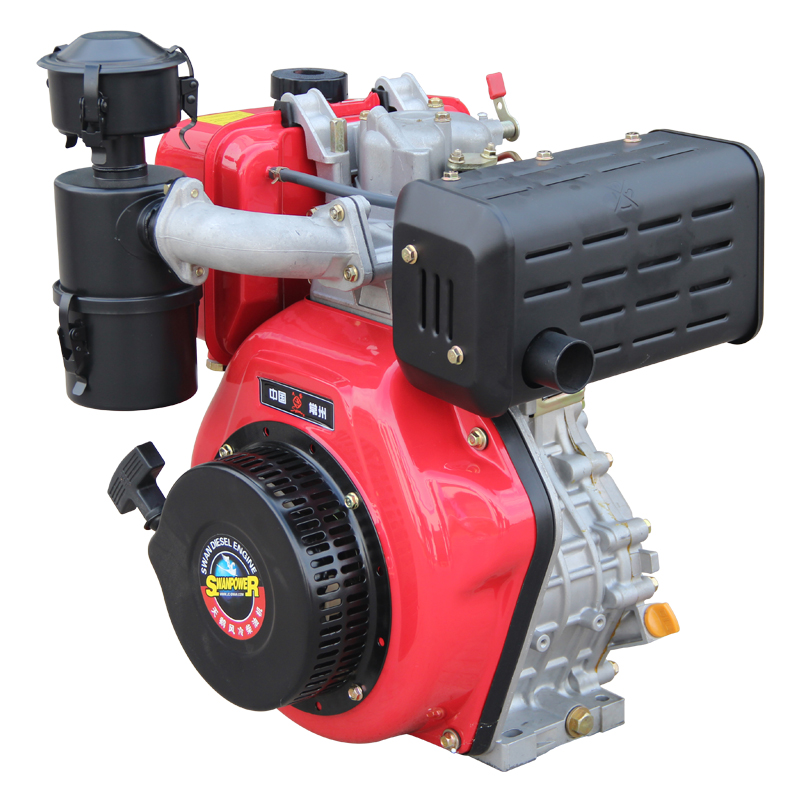

186fa /188fat Diesel Engine
JINTAN DIESEL ENGINE CHANGZHOU CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
186fa /188fat Diesel Engine
JINTAN DIESEL ENGINE CHANGZHOU CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: 417x441x494
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
About this product
- Size: 417x441x494
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
Product details
| Size | 417x441x494 |
|---|
Product details
| Size | 417x441x494 |
|---|
From the supplier
Model
Model
JC186F
JC186FA(JC186FAT)
JC188FA(JC188FAT)
JC188FCT
JC192FA
Type
Type
Single Cylinder, Vertical, 4-Stroke, Air-Cooled, Direct Injection
Single cylinder,Vertical,4-stroke,air-cooled,direct injection
BoreXStroke (MM）
Bore×stroke(MM)
86×70
86×72
88×72
92×75
Displacement（L）
Dispiacement(L)
0.406
0.418
0.438
0.499
Compression Ratio
Compression ratio
19±1
19±1
19±1
20±1
Rated Power(Kw)
Rated output power(Kw)
6.30/3000
6.60/3600
6.60/3000
7.35/3600
7.30/3000
8.00/3600
8.20/3000
9.00/3600
Rated Speed(r/min)
Rated speed(r/min)
3000/3600
Starting Method
Starting system
Recoil Hand Pull Start or Electric Start
Recoi or Electric start
Rotation Direction
Rotation direction
Counterclockwise (from power output end)
Counterclockwise（See the output from the power）
Tank Volume(L)
Fuel tank volume(L)
5.5
5.5
5.5
5.5
Fuel Consumption Rate(g/kW.h)
Fuel consumption rate(g/kW.h)
≤281.5
≤281.5
≤281.5
≤320
Fuel Type
Fuel type
0Number (Summer) or-10Grade (Winter) Light Diesel
0#(summer),-10#(winter)diesel oil
Oil Capacity(L)
Lubrication oil volume(L)
1.65
1.65
1.65
1.65
Lubricating Oil
Lube oil brand
SAE10W30（CCGrade and Above)
SAE10W30(above CC grade)
Power Output Shaft
Power-Take-Off
Camshaft or Crankshaft
Crankshaft or Camshaft
Dimensions (L×W×H)(mm)
Overall dimension(L×W×H)(mm)
417×441×494
417×441×494
417×441×494
420×440×495
Net Mass(kg)
Dry weight(kg)
≤48
≤48
≤48
≤47
From the supplier
Model
Model
JC186F
JC186FA(JC186FAT)
JC188FA(JC188FAT)
JC188FCT
JC192FA
Type
Type
Single Cylinder, Vertical, 4-Stroke, Air-Cooled, Direct Injection
Single cylinder,Vertical,4-stroke,air-cooled,direct injection
BoreXStroke (MM）
Bore×stroke(MM)
86×70
86×72
88×72
92×75
Displacement（L）
Dispiacement(L)
0.406
0.418
0.438
0.499
Compression Ratio
Compression ratio
19±1
19±1
19±1
20±1
Rated Power(Kw)
Rated output power(Kw)
6.30/3000
6.60/3600
6.60/3000
7.35/3600
7.30/3000
8.00/3600
8.20/3000
9.00/3600
Rated Speed(r/min)
Rated speed(r/min)
3000/3600
Starting Method
Starting system
Recoil Hand Pull Start or Electric Start
Recoi or Electric start
Rotation Direction
Rotation direction
Counterclockwise (from power output end)
Counterclockwise（See the output from the power）
Tank Volume(L)
Fuel tank volume(L)
5.5
5.5
5.5
5.5
Fuel Consumption Rate(g/kW.h)
Fuel consumption rate(g/kW.h)
≤281.5
≤281.5
≤281.5
≤320
Fuel Type
Fuel type
0Number (Summer) or-10Grade (Winter) Light Diesel
0#(summer),-10#(winter)diesel oil
Oil Capacity(L)
Lubrication oil volume(L)
1.65
1.65
1.65
1.65
Lubricating Oil
Lube oil brand
SAE10W30（CCGrade and Above)
SAE10W30(above CC grade)
Power Output Shaft
Power-Take-Off
Camshaft or Crankshaft
Crankshaft or Camshaft
Dimensions (L×W×H)(mm)
Overall dimension(L×W×H)(mm)
417×441×494
417×441×494
417×441×494
420×440×495
Net Mass(kg)
Dry weight(kg)
≤48
≤48
≤48
≤47
About the supplier
Main products: Generating Sets,Diesel engine,Diesel Generators,Engine Water Pump Machine Sets,AC u0026 DC electrical machine,Diesel Engines,Other Power Machinery and Electric Power
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1952
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1952
