About this product
- Materials: Steel
- Size: 4960*2490*3170mm
- Color: Yellow
- Power source: Other
- Load capacity: Other
- Horsepower: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 4960*2490*3170mm
- Color: Yellow
- Power source: Other
- Load capacity: Other
- Horsepower: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 4960*2490*3170mm |
| Color | Yellow |
| Power source | Other |
| Load capacity | Other |
| Horsepower | Other |
| Drive wheel | Other |
| Tire certification | Other |
| Engine capacity | Other |
From the supplier

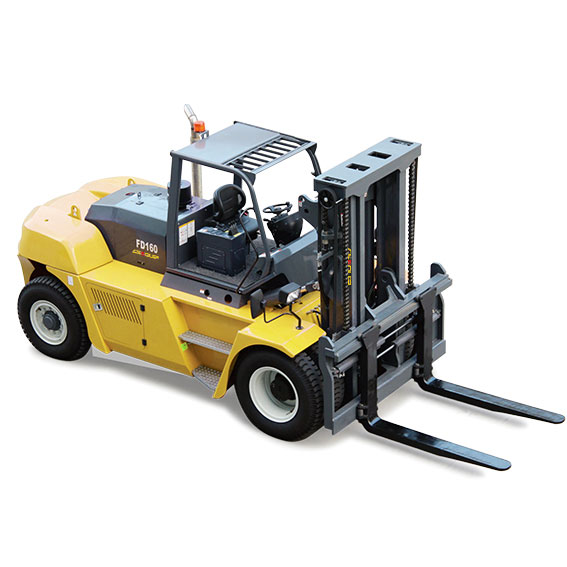

GS 16.0 Ton diesel forklift for storage yard advantages:
1.Integrated modularized electric box with up to IP56 protection degree is safe, reliable and easy to be maintenance.
2.Innovative designed [dual-lip elastic sealing gasket" solve oil tank cover leakage and impregnate completely.
3.Flexible steering system
4.Optimal heat radiating& air duct system
5.Hydraulic transmission system
6.Suitable for port and storage yard.
7.With strong power.
8.Double air filter system (pre-filter and air-filter)
1Model FD140FD150FD1602Power Type DieselDieselDiesel3Rated Capacity kg1400015000160004Load Centre mm900600600Characteristic & Dimension5Fork Size Lift Height mm3000300030006L*W*Tmm1820*200*901820*200*901820*200*907Mast Tilt AngleF/RDeg6°/12°6°/12°6°/12°8Front Overhang (Wheel centre to fork face) mm9009009009Ground Clearance (Bottom of mast) mm25525525510Overall Dimension Length to face of fork (without fork)mm49604960496011Overall Widthmm24902490249012Mast Lowered Heightmm31703170317013Mast Extended Height (With backrest)mm46704670467014Overhead Guard Heightmm29302930293015Turning Radius (outside) mm45004500450016Min.insecting aisle mm680068006800Performance17Speed Travel (Empty load)km/h23232318Lifting (Full load)mm/s38038038019Max.Gradeability %202020Chassis20Tire Front 12.00-24-20PR12.00-24-20PR12.00-24-20PR21Rear 12.00-20-18PR12.00-20-18PR12.00-20-18PR22Wheelbase mm32503250325023Service weight kg165001850020500Power & Transmission24BatteryVoltage/CapacityV/Ah24/12024/12024/12025Engine Model YC6A180Z-T21(A7AGG) 26Manufacture YUCHAI 27Rated output/r.p.m.kw130/2300 28Rated torque/r.p.m.N·m670/1400-1700 29No.of Cylinder 6 30Bore*Strokemm108*132 31Displacementcc7255 32Fuel Tank CapacityL300/350300/350300/35033Transmission Type HydraulicHydraulicHydraulic34Stage (FWD/RVS) 2/12/12/135Operating Pressure for Attachment Mpa151618About the supplier
