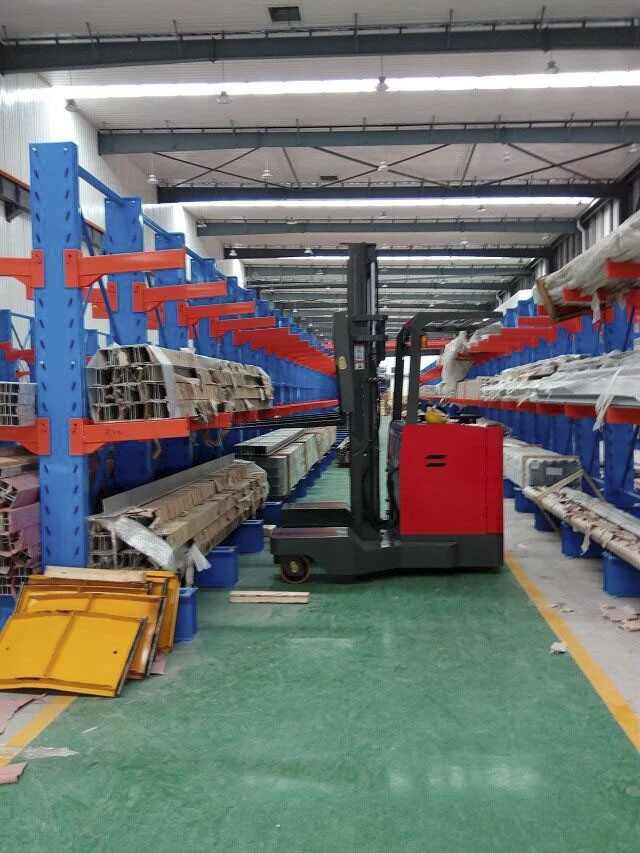

1.6T ELECTRIC REACH STACKER



Model　MQB1530MQB1545SQMQB2530MQB2545SQPower Type　ElectricElectricElectricElectricOperation Type　Stand-On TypeStand-On TypeStand-On TypeStand-On TypeRated CapacityQ(kg)1500150025002500Load CenterC(mm)500500500500Front Overhangx(mm)175175175175Wheelbasey(mm)1350135016951695　　　　　　Service weight(incl. battery)kg≈3000≈3200≈3700≈3900Battery weight（±5%）kg490490665665　　　　　　Wheel type（front/rear）　Polyurethane PUPolyurethane PUPolyurethane PUPolyurethane PULeft front wheel（diameter*width）mmφ254×65 φ254×65φ254×65 φ254×65Right front wheel（diameter*width）mmφ254×135φ254×135φ254×135φ254×135Rear driving wheel（diameter*width）single wheelmmφ343×108φ343×108φ380×165 φ380×165 Rear balance wheel （diameter*width）double wheels　φ180×76 φ180×76 φ204×76 φ204×76 Front treadb3(mm)1380138014161416Rear treadb4(mm)680680726726　　　　　　Tilt of fork, forward/backwardα/β(°)3/53/53/53/5Lifting heighth1(mm)3000450030004500Full free lifting heighth2(mm)12012101201368Height of mast closedh3(mm)2082214220822292Height of mast open(incl. boad-backrest)h4(mm)3970547039705470Overhead guard heighth5(mm)2251225122652265Height from pedal to overhead guardh6(mm)1881188118301830Pedal heighth7(mm)300300355355Min. ground clearanceh8(mm)80808080Height of load-backresth9(mm)970970970970Height of left/right leg h10(mm)404404404404Overall length(incl. forks)l1(mm)2098213822502300Forward distancel2(mm)562523783733Overall width b1(mm)1716171617521752Fork dimensionsl/e/s(mm)920×100×40920×100×40920×100×45920×100×45Body tail widthb2(mm)1090109011901190Width across forksb5(mm)230～710 230～710 222～750 222～750 Inner spacing of the legsb6(mm)856856892892Width of load-backrestb7(mm)1150115010881088Turning radiusWa(mm)1598159819751975Aisle width for side travel(1000*1000mm pallet)Axt(mm)2500250028002800　　　　　　Driving speed(load/unload)km/h7.5/8.57.5/8.57.8/9.07.8/9.0Lifting speed(load/unload)mm/s180/330180/330220/300220/300Lowering speed(load/unload)mm/s290/240290/240310/260310/260Max. climbing-straight ability (load/unload)(S2-5min)%(tanθ )≤10≤10≤10≤10Max. climbing-side ability (load/unload)(S2-5min)%(tanθ )≤5≤5≤5≤5Steering type　Electric Power Steering
 electric hydraulic power steeringElectric Power Steering
 electric hydraulic power steeringElectric Power Steering
 electric hydraulic power steeringElectric Power Steering
 electric hydraulic power steeringDriving wheel position display　LCD DisplayLCD DisplayLCD DisplayLCD DisplayBrake type　ElectromagneticElectromagneticElectromagneticElectromagnetic　　　　　　Driving motor type　ACACACACDriving motor power (S2-60min)kw4.54.55.55.5Lifting motor type　DCDCACACLifting motor power (S3-15%)kw7.57.58.68.6Battery voltage/capacityV/Ah48/30048/30048/40048/400　　　　　　Battery change type　Side PullSide PullSide pullSide pullCharger type　CDJ4840-20CDJ4840-20CDJ4850-30CDJ4850-30　　　　　　Video display　Tracking cameraTracking cameraTracking cameraTracking cameraExtra wide fork and four-fork structure　CustomizableCustomizableCustomizableCustomizableFork positioner　CustomizableCustomizableCustomizableCustomizableCustomized fork　CustomizableCustomizableCustomizableCustomizableDetails Images

Power system

Equipped with Chinese powerful and reliable battery  with excellent enviromental performance

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger driving space.
Standard export packing, triangular wood, strapping, foam bags.

Our factoryGate

Reception area

Office

Workshop

Certificate

BV

CE

SGS

ISO

Our team

Exhibision

In india Exhibition

Poland Exhibition

South Africa Exhibition

China Canton Fair

Our forklifts advantages

Safety

Intelligent starting system , forklift hanging gear start prevent function , it improves the operation safety and longer gearbox service life.

Hydraulic power brake system , large capacity accumulator , reliabledriving and emergency brakinge.

Overhead guard with high-strength steel plate one stamping , pro -vide driver more sophisticated security.

Standard equipped button parking brake , effectively prevent the hand brake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adiustable seat (adjustment up to 150 mm )and steering wheel.

All forklift models standard with hydraulic steering system, easy and comfort to operate.



Advancement

Word famous imported diesel and gasoline engine, Japan TCM gearbox for options,intelligent LCD instrument, CAN, Controller Area Network, real-timedisplay of engine and forklift’s Working information



Reliability

Cooling system meet the requirements of the China standard. Theinter-cooling, scattered water, oil scattered are independent lay-out, which gratly increase the engine, gearbox and other core components quality.Hydraulic system gives large-capacity oil absorption and oil returnfilter to ensure efficient work.Engine standard with two-stage filter design(cyclone type filter+air dry filter).



Reliable steering system

The steering system adopying new technology not only ensure steady steering, quick positioningand steering, but also ensure the driver' s safety.



A reliable mast

Emphasis on the inherent quality of the mast has provided operator a reliable security . Wide view mast makes vision more clearly.We adopted the mast channel which has the world-class quality .The corss-section of mast channel has been in -creased and the structure become more strong.



New drive and control system

Adop the international electric actuators and makes the truck steering more stable , and output power stronger .New electronic blanker improves the comfort and safety of the operation



High performance hydraulic system

Load sensing priority steering hydraulic system design , flexible steering , mast lift speed increased by 20%.

Tilt cylinder, lifting cylinder and steering cylinder are equipped with oil seal as standard; lifting cylinder is equipped with lowering buffer function as standard.



Comfortable driving space

All accessories like engine , gear boxare support by domestic and worldfamous brand , high quality , reliable after-sales.
