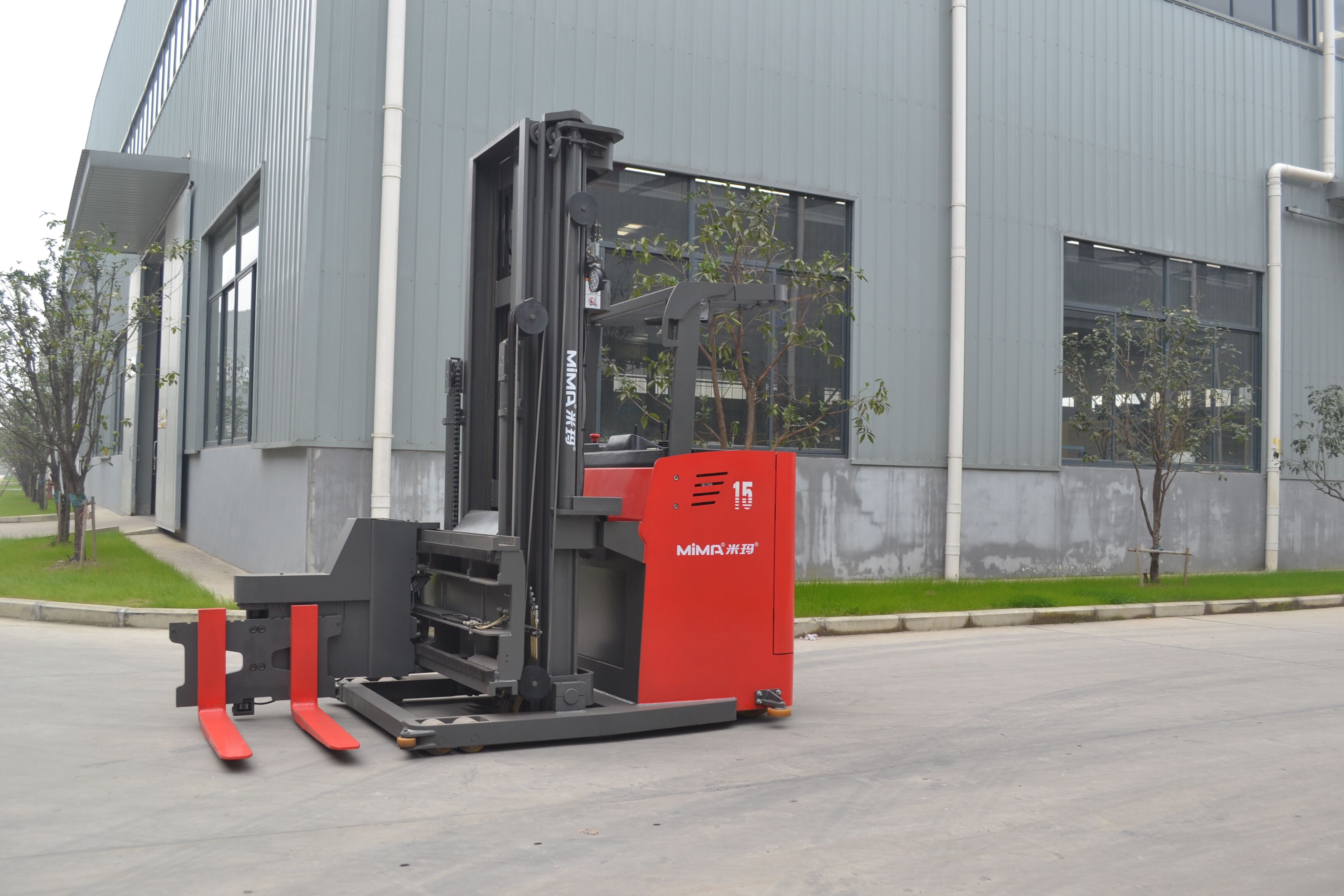

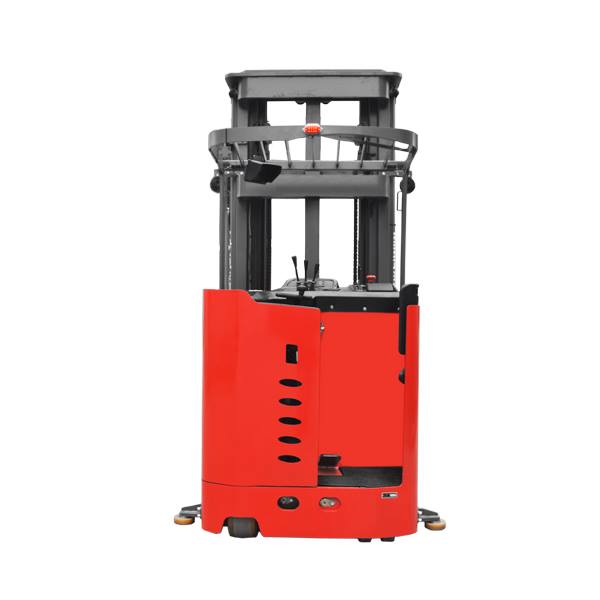

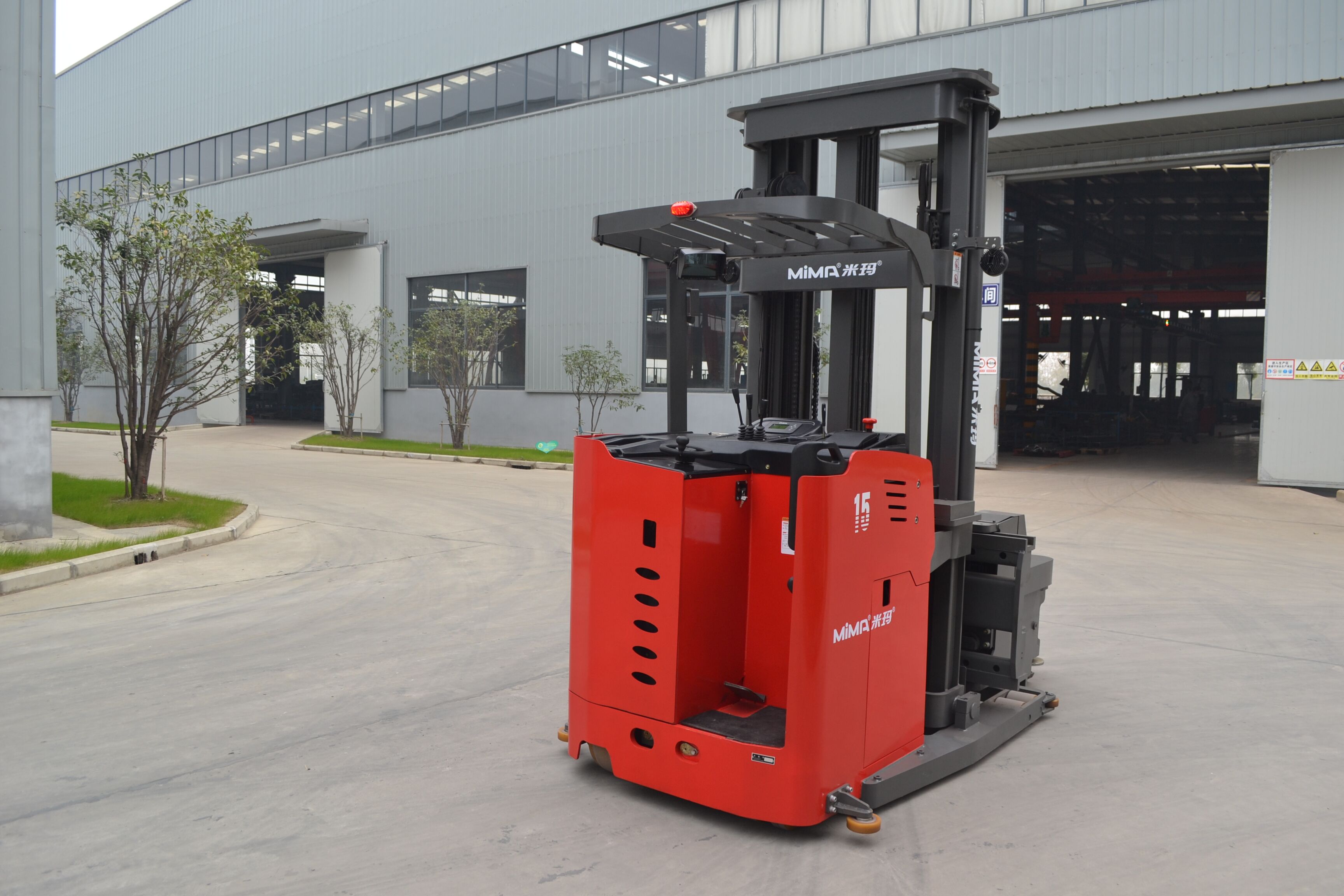

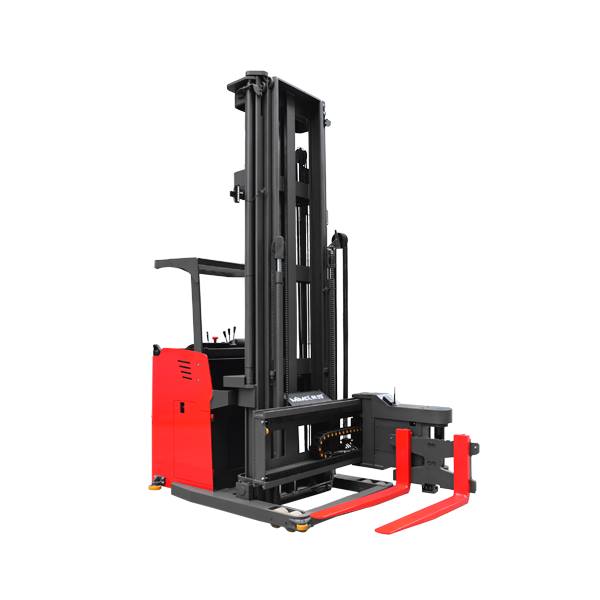

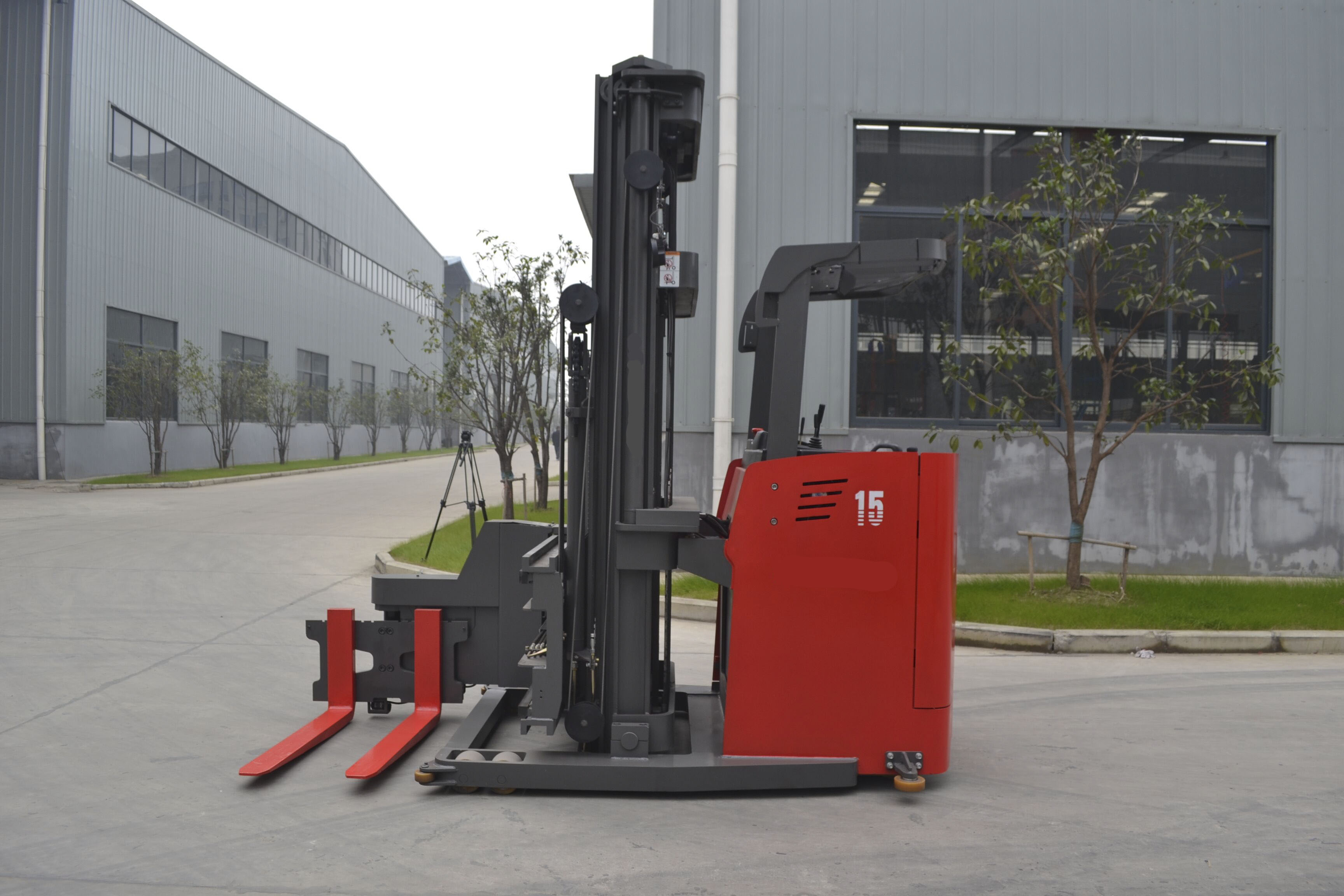

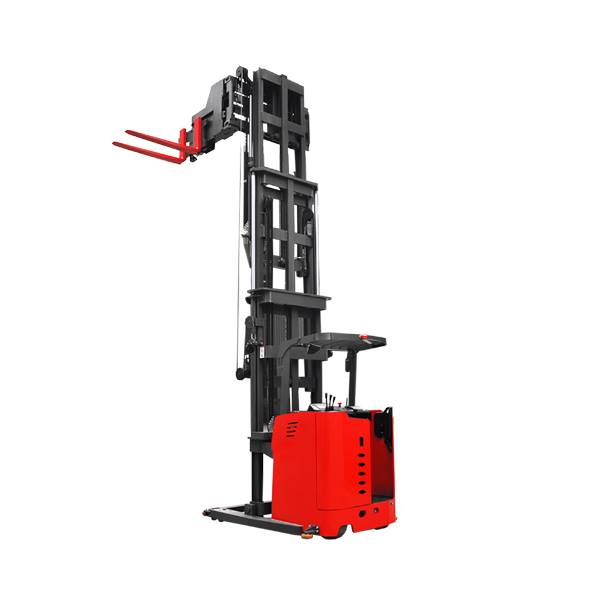

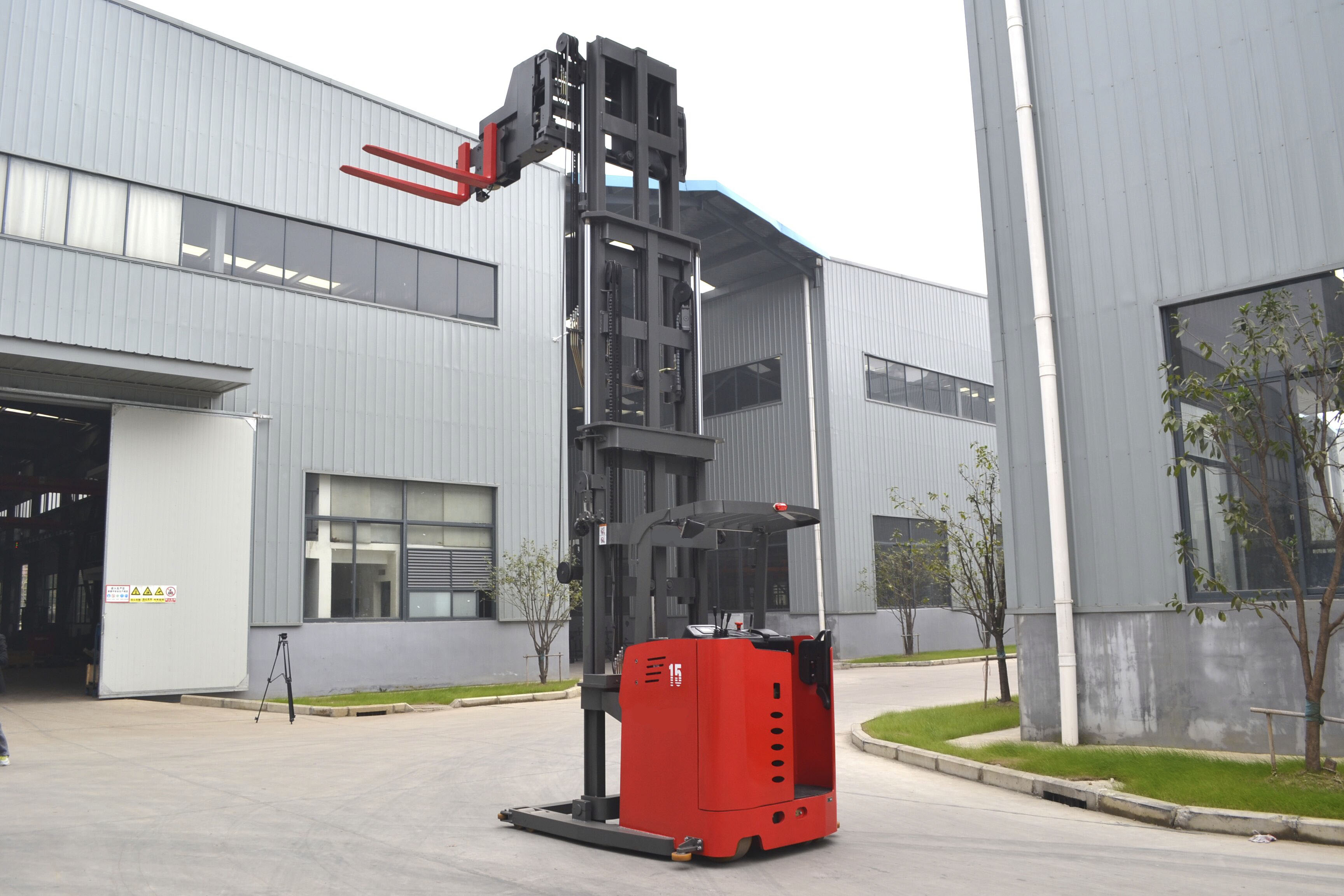

3- way pallet stacker



Standard　　　　　　　　1ManufacturerManufacturer　　VMAXVMAXVMAXVMAX1ModelModel　　MC10MC10SQMC15MC15SQ1Power TypePower Type　　BatteryBatteryBatteryBattery1Drive TypeOperation Type　　Stand-On TypeStand-On TypeStand-On TypeStand-On Type2Rated LoadRated Capacity　Q(kg)10001000150015002Load Center DistanceLoad Center　C(mm)5005006006002Front overhangFront Overhang　x(mm)6576576706702WheelbaseWheelbase　y(mm)1605160517001700Weight　　　　　　　　2Total Vehicle Weight (with Battery)Service weight(incl. battery)　kg42604800469055202.2Bridge Load at Full Load, Drive Side/Load-bearing sideLoad axle,drive side/load side　kg　　　　2.3Bridge Load at No Load, Drive Side/Load-bearing sideunload axle, drive side/load side　kg　　　　Tire　　　　　　　　3Tire Type, Drive Side/Load-bearing sideWheel type,drive side/load side　　PolyurethanePUPolyurethanePUPolyurethanePUPolyurethanePU3Tire Size, Load-Bearing SideTyre size,load side　mmφ140×100φ140×100φ140×127φ140×1273Tire Size, Drive SideTyre size, drive side　mmφ380×165φ380×165φ380×165φ380×1653Stabilizer Wheel SizeBalance wheel size　mmφ204×76φ204×76φ204×76φ204×764Wheel Count, Front/Rear(x=Drive wheel)Wheel quantity,front/rear(X= drive)　　4 /1x+24 /1X+24 /1x+24 /1X+24Track Width, Drive SideWheel tread,drive side　b10(mm)7267267267264Track Width, Load SideWheel tread,load side　b11(mm)1210121012801280Size　　　　　　　　4Mast Collapsed HeightHeight of mast closed　h1(mm)25952800256528234Free Lift HeightFull free lifting height　h2(mm)01690017454Lift HeightLifting height　h3(mm)30004500300045005Max Gate Height When Lifted(Load Guard)Height of mast with backrest　h4(mm)40855584404055555Guard Frame Heightoverhead guard height　h6(mm)2260/23002260/23002260/23002260/23005Platform HeightStation board height　h7(mm)3553553553554.19Overall Lengthoverall length　l1(mm)29062906298529854.21Overall Widthoverall width　b1(mm)14501450155015504.22Fork Dimensionsfork dimentions　l/e/s(mm)1000/125/501000/125/501200/125/501200/125/504.23Installation GradeInstallation level　　IIGradeATypeClass II AIIGradeATypeClass II AIIGradeATypeClass II AIIGradeATypeClass II A4.25Fork Outside WidthWidth across forks　b5(mm)265~760265~760265~760265~7604.32Minimum Ground Clearanceminimum guound clearance　m1(mm)404040404.34.1Stacking Aisle Width(Tray1000x1000)Stacking channel width(pallet1000x1000)　Ast(mm)14801480160016004.35Turning RadiusTurning radius　Wa(mm)1880188019801980Performance　　　　　　　　5Travel Speed, Full Load/No-LoadDrive speed,load/unload　km/h7.5/87.5/87.5/87.5/85Lifting Speed, Full Load/No-LoadLift speed.load/unload　mm/s240/290240/290200/250200/2505Lowering Speed, Full Load/No-LoadLower speed, load/unload　mm/s310/310310/310340/340340/3405.10Braking SystemBrake type　　MechanicalMechanicalMechanicalMechanicalDrive　　　　　　　　6Drive Motor Power(S2-60min)Driving motor power (S2-60min)　kw5.5 AC5.5 AC5.5 AC5.5 AC6Lifting Motor Power,(S3-15%)Lifting motor power (S3-15%)　kw8.6 AC8.6 AC8.6 AC8.6 AC6Battery, Voltage/Rated CapacityBattery voltage/capacity　V/Ah48/40048/40048/45048/4506.5Battery WeightBattery weight　kg6756757407406.6Steering SystemSteering system　　Electronic Power-Assisted electric Hydraulic power steering systemOther　　　　　　　　7Battery Replacement MethodBattery replace method　　Side pull

As one of the most famous material handling manufactures in China,we specialize in this field for over 10 years, with the strengthof diesel forklift , Electric forklift , LPG forklift , reach truck, pullet truck and stacker.

Now VMAX dealers has been wide spread in many countries like Russia, Australia,Turkey, Brazil, Mexico etc. Also We company had obtained the following certificates in this industry with the development of over 10 years:
1. CE certificate
2. ISO 9001:2008 Standard approved
3. BV&SGS Factory Audit Pass Report
4. Alibaba golden supplier for 7 years

Besides, we are always trying to be innovative and have won several patent certificate on forklift in China.
Currently the factory's capacity per year is 5000 sets(including all sorts of forklift) and averagely the leading production time is 20-30 days. While standing to expand our brand, we also gladly accept OEM based model in which you can pick Japan Engine/CurtisController/different forklift attachment and any you like.

VMAX do more than just selling product, but also provide material handling solution for customer. We're sure that it can satisfy your demand if needed.



Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m/ 5m/6m Side shifter, fork
positioner, longer forks, fork extension


Our forklift truck has the following features:

1.security

The whole system upgrades the intelligent starting system, prevents the vehicle from starting the transmission, improves the safety and improves the service life of the transmission;

Standard with hydraulic power braking system, equipped with excellent large capacity accumulator, improve the reliability of driving and emergency braking;

The roof protection frame adopts high strength steel plate as one body to press and shape, which provides a more thorough safety guarantee for the driver.

Standard button parking brake can prevent accidental release of handbrake.

 2.comfort

Cockpit ergonomic design, reasonable layout of each control device, equipped with front and rear adjustable envelop seats (up to 150mm) and steering wheel full series of model standard distribution fluid reversing system, easy to operate and comfortable.

 3.The advanced nature

High emission imported diesel and gas engines, Japanese original TCM transmission and other advanced core components can be selected.Intelligent liquid crystal instrument,CAN bus communication,CAN real-time display the engine and the car's various work information.

 4.reliability

According to the requirements of the engine cooling system optimization design, cold, oil and water separate layout, increase the reliability of the engine, such as box - speed core parts. Hydraulic system with large capacity of oil absorption and oil return filter, guarantee sustained efficient hydraulic system working engine air intake with two-stage filter design (whirlwind prefilter + dry type air filter).

 5.Reliable steering system

The use of new technology in steering system not only ensures stable steering, rapid positioning and steering, but also guarantees the safety of drivers.

6.Reliable lifting system

Pay attention to the internal quality of the solid door frame, for the operator to provide a reliable security.Wide view frame is standard for clearer view.Adopt high strength alloy channel steel, the quality is the best in the world.The portal frame channel section is enlarged to make the structure stronger.

7. New transmission and control system

The international leading electronic transmission device is adopted to make the vehicle more stable and the output power more powerful.The new electronic flameout device improves the operation comfort and safety.

 8.Superior performance of hydraulic system

Load sensor type priority steering hydraulic system design, to ensure flexible steering, while the speed of gantry lifting increased by 20%.

Oil seals are standard for inclined oil cylinder, lifting oil cylinder and steering oil cylinder.The lifting oil cylinder is equipped with drop buffer function.

9.Comfortable driving space

Wide leg mobile space, reasonable functional layout, to ensure the operator long time operation of comfort and safety.

For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
