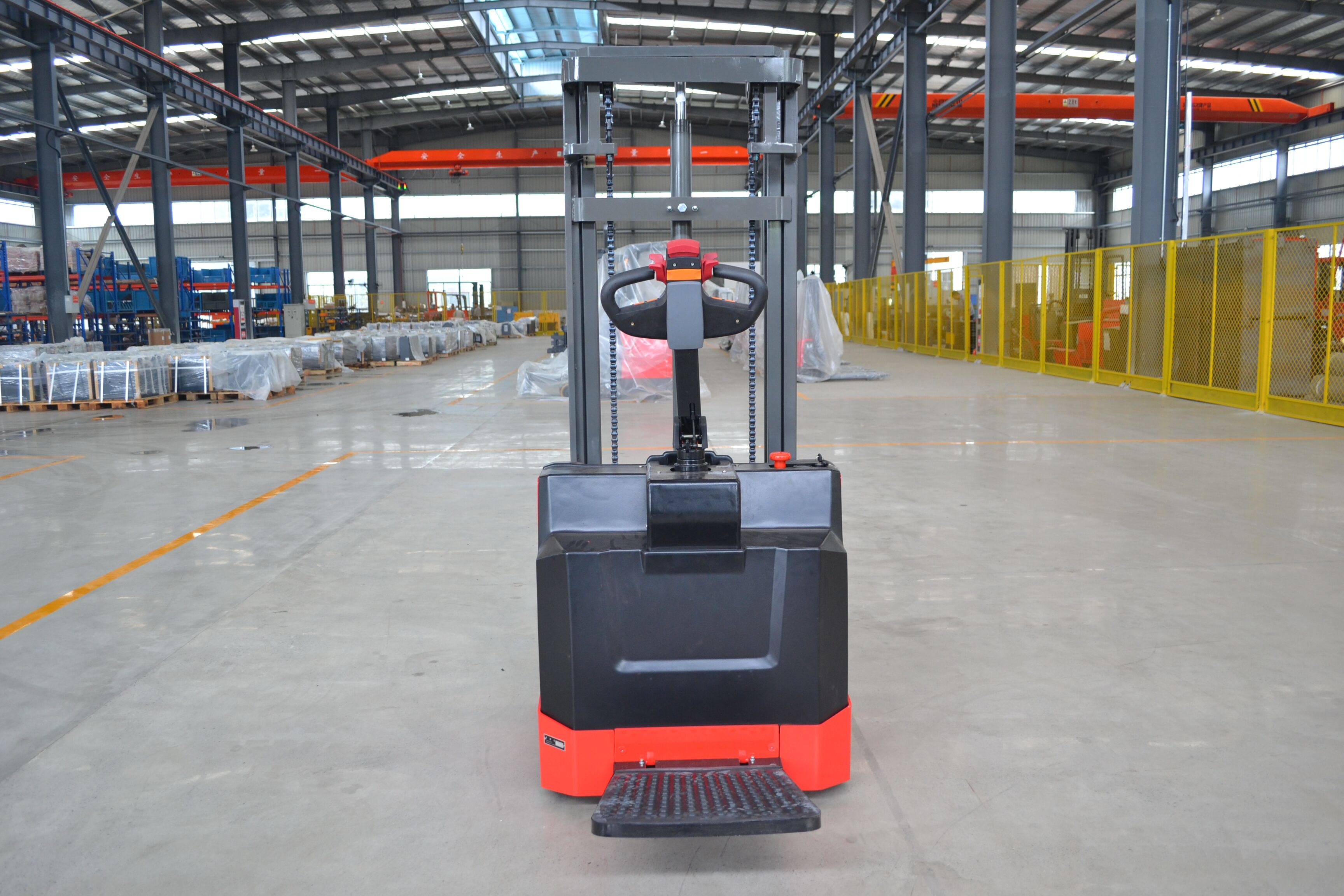

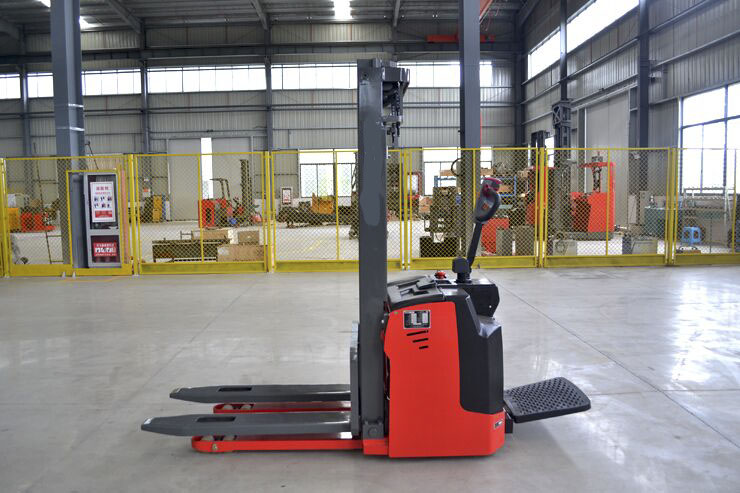

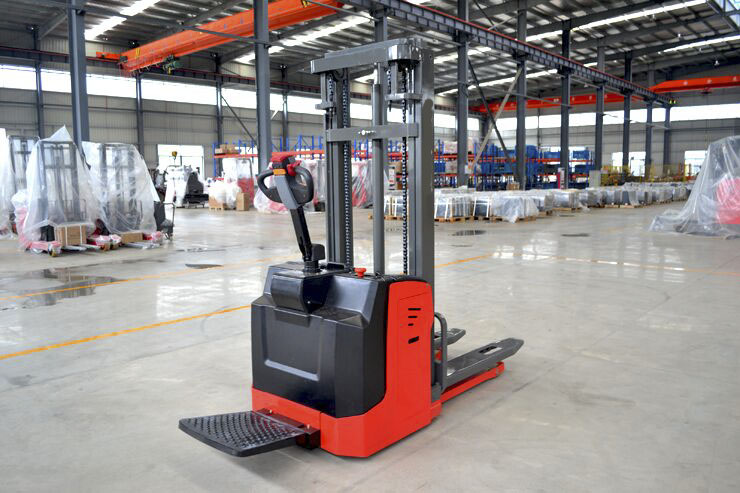

1.5T ELECTRIC PALLET STACKER

规格 Standard1.1品牌Brand　VMAXVMAXVMAXVMAX1.2型号Model　TBM15-16TBM15-30TBM20-16TBM20-301.3动力类型Power type　电动Battery电动Battery电动Battery电动Battery1.4操作方式Operation type　站板式Stand-on站板式Stand-on站板式Stand-on站板式Stand-on1.5额定载荷Loading capacityQ(kg)15001500150020001.6载荷中心距Loading centerC(mm)500500500500轮 , 轮辋 Tir , Ri2.1轮胎类型 前/后 Tire type　front/rear　聚氨酯/聚氨酯PU聚氨酯/聚氨酯PU聚氨酯/聚氨酯PU聚氨酯/聚氨酯PU2.2轮胎规格 前Front wheel　φ80×70φ80×70φ80×70φ80×702.3轮胎规格 后Driving wheel　φ230×75φ230×75φ230×75φ230×752.4轮胎数量 前轮/后轮(X=驱动)Wheel quantity　Front/Rear(X=driving)　4 /1X+24 /1X+24 /1X+24 /1X+2尺寸 Dimension3.1门架类型Mast type　单门架Single mast双门架Double mast单门架Single mast双门架Double mast3.2标准起升高度Lifting heighth1(mm)16003000160030003.3自由起升高度Free lifting heighth2(mm)1600/1600/3.4门架闭合高度Mast height(closed)h3(mm)20902025209020253.5起升时门架高度Mast height(open)h4(mm)20903506209035063.6货叉最小离地高度Lowered fork heighth5(mm)909090903.7整车长度 踏板展开/收起Overall length Pedal open/closedl1(mm)2518/20562518/20562518/20562518/20563.8至叉面长度 踏板展开/收起Overall length (without forks) pedal open/closedl2(mm)1368/9081368/9081368/9081368/9083.9轴距Wheelbasey(mm)13901390139013903.10整车宽度Overall widthb1(mm)8508508508503.11轮距 前/后Wheeltrack　front/rearb3(mm)490/630490/630490/630490/6303.12货叉规格Fork sizel/e/s(mm)1150/190/561150/190/561150/190/561150/190/563.13货叉外侧距Fork spreadb4(mm)6806806806803.14通道宽度(1000x1200托盘)踏板展开/收起Aisle(1000x1200 pallet)Ast(mm)2956/25102956/25102956/25102956/25103.15通道宽度(800x1200托盘)踏板展开/收起Aisle(800x1200 pallet)Ast(mm)2904/24592904/24592904/24592904/24593.16转弯半径 踏板展开/收起Turning radiusWa(mm)2101/16552101/16552101/16552101/1655
Details Images

Power system

Equipped with Chinese powerful and reliable battery  with excellent enviromental performance

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger driving space.Product packagingStandard export packing, triangular wood, strapping, foam bags.

Our factoryGate

Reception area

Office

Workshop

Certificate

BV

CE

SGS

ISO

Our team

Exhibision

In india Exhibition

Poland Exhibition

South Africa Exhibition

China Canton Fair

Our forklifts advantages

Safety

Intelligent starting system , forklift hanging gear start prevent function , it improves the operation safety and longer gearbox service life.

Hydraulic power brake system , large capacity accumulator , reliabledriving and emergency brakinge.

Overhead guard with high-strength steel plate one stamping , pro -vide driver more sophisticated security.

Standard equipped button parking brake , effectively prevent the hand brake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adiustable seat (adjustment up to 150 mm )and steering wheel.

All forklift models standard with hydraulic steering system, easy and comfort to operate.



Advancement

Word famous imported diesel and gasoline engine, Japan TCM gearbox for options,intelligent LCD instrument, CAN, Controller Area Network, real-timedisplay of engine and forklift’s Working information



Reliability

Cooling system meet the requirements of the China standard. Theinter-cooling, scattered water, oil scattered are independent lay-out, which gratly increase the engine, gearbox and other core components quality.Hydraulic system gives large-capacity oil absorption and oil returnfilter to ensure efficient work.Engine standard with two-stage filter design(cyclone type filter+air dry filter).



Reliable steering system

The steering system adopying new technology not only ensure steady steering, quick positioningand steering, but also ensure the driver' s safety.



A reliable mast

Emphasis on the inherent quality of the mast has provided operator a reliable security . Wide view mast makes vision more clearly.We adopted the mast channel which has the world-class quality .The corss-section of mast channel has been in -creased and the structure become more strong.



New drive and control system

Adop the international electric actuators and makes the truck steering more stable , and output power stronger .New electronic blanker improves the comfort and safety of the operation



High performance hydraulic system

Load sensing priority steering hydraulic system design , flexible steering , mast lift speed increased by 20%.

Tilt cylinder, lifting cylinder and steering cylinder are equipped with oil seal as standard; lifting cylinder is equipped with lowering buffer function as standard.



Comfortable driving space

All accessories like engine , gear boxare support by domestic and worldfamous brand , high quality , reliable after-sales.
