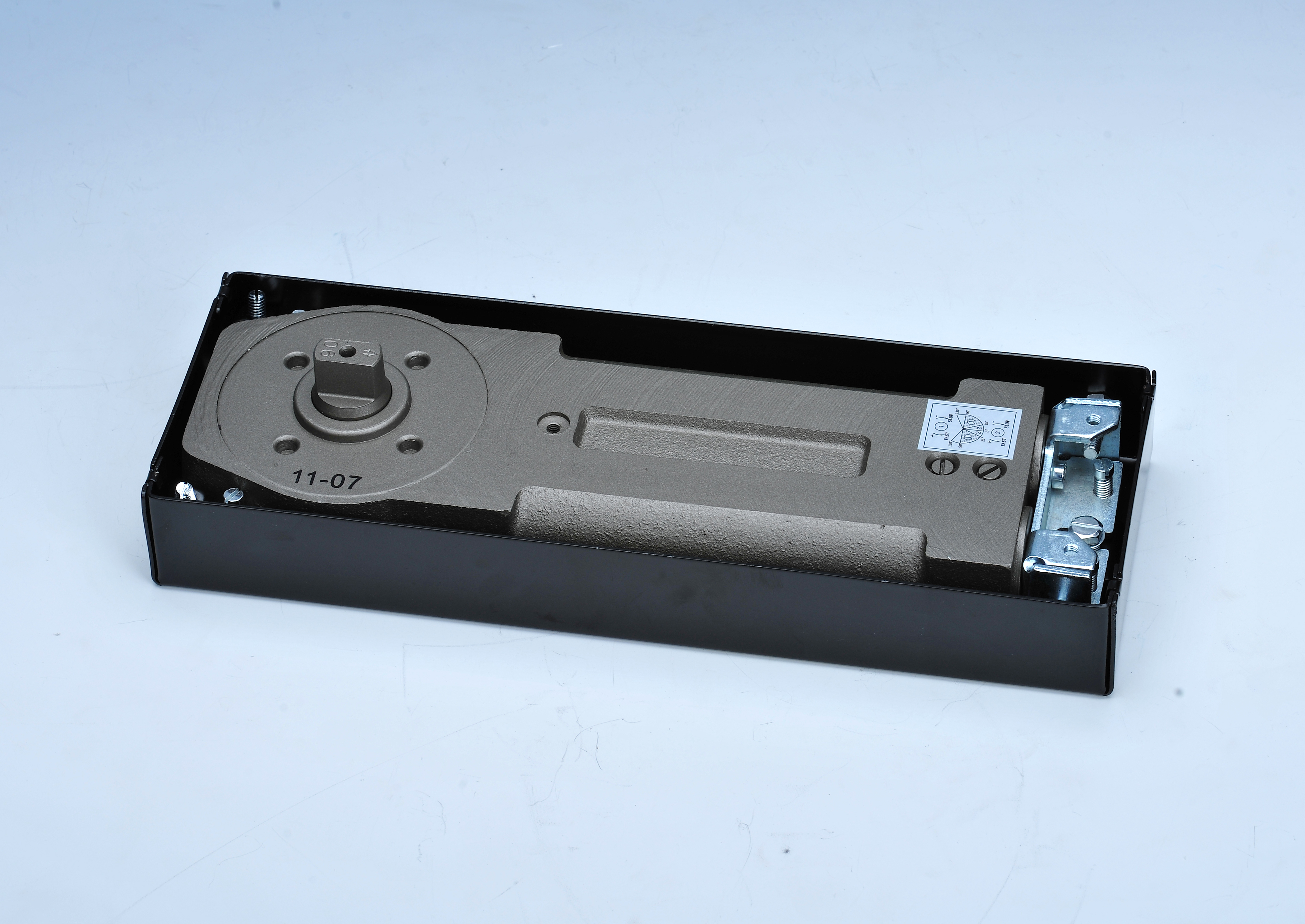

1-005 Zhicheng Door Control-Floor spring ZC300
ZHAOQING CITY ZHISHENG DOOR CONTROL CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
1-005 Zhicheng Door Control-Floor spring ZC300
ZHAOQING CITY ZHISHENG DOOR CONTROL CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: L305 X W108 X H40.5
- Exports to: Mainland China, Southeast Asia, South Asia, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Size: L305 X W108 X H40.5
- Exports to: Mainland China, Southeast Asia, South Asia, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Size | L305 X W108 X H40.5 |
|---|
Product details
| Size | L305 X W108 X H40.5 |
|---|
From the supplier
ZC 300
ZC 300
POWER
EN-2
EN-3
EN-4
MAXIMUM DOOR WIDTH
850 mm
950 mm
1100 mm
MAXIMUM DOOR WEIGHT
80 Kg
100 Kg
120 Kg
MAXIMUM OPENING ANGLE
130°
SPEED CONTROL 1
90° TO 25°
SPEED CONTROL 2
25° TO 0°
HOLD OPEN
105° & 90°
FLOOR SPRING WEIGHT
4.50 Kg
4.60 Kg
4.70 Kg
Length
305 mm
Width
108 mm
Height
40.5 mm
TESTED
500.000 Cycles
SPECIFICATIONS
- · Dual valves speed adjustment.
Speed 1 from 90° to 25°
Speed 2 from 25° to 0°
- · Maximum opening angle : 130°
- · Easy installation :
German standard sizes.
Suitable for left and right hand opening doors.
- · Once sealed in the cement, the position of the floor spring can be adjusted:
5 mm left to right.
7 mm on the length.
4 mm in height.
Please contact us in detail with jay@gdzhicheng.com/+86 18319399110
wechat number：18319399110
