YJV/YJLV-0.6/1-kV-Single-Core



Application:

This product is suitable for ac 50HZ, it can be used in line with rated voltage of 0.6/1kv power transmission and distribution. unable to bear external mech-anical force and pressure.

Construction ：

• 1) Conductor : Copper or aluminum ,Class 1 or Class 2,solid or stranded conductors
• 2) Insulation: Cross-linked polyethylene XLPE
• 3) Over sheath:Polyvinyl chloride PVC

SPECIFICATIONS:

IEC 60228 Conductors of insulate cables

IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV) .

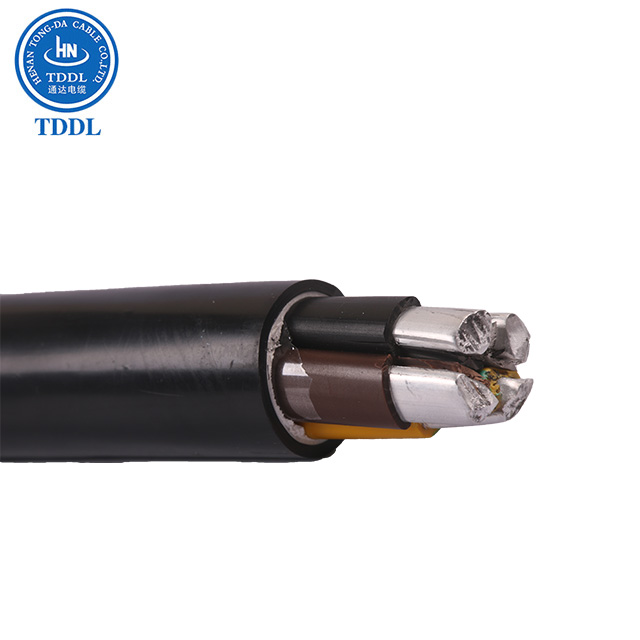

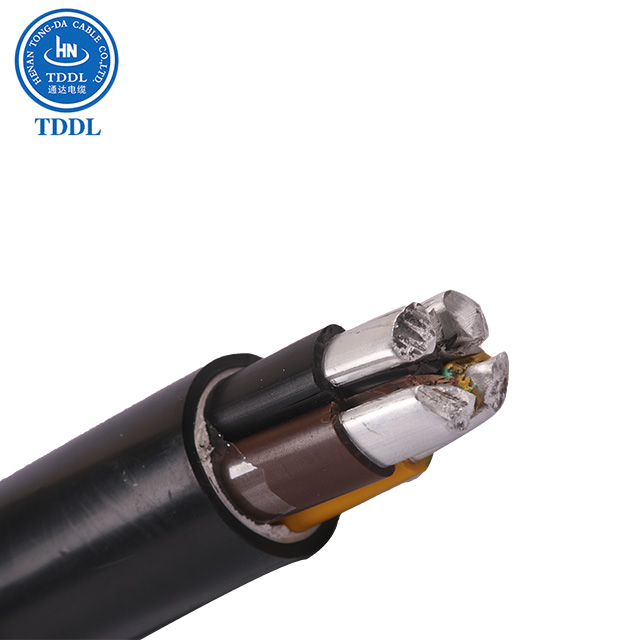

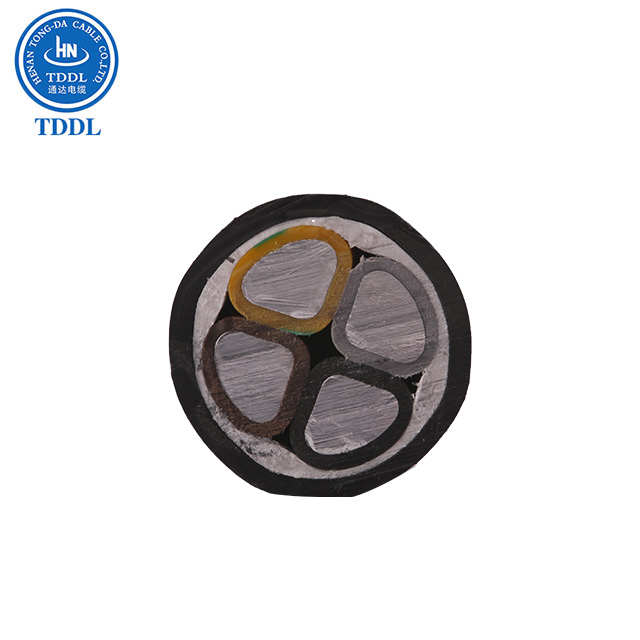

YJV/YJLV-0.6-1-kV-Multi-Core

Application:

This product is suitable for ac 50HZ, it can be used in line with rated voltage of 0.6/1kv power transmission and distribution. unable to bear external mech-anical force and pressure.

Construction ：

• 1) Conductor : Copper or aluminum ,Class 1 or Class 2,solid or stranded conductors
• 2) Insulation: Cross-linked polyethylene XLPE
• 3) Filler:Non-hygroscopic material
• 4) Binder tape:Non-hygroscopic material
• 5) Oversheath:Polyvinyl chloride PVC

SPECIFICATIONS:

IEC 60228 Conductors of insulate cables

IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)



0.6/1kV-1 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)1X100.7 1.4 8.0 753.0855711X160.7 1.4 9.0 1061.9171911X250.9 1.4 10.6 1501.20 941151X350.9 1.4 11.6 1800.8681151401X501.0 1.4 13.1 2400.6411401651X701.1 1.4 15.0 3200.4431802051X951.1 1.5 16.8 4000.320 2202451X1201.2 1.5 18.4 5000.2532602801X1501.4 1.6 20.5 6000.2063003151X1851.6 1.6 22.6 7300.1643503601X2401.7 1.7 25.2 9300.1254144201x3001.8 1.8 27.8 11400.100 4854751x4002.0 1.9 31.4 15000.0778 5705451x5002.2 2.0 34.9 18000.06056706201X6302.4 2.2 39.1 22850.04697907050.6/1kV-2 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)2X100.7 1.8 15.4 2003.0858782X160.7 1.8 17.4 2701.91751002X250.9 1.8 20.5 3801.20 1001302X350.9 1.8 22.5 4800.8681201552X501.0 1.8 20.3 4900.6411501852X701.1 1.8 23.3 6300.4431902252X951.1 1.9 26.2 8200.320 2352752X1201.2 2.0 29.4 10000.2532753152X1501.4 2.2 32.6 12500.2063153502X1851.6 2.3 36.0 15400.1643653950.6/1kV-3 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)3X100.7 1.8 17.2 2503.0850663X160.7 1.8 19.4 3301.9165853X250.9 1.8 22.8 4801.20 871103X350.9 1.8 25.0 5800.8681051303X501.0 1.8 24.4 6700.6411301603X701.1 1.9 29.4 9100.4431651953X951.1 2.0 33.6 11700.320 2052353X1201.2 2.1 35.9 14600.2532402653X1501.4 2.3 39.9 18200.2062703003X1851.6 2.4 44.1 22000.1643153403X2401.7 2.6 51.1 28500.1253753953X3001.8 2.7 56.1 35000.100 4354453X4002.0 3.0 62.4 45000.0778 5105100.6/1kV-4 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)4X100.7 1.8 18.6 3003.0850664X160.7 1.8 21.0 4001.9165854X250.9 1.8 24.9 5701.20 871104X350.9 1.8 28.3 7100.8681051304X501.0 1.8 28.4 8500.6411301604X701.1 2.033.1 11600.4431651954X951.1 2.137.1 15200.320 2052354X1201.2 2.240.8 18980.2532402654X1501.4 2.445.2 23690.2062703004X1851.6 2.652.1 29250.1643153404X2401.7 2.857.8 37000.1253753954X3001.8 3.063.5 45800.100 4354454X4002.0 3.370.9 58000.0778 5105100.6/1kV-5 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)5X100.7 1.8 18.8 3603.0850665X160.7 1.8 21.8 4851.9165855X250.9 1.8 26.2 6901.20 871105X350.9 1.8 28.0 8650.8681051305X501.0 1.9 32.4 11380.6411301605X701.1 2.137.4 15750.4431651955X951.1 2.241.7 20680.320 2052355X1201.2 2.446.2 25500.2532402655X1501.4 2.653.1 31650.2062703005X1851.6 2.858.9 39500.1643153405X2401.7 3.065.6 50250.1253753955X3001.8 3.272.0 61900.100 4354450.6/1kV-3+1 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)3X16+1X100.7/0.71.8 19.4 3701.91/3.0865853X25+1X160.9/0.71.8 22.8 5201.20/1.91871103X35+1X160.9/0.71.8 25.1 6500.868/1.911051303X50+1X251.0/0.91.8 28.2 7800.641/1.201301603X70+1X351.1/0.91.9 31.9 10500.443/0.8681651953X95+1X501.1/1.02.135.7 14600.320/0.6412052353X120+1X701.2/1.12.239.6 18200.253/0.4432402653X150+1X701.4/1.12.343.6 21500.206/0.4432703003X185+1X951.6/1.12.549.8 27250.164/0.3203153403X240+1X1201.7/1.22.755.3 34800.125/0.2533753953X300+1X1501.8/1.42.957.0 42300.100/0.2064354453X400+1X1852.0/1.73.170.0 55200.0778/0.1645105100.6/1kV-4+1 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)4X16+1X100.7/0.71.8 21.3 4501.91/3.0865854X25+1X160.9/0.71.8 25.7 6501.20/1.91871104X35+1X160.9/0.71.8 28.2 7950.868/1.911051304X50+1X251.0/0.91.9 28.9 10200.641/1.201301604X70+1X351.1/0.92.0 32.2 13600.443/0.8681651954X95+1X501.1/1.02.236.9 18700.320/0.6412052354X120+1X701.2/1.12.340.8 23420.253/0.4432402654X150+1X701.4/1.12.544.7 27780.206/0.4432703004X185+1X951.6/1.12.750.7 34950.164/0.3203153404X240+1X1201.7/1.22.956.4 44160.125/0.2533753954X300+1X1501.8/1.43.164.0 54220.100/0.2064354450.6/1kV-3+2 core aluminum conductor XLPE insulated PVC sheathed power cableNo. of cores and nominal cross sectionThickness of Insulation Thickness of SheathApprox. overall DiameterApprox. weightMax. DC resistance of conductor（20℃）Current carrying capacity(mm2)(mm)(mm)(mm)(kg/km)(Ω/km)In Air(A)In Ground(A)3X16+2X100.7/0.71.8 20.8 4251.91/3.0865853X25+2X160.9/0.71.8 25.2 6001.20/1.91871103X35+2X160.9/0.71.8 26.8 7200.868/1.911051303X50+2X251.0/0.91.9 28.7 9550.641/1.201301603X70+2X351.1/0.92.0 33.7 12300.443/0.8681651953X95+2X501.1/1.02.238.3 17060.320/0.6412052353X120+2X701.2/1.12.343.2 21800.253/0.4432402653X150+2X701.4/1.12.446.5 25250.206/0.4432703003X185+2X951.6/1.12.651.9 31950.164/0.3203153403X240+2X1201.7/1.22.858.0 40500.125/0.2533753953X300+2X1501.8/1.43.064.2 49830.100/0.206435445
