Zhouxiang Group Welding and Straightening Integrated Machine, Metal Processing Equipment
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Zhouxiang Group Welding and Straightening Integrated Machine, Metal Processing Equipment
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: Image Dimensions
- Color: Image color
- Control type: Other
- Automatic grade: Other
- Customized: Customized
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: Image Dimensions
- Color: Image color
- Control type: Other
- Automatic grade: Other
- Customized: Customized
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | Image Dimensions |
|---|---|
| Color | Image color |
| Control type | Other |
| Automatic grade | Other |
| Customized | Customized |
| Certification | Other |
Product details
| Size | Image Dimensions |
|---|---|
| Color | Image color |
| Control type | Other |
| Automatic grade | Other |
| Customized | Customized |
| Certification | Other |
From the supplier

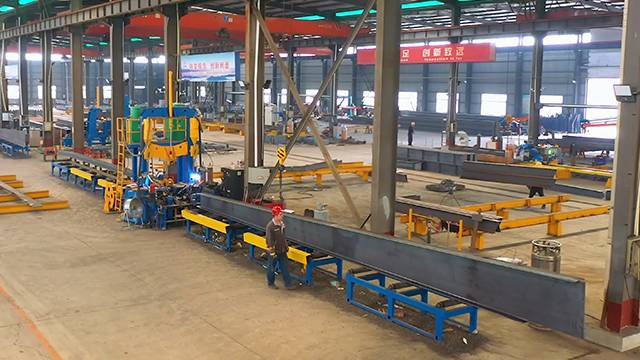

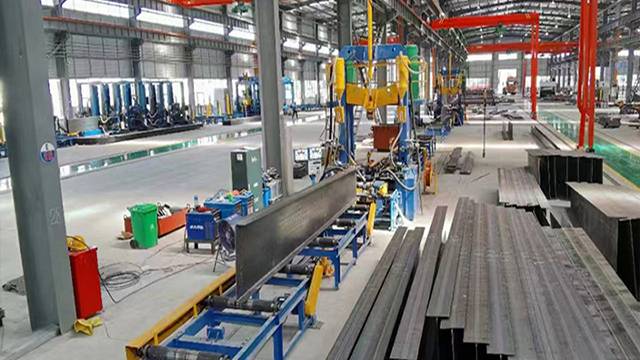

H-beam assembling, welding and straightening machine is a high-efficiency equipment for the production of h beam. Traditional beam production line requires 5 workers, our 3 in 1 beam production line only needs 2 workers.- assembly, welding and straightening at the same time. The total length of traditional beam production line is about 90m, while 3 in 1 beam production line is about 30m lo, which saves two-thirds of loor area.
Products Description
Parameter

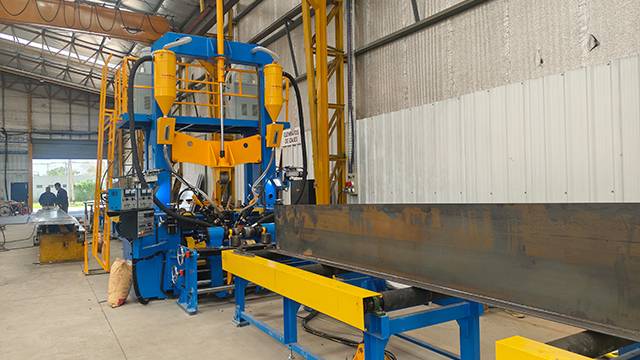

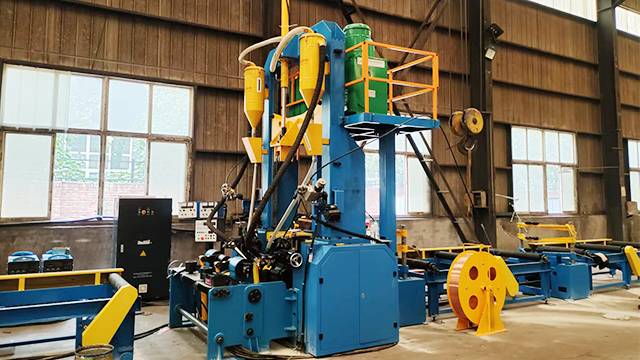

H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.
H beam assembling, welding, straightening machine
Metric units：
Web plate height
160~1500 mm
Web plate thickness
6~16 mm
Flange plate width
50~800 mm
Flange plate thickness
6~20 mm
H beam length
6000~15000mm or as user’s request
Assembly and welding speed
0.35~3 m/min
Main machine power
0.55kw*4=2.2kW
Roller conveyor motor power
4 kW
Flux recycling machine motor power
3kw*2=6 kW
Pump station power
4 kW
Welding source power
69kW*2=138kW
Above are our standard model, it can be designed and manufactured according to customer’s request.
Web plate height
7 7/8＂~ 49 1/5＂
Web plate thickness
15/64＂~ 5/8＂
Flange plate width
7 7/8＂~ 31 1/2＂
Flange plate thickness
15/64＂~ 25/32＂
H beam length
19＇8 5/32＂~ 49＇2 13/32＂ or as user’s request
Assembly and welding speed
0.35~3m/min
Main machine power
4 HP
Roller conveyor motor power
4 x 1HP= 4 HP
Flux recycling machine motor power
2 x 4 HP= 8 HP
Pump station power
5.36 HP
Welding source power
2 x 92.5HP = 185 HP
Above are our standard model, it can be designed and manufactured according to customer’s request.
Product Advantages
From the supplier
H-beam assembling, welding and straightening machine is a high-efficiency equipment for the production of h beam. Traditional beam production line requires 5 workers, our 3 in 1 beam production line only needs 2 workers.- assembly, welding and straightening at the same time. The total length of traditional beam production line is about 90m, while 3 in 1 beam production line is about 30m lo, which saves two-thirds of loor area.
Products Description
Parameter
H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.
H beam assembling, welding, straightening machine
Metric units：
Web plate height
160~1500 mm
Web plate thickness
6~16 mm
Flange plate width
50~800 mm
Flange plate thickness
6~20 mm
H beam length
6000~15000mm or as user’s request
Assembly and welding speed
0.35~3 m/min
Main machine power
0.55kw*4=2.2kW
Roller conveyor motor power
4 kW
Flux recycling machine motor power
3kw*2=6 kW
Pump station power
4 kW
Welding source power
69kW*2=138kW
Above are our standard model, it can be designed and manufactured according to customer’s request.
Web plate height
7 7/8＂~ 49 1/5＂
Web plate thickness
15/64＂~ 5/8＂
Flange plate width
7 7/8＂~ 31 1/2＂
Flange plate thickness
15/64＂~ 25/32＂
H beam length
19＇8 5/32＂~ 49＇2 13/32＂ or as user’s request
Assembly and welding speed
0.35~3m/min
Main machine power
4 HP
Roller conveyor motor power
4 x 1HP= 4 HP
Flux recycling machine motor power
2 x 4 HP= 8 HP
Pump station power
5.36 HP
Welding source power
2 x 92.5HP = 185 HP
Above are our standard model, it can be designed and manufactured according to customer’s request.
Product Advantages
