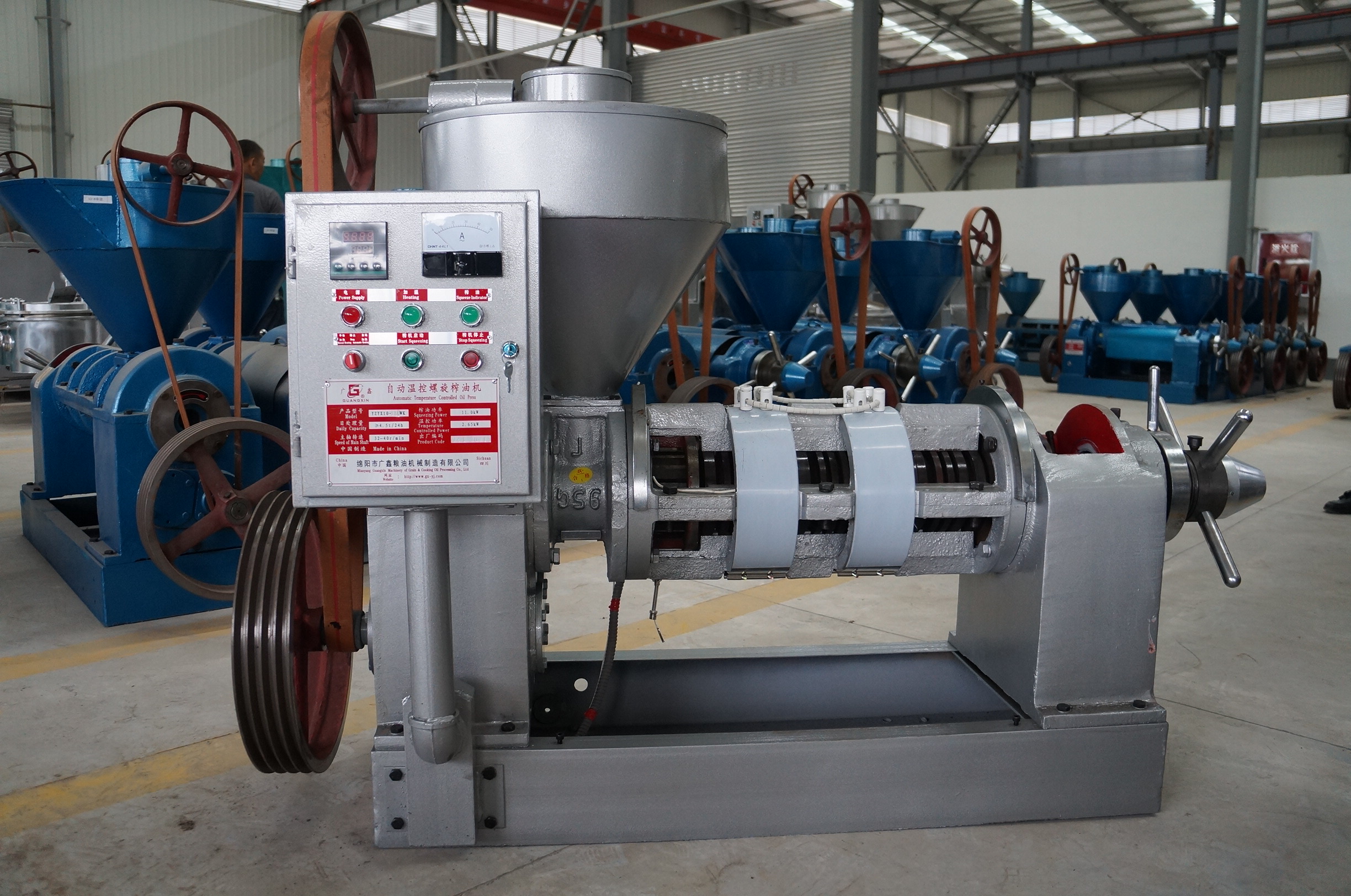

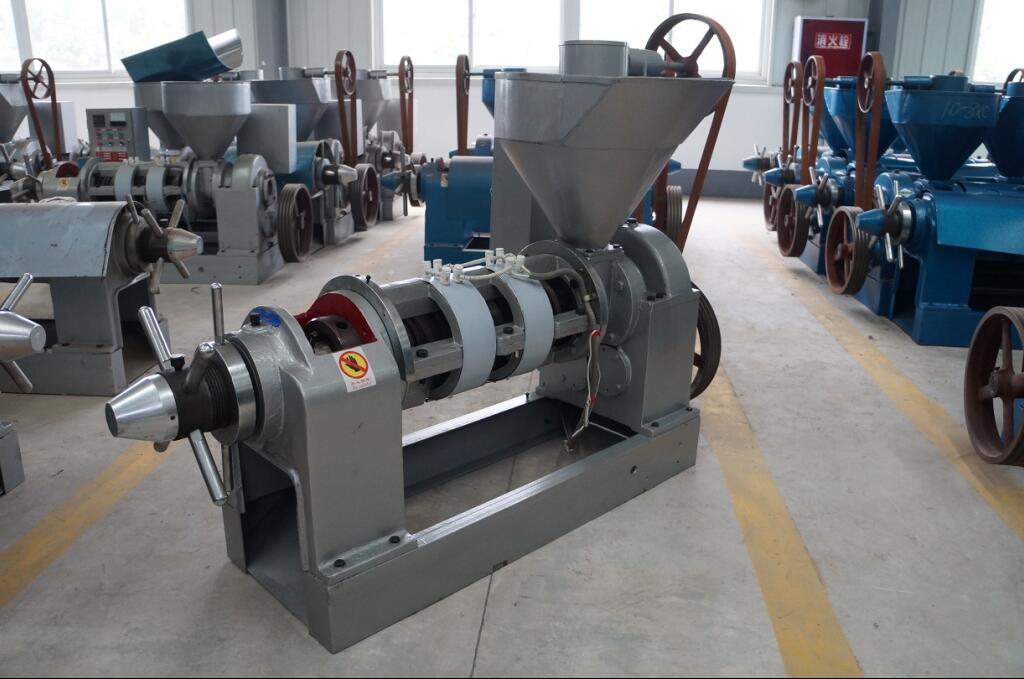

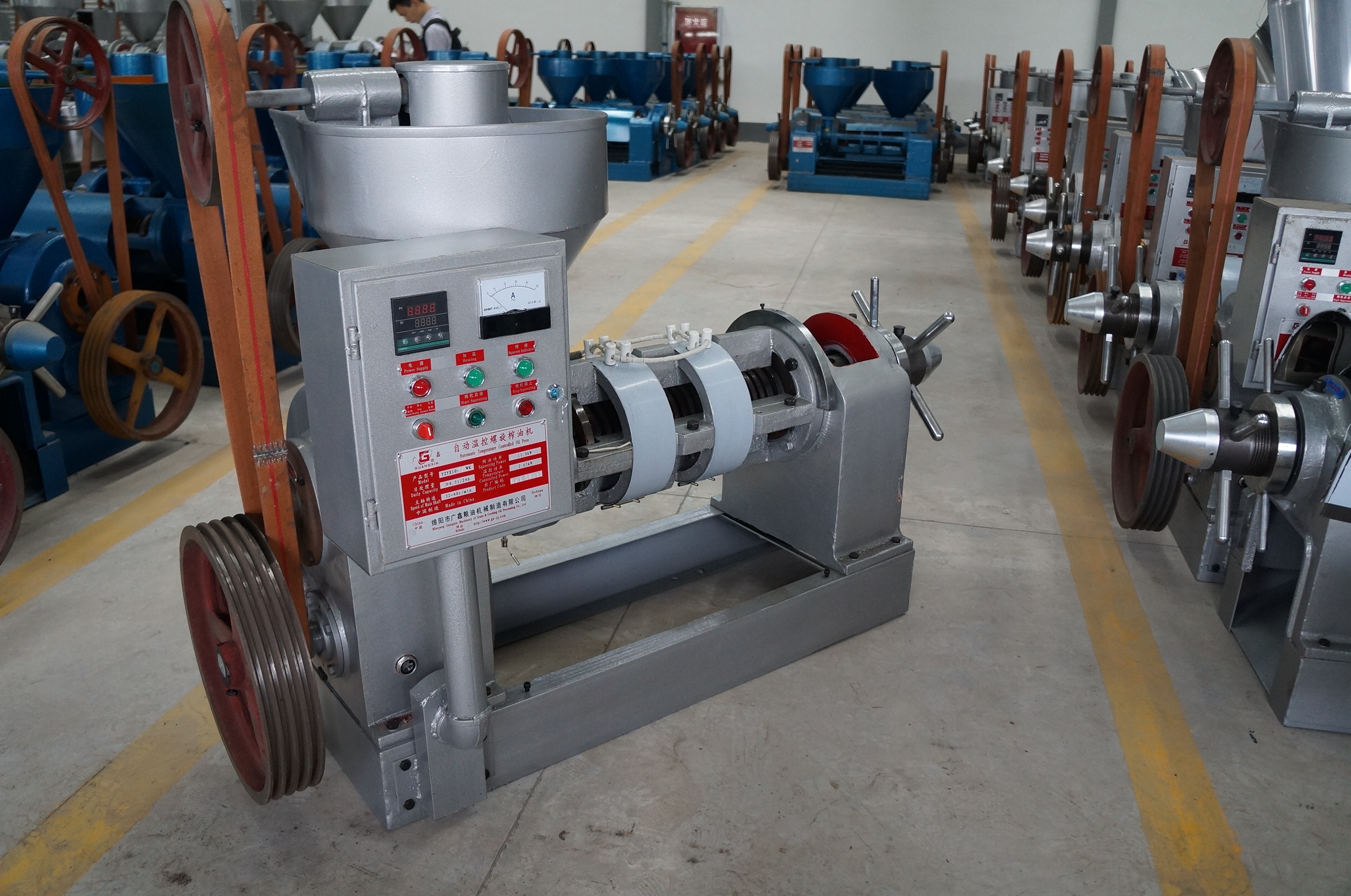

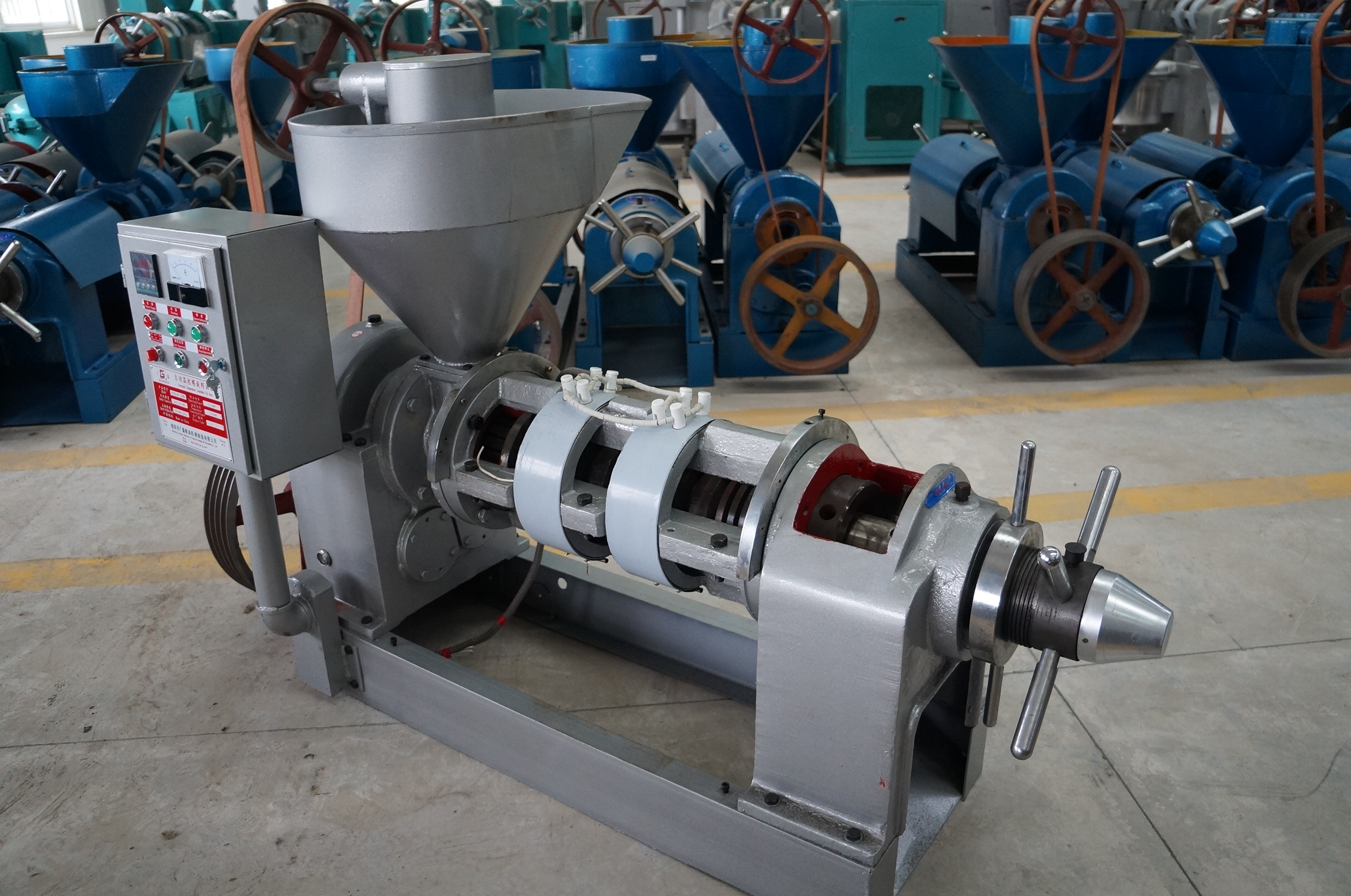

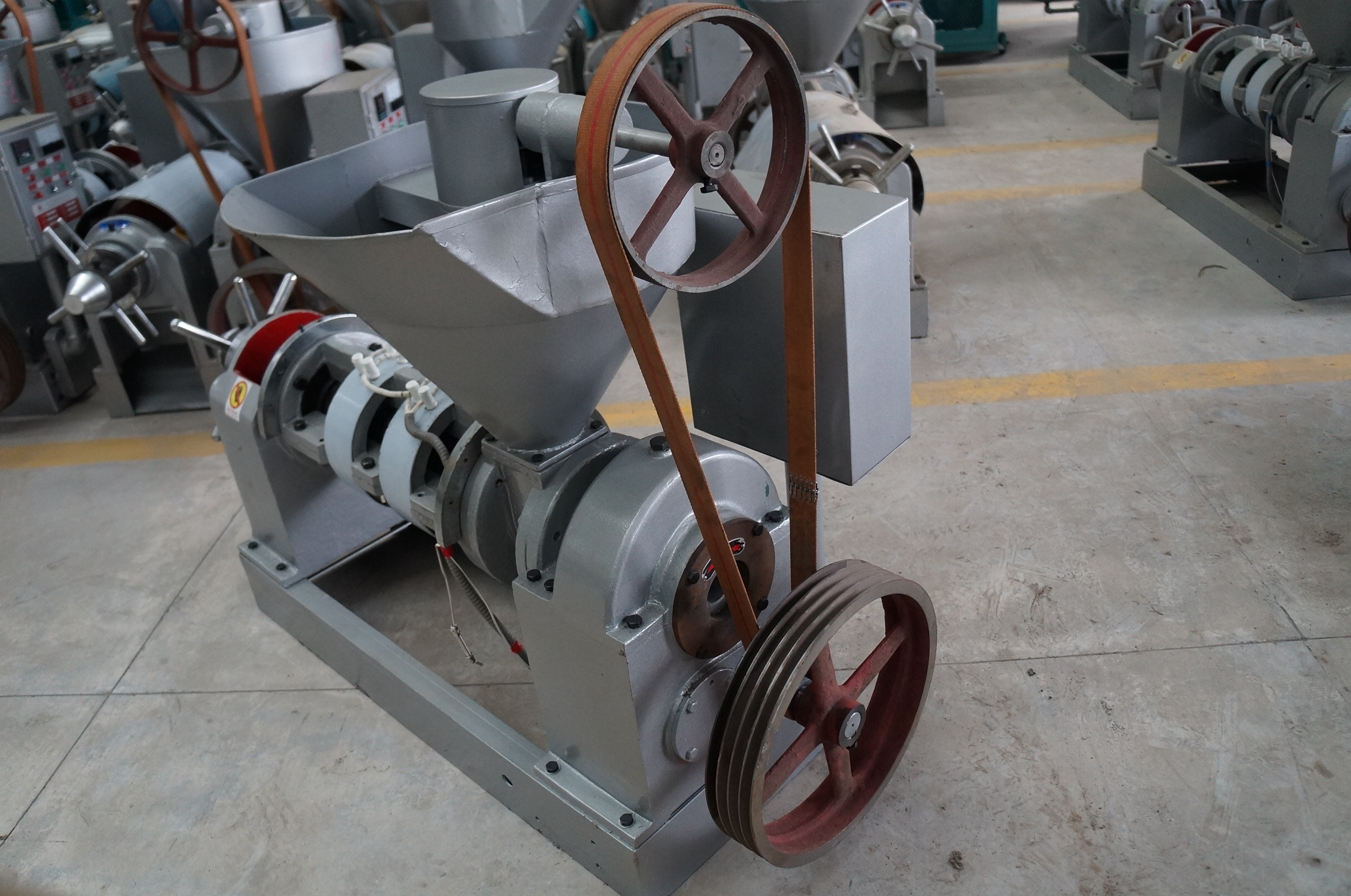

YZYX90WK Temperature Control Screw Oil Press
Mian Yang Guang Xin Import & Export Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
YZYX90WK Temperature Control Screw Oil Press
Mian Yang Guang Xin Import & Export Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: stainless steel,carbon steel,iron
- Size: L1250*W690*H1140
- Color: Sliver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
About this product
- Materials: stainless steel,carbon steel,iron
- Size: L1250*W690*H1140
- Color: Sliver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
Product details
| Materials | stainless steel,carbon steel,iron |
|---|---|
| Size | L1250*W690*H1140 |
| Color | Sliver |
Product details
| Materials | stainless steel,carbon steel,iron |
|---|---|
| Size | L1250*W690*H1140 |
| Color | Sliver |
From the supplier
Technical Specification:
Model
YZYX90-（2）WKRevolving speed of spiral axis (r/min)
36～42
Power required（kw）
5.5, 4 pole
Power of heater（kw）≥2.0
Measurement (mm)
1200×550×1000
Weight (kg)
285
Note:
This weight is without electro-motor’s weight.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously hot squeezed with all auxiliary equipments after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity (t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥3.0
≤7.8
≥81
≤34
Cotton seeds
≥3.0
≤7.3
≥76
≤54
Soybean
≥2.6
≤6.8
≥66
≤51
Peanut
≥3.0
≤6.8
≥92
≤34
Performance Characteristics:
Our series YZYX90spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.
YZYX90WK is basic 2-step-squeezing spiral oil press.
YZYX90-2WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
From the supplier
Technical Specification:
Model
YZYX90-（2）WKRevolving speed of spiral axis (r/min)
36～42
Power required（kw）
5.5, 4 pole
Power of heater（kw）≥2.0
Measurement (mm)
1200×550×1000
Weight (kg)
285
Note:
This weight is without electro-motor’s weight.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously hot squeezed with all auxiliary equipments after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity (t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥3.0
≤7.8
≥81
≤34
Cotton seeds
≥3.0
≤7.3
≥76
≤54
Soybean
≥2.6
≤6.8
≥66
≤51
Peanut
≥3.0
≤6.8
≥92
≤34
Performance Characteristics:
Our series YZYX90spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.
YZYX90WK is basic 2-step-squeezing spiral oil press.
YZYX90-2WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
