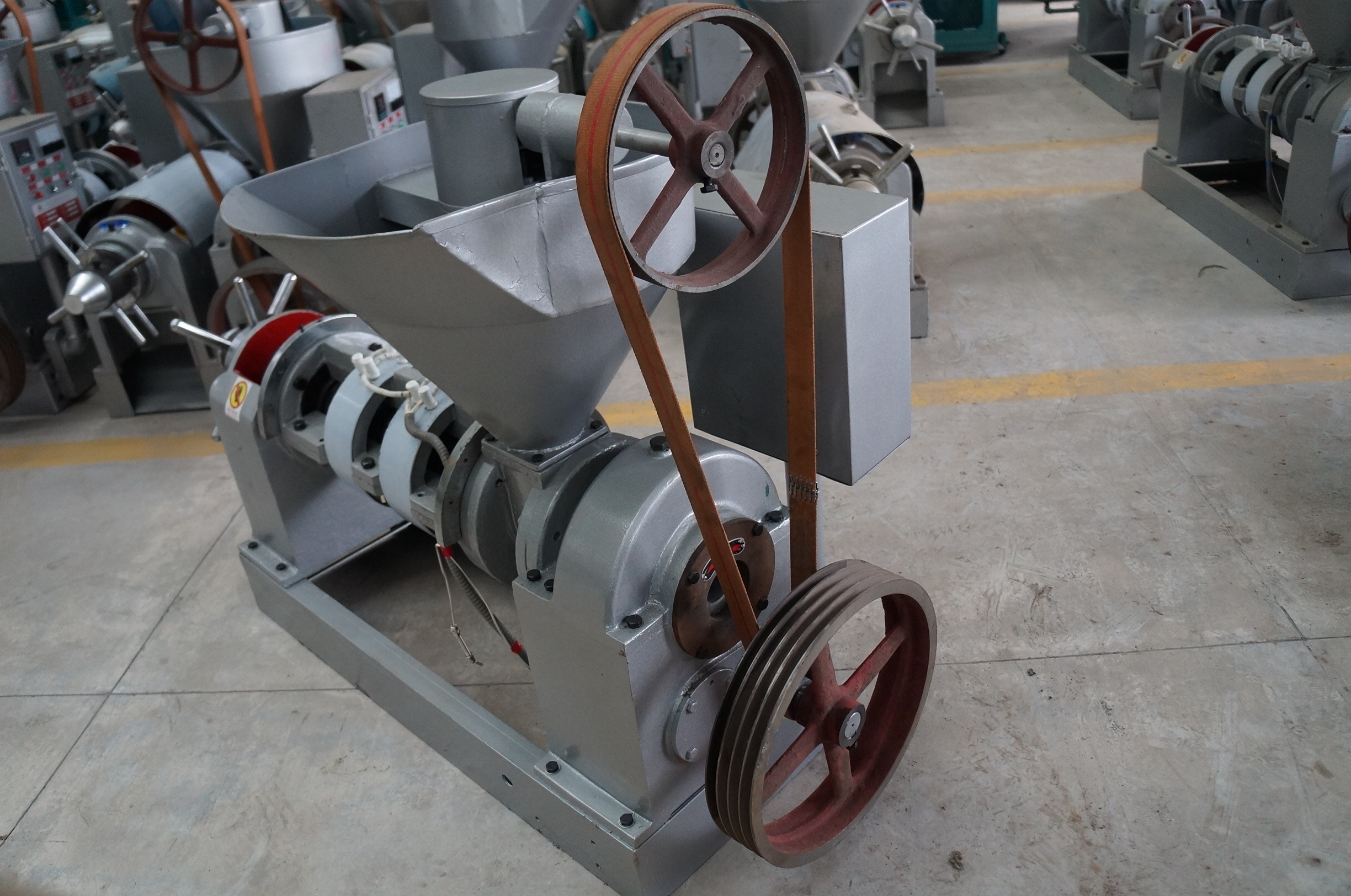

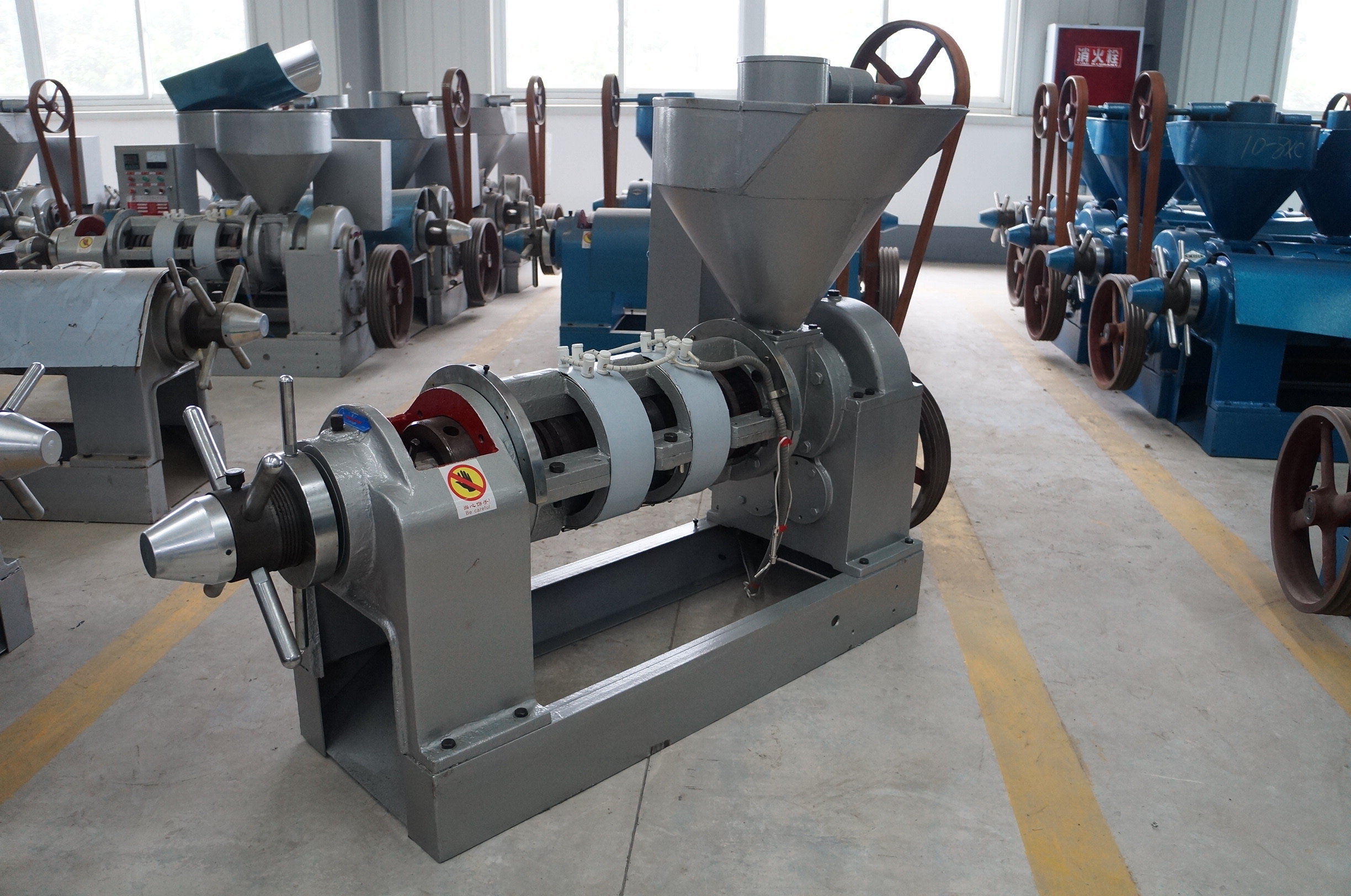

Our series YZYX90 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

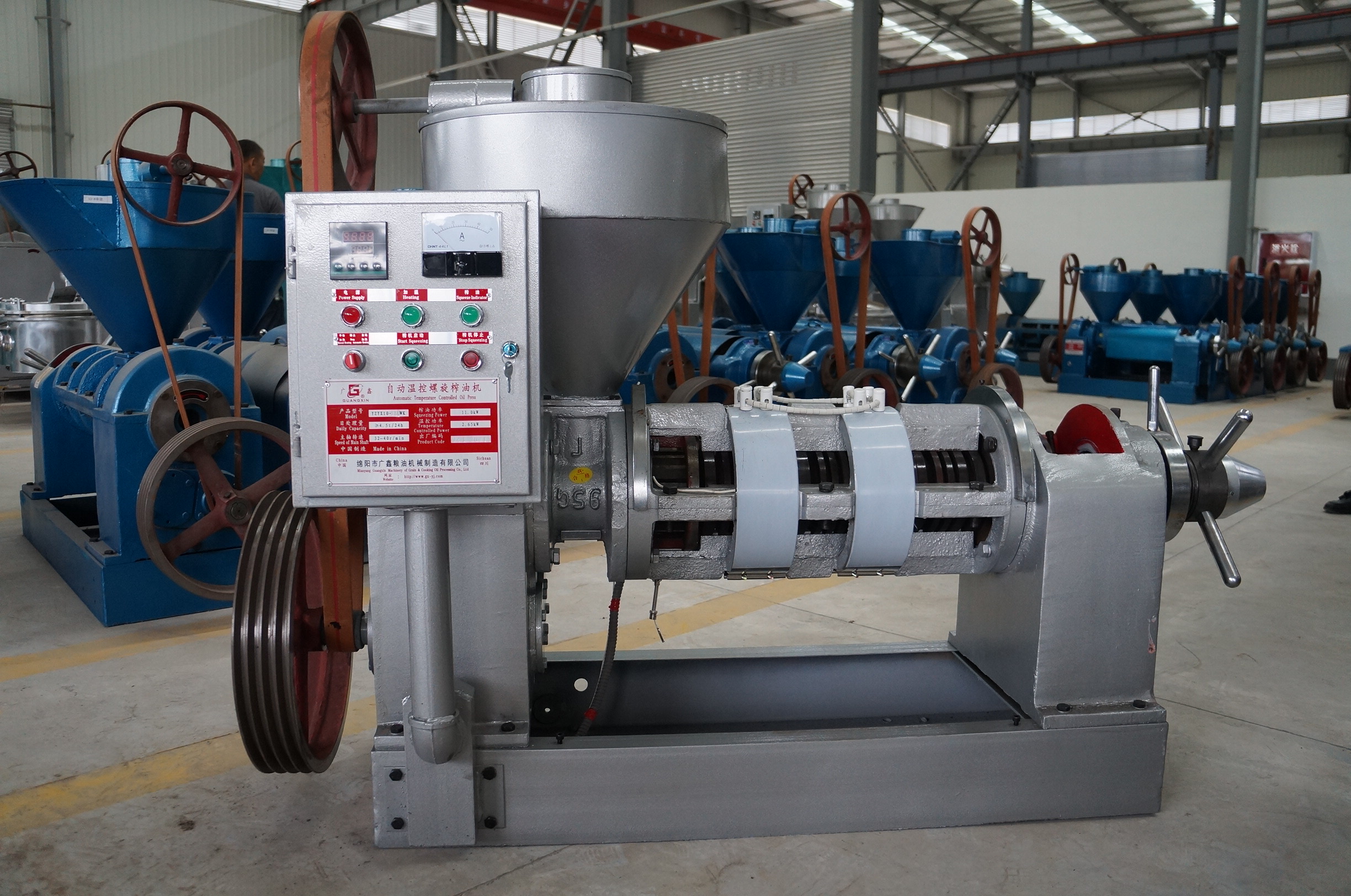

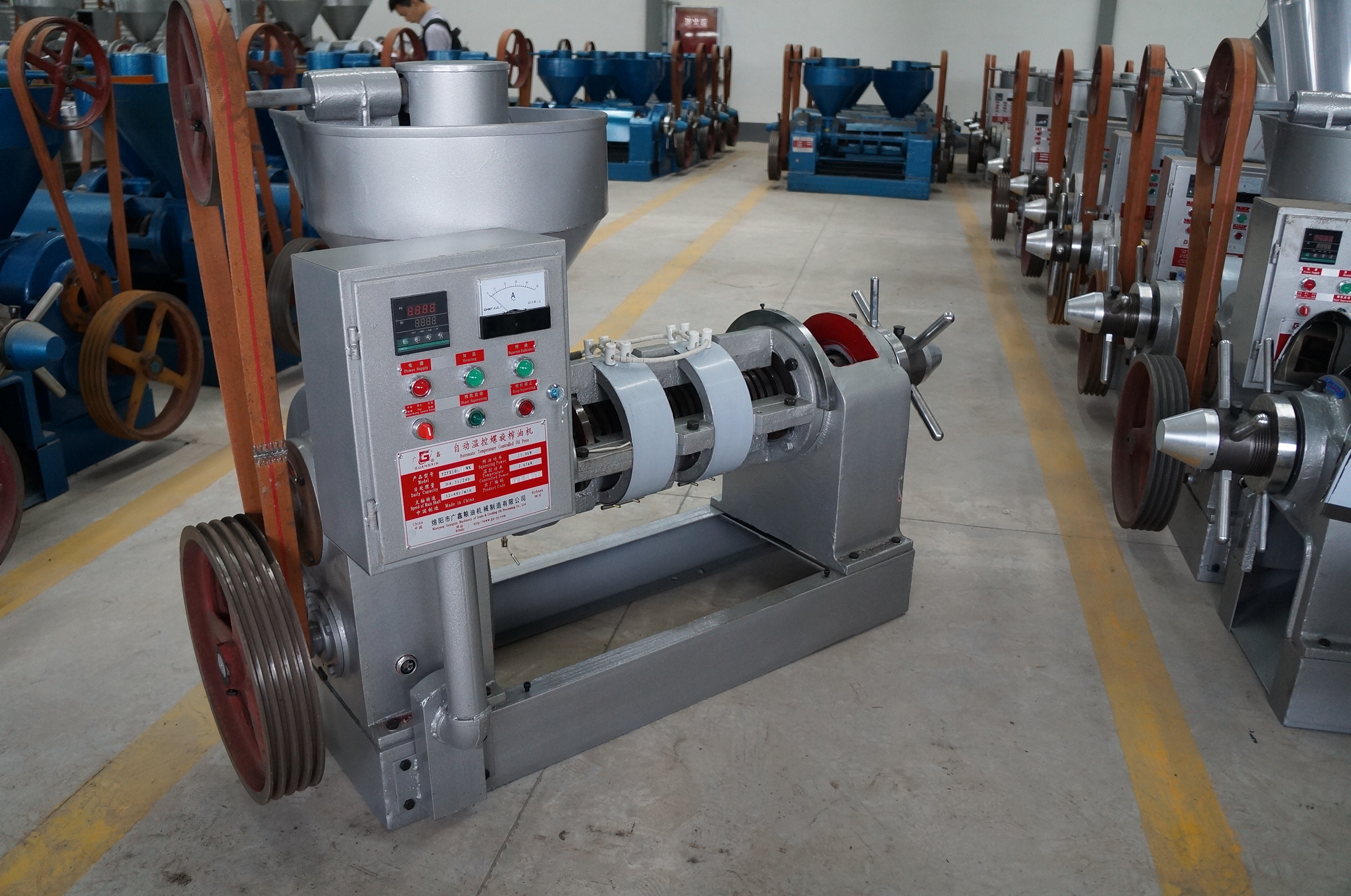

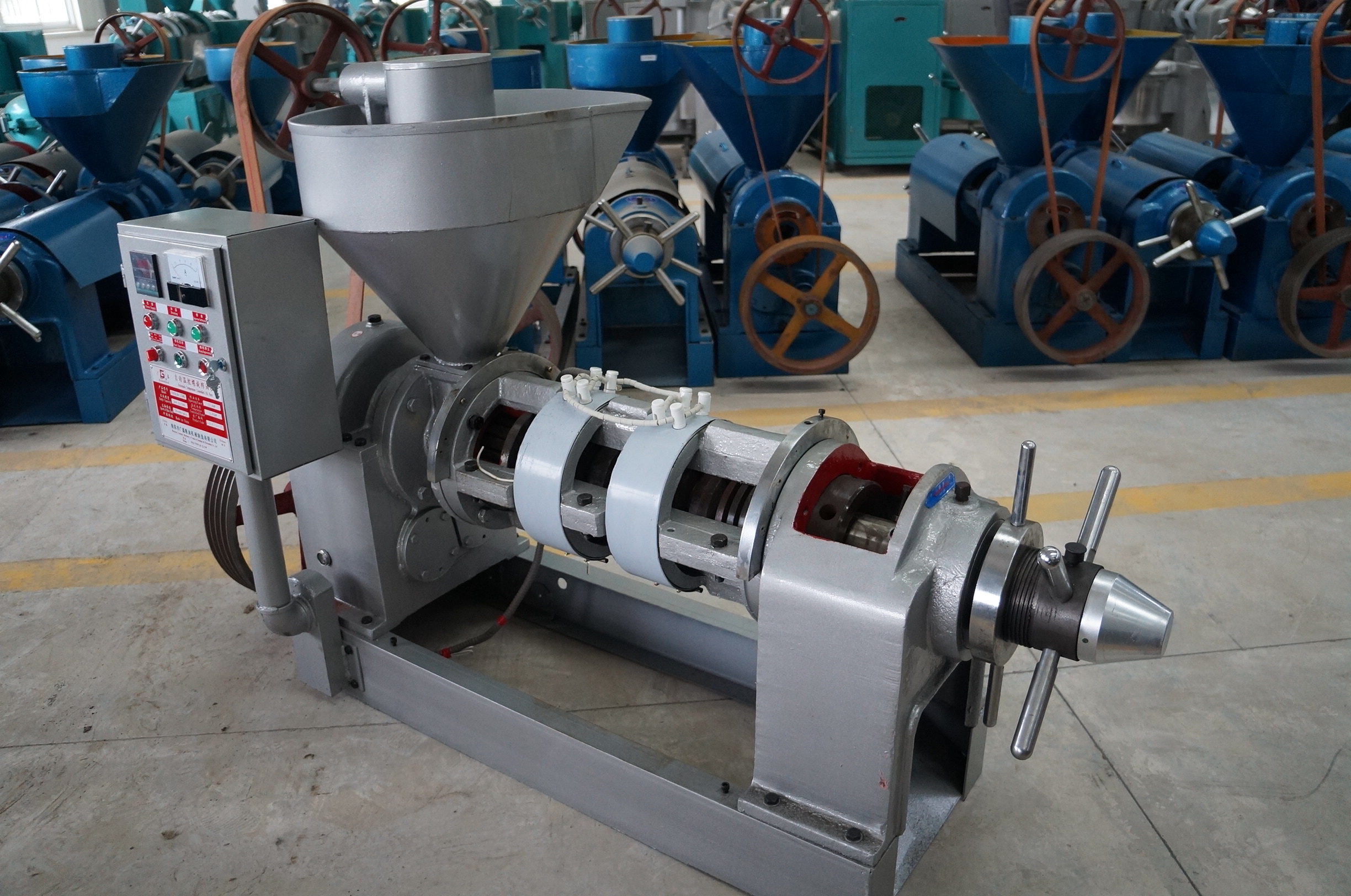

The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.

YZYX90WK is basic 2-step-squeezing spiral oil press.

YZYX90-2WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.

Main Features:

Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.

Oil Plants

Processing  Capacity (t/24h)

Oil content of

Dry cakes (%)

Oil yield efficiency   (%)

Electric power  consumption (kw.h/t)

Rapeseed

≥3.0

≤7.8

≥81

≤34

Cotton seeds

≥3.0

≤7.3

≥76

≤54

Soybean

≥2.6

≤6.8

≥66

≤51

Peanut

≥3.0

≤6.8

≥92

≤34

Note:

① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

Technical Specification:

Model

Revolving speed of spiral axis  (r/min)

36～42

Power required（kw）

5.5, 4 pole

≥2.0

Measurement  (mm)

1200×550×1000

Weight  (kg)

285

Note:

This weight is without electro-motor’s weight.
