YZYX130GX Screw Oil Press Machine
Mian Yang Guang Xin Import & Export Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
YZYX130GX Screw Oil Press Machine
Mian Yang Guang Xin Import & Export Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: stainless steel,carbon steel,iron
- Size: L2100*W820*H1400
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
About this product
- Materials: stainless steel,carbon steel,iron
- Size: L2100*W820*H1400
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
Product details
| Materials | stainless steel,carbon steel,iron |
|---|---|
| Size | L2100*W820*H1400 |
| Color | Green |
Product details
| Materials | stainless steel,carbon steel,iron |
|---|---|
| Size | L2100*W820*H1400 |
| Color | Green |
From the supplier
Technical Specification:
Item
YZYX130-8(12)
YZYX130GX-8(12)
Revolving speed
of spiral axis (r/min)
28-40
Transmission type
Triangle belt Transmission
Power required（kw）
15（Y160L-4）or 18.5(Y18M-4)
Measurement (mm)
2020x742x1420
2100x820x1370
Weight (kg)
886
998
Note:
This weight is without electro-motor’s weight.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously hot squeezed with all auxiliary equipments after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity(t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥8.0
≤7.6
≥82
≤34
Cotton seeds
≥8.0
≤6.8
≥77
≤54
Soybean
≥7.0
≤6.5
≥67
≤51
Peanut
≥8.0
≤6.5
≥92.3
≤34
Performance Characteristics:
Our series YZYX130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

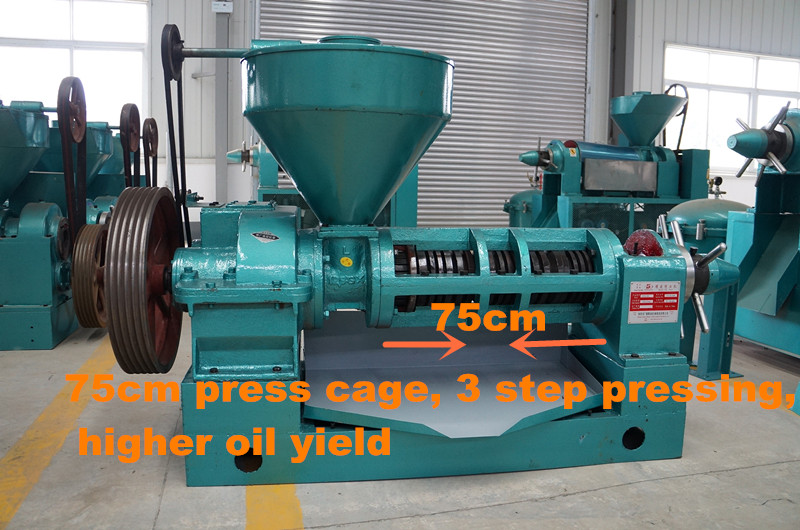

YZYX130-12 is new 3-steps squeezing spiral oil press with bigger compression ratio in the press chest，lower oil content less than 6.0% in cake.
YZYX130-12D is special model for soybean oil extraction with oil content in cake less than 5.5%.
YZYX130GX is oil press with bigger gear box which has slant tooth. It works smoothly, has longer work life and lower noice.
From the supplier
Technical Specification:
Item
YZYX130-8(12)
YZYX130GX-8(12)
Revolving speed
of spiral axis (r/min)
28-40
Transmission type
Triangle belt Transmission
Power required（kw）
15（Y160L-4）or 18.5(Y18M-4)
Measurement (mm)
2020x742x1420
2100x820x1370
Weight (kg)
886
998
Note:
This weight is without electro-motor’s weight.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously hot squeezed with all auxiliary equipments after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity(t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥8.0
≤7.6
≥82
≤34
Cotton seeds
≥8.0
≤6.8
≥77
≤54
Soybean
≥7.0
≤6.5
≥67
≤51
Peanut
≥8.0
≤6.5
≥92.3
≤34
Performance Characteristics:
Our series YZYX130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
YZYX130-12 is new 3-steps squeezing spiral oil press with bigger compression ratio in the press chest，lower oil content less than 6.0% in cake.
YZYX130-12D is special model for soybean oil extraction with oil content in cake less than 5.5%.
YZYX130GX is oil press with bigger gear box which has slant tooth. It works smoothly, has longer work life and lower noice.
