Yzyx130-9wk
Mian Yang Guang Xin Import & Export Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Yzyx130-9wk
Mian Yang Guang Xin Import & Export Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 1950x742x1500
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1950x742x1500
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1950x742x1500 |
|---|
Product details
| Size | 1950x742x1500 |
|---|
From the supplier

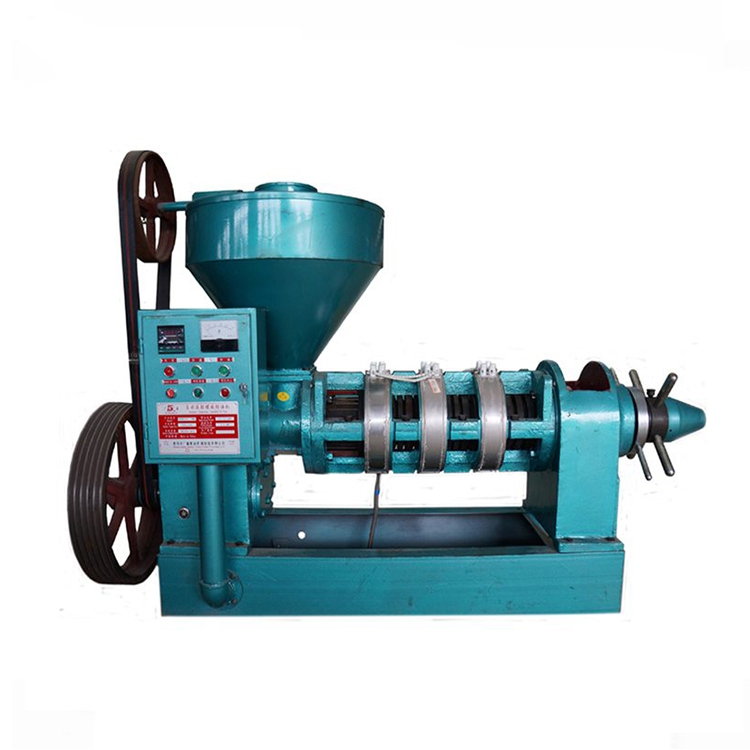

Our series YZYX130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.
YZYX130WK is basic 2-step-squeezing spiral oil press.
YZYX130-2WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
YZYX130-9WK is 3-step-squeezing spiral oil press with lengthened squeeze chamber.
YZYX130-10WK is 4-step-squeezing spiral oil press. The pressure in its squeeze chamber is bigger; therefore, the squeezing efficiency is higher.
Main Features:
Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity(t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥8.0
≤7.6
≥82
≤34
Cotton seeds
≥8.0
≤6.8
≥77
≤54
Soybean
≥8.0
≤6.5
≥67
≤51
Peanut
≥8.0
≤6.5
≥92.3
≤34
Note:
① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
Technical Specification:
Item
YZYX130(-2)WK
YZYX130-8(12)WK
YZYX130-9(12)WK
Revolving speed of spiral axis (r/min)
32～44
Transmission type
Triangle belt Transmission
Power required（kw）
15（Y160L-4）or 18.5（Y180M-4）
Power of heater（kw）≥3.0Measurement (mm)
1950×742×1500
2020×742×1420
2100×798×1400
Weight (kg)
825
886
980
Note:
This weight is without electro-motor’s weight.
From the supplier
Our series YZYX130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system.
YZYX130WK is basic 2-step-squeezing spiral oil press.
YZYX130-2WK is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
YZYX130-9WK is 3-step-squeezing spiral oil press with lengthened squeeze chamber.
YZYX130-10WK is 4-step-squeezing spiral oil press. The pressure in its squeeze chamber is bigger; therefore, the squeezing efficiency is higher.
Main Features:
Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity(t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥8.0
≤7.6
≥82
≤34
Cotton seeds
≥8.0
≤6.8
≥77
≤54
Soybean
≥8.0
≤6.5
≥67
≤51
Peanut
≥8.0
≤6.5
≥92.3
≤34
Note:
① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
Technical Specification:
Item
YZYX130(-2)WK
YZYX130-8(12)WK
YZYX130-9(12)WK
Revolving speed of spiral axis (r/min)
32～44
Transmission type
Triangle belt Transmission
Power required（kw）
15（Y160L-4）or 18.5（Y180M-4）
Power of heater（kw）≥3.0Measurement (mm)
1950×742×1500
2020×742×1420
2100×798×1400
Weight (kg)
825
886
980
Note:
This weight is without electro-motor’s weight.
