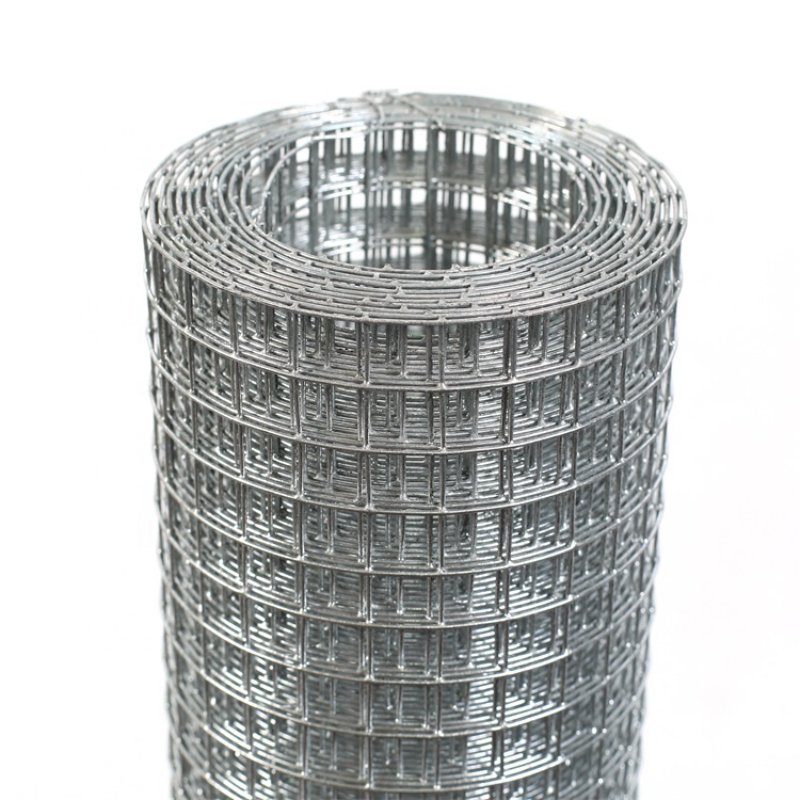

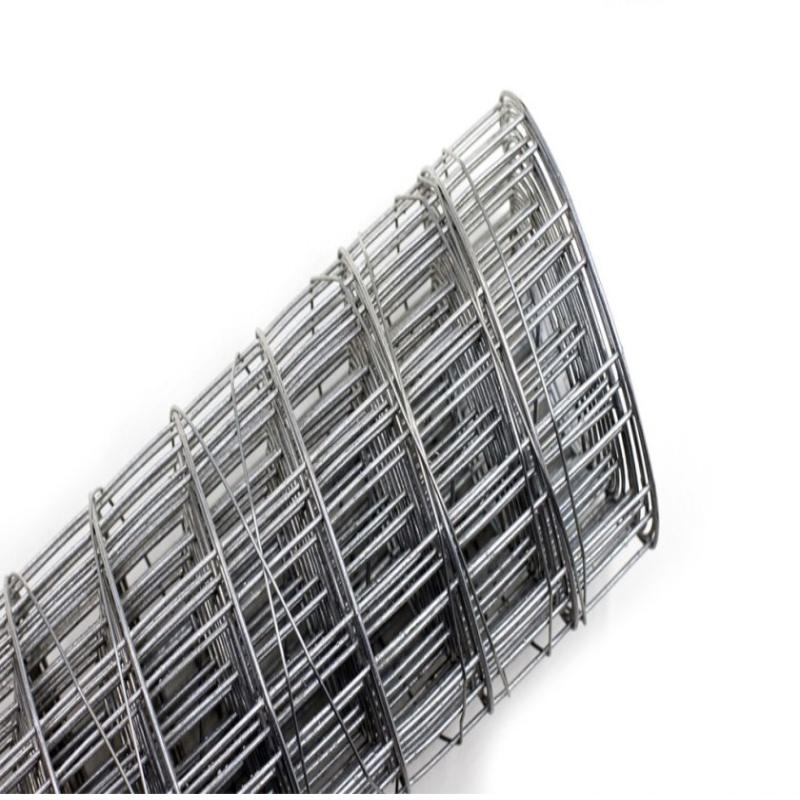

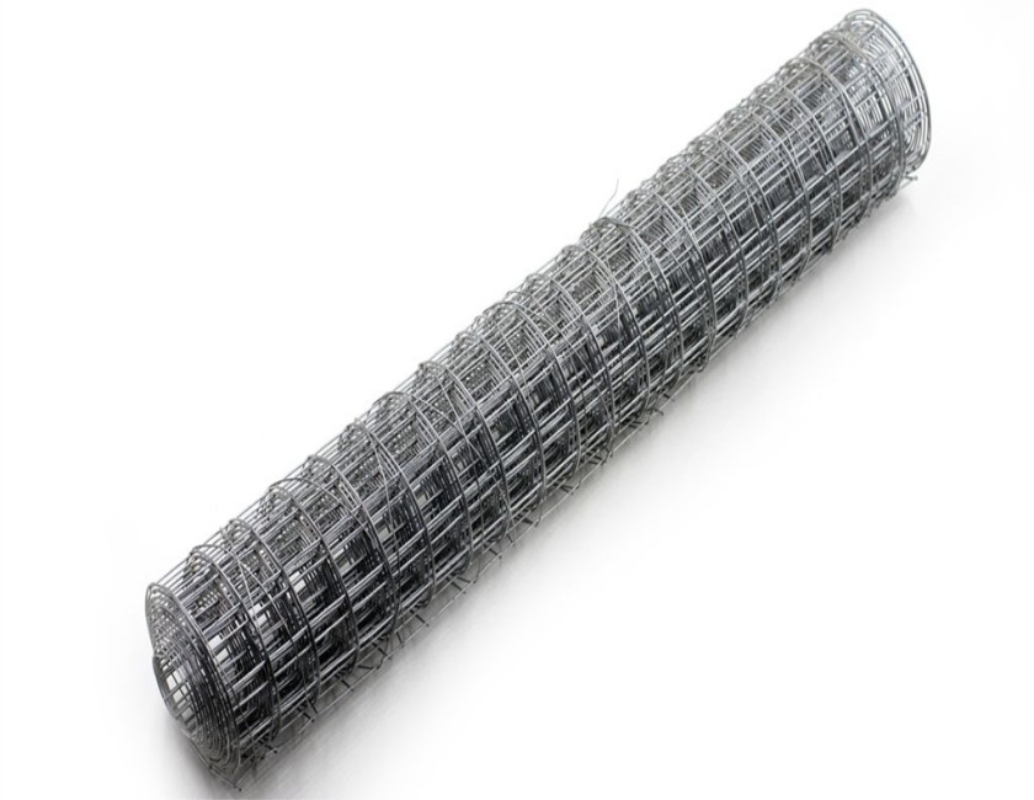

Electric Galvanized Wire Mesh

The specifications:

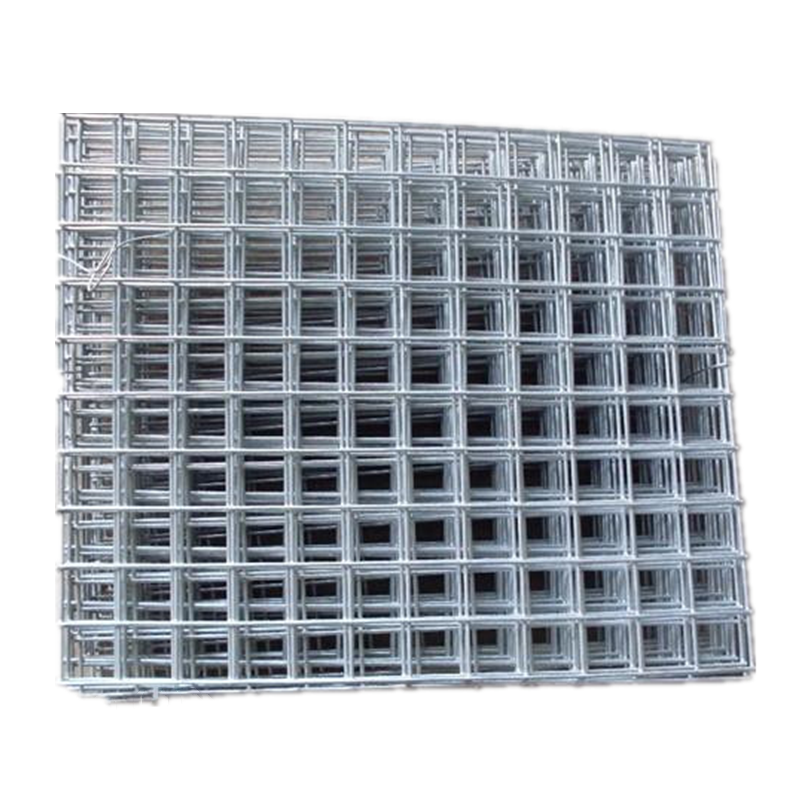

This is only for the welded wire mesh rolls, if you want to buy welded wire mesh panels, the diameter could be made to 8mm, the recommended size is width less than 2.1M, length less than 3M.

Mesh opening

BWG

1/4*1/4

6*6

26,24,23,22,21,

0.45-0.81

12-48

0.3-1.2

3/8*3/8

10*10

26,24,23,22,21,20,19

0.45-1.07

12-48

0.3-1.2

1/2*1/2

13*13

25,24,23,22,21,20,19,18,17,16,

0.51-1.65

12-48

0.3-2.0

5/8*5/8

16*16

25,24,23,22,21,20,19,18,17,16,

0.51-1.65

12-48

0.3-1.2

3/4*3/4

19*19

25,24,23,22,21,20,19,18,17,16,

0.61-1.65

12-48

0.3-2.0

1/2*1

13*25

22,21,20,19,18,17,16,15,14

0.71-2.11

12-48

0.3-2.0

1*1

25*25

22,21,20,19,18,17,16,15,14

0.71-2.11

12-48

0.3-2.0

1-1/4*1-1/4

30*30

20,19,18,17,16,15,14,13,12

0.89-2.77

12-48

0.3-2.0

1-1/2*1-1/2

40*40

20,19,18,17,16,15,14,13,12

0.89-2.77

12-48

0.3-2.0

1*2

25*50

19,18,17,16,15,14,13,12

1.07-2.77

12-48

0.3-2.0

2*2

50*50

18,17,16,15,14,13,12

1.25-2.77

12-48

0.3-2.0

2*3

50*75

16,15,14,13,12

1.65-2.77

12-48

0.3-2.0

2*4

50*100

16,15,14,13,12

1.65-2.77

12-48

0.3-2.0

3*3

75*75

16,15,14,13,12

1.65-2.77

12-48

0.3-2.0

3*4

75*100

16,15,14,13,12

1.65-2.77

12-48

0.3-2.0

4*4

100*100

16,15,14,13,12

1.65-2.77

12-48

0.3-2.0

6*6

150*150

16,15,14,13,12

1.65-2.77

12-48

0.3-2.0

Depending on the surface treatment, we generally classify the welded mesh into the following types.

1. Hot-dip galvanized welded wire mesh (first welded and then galvanized)

2. Hot-dip galvanized welded wire mesh (first galvanized, then welded)

3. Electroplated galvanized wire mesh (first welded and then galvanized)

4. Galvanized wire mesh (galvanized before welding)

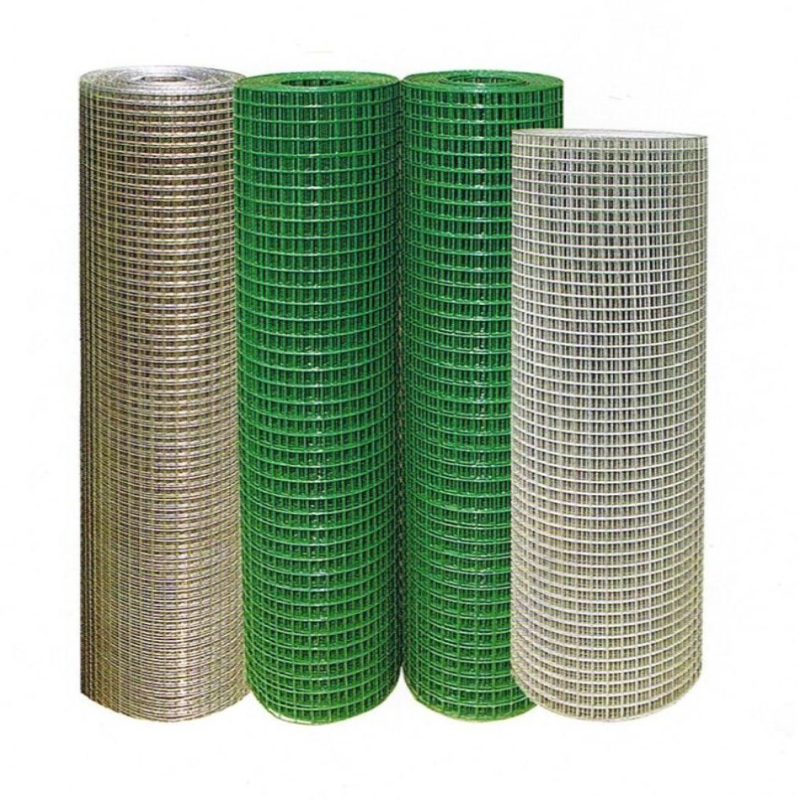

5.PVC coated welded wire mesh (color optional)

6. Stainless steel welded wire mesh

If you have any of the above needs, we can all provide. And here we are going to highlight electric galvanized welded wire mesh. Electric galvanized welded wire mesh is the cheapest of the above products, and the most widely used. It has a normal zinc coating 8-10g/sqm, so nearly all of them are the same, you just pick up the best service. Electric galvanized after welding is more corrosion resistant than galvanized first than welding, because the welding spot is difficult to avoid during the welding process, which can be avoided perfectly if the final galvanization is used. The entire net is separated from the air by a layer of zinc, and corrosion protection is enhanced.

It should be noted that Galfan wire (also known as zinc-aluminum alloy wire) is a special kind of existence, it is more expensive, but due to the material itself, during the welding process, the zinc layer will automatically cover the welding joints, so this kind of material is first galvanized before welding, but the corrosion resistance can be 30-50 years, compared to the ordinary hot-dip galvanized wire about 20 years, it is at least 10 years higher.

Application:

Of course, there are other kinds of usages, like mining, construction, road, farming，etc. You can use them where you want, and they just act perfectly.

Produce and packing:

Our exhibition:

factory

Factory Introduction:

Hebei Anping Yongsheng Wire And Netting Making co., Ltd. was established in 1990. It is located in Anping, the "hometown of wire mesh" in China, with the support of our customers, we have been doing great for over 30 years. Yongsheng is an export factory specializing in foreign trade and manufacturing and has built a large company covering an area of 9,000 square meters with more than 100 employees. We are specialized in the manufacture of many kinds of wire mesh, gabion mesh, razor wire, barbed wire, stainless steel mesh, etc. The products are exported all over the world and have been well received by users. Since its establishment, Yongsheng has been a manufacturer of various types of wire mesh and is confident in providing high-quality wire mesh in the industry.

If you want to know more about our company, just download our factory history below.


Our Certification:

FAQ:

Q: Why choose YSH?

A:  According to our old customers' answers, they said it is safe to do business with us. "Same quality, same time, same service, I feel comfortable working with you. You make me feel safe when I drop the business to you, I can go on a vacation."

Q: Do you accept ODM&OEM?

A: Yes.

     We can make the products and packages according to your detailed requirement

Q: Can I place an order for some samples?

A: Yes.Of course.

      You can order some samples to check the quality.

Q: What's your MOQ?

A: If the products you ordered are in stock, MOQ will be flexible, otherwise, MOQ depends on your detailed specifications. Usually, we would say 500 pcs.
