About this product
- Materials: CAST IRON
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: CAST IRON
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | CAST IRON |
|---|
From the supplier
Introduction

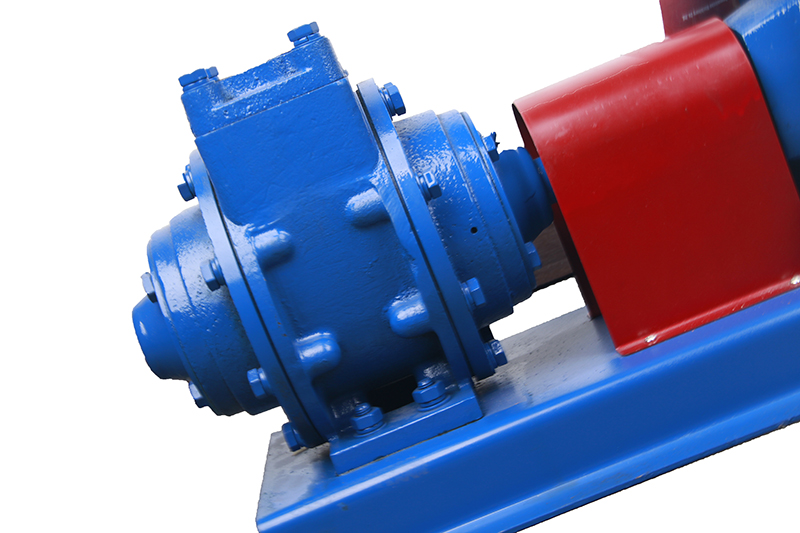

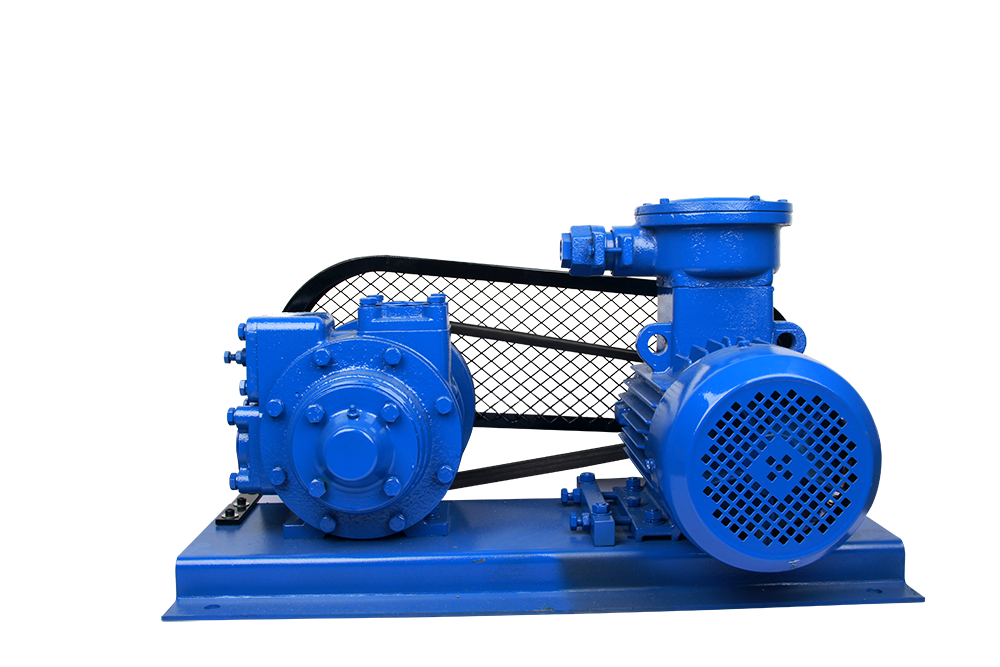

YB Series Rotary Vane Blackmer Pump sliding vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Features
a. Excellent self-priming and dry run capabilities
b. Widely application in diesel, gasoline, lubricating oil, heavy oil, etc.
c. Vanes could be replaced without moving the whole pump makes easy maintenance.
d. High flowrate speed for choice
Specification
Model
Size
Nominal Flowrate
Pump Speed
Power
Viscosity
Working Pressure
G/min
L/min
R/min
HP
KW
SUU
CP
PSI
Bar
YB-50
50mm/2″
87
329
780
3
2.2
20,000
4,250
175
12.1
YB-65
65mm/2.5″
157
594
780
5
4
YB-80
80mm/3″
270
1,022
640
10
7.5
YB-100
100mm/4″
505
1,900
500
25
18.5
