1. Ultra-high voltage transformers use Toshiba's analysis software and our company's unique calculation and verification procedures to carry out comprehensive optimization design and verification of transformer core, coils, body, leads, fuel tank and other components to ensure product performance. Superior process equipment, careful material selection, and efficient production and manufacturing make the transformer have the characteristics of small size, light weight, low loss, low local discharge, low noise, etc. The product quality is superior, energy-saving and environmentally friendly, convenient installation and maintenance, and reliable operation. Effectively reduce product operating costs.

2. Oil-immersed distribution transformers have good economic performance: no-load current is reduced by an average of 60% to 80%, and no-load loss is reduced by an average of 25% to 35%. Long service life: The transformer oil tank adopts a fully sealed structure. The oil tank and the tank edge can be bolted or welded. The transformer oil does not come into contact with air, which extends the service life. High operating reliability: Related parts of fuel tank sealing have been improved to increase reliability and improve process level to ensure sealing reliability. Small footprint: The transformer oil tank adopts corrugated plate radiator. When the oil temperature changes, the corrugated plate expands and contracts to replace the role of the oil conservator. The corrugated plate oil tank has a beautiful appearance and a small footprint.

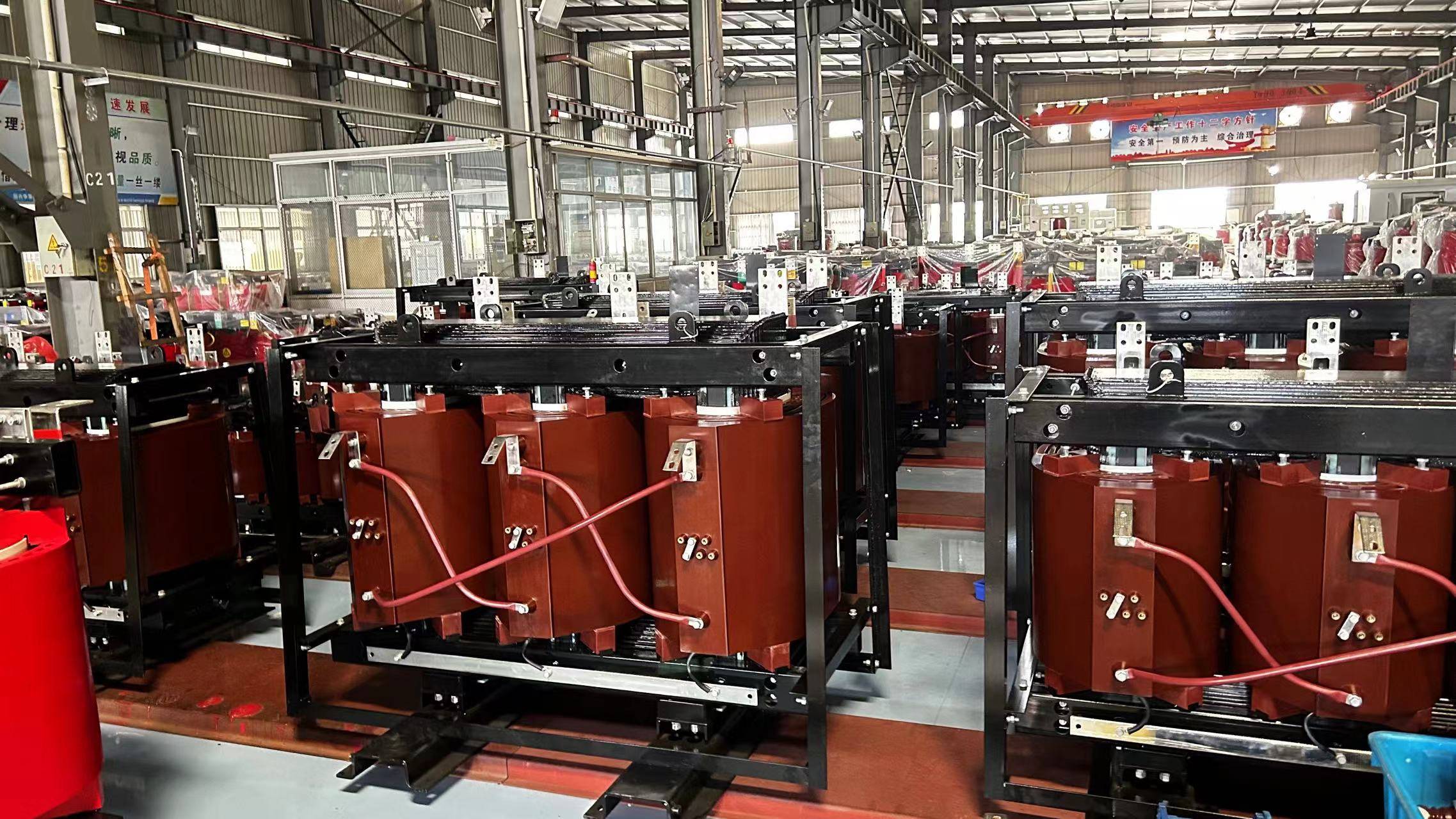

3. Dry-type transformer is safe, fire-resistant, pollution-free, and can be installed directly in the load center. Maintenance-free, simple installation, and low comprehensive operation costs. It has good moisture-proof performance and can operate normally at 100% humidity. It can be put into operation without pre-drying after shutdown. Low loss, low partial discharge, low noise, strong heat dissipation, and can operate at 150% rated load under forced air cooling conditions. It is equipped with a complete temperature protection control system to provide reliable guarantee for the safe operation of transformers. High reliability. According to the operation research of products that have been put into operation, the reliability indicators of the products have reached the international level.

4. Energy substation is a power conversion and distribution equipment specially designed for new energy power generation systems. It is mainly used to convert low-voltage AC power generated by new energy power generation systems into medium-voltage or high-voltage AC power and feed electrical energy into the national grid. It is widely used in petroleum, chemical industry, drilling platform, Urban area, rural areas and other 10~ 110kV small and medium-sized transformer (distribution) substation, factories and mines and mobile operation substation construction and transformation. This product has the characteristics of intelligence, energy conservation and environmental protection, excellent electrical performance, innovative structural design, etc.

5. Mining dry-type transformer is a kind of electrical equipment specially designed for special environments such as underground mines. It has the characteristics of explosion-proof, fire-proof, moisture-proof, etc., and can operate stably in harsh environments. Mining dry-type transformers are specially used for power supply and distribution equipment under mines and are suitable for mines without explosive hazards such as methane and coal dust. Its main use is to provide power to underground central substation, downhole yard, main air inlet duct and main air inlet duct.

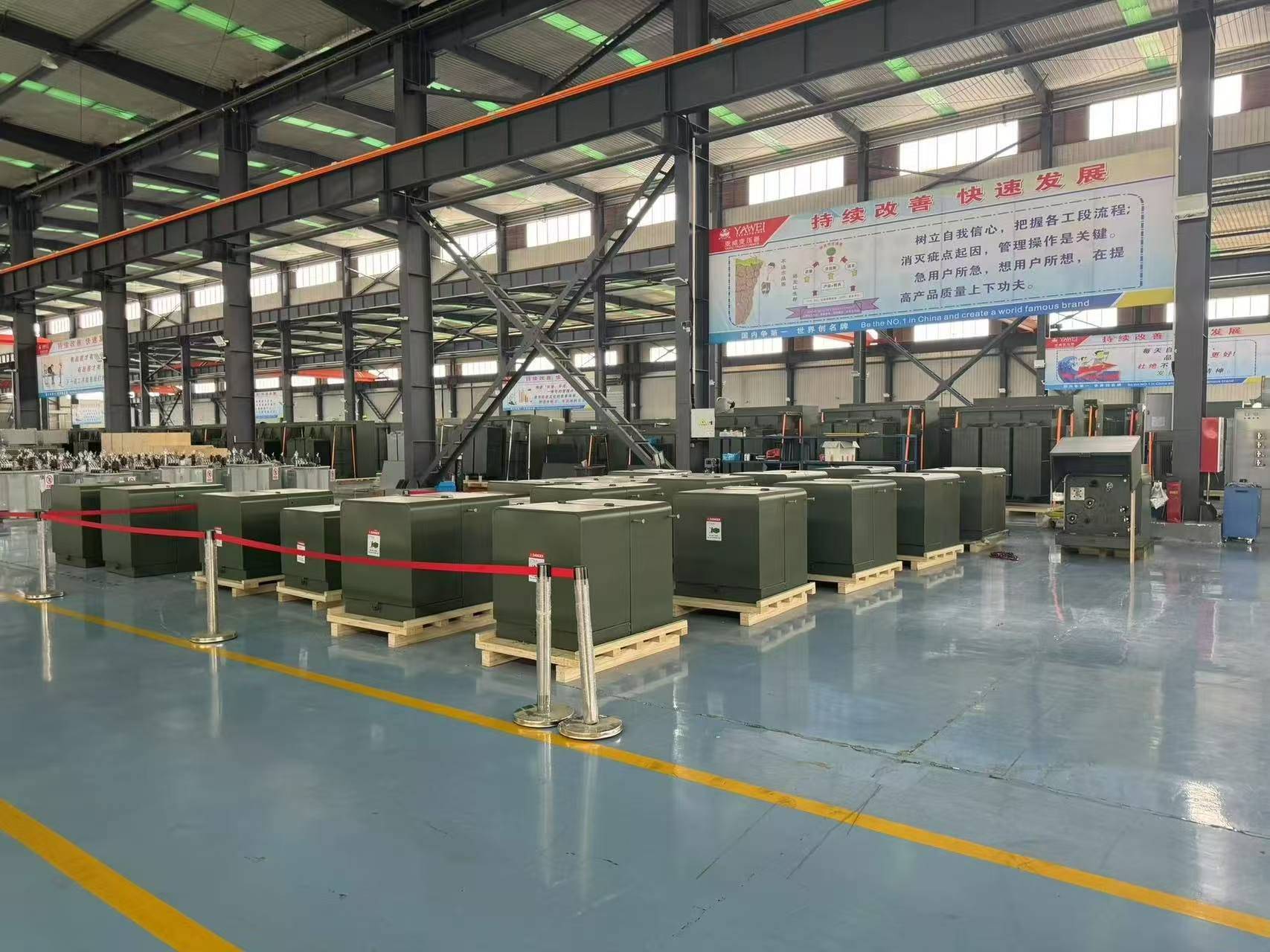

6. Three-phase American-style box-type transformers are compact power centers suitable for utility, commercial or industrial applications and are designed to withstand multiple types of environments. The product has structural characteristics such as compact and miniaturized, fully insulating design, good sealing performance, strong anti-corrosion ability, and flexible combination. These transformers can be located outside or inside the building to provide an energy-efficient and safer solution. Fluid-filled transformers are available in a variety of configurations and can be used with a variety of accessories to meet the * basic and complex specifications. Three-phase American box-type transformers have been widely used in many fields due to their unique advantages.

7. The rated capacity of the single-phase American box transformer is 15-250 kVA. Single-phase American box transformers are generally used in places where single-phase power is needed for civil use, such as household appliances, etc., and their capacity is smaller than that of three-phase American box transformers.
