Visit the CAMC INTERNATIONAL TRADING CO., LTD. store

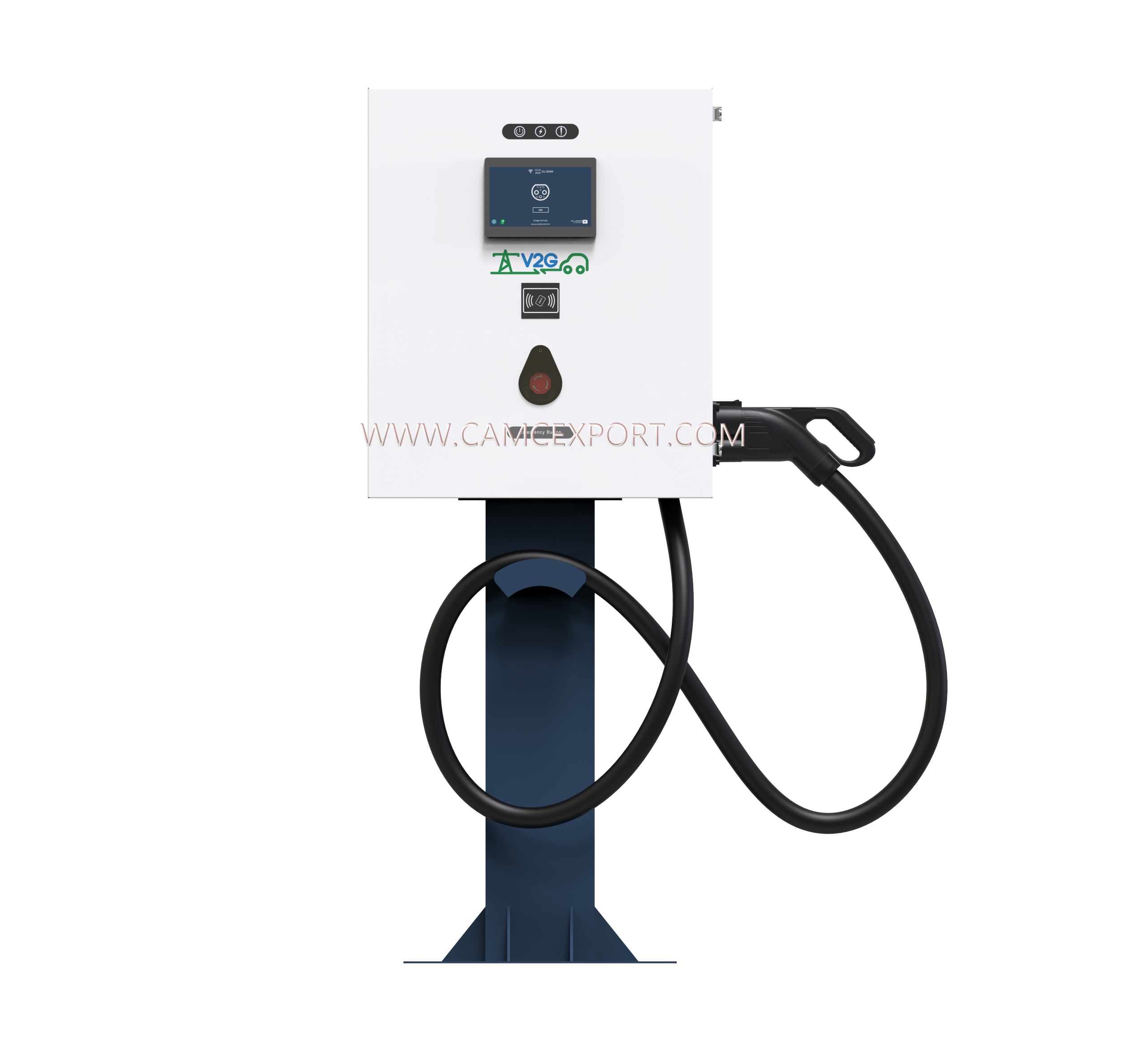

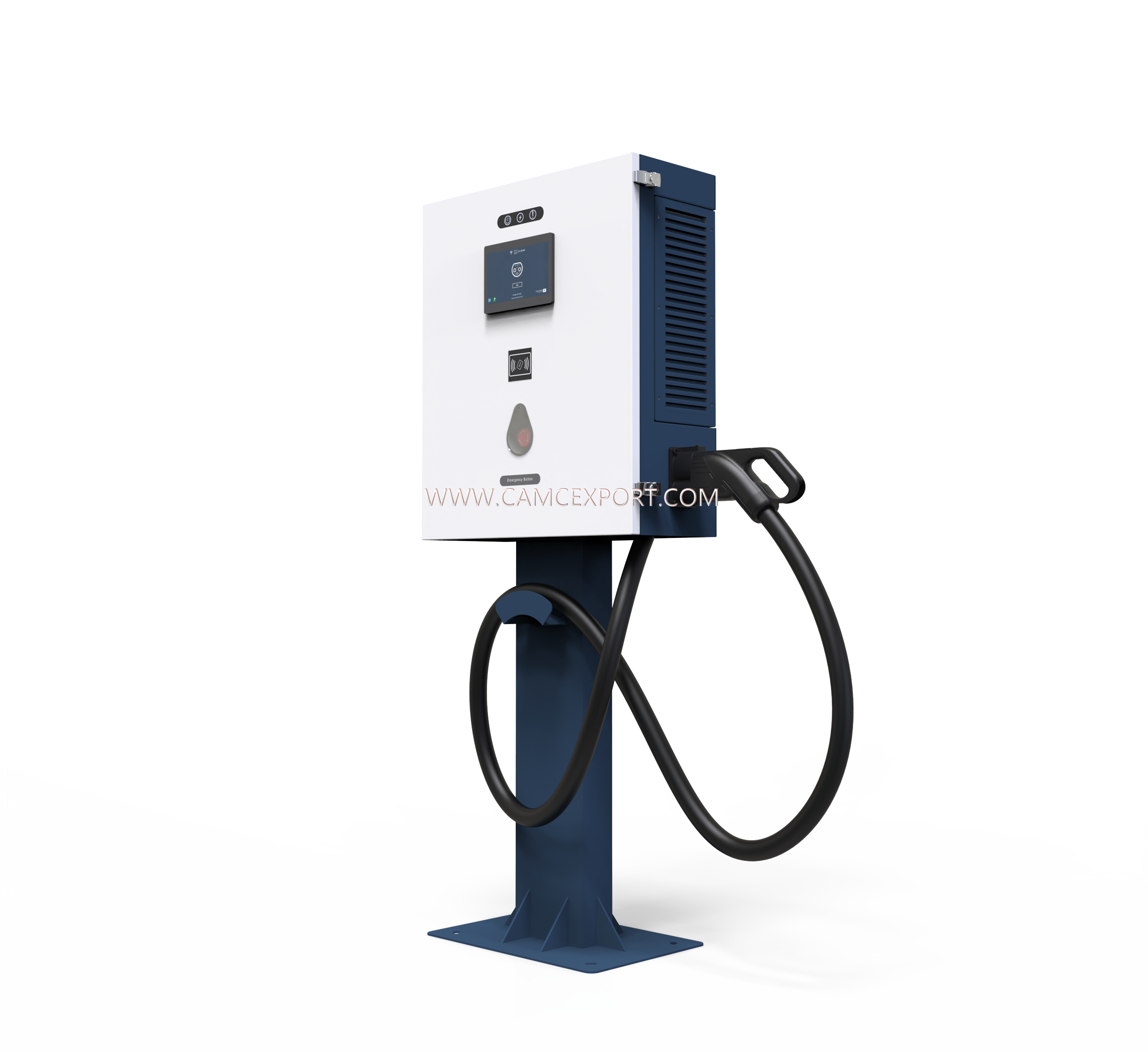

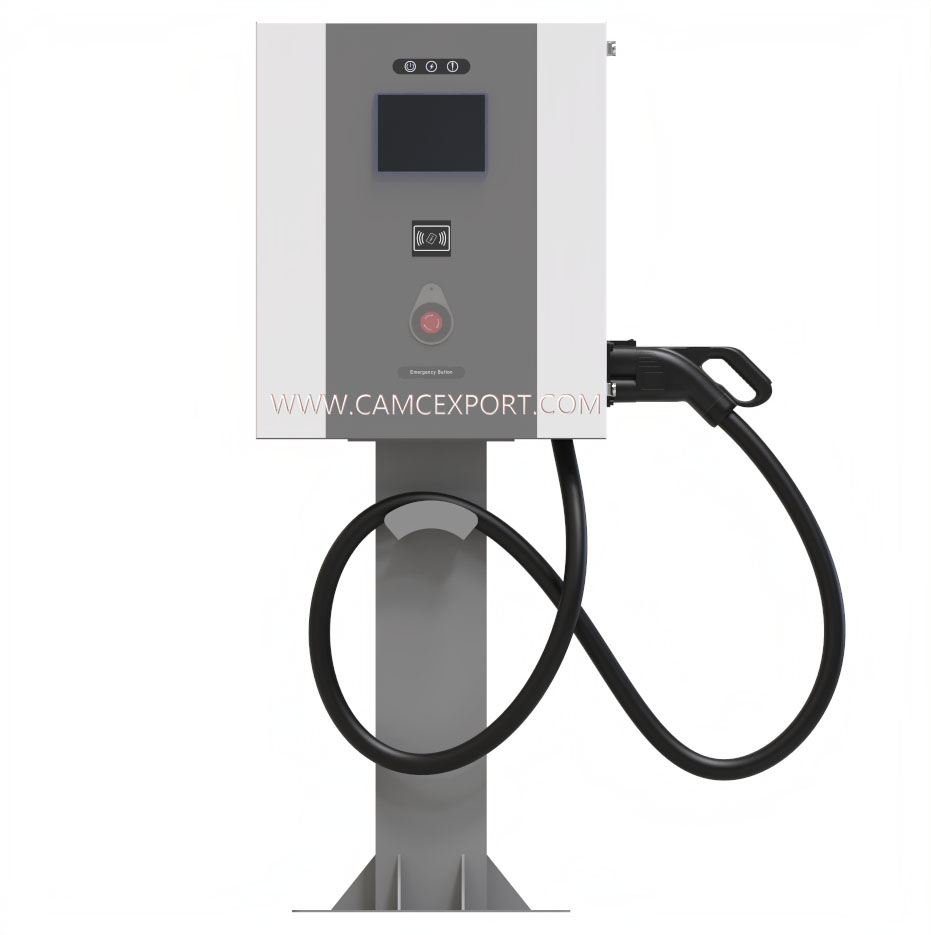

Y07 DC Charging Pile (20~40KW)
3/10 fairsForeign Trade Company
New for the 140th FairGreen / low-carbonSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Visit the CAMC INTERNATIONAL TRADING CO., LTD. store
Y07 DC Charging Pile (20~40KW)
3/10 fairsForeign Trade Company
New for the 140th FairGreen / low-carbonSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 596.3*205.5*620.5mm
- Color: Black and white, white and gray
- Usage: Family CarNovice CarCommercial VehicleTouring CarExperience CarOther
- Service life: 6-10 Years
- Support format: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Anhui, China
About this product
- Size: 596.3*205.5*620.5mm
- Color: Black and white, white and gray
- Usage: Family CarNovice CarCommercial VehicleTouring CarExperience CarOther
- Service life: 6-10 Years
- Support format: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Anhui, China
Product details
| Size | 596.3*205.5*620.5mm |
|---|---|
| Color | Black and white, white and gray |
| Usage | Family CarNovice CarCommercial VehicleTouring CarExperience CarOther |
| Service life | 6-10 Years |
| Support format | Other |
From the supplier
Parametric Performance Table
Power 20kW/30kW Model WSK - 1000V - 20/30kW - Y07 - 11 - 1 - DC（Single gun） Connector GB/T/CCS1/CHAdeMO/CCS2 Max Power 30kW Max Power Yes Communication Protocol OCPP1.6J Or other Input Voltage 380V（-25%~+25%）AC frequency 50Hz±10% Output Voltage 50V ~ 1000VDC IP Protection Grade IP54 Power distribution Single gun Power factor ≥0.99 Peak efficiency 95.5% Overall efficiency 94% auxiliary power supply 12V humidness ≤95% Soft startup time 3 - 8S Output voltage error ≤±0.5% Output current error ≥30A ，≤±1%；<30A ，≤±0.3A Voltage accuracy ≤0.5% Steady flow accuracy ≤1% Voltage ripple ≤1% Current sharing ≤5% Load adjustment rate ≤1% Emc GB/T 18265 - 2014：5.4 Starting mode Swipe card/small program scan code Insulation resistance ≥10MΩ Withstand voltage AC2500V Display screen 7" touch screen Installation mode Floor/wall hanging Operating temperature -35℃~+55℃ Charging gun length 3m/4m/5m Altitude ≤2000m (More than 2000 meters need to be customized) Outer dimension 596.3mm×205.5mm×620.5mm (width × depth × height) Harmonic distortion ≤5%About the supplier
CAMC INTERNATIONAL TRADING CO., LTD.
Main products: Diesel Truck,Electric Truck,Engine,Charging Pile,Compressor
- ✓Exhibited at 3 recent Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2017
32
trust
- Exhibited at 3 recent Canton Fairs
- Foreign Trade Company
- Founded 2017
Canton Fair booth: 8.1F14-15 · New Energy Vehicles and Smart Mobility (140th session)
