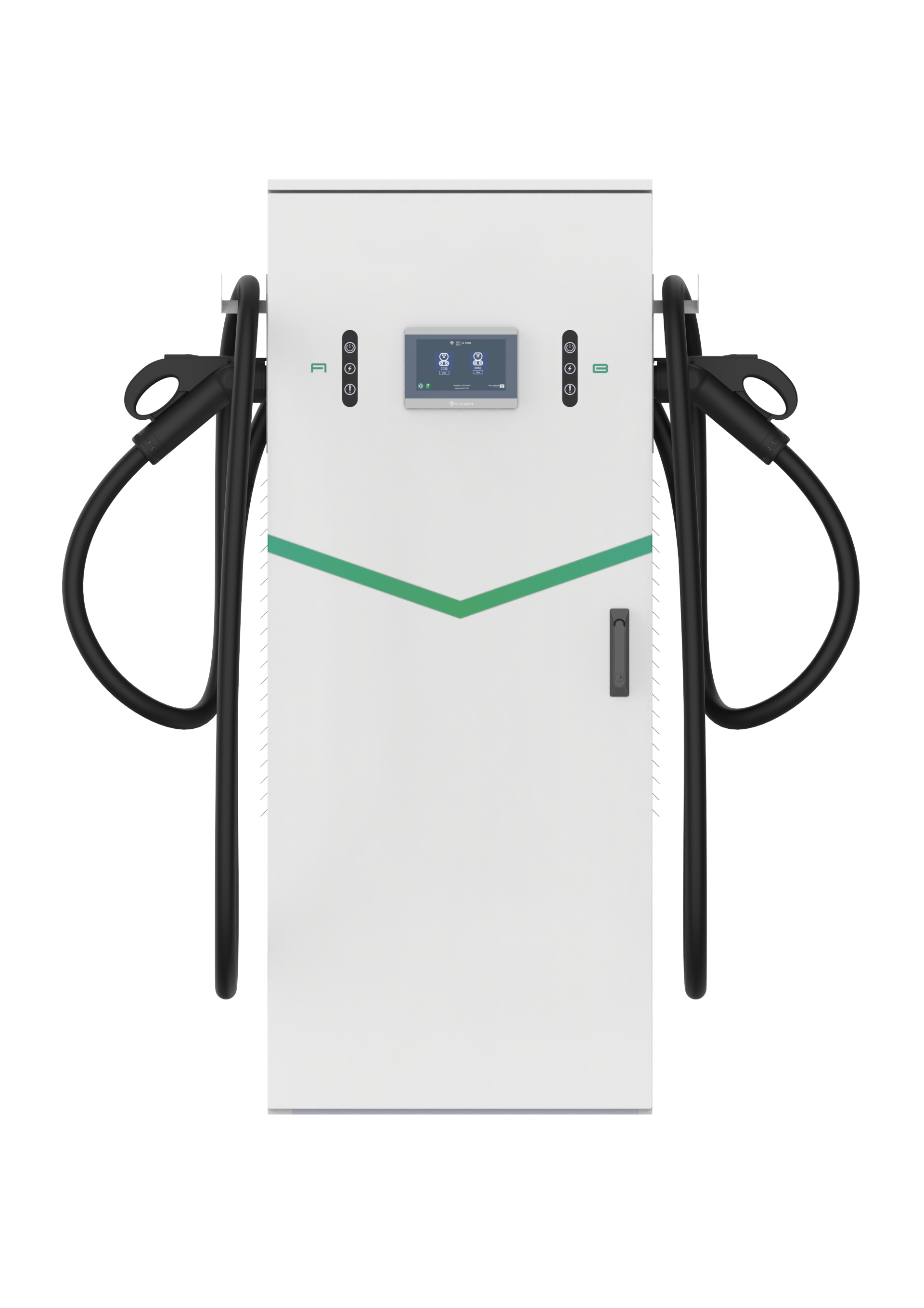

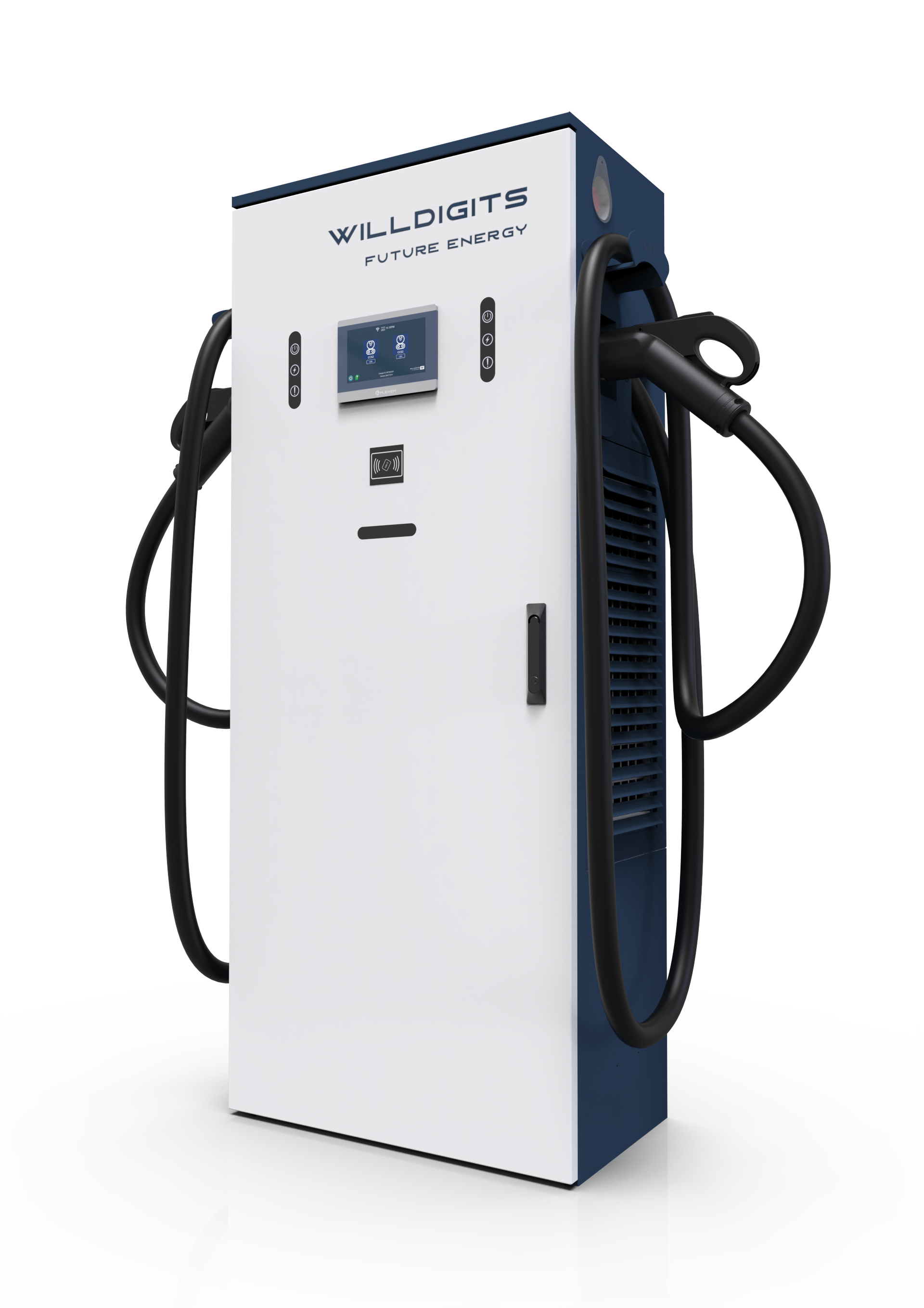

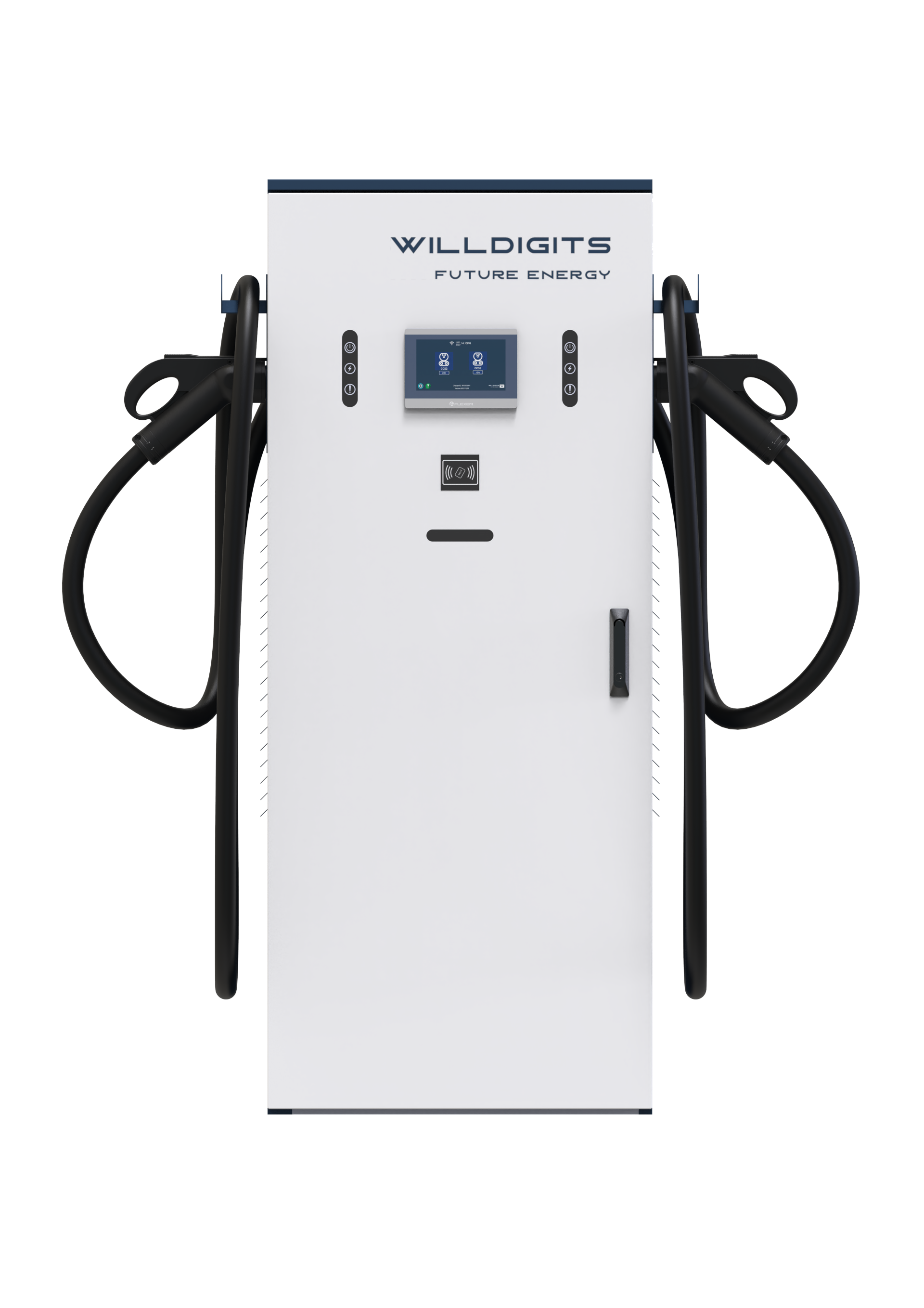

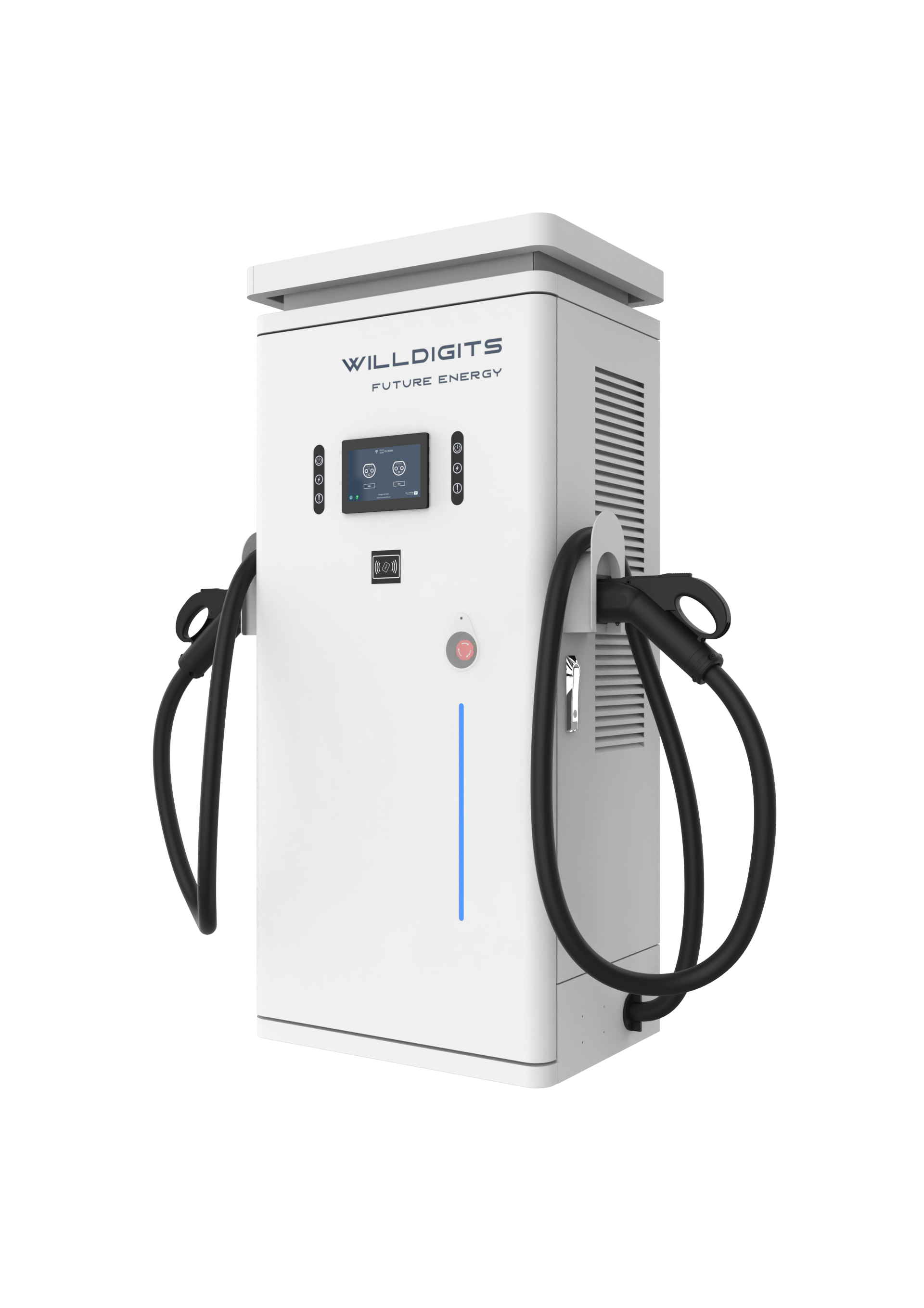

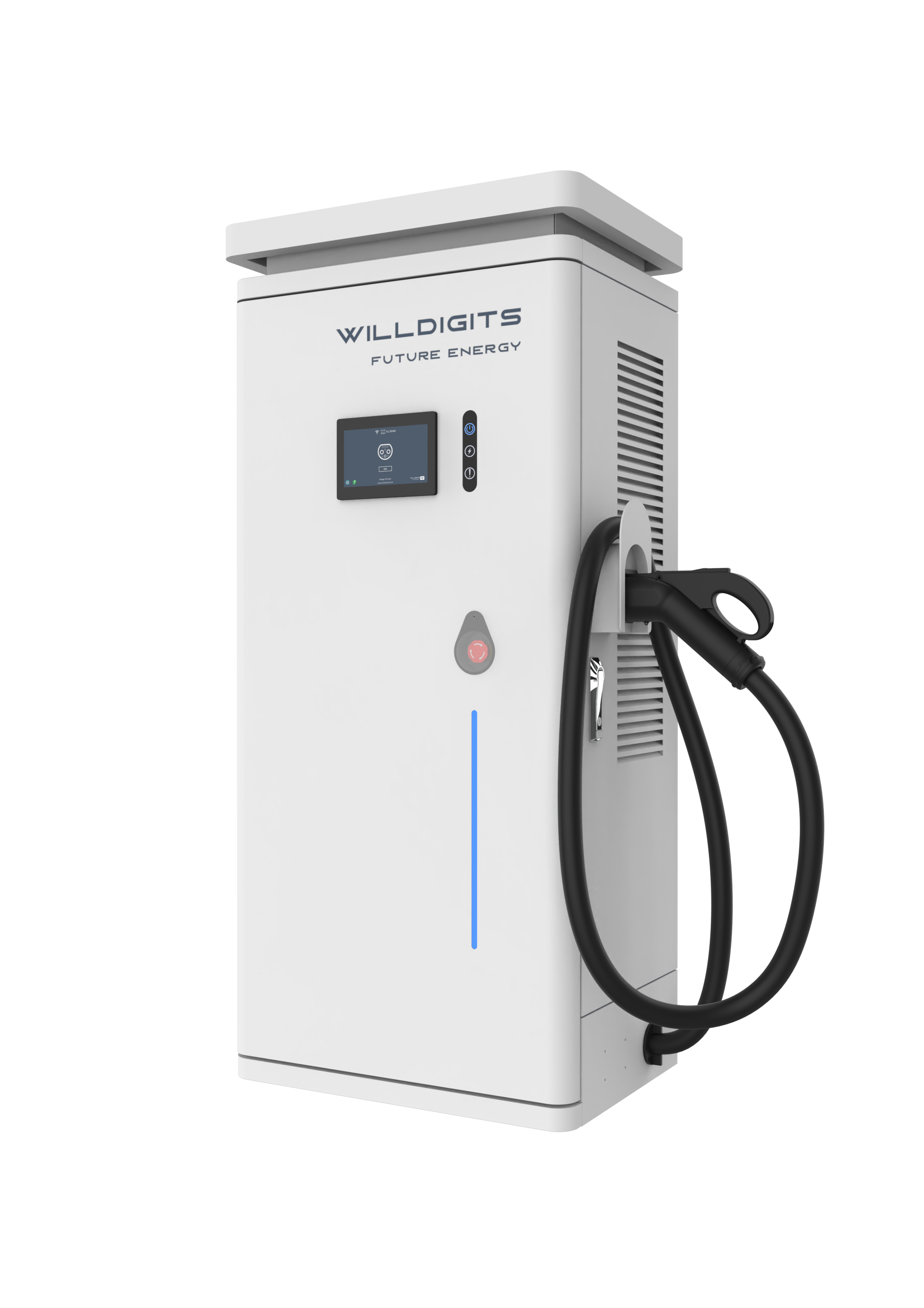

Y06 High-end Customized DC Charging Pile
3/10 fairsForeign Trade Company
New for the 140th FairGreen / low-carbonSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Visit the CAMC INTERNATIONAL TRADING CO., LTD. store
Y06 High-end Customized DC Charging Pile
3/10 fairsForeign Trade Company
New for the 140th FairGreen / low-carbonSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 596.3*205.5*620.5（mm）
- Color: Gray
- Service life: 6-10 Years
- Usage: Family CarNovice CarCommercial VehicleTouring CarExperience CarOther
- Support format: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Anhui, China
About this product
- Size: 596.3*205.5*620.5（mm）
- Color: Gray
- Service life: 6-10 Years
- Usage: Family CarNovice CarCommercial VehicleTouring CarExperience CarOther
- Support format: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Anhui, China
Product details
| Size | 596.3*205.5*620.5（mm） |
|---|---|
| Color | Gray |
| Service life | 6-10 Years |
| Usage | Family CarNovice CarCommercial VehicleTouring CarExperience CarOther |
| Support format | Other |
From the supplier
Customized for overseas markets, the muzzle is adjusted to the front, and both sides are equipped with flanks with lights, which can cover 60-120kW.
Power 60kW/80kW/100kW/120kW Model WYSK-1000V-60/80/100/120kW-Y06-22-1-DC Connector GB/T/CS1/ChAdeMO/CCS2 Max Power 30kW Emergency Stop button Yes Communication Protocol OCPP1.6J Or other Input Voltage 380V (-25%,+25%) AC Frequency 50Hz±10% Output Voltage 50V ~ 1000VDC IP Protection Grade IP54 Power distribution Single gun Power factor ≥0.99 Peak efficiency 95.5% Overall efficiency 94% auxiliary power supply 12V humidness ≤95% Soft startup time 3-8S Output voltage error ≤±0.5% Output current error ≥30A ，≤1%；<30A ，≤±0.3A Voltage accuracy ≤0.5% Steady flow accuracy ≤1% Voltage ripple ≤1% Current sharing ≤5% Load adjustment rate ≤1% Emc GB/T 18265-2014：5.4 Starting mode Swipe card/small program scan code Insulation resistance ≥10MΩ Withstand voltage AC2500V Display screen 7" touch screen Installation mode Floor Operating temperature -35℃~+55℃ Charging gun length 3m/4m/5m Altitude ≤2000m (more than 2000 meters need to be customized) Harmonic distortion ≤5%About the supplier
