Battery and Charging Pile Technology

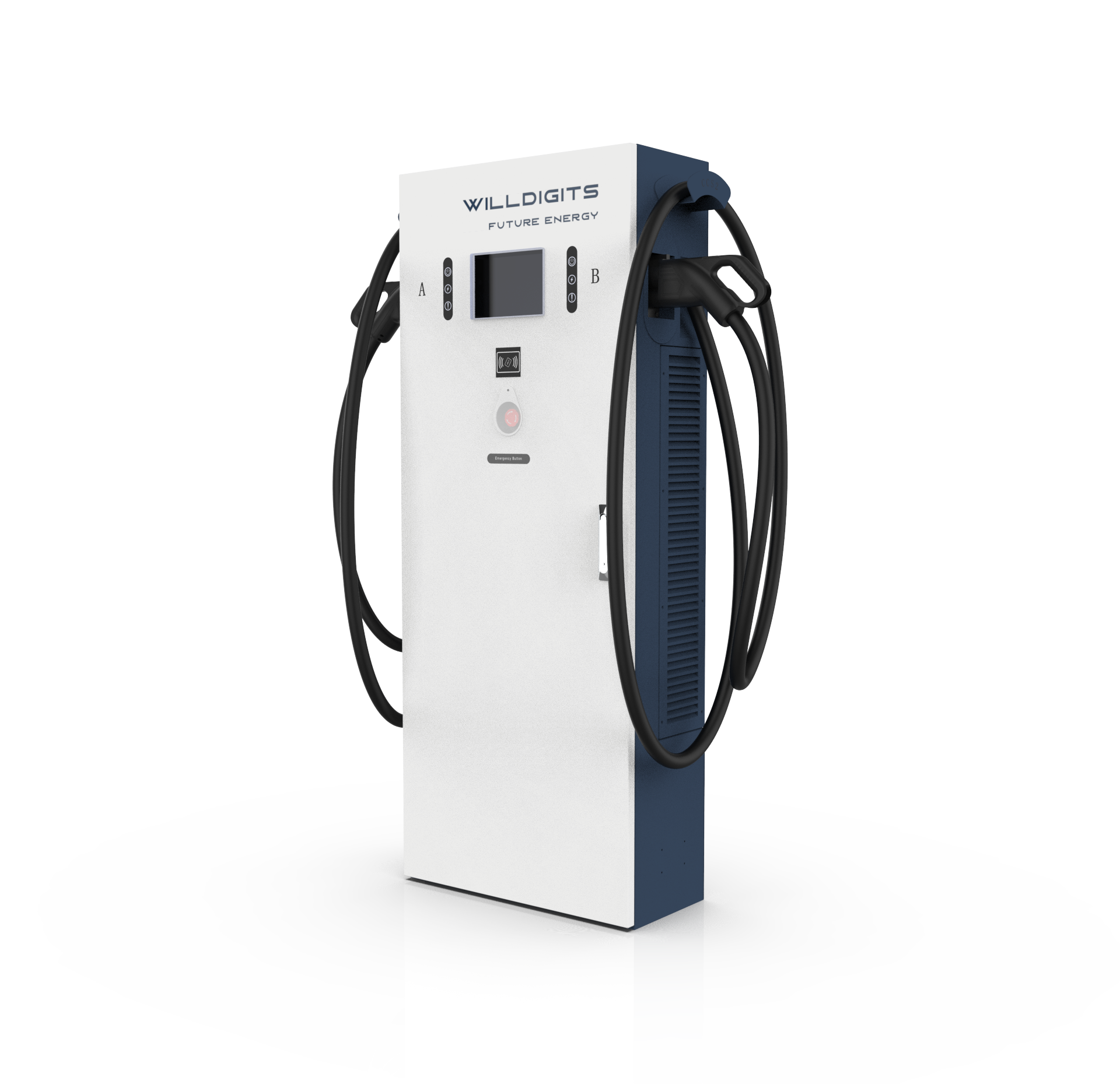

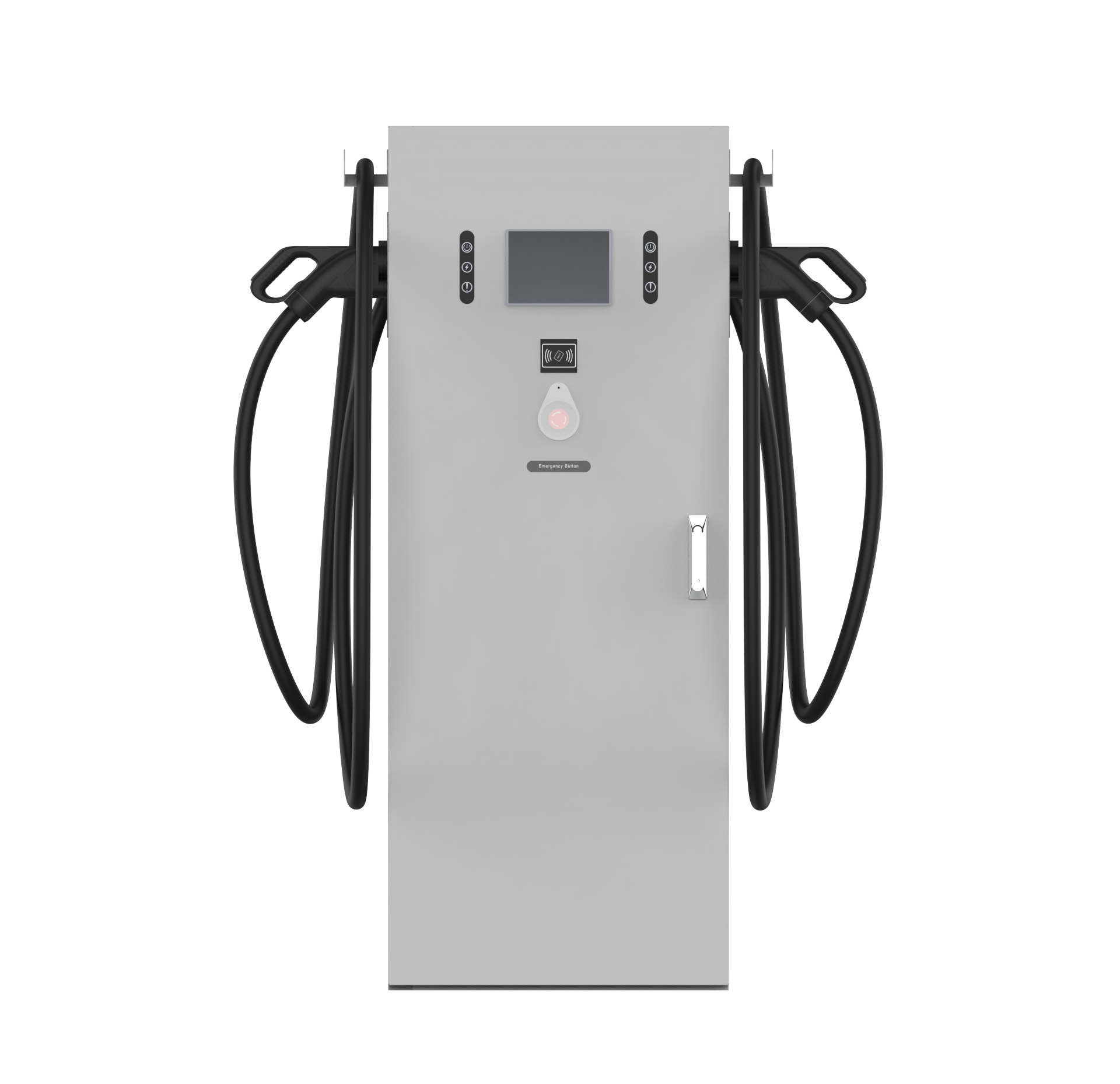

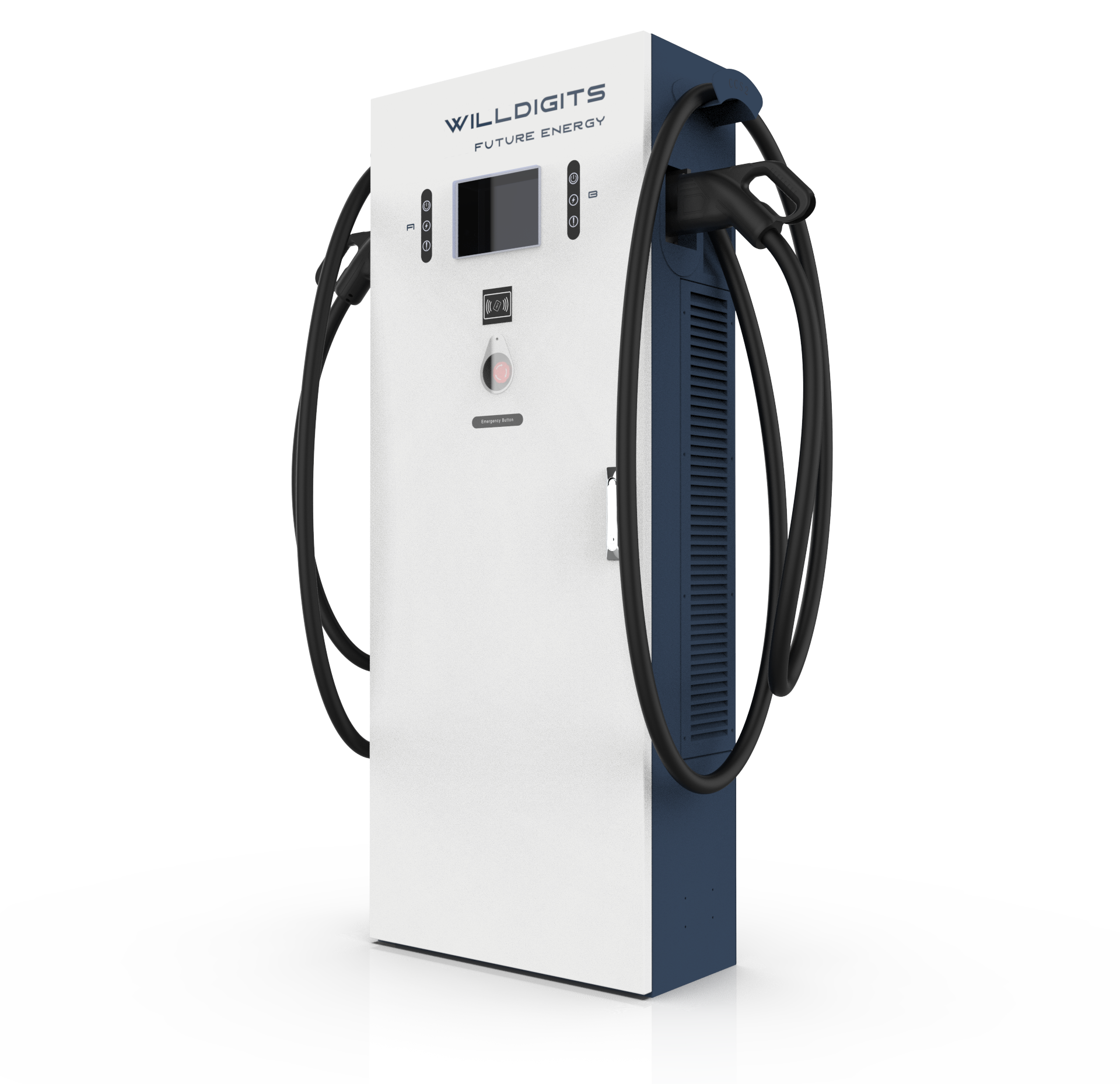

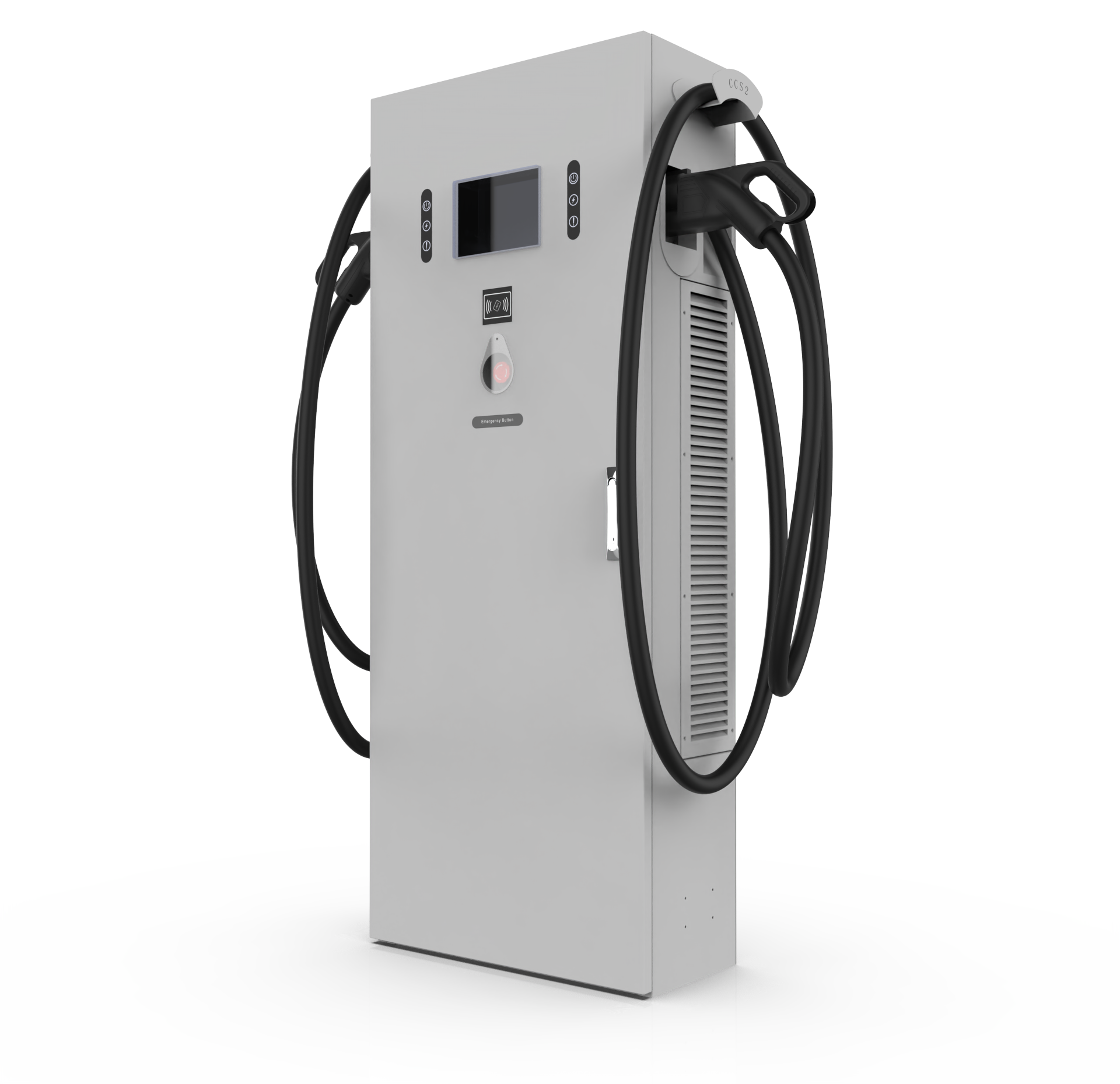

Y04 DC dual-charger charging station
CAMC INTERNATIONAL TRADING CO., LTD.3/10 fairsForeign Trade Company
New for the 140th FairGreen / low-carbonSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Y04 DC dual-charger charging station
CAMC INTERNATIONAL TRADING CO., LTD.3/10 fairsForeign Trade Company
New for the 140th FairGreen / low-carbonSmart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 630*255*1500（mm）
- Color: Black and white, gray and black
- Service life: 6-10 Years
- Support format: Other
- Usage: Family CarNovice CarCommercial VehicleTouring CarExperience CarOther
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Anhui, China
About this product
- Size: 630*255*1500（mm）
- Color: Black and white, gray and black
- Service life: 6-10 Years
- Support format: Other
- Usage: Family CarNovice CarCommercial VehicleTouring CarExperience CarOther
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Anhui, China
Product details
| Size | 630*255*1500（mm） |
|---|---|
| Color | Black and white, gray and black |
| Service life | 6-10 Years |
| Support format | Other |
| Usage | Family CarNovice CarCommercial VehicleTouring CarExperience CarOther |
Product details
| Size | 630*255*1500（mm） |
|---|---|
| Color | Black and white, gray and black |
| Service life | 6-10 Years |
| Support format | Other |
| Usage | Family CarNovice CarCommercial VehicleTouring CarExperience CarOther |
From the supplier
Power 20kW/30kW/40kW/60kW Model
WSK-1000V-20/30kW-Y04-11-1-DC（Single gun ）
WSK-1000V-40/60kW-Y04-22-1-DC（Double gun）
Connector GB/T/CCS1/CHAdeMO/CCS2 Max Power 60kW Emergency Stop Button Yes Communication Protocol OCPP1.6J Or other Input Voltage 380V（-25%~+25%）AC Frequency 50Hz±10% Output Voltage 50V ~ 1000VDC IP Protection Grade IP54 Power distribution Average power distribution Power factor ≥0.99 Peak efficiency 95.5% Overall efficiency 94% Auxiliary power supply 12V Humidness ≤95% Soft startup time 3 - 8S Output voltage error ≤±0.5% Output current error ≥30A ，≤±1%；<30A ，≤±0.3A Voltage accuracy ≤0.5% Steady flow accuracy ≤1% Voltage ripple ≤1% Current sharing ≤5% Load adjustment rate ≤1% Emc GB/T 18265 - 2014：5.4 Starting mode Swipe card/small program scan code Insulation resistance ≥10MΩ Withstand voltage AC2500V Installation mode Floor Operating temperature -35℃~+55℃ Charging gun length(mm) ＞3500/7000 Altitude ≤2000m(More than 2000 meters need to be customized) Outer dimension(mm) 630×255×1500(width × depth × height) Harmonic distortion ≤5%From the supplier
Power 20kW/30kW/40kW/60kW Model
WSK-1000V-20/30kW-Y04-11-1-DC（Single gun ）
WSK-1000V-40/60kW-Y04-22-1-DC（Double gun）
Connector GB/T/CCS1/CHAdeMO/CCS2 Max Power 60kW Emergency Stop Button Yes Communication Protocol OCPP1.6J Or other Input Voltage 380V（-25%~+25%）AC Frequency 50Hz±10% Output Voltage 50V ~ 1000VDC IP Protection Grade IP54 Power distribution Average power distribution Power factor ≥0.99 Peak efficiency 95.5% Overall efficiency 94% Auxiliary power supply 12V Humidness ≤95% Soft startup time 3 - 8S Output voltage error ≤±0.5% Output current error ≥30A ，≤±1%；<30A ，≤±0.3A Voltage accuracy ≤0.5% Steady flow accuracy ≤1% Voltage ripple ≤1% Current sharing ≤5% Load adjustment rate ≤1% Emc GB/T 18265 - 2014：5.4 Starting mode Swipe card/small program scan code Insulation resistance ≥10MΩ Withstand voltage AC2500V Installation mode Floor Operating temperature -35℃~+55℃ Charging gun length(mm) ＞3500/7000 Altitude ≤2000m(More than 2000 meters need to be customized) Outer dimension(mm) 630×255×1500(width × depth × height) Harmonic distortion ≤5%About the supplier
CAMC INTERNATIONAL TRADING CO., LTD.
Main products: Diesel Truck,Electric Truck,Engine,Charging Pile,Compressor
- ✓Exhibited at 3 recent Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2017
32
trust
- Exhibited at 3 recent Canton Fairs
- Foreign Trade Company
- Founded 2017
Canton Fair booth: 8.1F14-15 · New Energy Vehicles and Smart Mobility (140th session)
