XinRan Xinran ORC Expansion Generator
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
XinRan Xinran ORC Expansion Generator
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
Product details
| Power source | Other |
|---|---|
| Configuration | Other |
| Performance | Other |
| Material | Other |
| Application | Other |
| Lubrication style | Other |
| Mute | Not MuteMute |
| Piston type | Other |
From the supplier

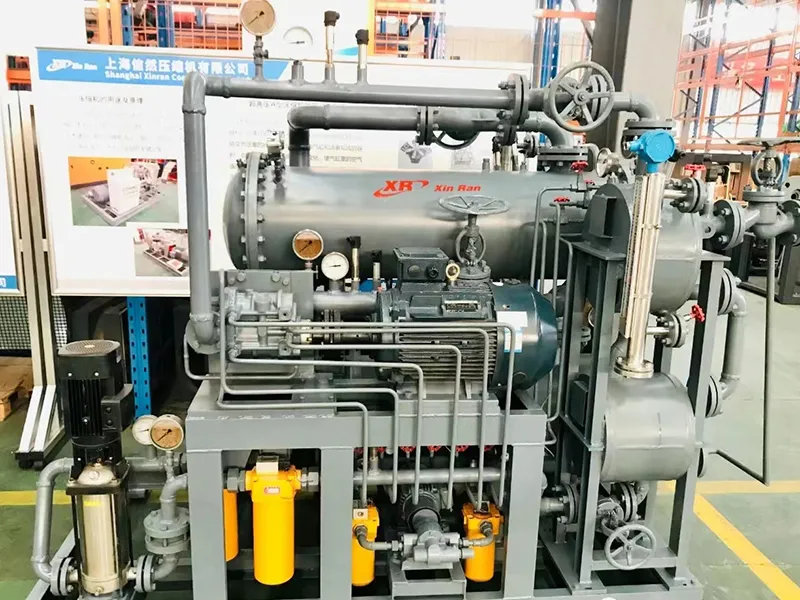

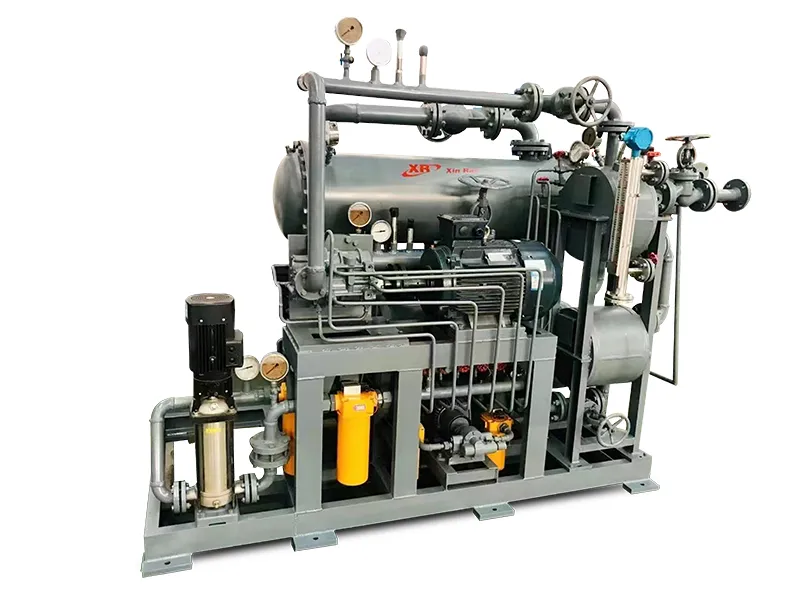

ORC is a key technology in the field of low-temperature waste heat utilization. It uses organic fluids as working fluids to convert waste heat emitted by the upper energy system into high-grade energy, thereby improving the overall utilization of energy. The liquid organic working medium enters the heat exchanger after circulation, absorbs the heat of waste heat and generates organic working medium steam at a certain pressure and temperature. The steam drives the screw expander to do work, and the output kinetic energy drives the generator to generate electricity. The low-pressure organic working medium exhausted from the expander enters the condenser to release heat, condenses into liquid organic working medium, and then re-enters the heat exchanger through the circulation pump. In this way, the conversion of heat energy and kinetic energy is realized through the reciprocating cycle.
application
ORC oil-injected screw expansion generator sets are mainly used in occasions where there are low-grade heat sources of 80 ° C-250 ° C, such as waste heat, waste steam, flue gas, etc. generated in petroleum refining, steel-making, thermal power generation, chemical synthesis and other processes. It can also be used in new energy fields such as geothermal power generation, solar power generation, and biomass power generation.
parameter table
modelNominal power generation (kW)Overall size (L×W×H) (m)Weight (ton)
XR-ORC-150
100-1506.0×2.8×3.718.3XR-ORC-200
150-2006.0×2.8×3.719.9XR-ORC-250
200-2506.0×2.9×3.722.1XR-ORC-300
250-3006.0×2.9×3.723.8XR-ORC-400
300-4006.0×2.9×3.728.3XR-ORC-600
400-6007.3×3.3×4.233.5XR-ORC-800
600-8008.5×3.4×4.637.1XR-ORC-1000
800-10008.5×3.6×5.045.7XR-ORC-1200
1000-120011.0×3.9×5.253.2XR-ORC-1600
1200-160011.0×4.1×5.666.5characteristics
Oil-free system, eliminating the need for complex and expensive oil separators;
Small size and low noise;
Wide range of heat sources;
Strong adaptability to different working conditions;
Adopt SRM new wire technology for higher mechanical efficiency;
Excellent sealing performance and low failure rate;
Grid connection is safe and reliable;
Compact equipment, small area of land, and small project construction volume;
Low maintenance costs and convenient and simple operation;
Stable performance and high heat recovery rate;
Achieve remote control and unattended.
