XinRan Xinran cement/dust conveying air compressor low pressure air compressor is specially used for cement/dust conveying
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
XinRan Xinran cement/dust conveying air compressor low pressure air compressor is specially used for cement/dust conveying
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
Product details
| Power source | Other |
|---|---|
| Configuration | Other |
| Performance | Other |
| Material | Other |
| Application | Other |
| Lubrication style | Other |
| Mute | Not MuteMute |
| Piston type | Other |
Product details
| Power source | Other |
|---|---|
| Configuration | Other |
| Performance | Other |
| Material | Other |
| Application | Other |
| Lubrication style | Other |
| Mute | Not MuteMute |
| Piston type | Other |
From the supplier

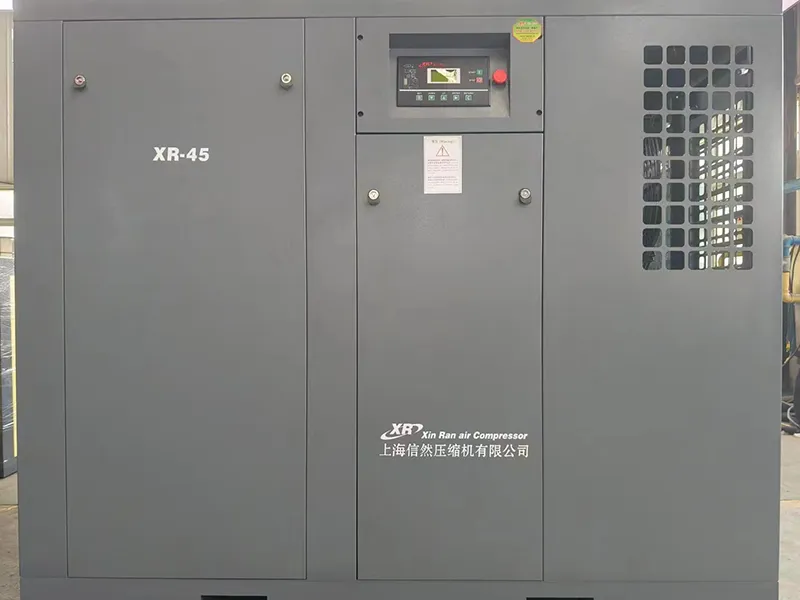

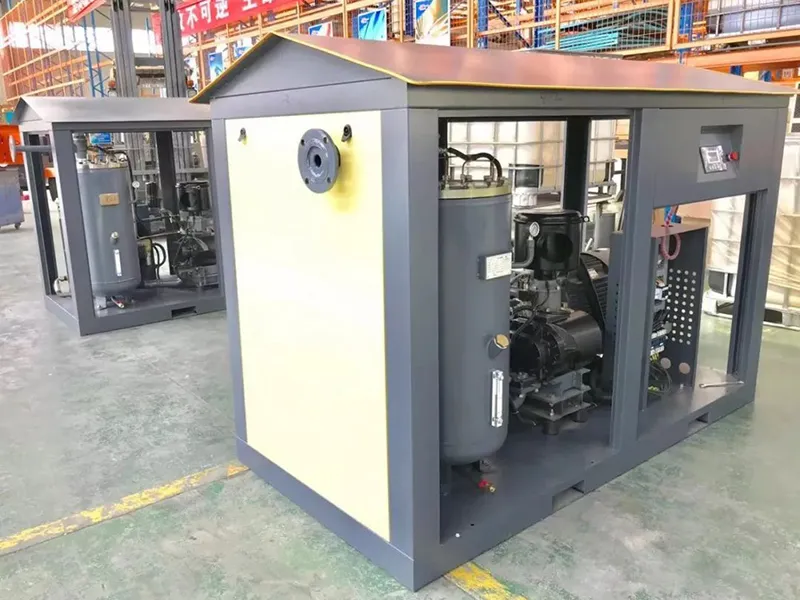

The low-pressure screw air compressor cement conveying system is tailor-made for powder conveying. It uses an energy-saving permanent magnet variable frequency electric drive instead of the diesel engine drive. It is equipped with a dedicated screw air compressor for low-pressure cement conveying, which not only effectively controls dust, but also reduces noise well. It completely solves a series of problems such as high noise, high fuel consumption, moisture of cement, hardening and waste in cement silos, ash from the silo roof and pollution of the environment, and even explosion of warehouses during unloading. At the same time, the transportation time is reduced by 50%, which brings benefits to the bulk cement unloading at the mixing station.
exhaust volume
10-65m³/min
power
37-250kW
exhaust pressure
3.5-5bar
characteristics
safety and reliability
The low-pressure powder conveying system of the screw air compressor concrete station adopts six-layer safety protection. The pressure of the entire pneumatic conveying system is constant and controllable. The safety protection automatically stops or releases the pressure when the system over-pressure. It can avoid safety accidents such as pipe explosion, warehouse explosion, and dust remover explosion caused by overpressure;
The intelligent low-pressure powder conveying system of Xinran screw air compressor concrete station can implement intelligent management of the feeding. When the operator connects the wrong feeding pipe, the air compressor will not be able to operate, start and supply air, fundamentally solving the problem of feeding wrong materials.
energy saving
The system power of 37KW can provide 10 cubic meters of compressed air per minute, and the transportation efficiency is 30%-50% higher than that of the original diesel vehicle system. Taking a 50T powder tanker truck as an example, the original 60-minute transportation time has been compressed to the current 35 minutes.
The outlet temperature of the compressed gas output by the low-pressure dust conveying system of the Xinran screw air compressor concrete station drops to about +10 degrees ambient temperature, which is far lower than the factory temperature of the cement, which can effectively eliminate the problem of continuous production in the mixing station due to the excessive temperature of the cement in the warehouse.
Environmental Protection
During system operation, the noise drops from above 100 decibels to an extremely low of 70 decibels. The unloading operation is no longer limited by time, and 24-hour unloading and unattended can be achieved;
Electric drive replaces diesel drive, and powder tanker power is not used during the unloading process, reducing the exhaust emissions of diesel vehicles. Taking the 50T powder tanker as an example, the traditional dust conveying system consumes 10 - 11 liters of powder per truck, while the Xinran screw air compressor concrete station intelligent low-pressure powder conveying system consumes about 30 degrees of power per truck., saving at least 60% of transportation costs;
After transforming the vehicle-mounted pneumatic device into an integrated external air source, the dead weight of each transport vehicle is reduced by 2 tons, and 2 tons of load fuel consumption and load space are saved while also saving tolls.
Parameter Table Single stage air compressor
modelPower (kW)Pressure (bar)Flow rate (m3/min)starting methodExit sizeOverall size (length × width × height)(mm)Weight (kg)
XRF37-3.5Ⅰ
373.510permanent magnet variable frequencyDN801800×1300×19002100XRF45-3.5Ⅰ
453.512DN802500×1600×17402200XRF55-3.5Ⅰ
553.516DN802500×1600×17402400XRF75-3.5Ⅰ
753.521DN802850×1800×19123450XRF90-3.5Ⅰ
903.529DN802850×1800×19123500XRF110-3.5Ⅰ
1103.537DN1003440×2000×23204300XRF132-3.5Ⅰ
1323.543DN1003440×2000×23205400XRF160-3.5Ⅰ
1603.548DN1253720×2365×23856250XRF185-3.5Ⅰ
1853.556DN1253720×2365×23856400XRF200-3.5Ⅰ
2003.562DN1503720×2365×23857450XRF220-3.5Ⅰ
2203.568DN1504400×2350×24308200XRF250-3.5Ⅰ
2503.574DN1504400×2350×24308500Two-stage screw air compressor
modelPower (kW)Pressure (bar)Flow rate (m3/min)starting methodExit sizeOverall size (length × width × height)(mm)Weight (kg)
XRF45-5Ⅱ
454-511.5permanent magnet variable frequencyDN652500×1600×17402300XRF55-5Ⅱ
554-514.7DN652500×1600×17402400XRF75-5Ⅱ
754-519.2DN802850×1800×19123450XRF90-5Ⅱ
904-524.2DN802850×1800×19123500XRF110-5Ⅱ
1104-527.2DN1003440×2000×23204300XRF132-5Ⅱ
1324-532.5DN1003440×2000×23204400XRF150-5Ⅱ
1504-538DN1253720×2365×23857200XRF160-5Ⅱ
1604-540.7DN1253720×2365×23857250XRF185-5Ⅱ
1854-546.9DN1253720×2365×23857400XRF200-5Ⅱ
2004-550.6DN1253720×2365×23857450XRF220-5Ⅱ
2204-556.5DN1504400×2350×24308600XRF250-5Ⅱ
2504-565high frequency switchingDN1504400×2350×24308600From the supplier
