Xiamen Gachn Technology,Full Auto Wicket Bag Sanitary Napkins Packaging Machine
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Xiamen Gachn Technology,Full Auto Wicket Bag Sanitary Napkins Packaging Machine
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Machining: Other
- Forging tolerance: Other
- Surface treatment: Other
- Application: Other
- Exports to: Mainland China, South Asia, EU
About this product
- Size: ·
- Color: ·
- Machining: Other
- Forging tolerance: Other
- Surface treatment: Other
- Application: Other
- Exports to: Mainland China, South Asia, EU
Product details
| Size | · |
|---|---|
| Color | · |
| Machining | Other |
| Forging tolerance | Other |
| Surface treatment | Other |
| Application | Other |
| Standard | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Machining | Other |
| Forging tolerance | Other |
| Surface treatment | Other |
| Application | Other |
| Standard | Other |
From the supplier
Description

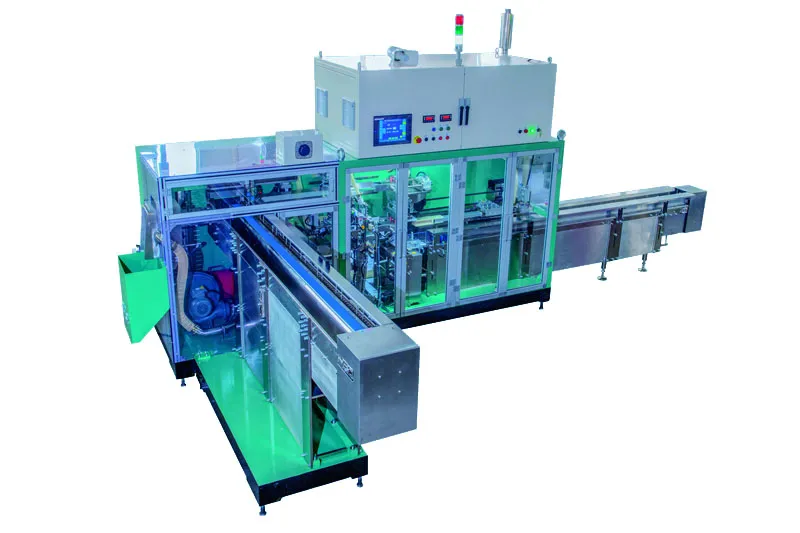

This packaging machine series packages the stacked sanitary napkins and panty liners into premade bags and then seals the bags. The packaging machine is a good choice for customers that wish to use their own packaging bags.
Schematic diagram of the package
Technical parameter
Model: GM-088WY
Working speed: up to 55 bags/min（in relation to the application）
Yield rate: ≥98%
Packing bag type: pre-made bags on wickets
Packing material: PET, composite film (single layer thickness:40~70um)
Packing type: laying,upright
Stacking height: ≤90mm
Machine overall size:L6.3m×W1.5m×H2.0m（in relation to the application）
Weight:: about 2500kg
Installation capacity: about 16KW
Power supply: 3Ph4W（A、B、C、PE), 380V/50Hz
Air supply: 0.6-0.8MPa
Air consumption: ≤300LPM
Special features
Gusset shaping unit ensures product stability and accuracy; gusset overlap deviation is less than 3mm.
Bag opening unit operates with bag package of different specifications, and the changing of specifications can be done by adjusting the parameters.
When the machine running, any doors cannot open, unless press the emergency stop button or blackout, the door can open.
Simple operation, hommization, the important parameters with password protection.
From the supplier
Description
This packaging machine series packages the stacked sanitary napkins and panty liners into premade bags and then seals the bags. The packaging machine is a good choice for customers that wish to use their own packaging bags.
Schematic diagram of the package
Technical parameter
Model: GM-088WY
Working speed: up to 55 bags/min（in relation to the application）
Yield rate: ≥98%
Packing bag type: pre-made bags on wickets
Packing material: PET, composite film (single layer thickness:40~70um)
Packing type: laying,upright
Stacking height: ≤90mm
Machine overall size:L6.3m×W1.5m×H2.0m（in relation to the application）
Weight:: about 2500kg
Installation capacity: about 16KW
Power supply: 3Ph4W（A、B、C、PE), 380V/50Hz
Air supply: 0.6-0.8MPa
Air consumption: ≤300LPM
Special features
Gusset shaping unit ensures product stability and accuracy; gusset overlap deviation is less than 3mm.
Bag opening unit operates with bag package of different specifications, and the changing of specifications can be done by adjusting the parameters.
When the machine running, any doors cannot open, unless press the emergency stop button or blackout, the door can open.
Simple operation, hommization, the important parameters with password protection.
