CGF 24-24-8 3-in-1 drinking water filling machine

Introduction:

This CGF series PET bottle three-in-one beverage filling production line integrates washing, filling and sealing, which is an advanced filling equipment innovatively developed based on the introduction, digestion and absorbing foreign advanced technologies, and is mainly used for the filling and packaging of mineral water, pure water and other drinks.It is safe, reliable and convenient to maintain, and is ideal filling equipment for beverage factory.

The production process of the machine is as follows: the bottle in the air delivery channel is transmitted to the 3-in-1 filling machine.The rotary plate of the bottle press is equipped with a bottle mouth stainless steel bottle clip, bottle clip clip the bottleneck along a guide rail flip 180 to turn the bottle mouth down.In a specific area of the bottle press, a special nozzle emits bottle water to flush the inner wall of the bottle, and also flush the outer wall of the bottle.After rinsing and draining, the bottle is flipped along the guide rail and then 180 to turn the mouth up.The washed bottles are exported by the bottle washer and delivered to the filling machine.The bottle entering the filling machine is held by the bottleneck tray stuck bottle port, and achieves rise and fall under the cam through the lifting mechanism.The filling machine adopts gravity filling method, the filling valve starts to fill, and the filling ends when the material rises to the position of the back hole.After filling, the bottle mouth drops from the filling valve and the bottle enters the screw through the transition dial.The stop knife on the screw der stuck the bottleneck, keeping the bottle upright and preventing rotation.The rotary cover head maintains the public rotation and rotation on the rotary cover machine, and realizes the action of grasping cover, cover, rotary cover and off cover under the action of the cam to complete the whole sealing process.The finished bottle is transmitted from the rotary cover machine to the outgoing bottle delivery chain through the outgoing bottle dial wheel, and the three-in-one filling machine is transmitted from the delivery chain.The whole machine equipment adopts floor-to-ceiling window sealing, beautiful and generous.

Main characteristics

1. used air delivery bottles into the machine, eliminating the helix and delivery chain, making it easier to replace the bottle shape.

2. The bottle transmission adopts the clip bottleneck technology, the bottle transformation does not need to adjust the entire device, only to change the associated bend and star wheel.

3. The specially designed stainless steel bottle washing clip is firm and durable and does not contact the screw position of the bottle port, avoiding secondary contamination

4. high-speed large gravity flow valve filling valve, fast filling speed, accurate filling, no liquid leakage

5. leaves the bottle to spiral down, changing the bottle shape without adjusting the height of the transport chain.

6. The console adopts advanced PLC automatic control technology, and is the key electrical components of famous companies such as Mitsubishi, Schneider, France and Omron.

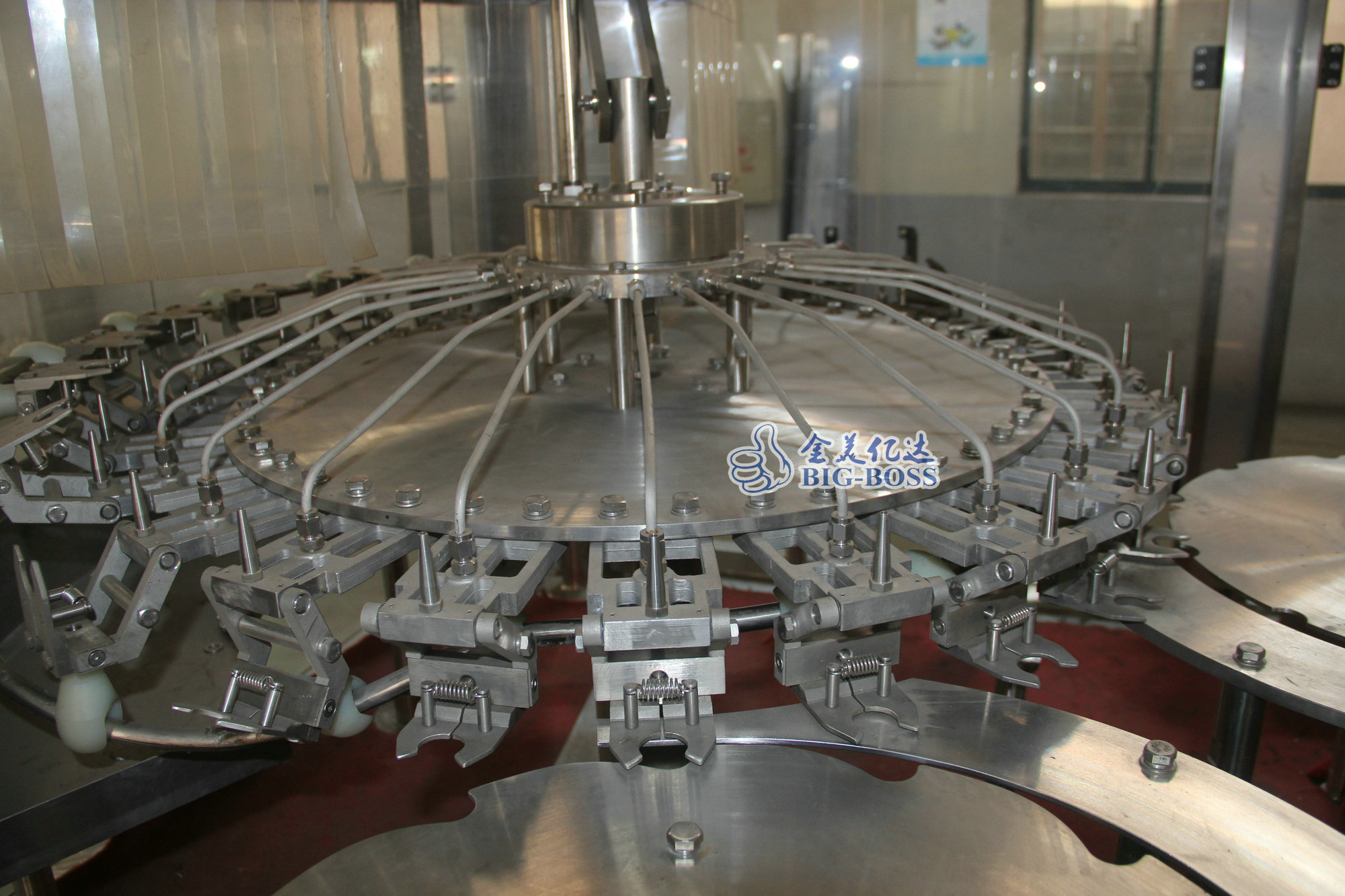

Wash the head.（24PCS）

All 304 / 316 stainless steel flush head with spray water injection design for more water savings and cleaner

304 / 316 stainless steel claws with plastic pads ensure that bottle collisions are reduced during washing

304 / 316 stainless steel cleaning pump

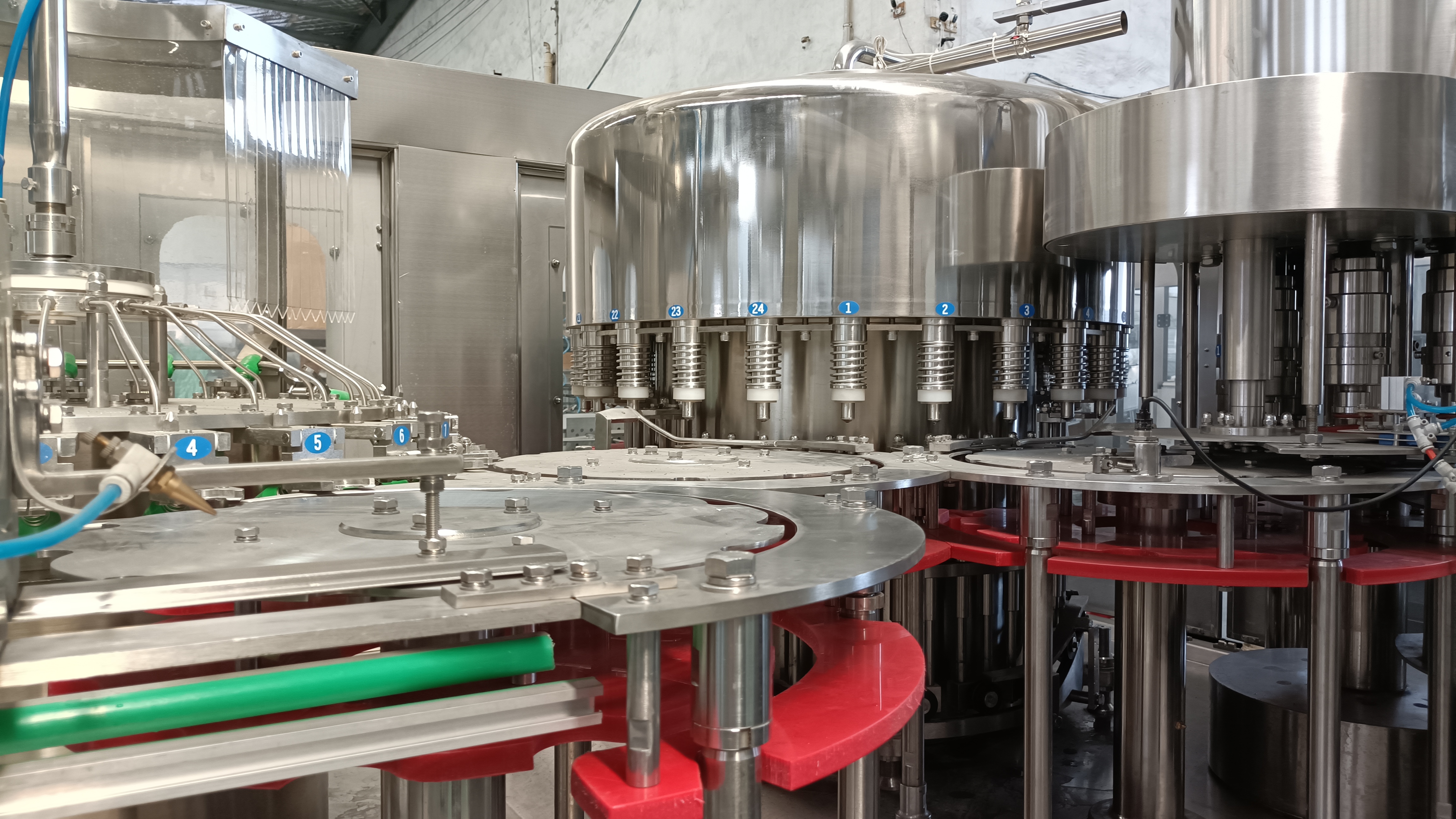

Filling head (24PCS)

304 / 316 Stainless steel high precision filling nozzle

high precision and high speed liquid level filling valve with adjustable filling amount and the same liquid level after filling

All 304 / 316 Stainless Steel Contact reservoir, finely polished, no dead corners, easy to clean

304 / 316 Stainless steel fill pump

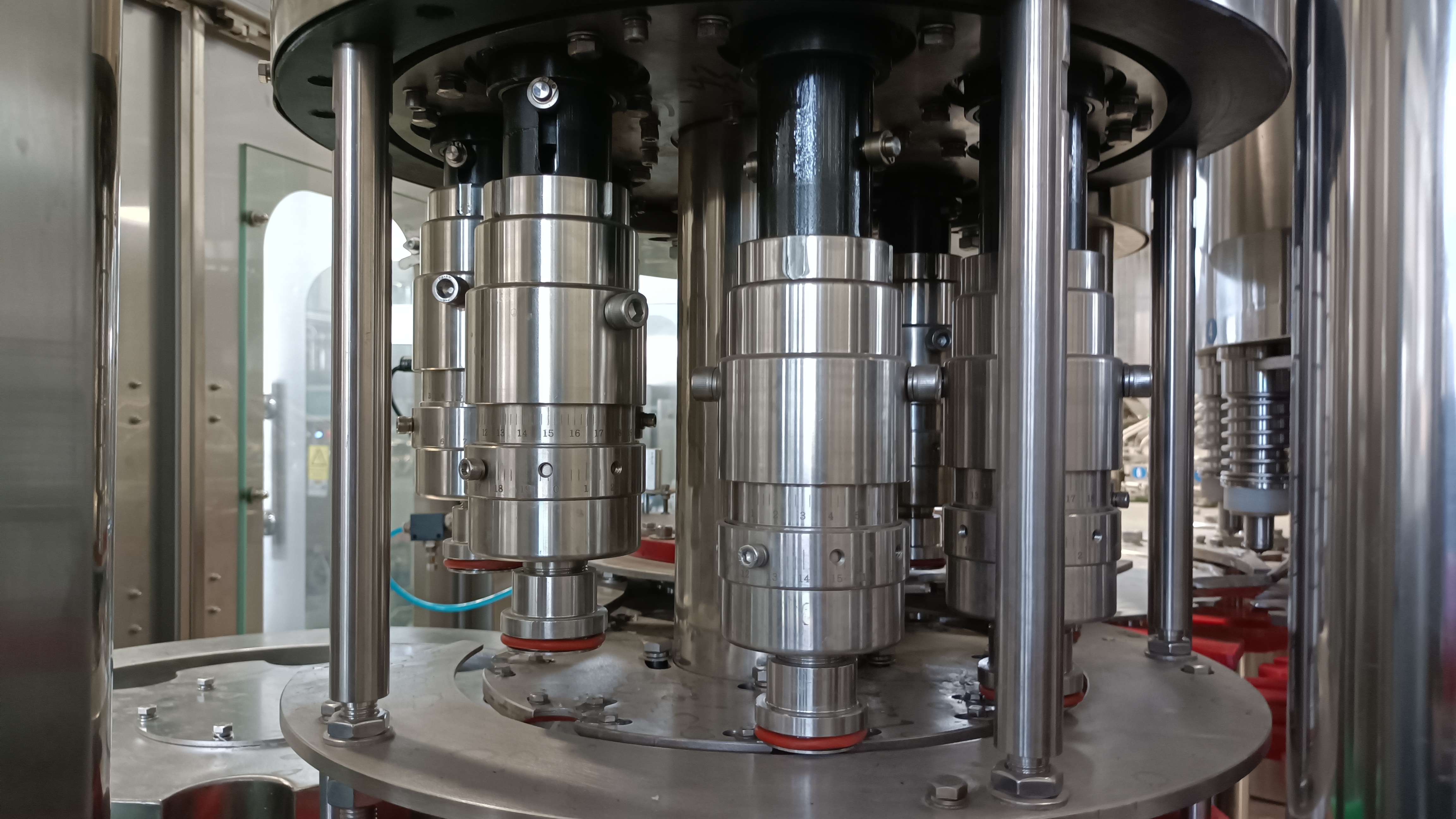

Slip head (8PCS)

placement and capping system, electromagnetic spin cover head

All 304 / 316 stainless steel construction

has no bottle without cover

The automatically stops automatically when the cap is missing

More models:

Weight

BCGF 8-8-3

BCGF 14-12-5

BCGF 16-16-5

BCGF 24-24-8

BCGF 32-32-8

Size

2000-3000

5000

8000

12000

15000

Power

3.5KW

5KW

7.5KW

9KW

11KW

capacity

2000*1500*2200

2360*1770*2200

2700*2000*2200

2700*2300*2200

3000*2300*2200

Model

3200KG

3800KG

4000KG

4200KG

4500KG
