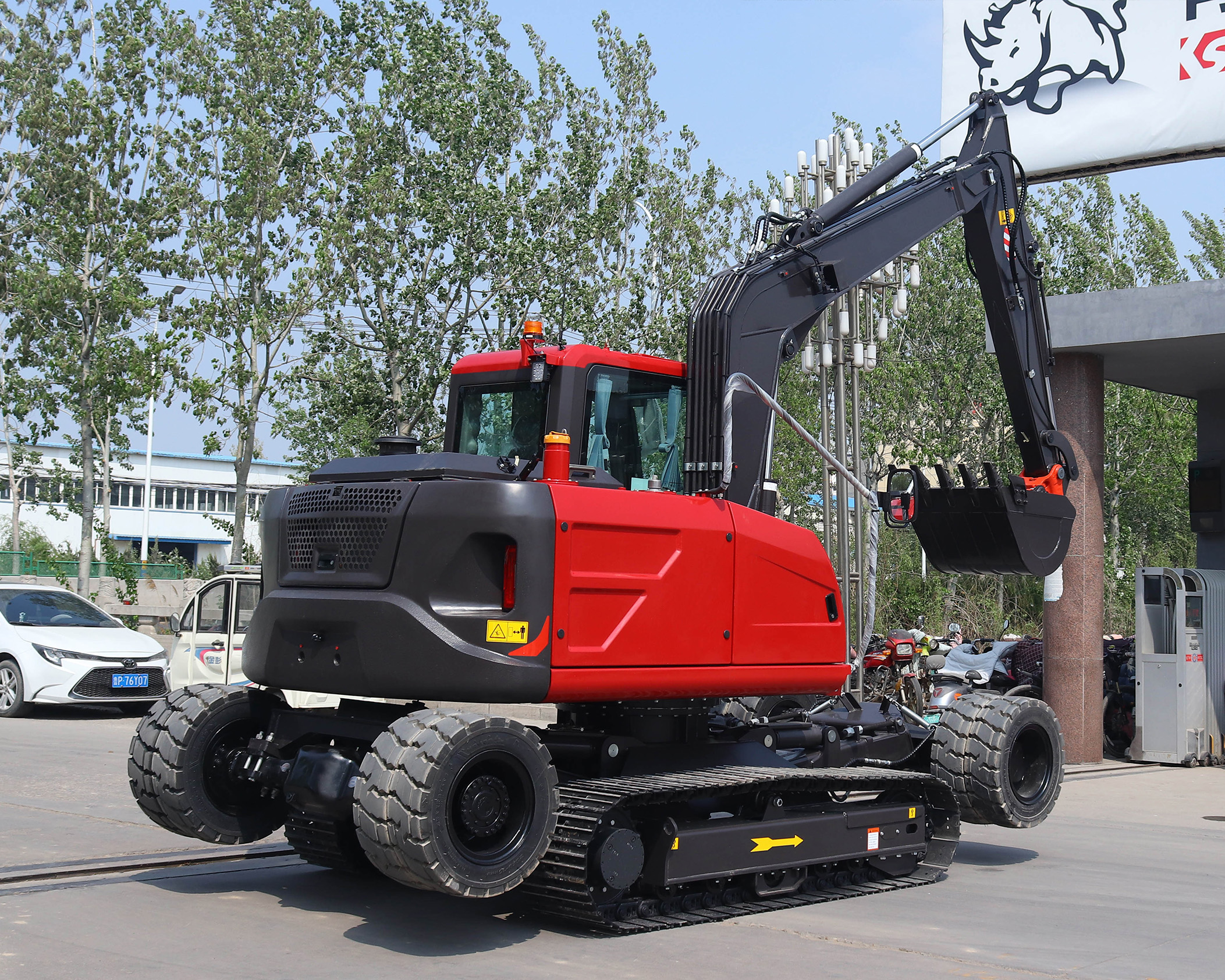

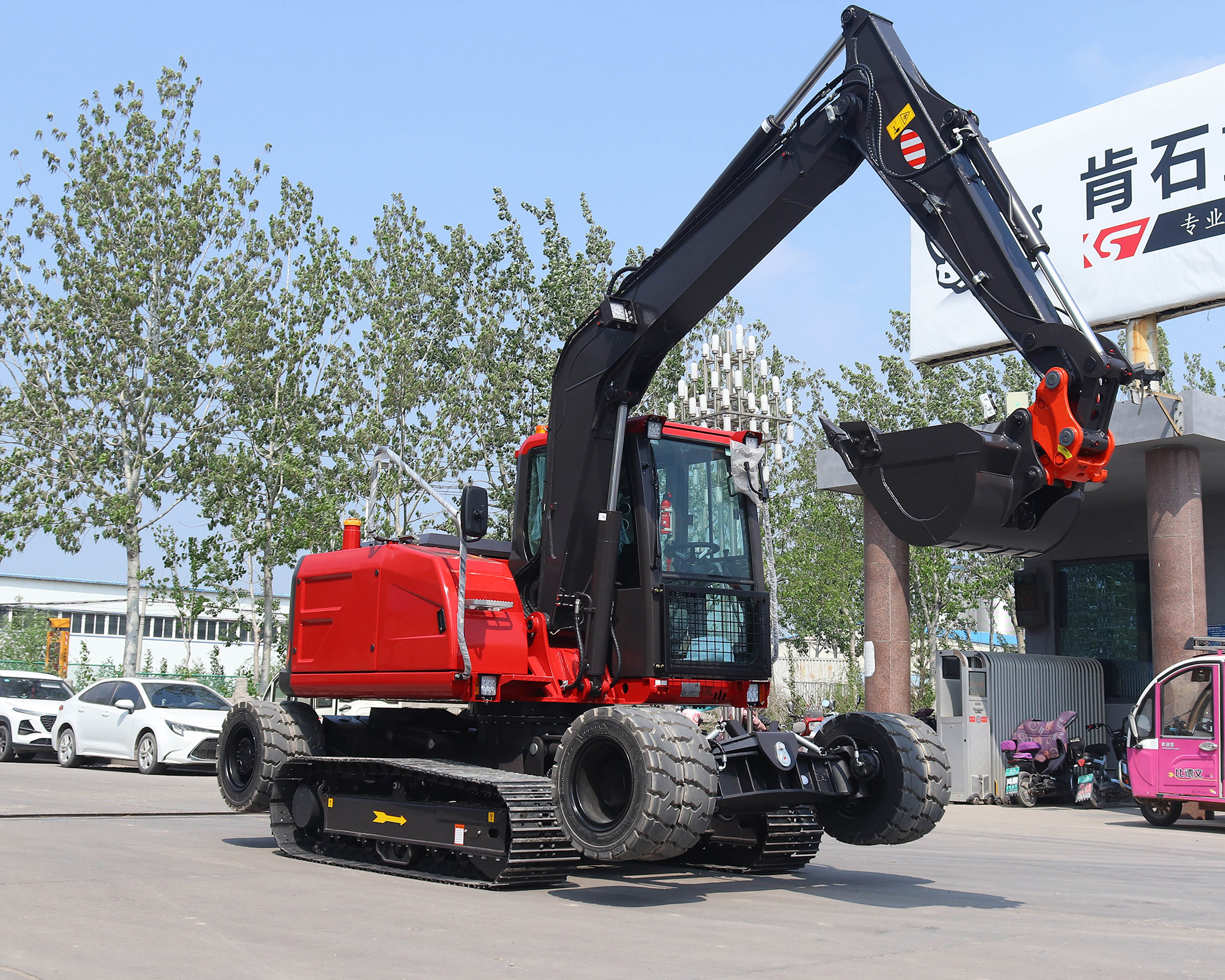

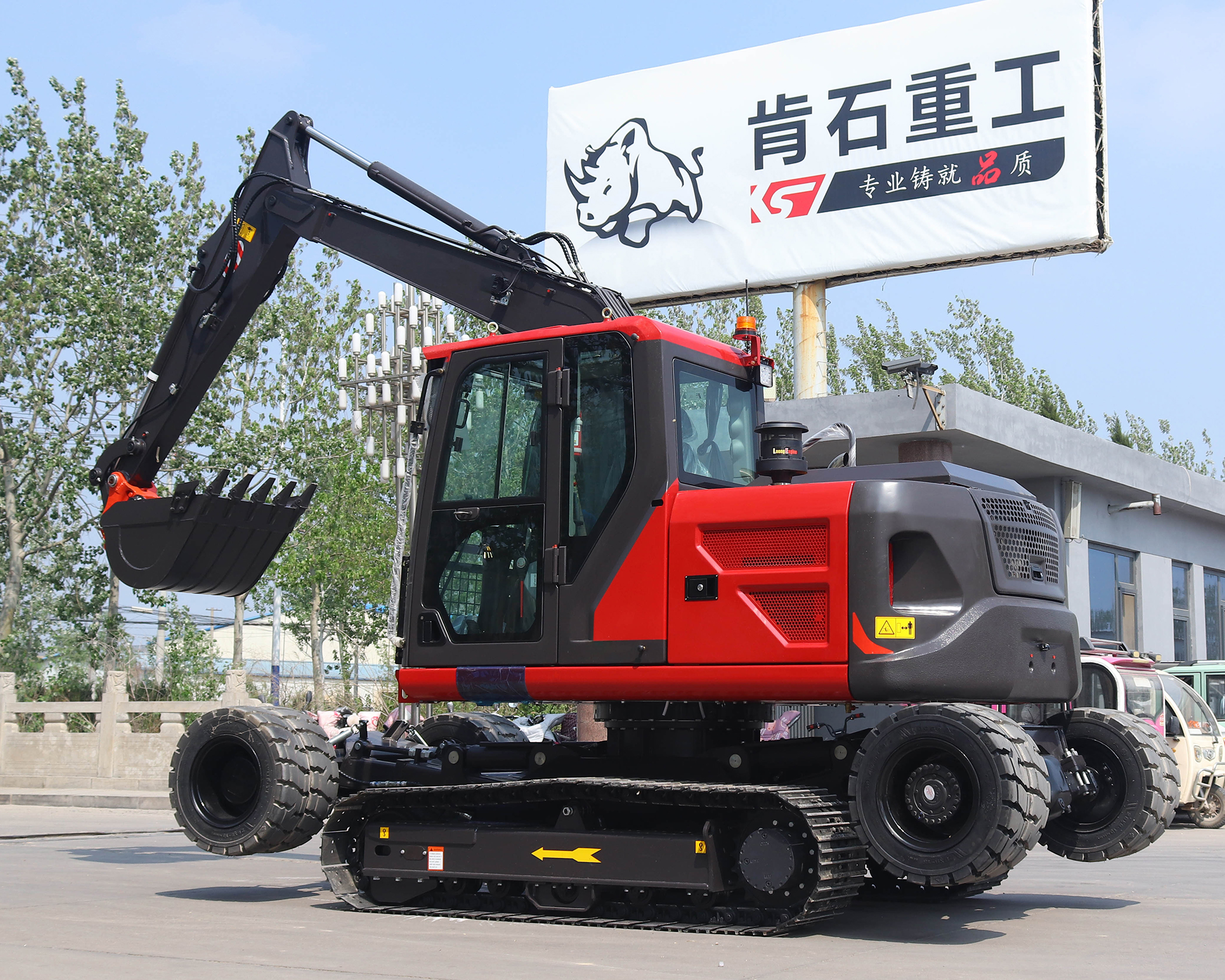

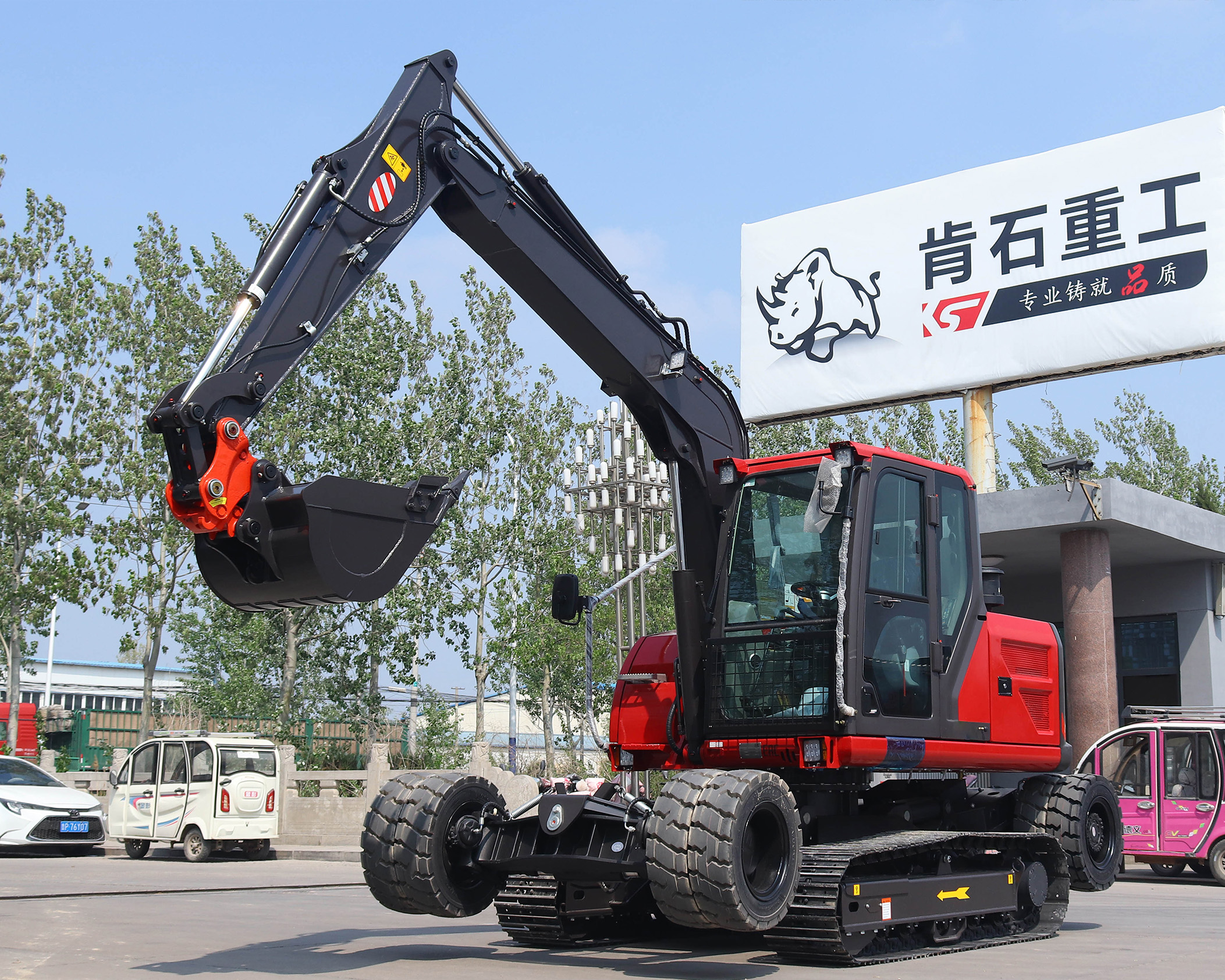

Wheel-Crawler Excavator X9, with CE ISO certificates. New design, patent products, going for walks on the wheel, working on the crawler, wheel and crawler is reachable to alternate each and every and every other, one town transport, no select out out the truck again, very convenient, with fantastic market now.

9ton, GERMANY REXROTH pump, USA EATON swing motor, journeying motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket, Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.

X9 Wheel-crawler excavator is with united states massive invention patent which is in fact researched and developed via way of the use of normal overall performance of wellknown usual overall performance of way of the utilization of way of our company. Convenient moving, speedy journeying speed, quick transferring from wheels to tune walking. The the the the the the the the the the the the front tire axle can be all of sudden disassembled when required.

Yanmar Engine

-- Using imported engine, every and each and every and each and every and every and each day and durable, this engine elements low noise, low vibration, and trouble-free maintenances for imperative parts.

Main Specification:

X9 Wheel- Crawler Excavator Specification: Total length (Boom3.5m+Bucket arm 2m) 6570 mm Total height (Boom3.5m+Bucket arm 2m) 2982 mm Counter weight turning radius 1836 mm Engine hood height 2104 mm Counter weight ground clearance 1120 mm Upper structure width 2000 mm Cabin height (wheels up) 2982 mm Tire width 2120 mm Wheels up wheel gauge 3400 mm Distance of swing center to rear wheel (wheels up) 1682 mm Wheels down wheel gauge 3560 mm Distance of swing center to rear wheel (wheels down) 1767 mm Total height (wheels down) 3190 mm Track wheel track 2050 mm Track width 400 mm Technical performance specification Total weight 8770kg Bucket capacity 0.3m3 Engine Model YANMAR 4TNV94L-BNBKC Engine Displacement 3.054L Engine power/rpm 33.7 kw/2100 rpm Travelling speed 25 km/h(wheel); 2.3km/h(track) Swing speed 9rpm Hydraulic system Rexroth from Germany Pump Plunger pump Pressure 25 Mpa Displacement 132 L/min Working device Boom 3.5m+Arm 2m Max. digging radius 6880mm Max. digging radius (on ground) 6735mm Max. digging depth 3772mm Max. digging depth 7130mm Max. dumping height 5220mm Min. turning radius 2617mm Max. vertical digging depth 3425mm

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE,ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.

Below are our products list:
1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m

5) Electrical kids excavator with our Rhinoceros patents design.

SPECIFICATION Model XN12-9 Brand RHINOCEROS Machine Weight 1130kg Bucket capacity 0.025cbm Bucket width 380mm Engine KUBOTA Rated power 11.8 kw/2400r/min Swing speed 11rpm Max. Grade ability 30° Pump type Gear pump Pressure 16MPa Flow rate 18.4L/min MAIN DEMENSIONS Overall dimension( LxWxH) 2850x954/800x2270 mm Wheelbase 914 mm Total length of track 1234mm Upper chassis ground clearance 453mm Counterweight turning radius 660 mm Track width 180 mm Track height 320 mm Height of seat to ground 1525mm Boom swing - left 363mm Boom swing - right 325mm OPERATING RANGE Max. Digging depth 1568 mm Max. Vertical digging depth 1377mm Max. Digging height 2646 mm Max. Dumping height 1876mm Max. Digging radius on ground 3039mm Min. Rotation radius 1510mm Max. Lifting height of dozer blade 141 mm Max. Digging depth of bulldozer blade 200mm
