This wireless  data acquisition product can gather measuring data  from several measuring tools simultaneously, wireless transmit data, wide working area, plug and play, multi format recognition.

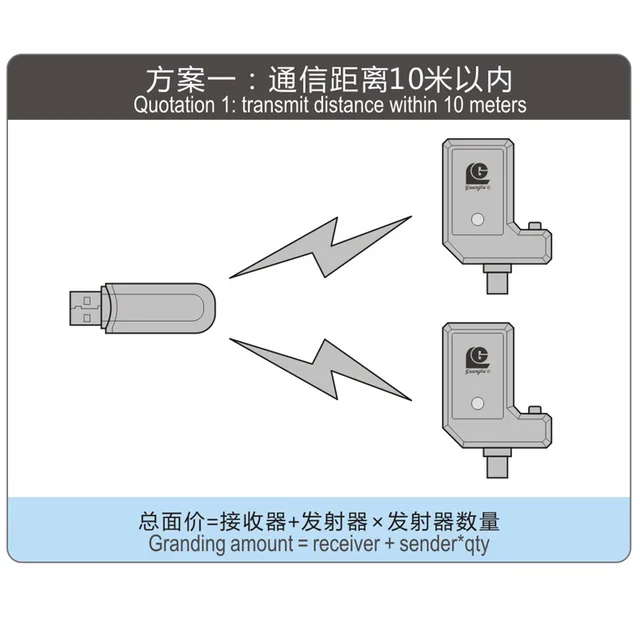

This wireless data acquisition system is consisted by sender, receiver and WIFI intermediary. When not using WIFI intermediary, the max transmitting distance is 10 meters ( barrier-free distance ) between  sender and receiver,  1 receiver can match 8 senders  simultaneously;  When  using  WIFI  intermediary,  the  max  transmitting distance  can  be 120  meters ( barrier-free distance ) between sender and receiver, and 1 receiver can match 64 senders simultaneously.

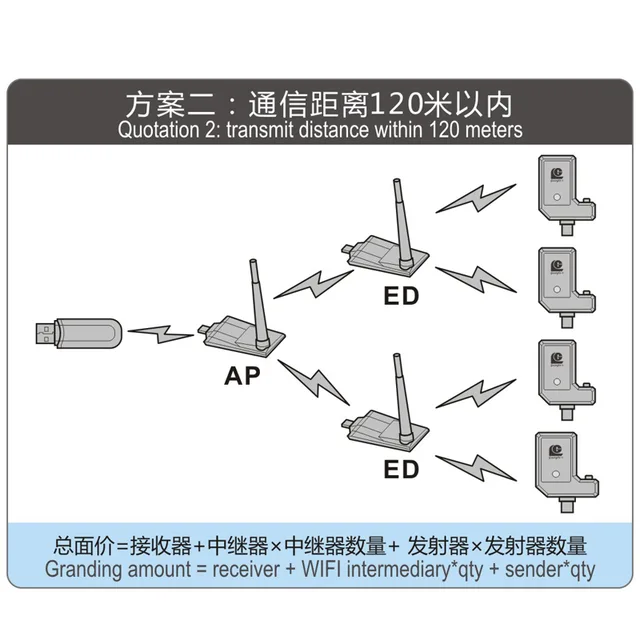

The method to use WIFI intermediary:

①The receiver matches four AP once the receiving distance is within 10 meters.

②Take each  AP as center of circle,  make radius 100 meters,  and put 2 pieces              of WIFI intermediary ED on the radius.

③Later take  each ED  as  center of circle,  make radius 10 meters,  then  put  8          pieces of senders.

With the above steps,  there are  max 64 senders,  which  means  can  connect with  64 pieces of measuring tools simultaneously.  Senders can be customized into continuous  acquisition  mode or manually acquisition  mode.  The LED light flashes under manually acquisition mode.

There are two series codes,  one is for  setting the number of sender,  the other is for set the code of WIFI intermediary (when WIFI intermediary is not working,  the code is useless).  The receiver  connects with  PC by means of USB port.  Then the software in the PC goes to analyze and record the measuring data.

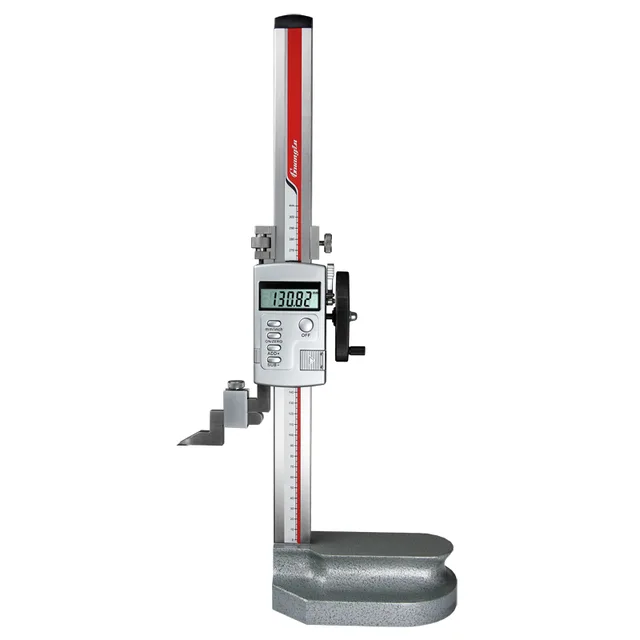

This  type wireless data acquisition system can matches with all our own Digital Caliper, Digital Height Gauge, Digital Micrometer and Digital Indicator etc.
