UT12E-ROW and UT12M-ROW are UNI-T’s professional grade voltage detectors.They are designed with IP67 dust/water resistant and can withstand 2 metersdrop. These durable devices are great for working in harsh environments. UT12E-ROW has an optional vibration mode and UT12M-ROW is able to detectmagnetic ﬁelds.

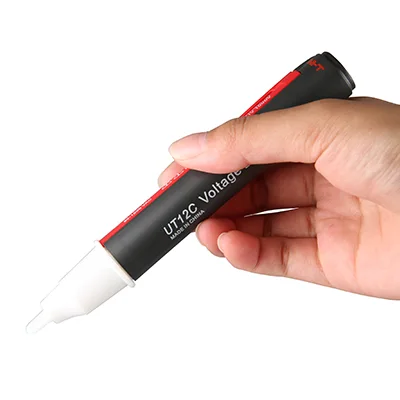

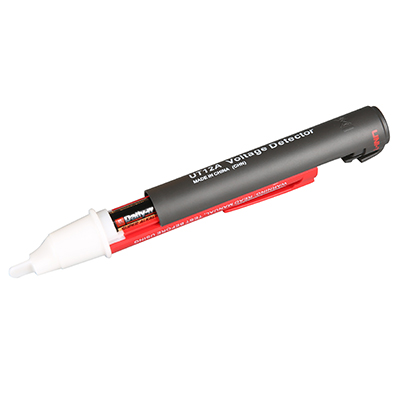

SpecificationsModelUT12AUT12BUT12CAC voltage90V~1000VFrequency50Hz/60HzBuzzer√Selectable√Auto power off—√√Low battery indication≤2V≤1.8VOperationManualAutoGeneral CharacteristicsPower1.5V battery (R03) x 2Product colorRed and greyProduct net weight50gProduct size150mm x 20mmStandard accessoriesBatteriesStandard individual packingBlister, English manualStandard quantity per carton40pcsStandard carton measurement355mm x 240mm x 335mmStandard carton gross weight3.74kg

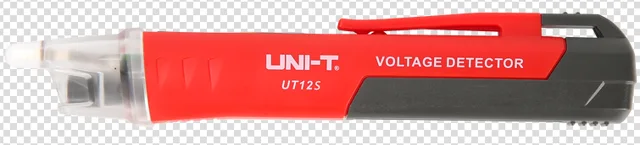

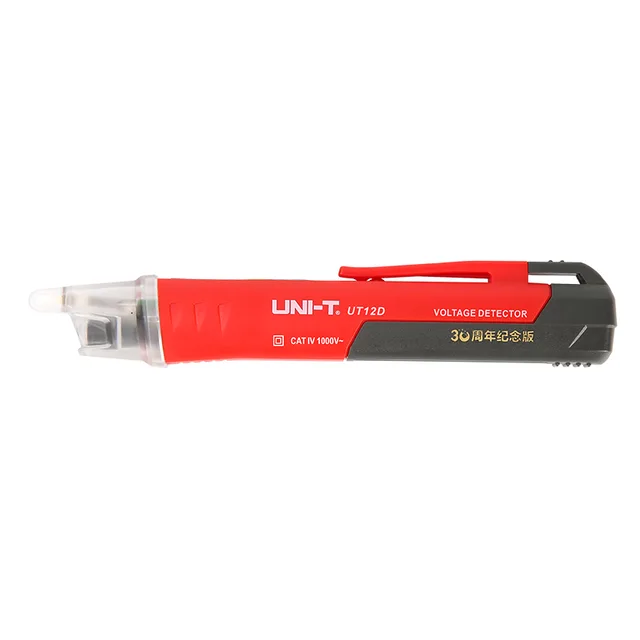

SpecificationsModelUT12S-ROWUT12D-ROWAC voltage (Low)　24V~1000VAC voltage (High)90V~1000V90V~1000V Frequency range50/60HzBuilt-in ﬂashlight√√※Audible (buzzer) and visual (LED) indication√√Buzzer√√LED indication√√Auto power oﬀ√√Low voltage indication√√Drop test1m1mGeneral CharacteristicsPower1.5V battery (R03) x 2Product colorRed and greyProduct net weight50gProduct size150mm x 18 mm x 23mmStandard accessoriesBatteriesStandard individual packingBlister, English manualStandard quantity per carton40pcsStandard carton measurement350mm x 245 mm x 210mmStandard carton gross weightAbout 3.6kg

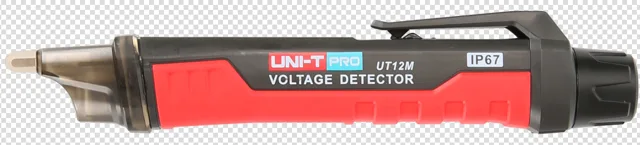

SpecificationsModelUT12E-ROWUT12M-ROWAC voltage (Low)24V~1000V24V~1000VAC voltage (High)90V~1000V90V~1000V Frequency range50/60HzVibration mode√ Magnetic solenoid detection　√Built-in ﬂashlight√√※Audible (buzzer) and visual (LED) indication√√Buzzer√√LED indication√√Auto power oﬀ√√Low voltage indication√√Double injection molding√√Drop test2m2mGeneral CharacteristicsPower1.5V battery (R03) x 2Product colorRed and greyProduct net weight72gProduct size160.5mm x 21.5 mm x 25mmStandard accessoriesBatteriesStandard individual packingBlister, English manualStandard quantity per carton40pcsStandard carton measurement415mm x 245 mm x 235mmStandard carton gross weightAbout 3.8kg

From the supplier

UT12E-ROW and UT12M-ROW are UNI-T’s professional grade voltage detectors.They are designed with IP67 dust/water resistant and can withstand 2 metersdrop. These durable devices are great for working in harsh environments. UT12E-ROW has an optional vibration mode and UT12M-ROW is able to detectmagnetic ﬁelds.

SpecificationsModelUT12AUT12BUT12CAC voltage90V~1000VFrequency50Hz/60HzBuzzer√Selectable√Auto power off—√√Low battery indication≤2V≤1.8VOperationManualAutoGeneral CharacteristicsPower1.5V battery (R03) x 2Product colorRed and greyProduct net weight50gProduct size150mm x 20mmStandard accessoriesBatteriesStandard individual packingBlister, English manualStandard quantity per carton40pcsStandard carton measurement355mm x 240mm x 335mmStandard carton gross weight3.74kg

SpecificationsModelUT12S-ROWUT12D-ROWAC voltage (Low)　24V~1000VAC voltage (High)90V~1000V90V~1000V Frequency range50/60HzBuilt-in ﬂashlight√√※Audible (buzzer) and visual (LED) indication√√Buzzer√√LED indication√√Auto power oﬀ√√Low voltage indication√√Drop test1m1mGeneral CharacteristicsPower1.5V battery (R03) x 2Product colorRed and greyProduct net weight50gProduct size150mm x 18 mm x 23mmStandard accessoriesBatteriesStandard individual packingBlister, English manualStandard quantity per carton40pcsStandard carton measurement350mm x 245 mm x 210mmStandard carton gross weightAbout 3.6kg

SpecificationsModelUT12E-ROWUT12M-ROWAC voltage (Low)24V~1000V24V~1000VAC voltage (High)90V~1000V90V~1000V Frequency range50/60HzVibration mode√ Magnetic solenoid detection　√Built-in ﬂashlight√√※Audible (buzzer) and visual (LED) indication√√Buzzer√√LED indication√√Auto power oﬀ√√Low voltage indication√√Double injection molding√√Drop test2m2mGeneral CharacteristicsPower1.5V battery (R03) x 2Product colorRed and greyProduct net weight72gProduct size160.5mm x 21.5 mm x 25mmStandard accessoriesBatteriesStandard individual packingBlister, English manualStandard quantity per carton40pcsStandard carton measurement415mm x 245 mm x 235mmStandard carton gross weightAbout 3.8kg
