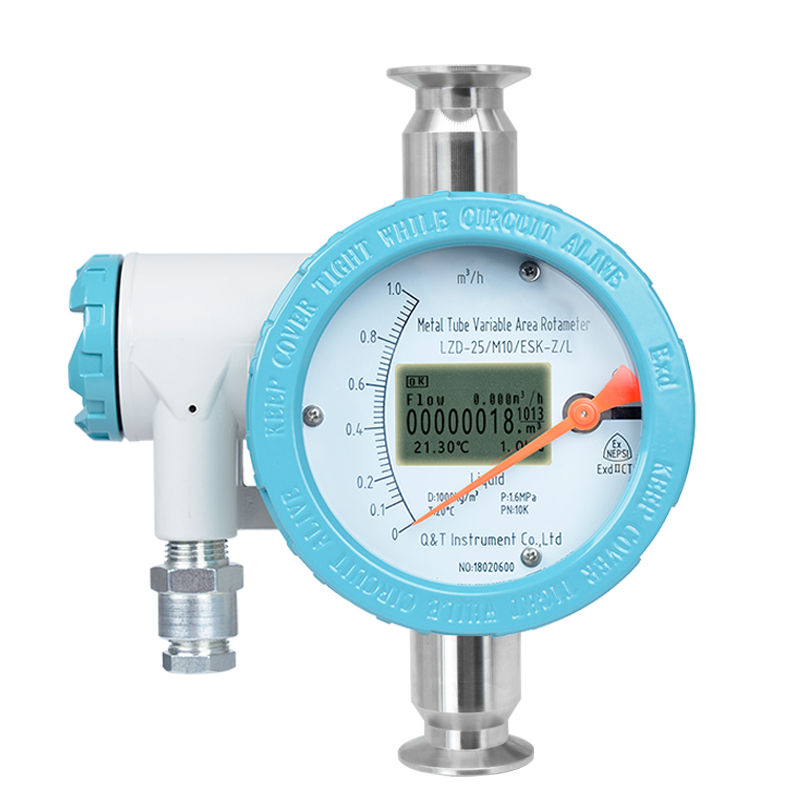

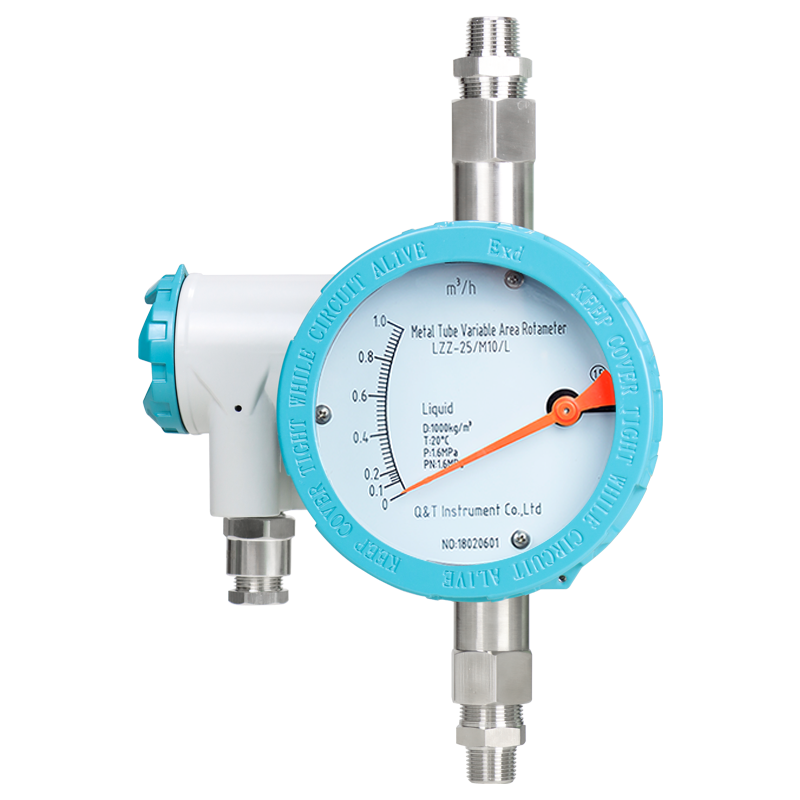

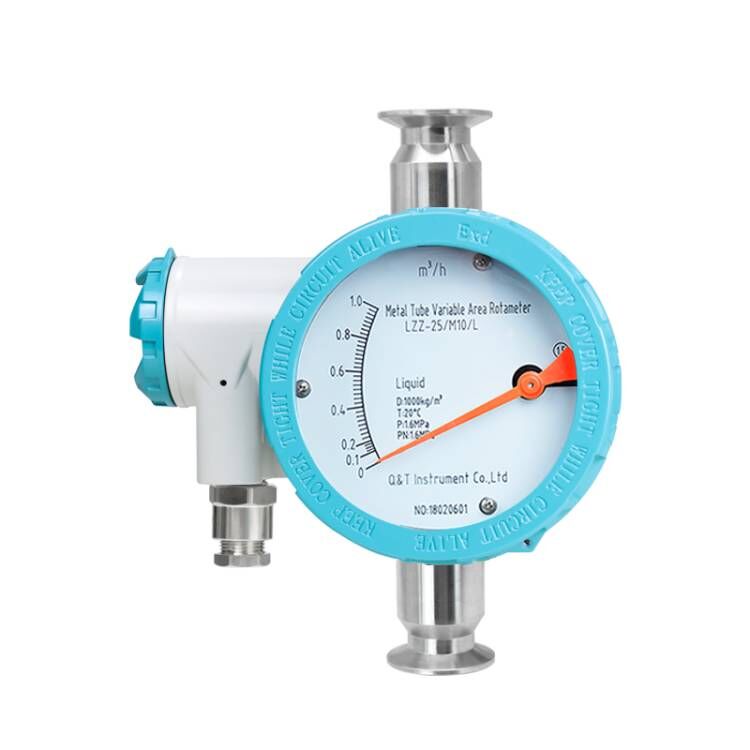

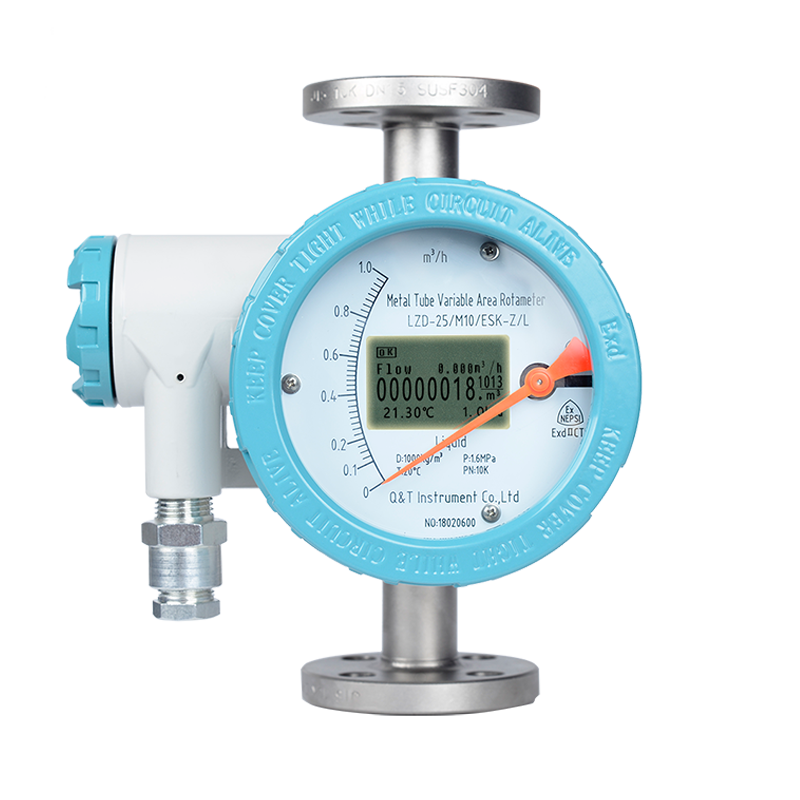

Vertical Metal Tube Rotameter
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Vertical Metal Tube Rotameter
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | SS304 |
|---|
From the supplier
Metal tube rotameter adopts the cone-shape design,reducing flow area, reducing error, making the measurement more accurate !
Metal Tube Rotameter's measuring range can be divided into 12 customizable sections for further correction, this feature allows
us to optimize instrument accuracy.
Metal Tube Rotameter Technical Parameter
Measuring rangeWater (20℃) 16~150000 l/h.
Air(0.1013MPa 20℃) 0.5~4000 m3/h.
Range ratio 10:1(Special type 20:1). Accuracy class 2.5(Special type 1.5% or 1.0%). Working pressureDN15~DN50 PN16MPa (Special type 25MPa).
DN80~DN150 PN10MPa (Special type 16MPa).
Pressure rating of jacket 1.6MPa.
Medium temperatureNormalized type -80℃~+220℃.
High-temperature type 300℃. Lined with FEP type ≤85℃.
Ambient temperature-40℃~+120℃(Remote display without LCD≤85℃).
(Remote display with LCD≤70℃).
Dielectric viscosity1/4” NPT, 3/8” NPT 1/2” NPT≤5mPa.s
3/4” NPT,1” NPT ≤250mPa.s
OutputStandard signal: two-wire system 4 ~ 20mA (with HART communication).
Standard signal: three-wire system 0 ~ 10mA.
Alarm signal:1.Two-way relay output.
2.One-way or two-approach switches .
Pulse signal output: 0-1KHz isolated output.
Process connectionStandard type:24VDC±20%.
AC type:220VAC(85~265VAC) (optional).
Connection modeFlange
Thread
Tri-clamp
Levels of protectionIP65/IP67.
Ex-markIntrinsically safe:ExiaIICT3~6. Exd type:ExdIICT4~6.
Metal Tube Rotameter Model Selection
PHLZ X X X X X X X X X Indicator Code Local indicator Z LCD indicator with ouput D Norminal diameter Code DN15 -15 DN20 -20 DN25 -25 DN40 -40 DN50 -50 DN80 -80 DN100 -100 DN150 -150 Structure Code Bottom-top / Left-right (horizontal) H1 Right-left (horizontal) H2 Side-side AA Bottom -side LA Thread connection S Tri-clamp M Body material Code 304SS R4 316LSS R6L Hastelloy C Hc4 Titanium Ti Liner F46(PTFE) F Monel M Indicator type Code Iinear indicator(pointer indication) M7 Nonlinear indicator(LCD Display) M9 Combination function(only for LCD display) Code 24VDC with 4~20mA output S 24VDC with HART communication Z Battery power D Additional function Code Measuring tube with thermal preservation / heat insulation jacket T Measure medium temperature higher than 120.C HT Ex-proof: Code With W Without N Alarm Code One alarm K1 Two alarm K2 None NAbout the supplier
