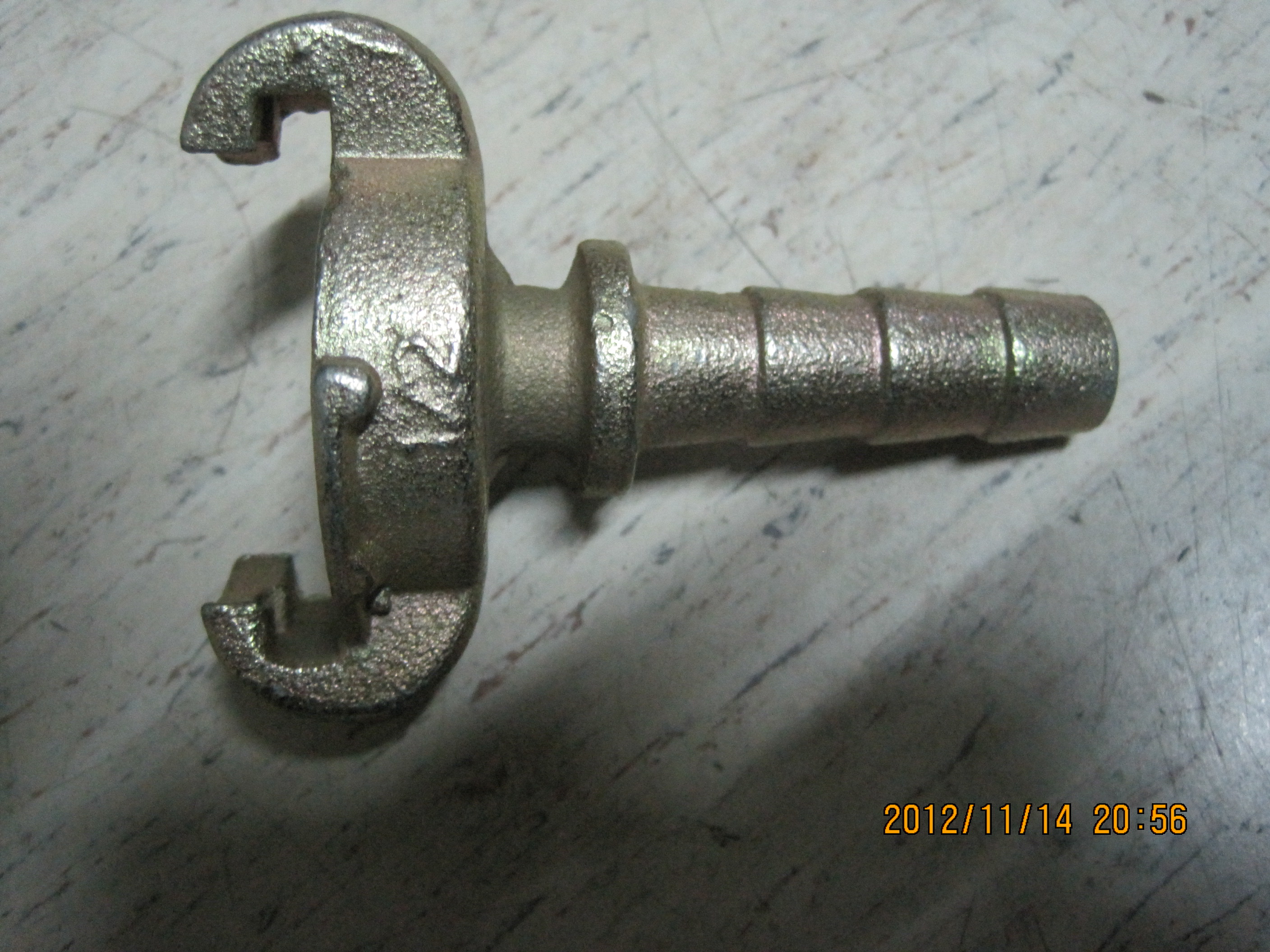

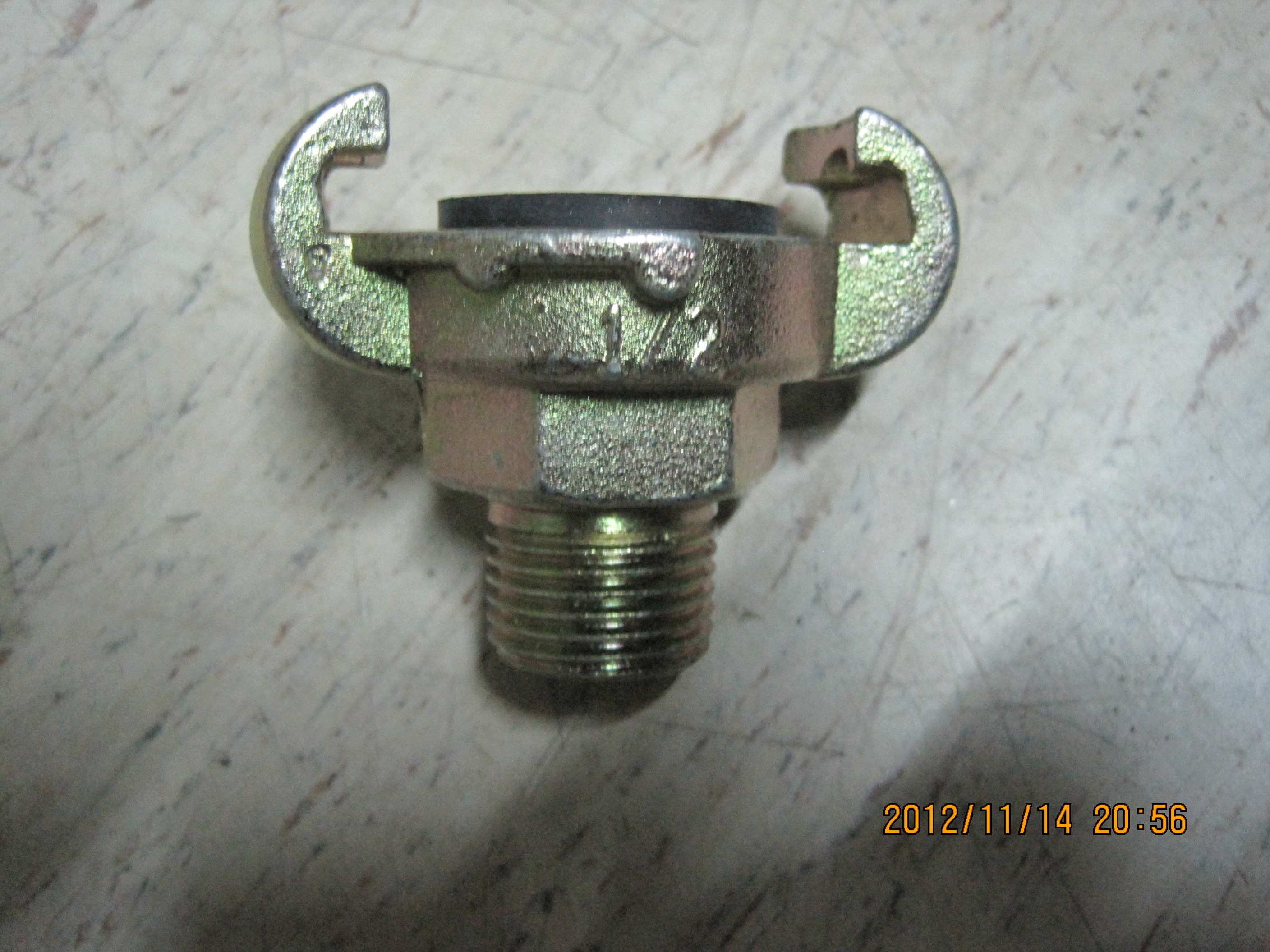

UNIVERSAL AIR HOSE COUPLING-AUSTRALIA TYPE

SIZE

MALE BSP

FEMALE BSP

HOSE END

PART#

PART#

PART#

3/8"

UNAUM0375

UNAUFE0375

UNAUHE0375

1/2"

UNAUM0500

UNAUFE0500

UNAUHE0500

3/4"

UNAUM0750

UNAUFE0750

UNAUHE0750

1"

UNAUM1000

UNAUFE1000

UNAUHE1000

1 1/4"

UNAUM1250

UNAUFE1250

UNAUHE1250

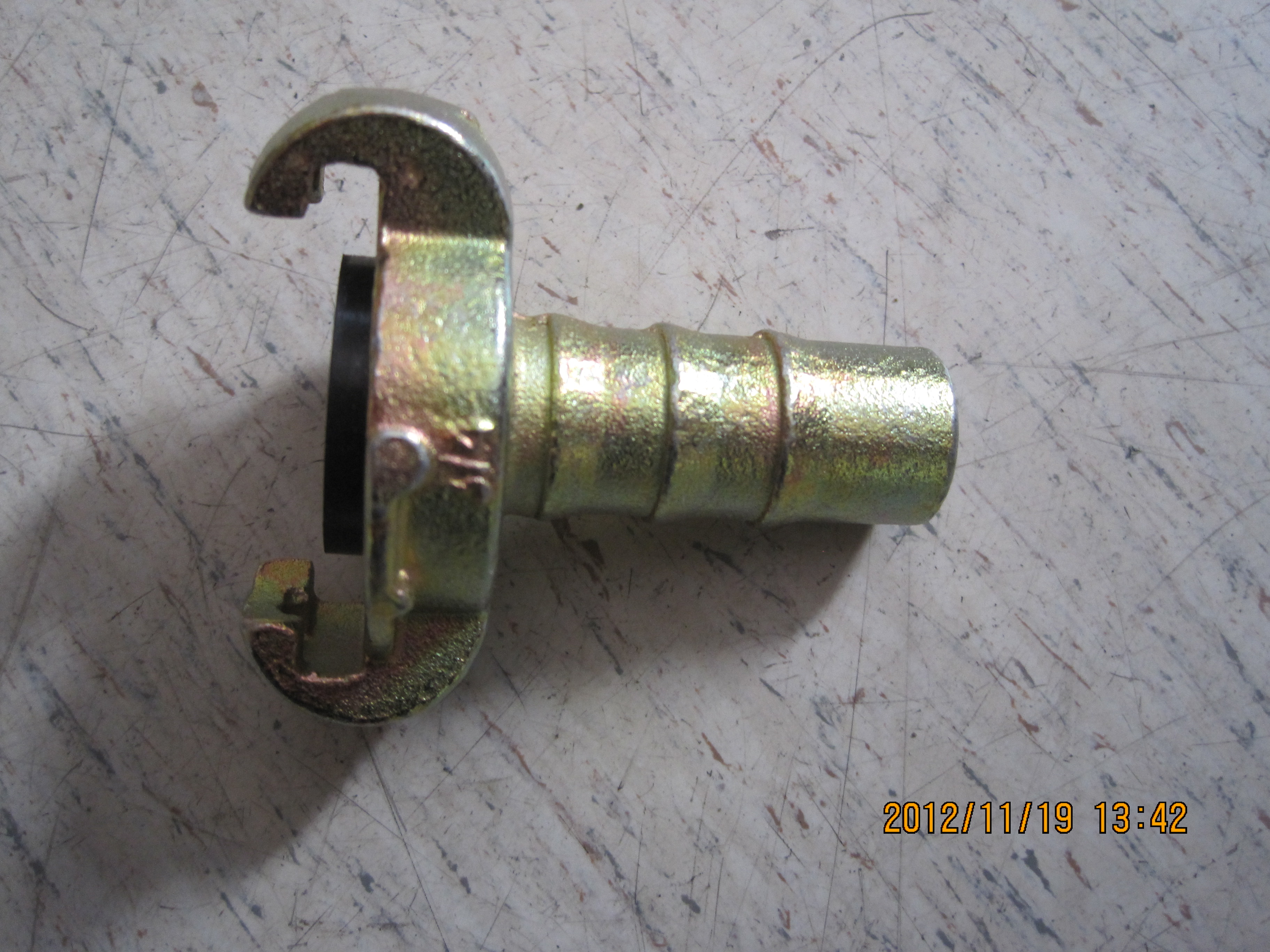

UNIVERSAL AIR HOSE COUPLING-EUROPEAN TYPE

　SIZE

MALE END

FEMALE END

HOSE END

HOSE END WITH COLLAR

PART #

PART #

PART #

PART #

1/4"

UNEM0250

UNEFM0250

3/8"

UNEM0375

UNEFM0375

UNEHE0375

UNEWC0375

1/2"

UNEM0500

UNEFM0500

UNEHE0500

UNEWC0500

3/4"

UNEM0750

UNEFM0750

UNEHE0750

UNEWC0750

1"

UNEM1000

UNEFM1000

UNEHE1000

UNEWC1000

1 1/4"

UNEM1250

UNEFM1250

UNEHE1250

UNEWC1250

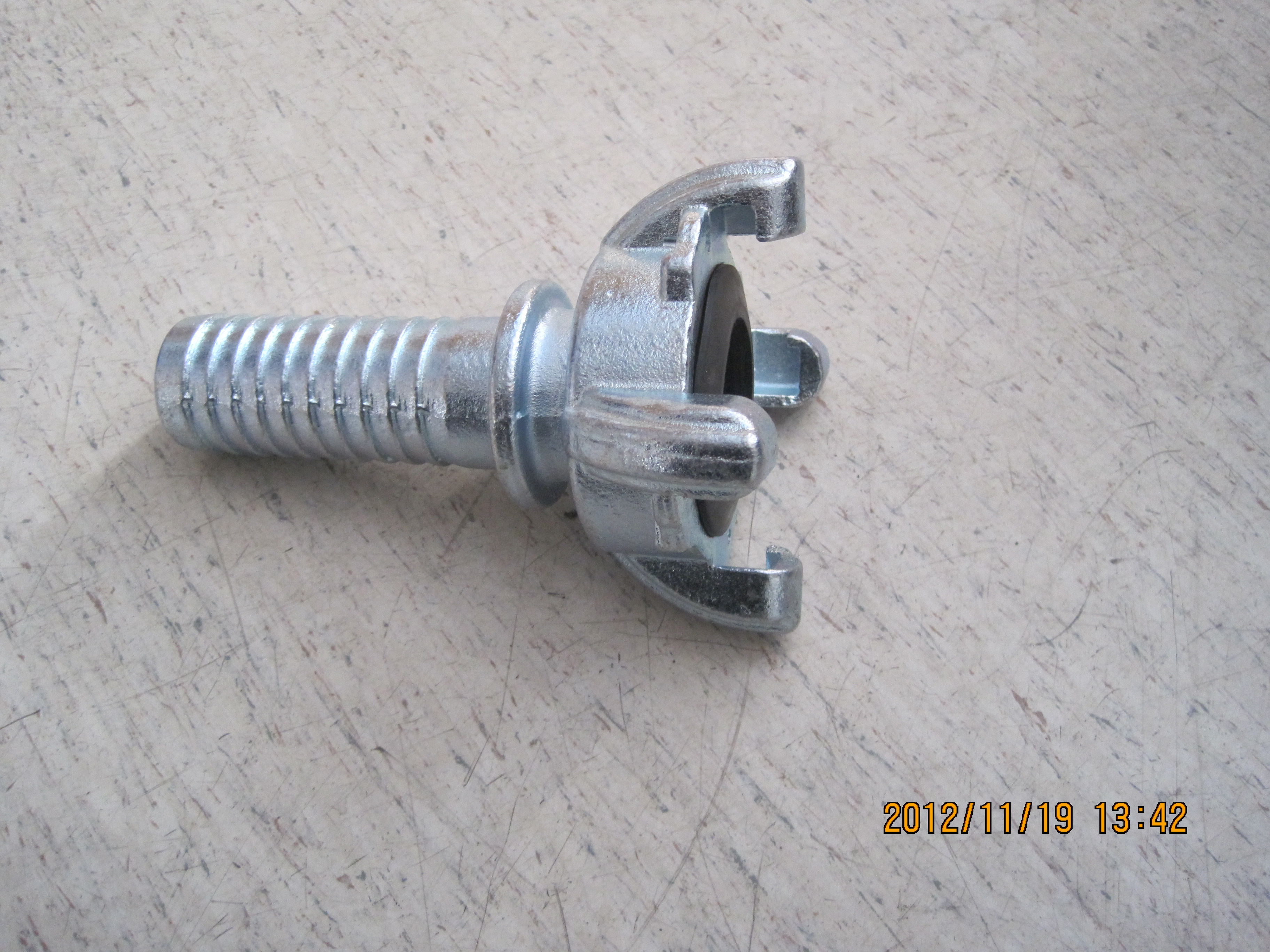

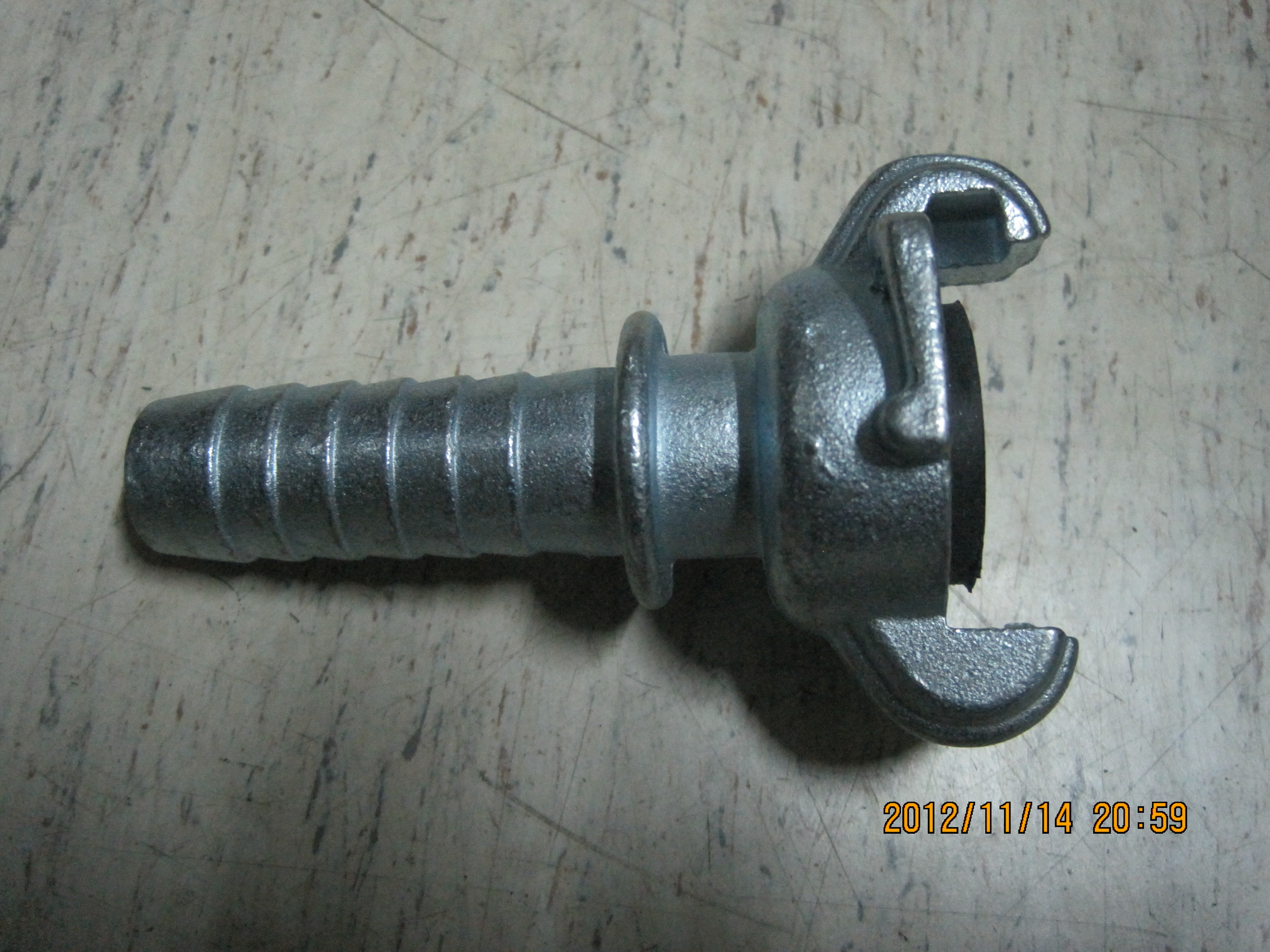

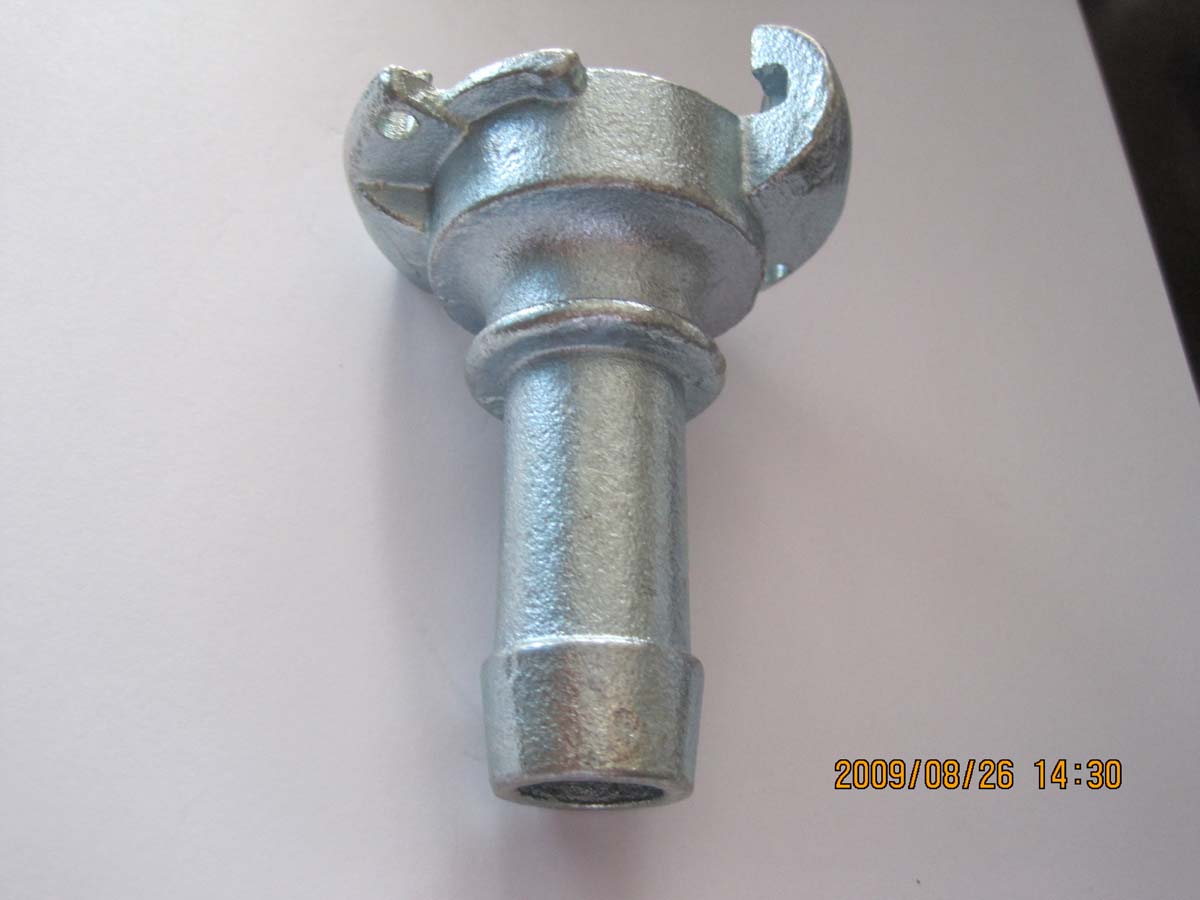

UNIVERSAL AIR HOSE COUPLING - US TYPE

　SIZE

HOSE END

FEMALE END

MALE END

PART #

PART #

PART #

1/4"

2 LUGS

UNUSHE0250

UNUSFE0250

UNUSM0250

3/8"

2 LUGS

UNUSHE0375

UNUSFE0375

UNUSM0375

1/2"

2 LUGS

UNUSHE0500

UNUSFE0500

UNUSM0500

5/8"

2 LUGS

UNUSHE0625

3/4"

2 LUGS

UNUSHE0750

UNUSFE0750

UNUSM0750

1"

2 LUGS

UNUSHE1000

UNUSFE1000

UNUSM1000

　SIZE

HOSE END

FEMALE END

MALE END

PART #

PART #

PART #

1 1/4"

4 LUGS

UNFLUC1250

UNFE1250

UNUSM1250

1 1/2"

4 LUGS

UNFLUC1500

UNFE1500

UNUSM1500

2"

4 LUGS

UNFLUC2000

UNFE2000

UNUSM2000

　SIZE

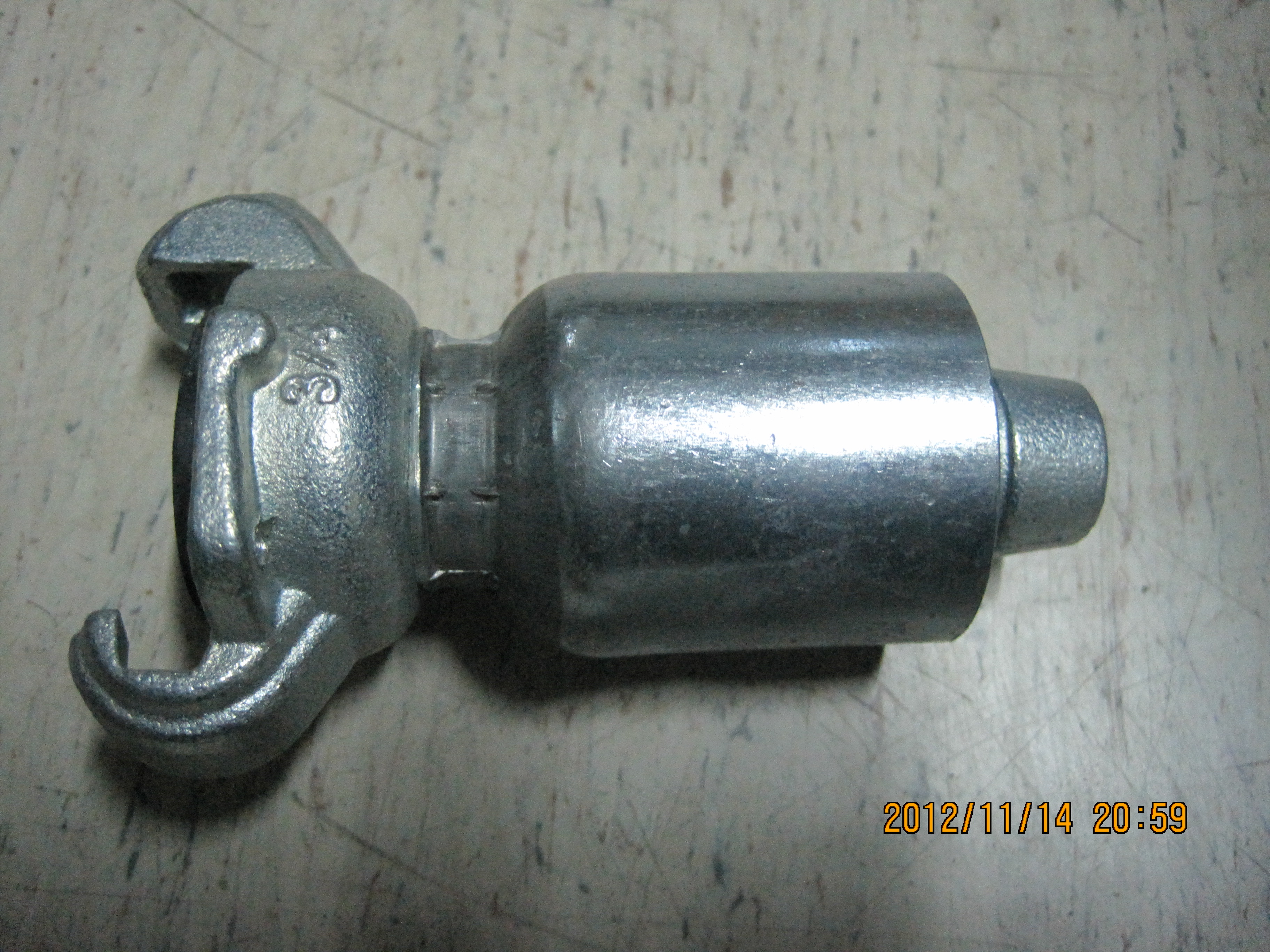

CRIMP UNIVERSAL

PART #

1/2"

UNUSCU0500

3/4"

UNUSCU0750

1"

UNUSCU1000

BLANK END

 TRIPLE CONNECTOR

WASHER -PART #.: UNUSWA-1 ( for 2 lugs)

PART #.: UNUSEND

PART #: UNUSTC

WASHER-PART #.: UNUS-WA-2 (for 4 lugs)
