UHD Hybird OTT STB with DVB receiver
SHENZHEN GIEC DIGITAL CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
UHD Hybird OTT STB with DVB receiver
SHENZHEN GIEC DIGITAL CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: High Quality Plastic Casing
- Size: 166*138*28mm
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Guangdong, China
About this product
- Materials: High Quality Plastic Casing
- Size: 166*138*28mm
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Guangdong, China
Product details
| Materials | High Quality Plastic Casing |
|---|---|
| Size | 166*138*28mm |
| Color | White |
Product details
| Materials | High Quality Plastic Casing |
|---|---|
| Size | 166*138*28mm |
| Color | White |
From the supplier
The GK-MP1621 is an advanced hybrid OTT Set-top box which integrates a powerful CPU/GPU
subsystem,supports free to air DVB-C/C2, DVB-T2,DVB-S/S2， ISDBT standard.
The STB adopts Amlogic S905X2 SoC, based on ARM Quad 64-bit Cortex-A53 up to 2GHz
Mali-G31 MP2 850MHz GPU
Specification:
STB PackageAccessoriesGK-MP1621 IR/BT remote controlHDMI CableBattery for RCUDC Power adapter 12V/1A (1.5A/2A option)User GuidePackaging

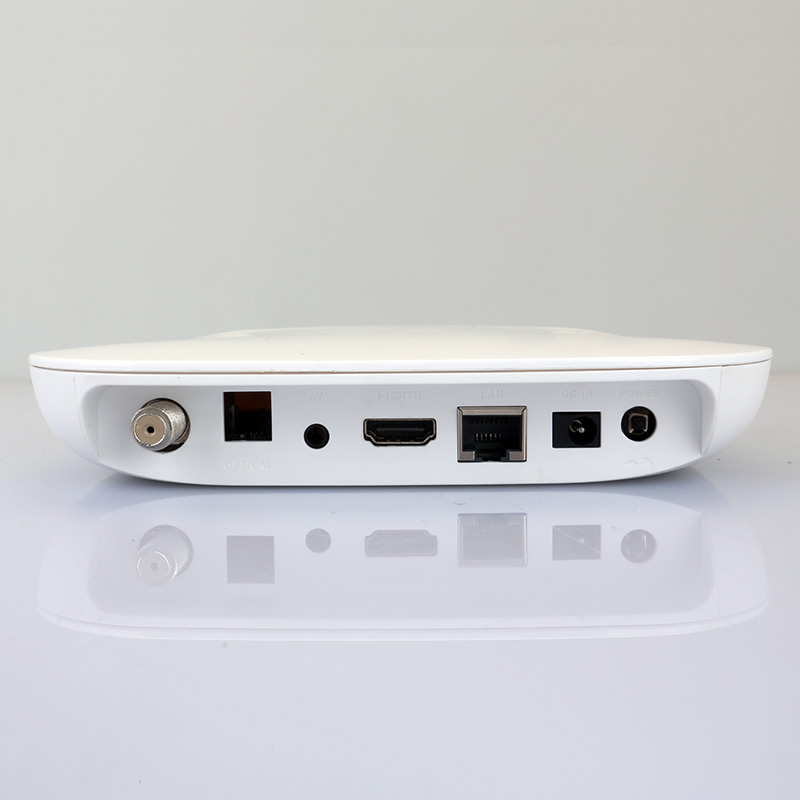

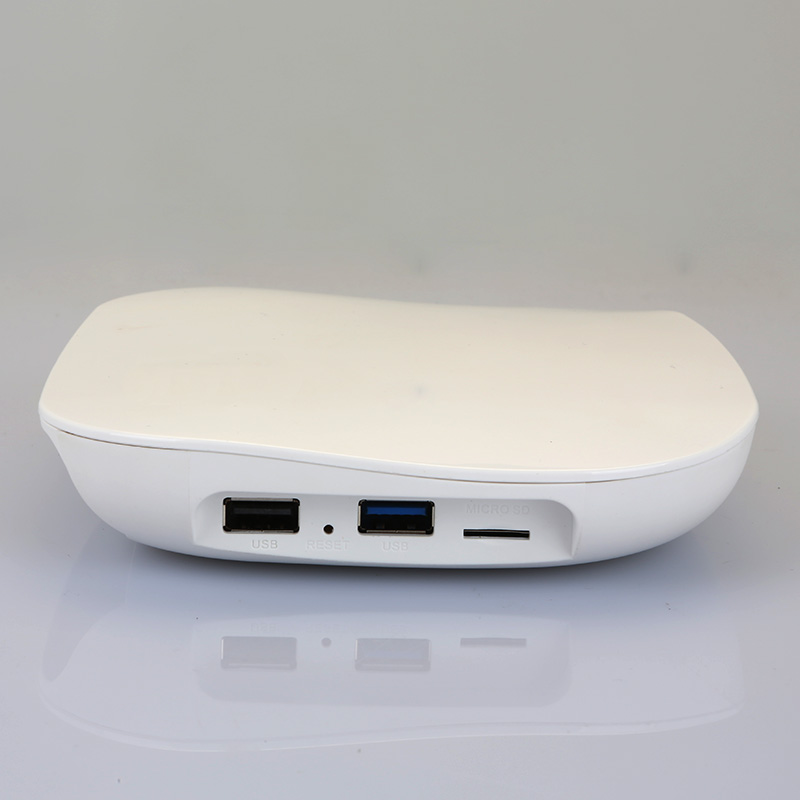

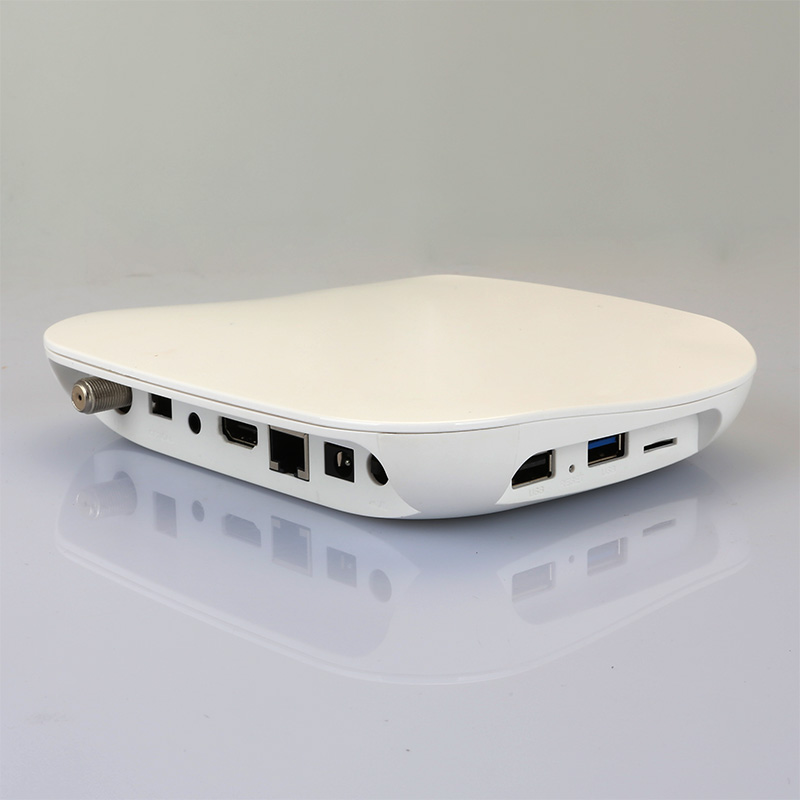

HardwareSTB Dimension166*138*28mmShellHigh Quality Plastic CasingCPUAML S905X2 64-bit 4-Core ARM Cortex-A53 up to 2GHz (DVFS)GPUMali-G31 MP2 850Mhz GPUMemory2GB(1/4GB optional) DDR4Flash8GB Nand Flash/eMMCWired LAN10/100M RJ45 portWi-Fi2*2MIMO WIFI 802.11 a/b/g/n/ac 2.4G/5.8GBluetoothBluetooth 5.0USBUSB2.0 Host x 2 USB3.0 Host x 1HDMIHDMI 2.0Other InterfaceOptical output, AV(1 to 3), TF card, DC Jack, RF in, Rfout, Power Switch
SoftwareOSAndroid AOSP 9.0/Google certified Android TV OSVideoH.265/HEVC MP-10@L5.1 up to 4Kx2K@60fps
H.264/AVC HP@L5.1 up to 4Kx2K@30fps
H.264/MVC up to 1080P@60fps
VP9 Profile-2 up to 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
MPEG-1 MP/ HL up to 1080P@60fps(ISO-11172)
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
AVS-P16(AVS+)/ AVS-P2 JiZhun Profile up to 1080P@60fps
WMV/ VC-1 SPMP/AP up to 1080P@60fps
RealVideo 8/9/10 up to 1080P@60fpsVideoMKV/ WMV/ MPG/ MPEG/ DAT/ AVI/ MOV/ ISO/ MP4/ RMVideo ProcessingHDR 10 and HLG HDR processing SupportDRMGoogle Widevine, Microsoft PlayReady, Verimatrix AudioMP3/ WMA/ AAC/ FLAC/ RM/ OGG/ programmable with 7.1/5.1 down-mixingSubtitleSRT/ ASS/ SSA etc.PictureHD JPEG/ BMP/ PNG/ GIF/ TIFF
From the supplier
The GK-MP1621 is an advanced hybrid OTT Set-top box which integrates a powerful CPU/GPU
subsystem,supports free to air DVB-C/C2, DVB-T2,DVB-S/S2， ISDBT standard.
The STB adopts Amlogic S905X2 SoC, based on ARM Quad 64-bit Cortex-A53 up to 2GHz
Mali-G31 MP2 850MHz GPU
Specification:
STB PackageAccessoriesGK-MP1621 IR/BT remote controlHDMI CableBattery for RCUDC Power adapter 12V/1A (1.5A/2A option)User GuidePackaging
HardwareSTB Dimension166*138*28mmShellHigh Quality Plastic CasingCPUAML S905X2 64-bit 4-Core ARM Cortex-A53 up to 2GHz (DVFS)GPUMali-G31 MP2 850Mhz GPUMemory2GB(1/4GB optional) DDR4Flash8GB Nand Flash/eMMCWired LAN10/100M RJ45 portWi-Fi2*2MIMO WIFI 802.11 a/b/g/n/ac 2.4G/5.8GBluetoothBluetooth 5.0USBUSB2.0 Host x 2 USB3.0 Host x 1HDMIHDMI 2.0Other InterfaceOptical output, AV(1 to 3), TF card, DC Jack, RF in, Rfout, Power Switch
SoftwareOSAndroid AOSP 9.0/Google certified Android TV OSVideoH.265/HEVC MP-10@L5.1 up to 4Kx2K@60fps
H.264/AVC HP@L5.1 up to 4Kx2K@30fps
H.264/MVC up to 1080P@60fps
VP9 Profile-2 up to 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
MPEG-1 MP/ HL up to 1080P@60fps(ISO-11172)
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
AVS-P16(AVS+)/ AVS-P2 JiZhun Profile up to 1080P@60fps
WMV/ VC-1 SPMP/AP up to 1080P@60fps
RealVideo 8/9/10 up to 1080P@60fpsVideoMKV/ WMV/ MPG/ MPEG/ DAT/ AVI/ MOV/ ISO/ MP4/ RMVideo ProcessingHDR 10 and HLG HDR processing SupportDRMGoogle Widevine, Microsoft PlayReady, Verimatrix AudioMP3/ WMA/ AAC/ FLAC/ RM/ OGG/ programmable with 7.1/5.1 down-mixingSubtitleSRT/ ASS/ SSA etc.PictureHD JPEG/ BMP/ PNG/ GIF/ TIFF
