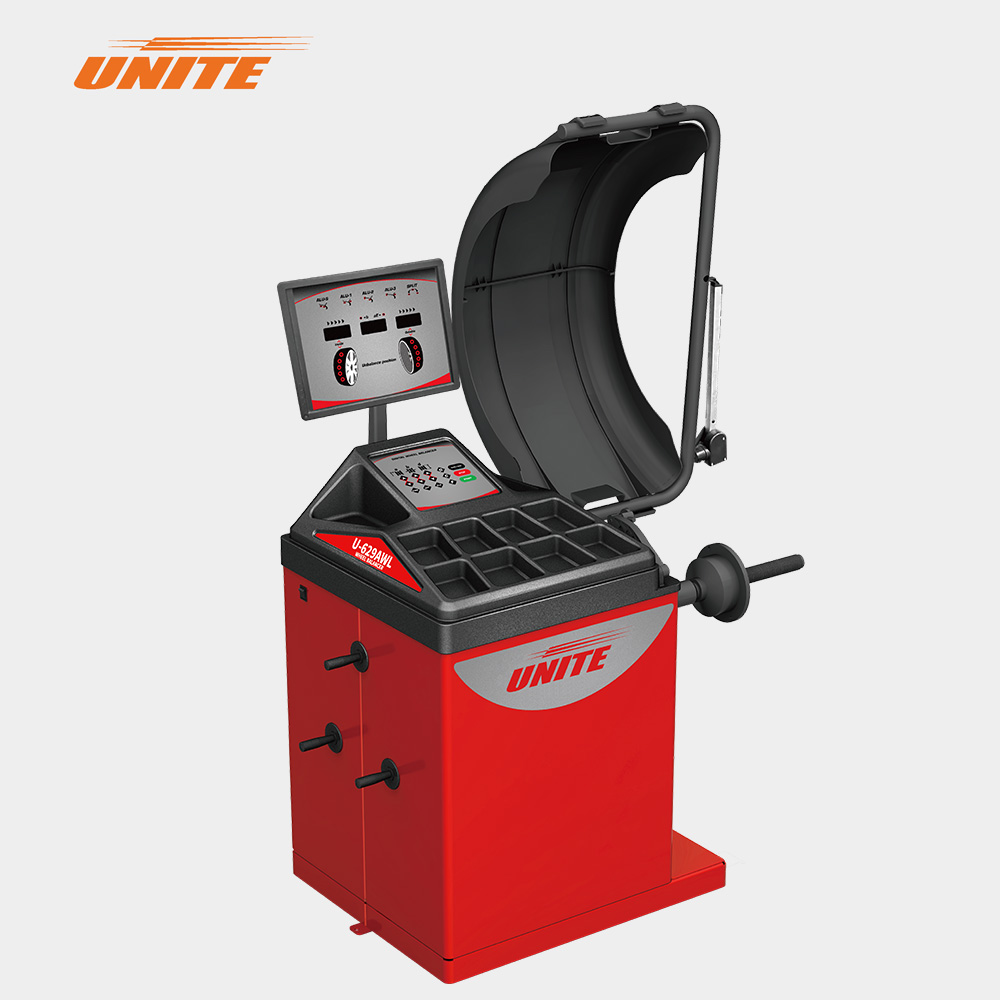

U-629AWL LED Display Wheel Balancer — 9 Balancing Modes, Electromagnetic Brake, Laser Pointer, Automatic Unbalance Positioning & Optional Pneumatic Locking for Cars & SUVs

Full-featured. Workshop-proven. Fast to lock. The U-629AWL LED Display Wheel Balancer delivers nine balancing modes, electromagnetic brake-assisted automatic unbalance positioning, laser pointer weight placement guidance, OPT tyre and rim optimization, and split and hidden weight capability — in the trusted classic red UNITE cabinet format, with the option to add a pneumatic locking system that makes wheel clamping faster and more convenient than any manual alternative. The complete LED balancer platform for workshops that want proven performance and the option to speed up every step of the balance workflow.

Description

The U-629AWL is a professional LED display wheel balancer engineered for automotive workshops, tyre centres, and fleet service operations that want a comprehensive, reliable, full-featured balancing system in the established classic cabinet format — with the flexibility to add pneumatic wheel locking for faster, more convenient clamping across high-volume balance workloads. With nine balancing modes covering the full range of wheel types and weight configurations, an electromagnetic brake that automatically positions the wheel at the inner and outer unbalance points, a laser pointer for precise weight placement, automatic measurement, OPT optimization, and split and hidden weight capability, the U-629AWL provides the complete professional balancing toolkit — in a format and cabinet design that workshops know, trust, and have relied on for consistent results.

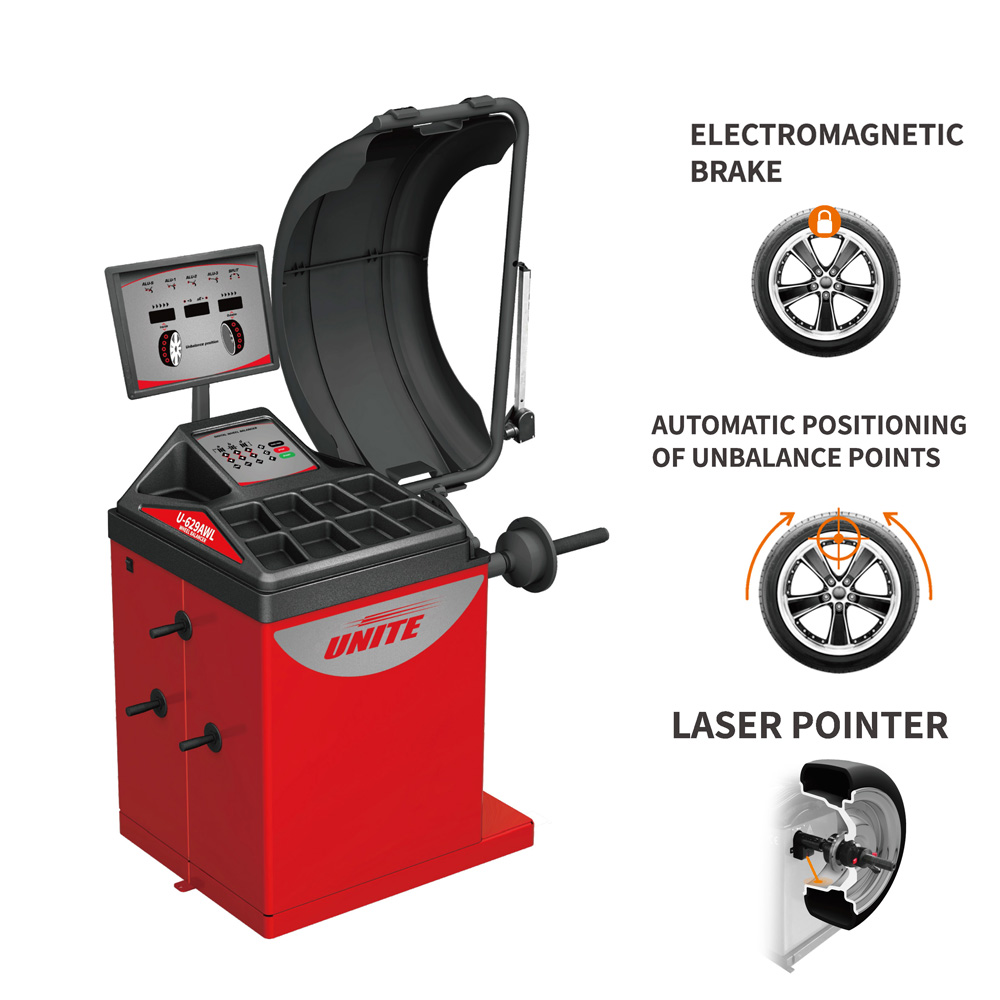

Electromagnetic Brake — Automatic Inner and Outer Unbalance Positioning The U-629AWL's electromagnetic brake automatically stops the wheel at the precise inner unbalance position after the measuring spin cycle completes — then, after inner weight placement, automatically rotates and holds the wheel at the outer unbalance position for outer weight application. No manual hand-spinning to find the balance point. No estimation of the correct stopping angle. No repeated rotations to locate the weight placement position. The electromagnetic brake finds it, holds it, and presents it to the technician accurately and automatically on every balance cycle — eliminating the most time-consuming manual step in conventional balancing and ensuring consistent positioning accuracy regardless of technician experience level or shift fatigue.

Automatic Unbalance Point Positioning — No Hand-Spinning Required Working with the electromagnetic brake, the U-629AWL's automatic unbalance point positioning system detects and presents the imbalance location automatically after each measuring spin — eliminating the manual wheel rotation and visual estimation that slows cycle times and introduces positioning inaccuracy in conventional balancers. For high-volume workshops processing large numbers of balance jobs per shift, the elimination of manual hand-spinning on every wheel produces a measurable, cumulative throughput advantage that compounds across the full working day.

Laser Pointer — Pinpoint Weight Placement Accuracy The U-629AWL's laser pointer identifies the exact unbalance location on the wheel surface with a visible laser beam immediately after the wheel has been positioned at the balance point — providing a precise, unambiguous target for weight placement that removes the final element of visual estimation from the balance process. The laser is particularly valuable in the adhesive weight ALU modes where inner rim surface placement accuracy directly determines balance quality, and in the hidden weight configurations where the placement position is not directly visible during application. For high-class wheels using stick-on weights only, the laser pointer ensures the weight goes exactly where the measurement says it should.

9 Balancing Modes — Every Wheel, Every Weight Method The U-629AWL's nine balancing modes provide complete coverage across the full range of modern wheel balancing requirements — NORMAL clip-on for standard steel and alloy wheels, plus ALU-S1, ALU-S2, ALU-3, ALU-4, ALU-5, ALU-6, ALU-7, and ALU-8 for the full spectrum of adhesive weight placement configurations including standard alloy inner/outer placement, hidden weight positioning, split weight distribution, and the adhesive tracking mode specifically designed for premium high-class wheels that accept stick-on weights only. Every wheel type that arrives in the workshop has a dedicated, correctly configured balancing mode — no approximation, no mode adaptation, no compromise on the weight solution.

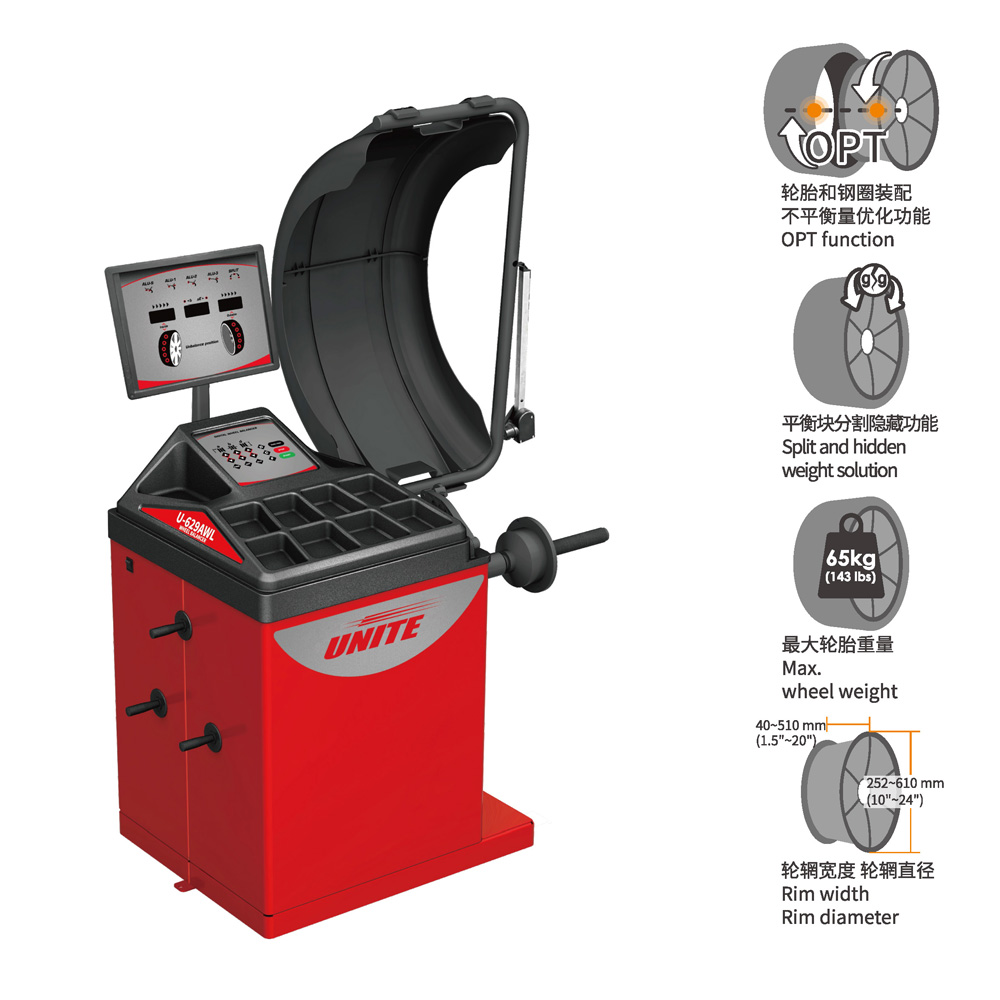

OPT Function — Minimize Assembly Imbalance Before Correcting It The U-629AWL's OPT function analyzes the combined tyre and rim assembly imbalance to determine the optimal rotational positioning of the tyre relative to the rim — reducing the total assembly imbalance at source before weight correction is applied. By minimizing the imbalance created by the interaction of tyre and rim eccentricities, the OPT function reduces the correction weight required, improves the quality of the final balance result, and resolves the persistent vibration cases where conventional balancing produces a technically balanced result that the customer still experiences as vibration because tyre and rim are compounding each other's eccentricity in an unfavorable orientation.

Split and Hidden Weight Solution — Professional Results on Premium Alloys The U-629AWL's split and hidden weight function calculates weight placement solutions for configurations where weights must be concealed behind spoke structures or distributed across multiple hidden positions — delivering a cosmetically clean, professionally finished result on premium alloy wheels where visible balance weights are unacceptable. The adhesive weight tracking mode's specific suitability for high-class premium tyres ensures the correct methodology and precision for the most cosmetically demanding wheel and tyre combinations the workshop handles.

Automatic Measurement — Dimensions Captured Without Manual Input The U-629AWL's automatic measurement system captures distance, wheel diameter, and wheel width automatically during setup — eliminating manual data entry and ensuring all balance correction calculations are based on accurately measured wheel geometry. Automatic distance and diameter measurement enables faster data input, the tracking sticking balancing mode supports adhesive weight placement on high-class wheels with stick-on-only requirements, and the automatic width measuring scale with data memory streamlines the setup phase from wheel mounting to spin start on every job.

Optional Pneumatic Locking System — Quick and Convenient Wheel Clamping The U-629AWL's optional pneumatic locking system is the feature that distinguishes it within the LED display balancer range — and the option that makes the most difference to workshop throughput on high-volume balance days. Where conventional wheel balancers require manual wing nut tightening to clamp the wheel to the spindle — a step that takes time, requires tool access, and can vary in clamping security between technicians — the U-629AWL's optional pneumatic locking system clamps the wheel quickly and securely with a single pneumatic action. Fast. Consistent. Convenient. For workshops that balance large numbers of wheels per shift, the pneumatic locking option removes one of the most repetitive manual steps from every single balance cycle — and the cumulative time saving across a full day of high-volume tyre work is both measurable and meaningful.

Optional LED Lighting — Clear Weight Placement Visibility The U-629AWL's optional LED lighting system illuminates the working area on both sides of the wheel during weight placement — providing clear, direct visibility of the adhesive weight application zone regardless of workshop ambient lighting conditions. Particularly valuable for inner rim surface adhesive weight placement in the ALU modes where direct visibility is naturally limited, and for ensuring accurate weight placement precision during late-shift or low-light operation.

Full Specifications

Parameter Specification Model U-629AWL Power Supply 220V 1PH Motor Power 0.2kW Balancing Speed 200 r.p.m Balancing Accuracy ±1g Measuring Time 8 seconds Max Wheel Weight 65kg (143 lbs) Rim Width Range 40–510mm (1.5"–20") Rim Diameter Range 252–610mm (10"–24") Package Dimensions 960 × 760 × 1,250mm Optional LED Lighting, Pneumatic Locking System
