Product Description

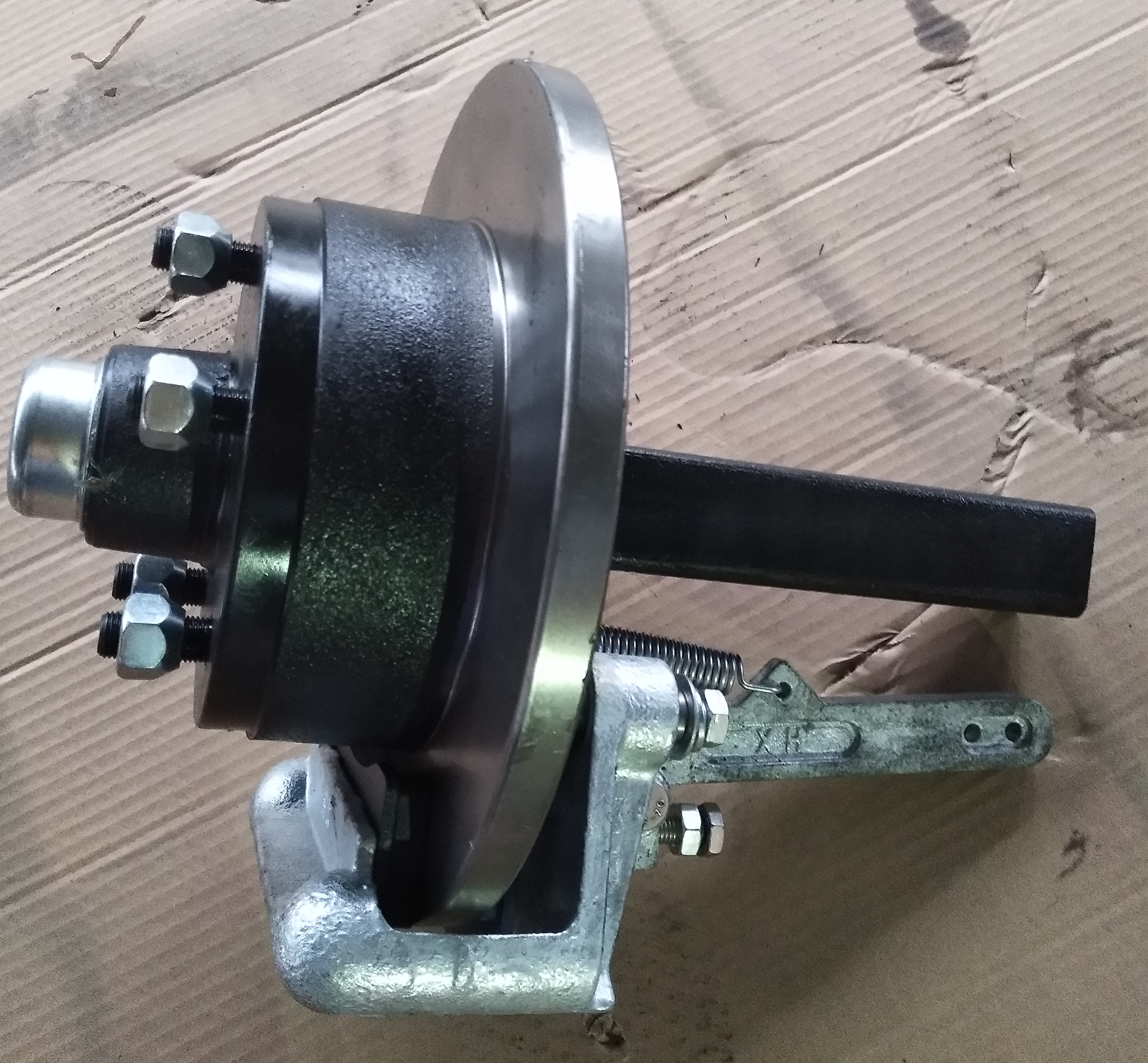

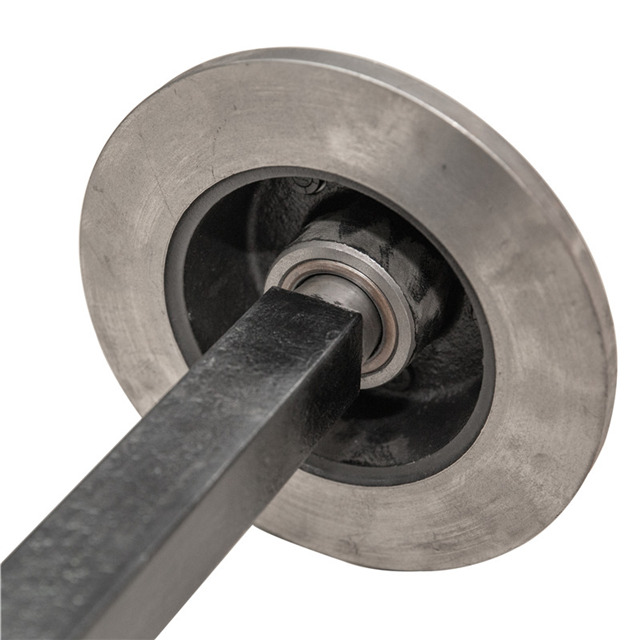

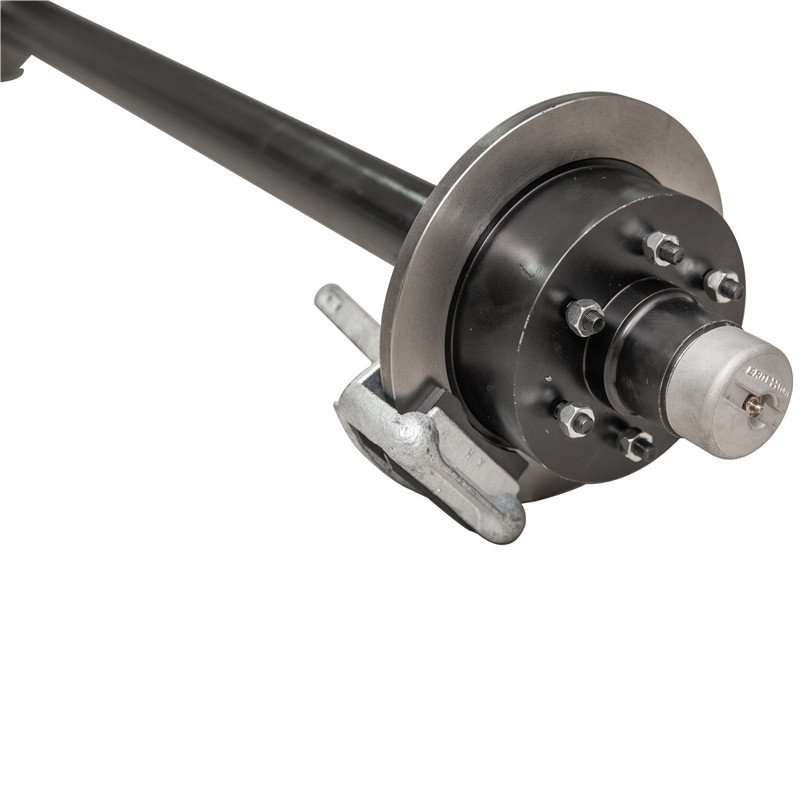

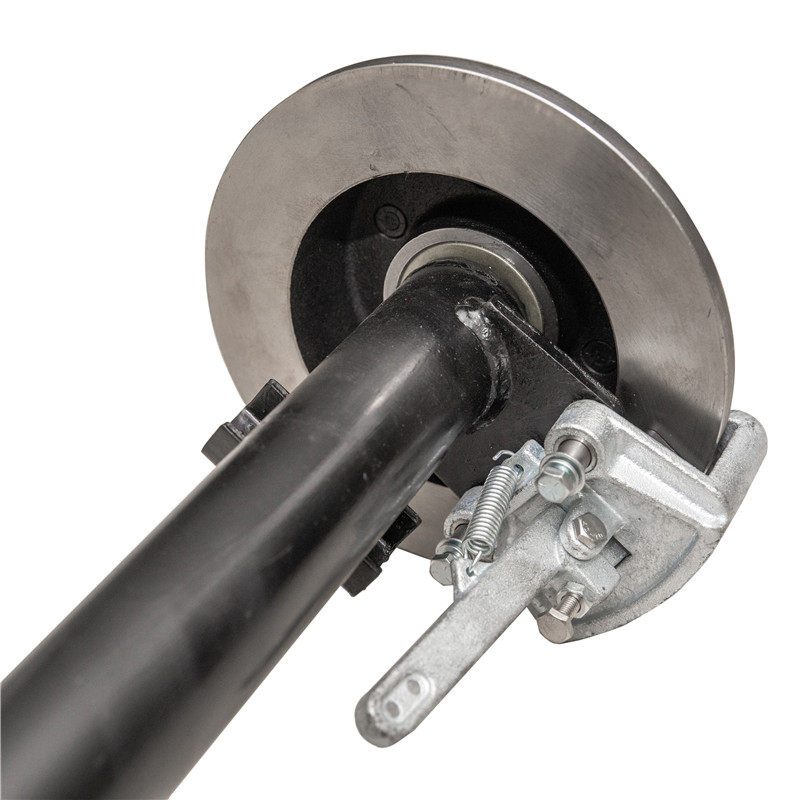

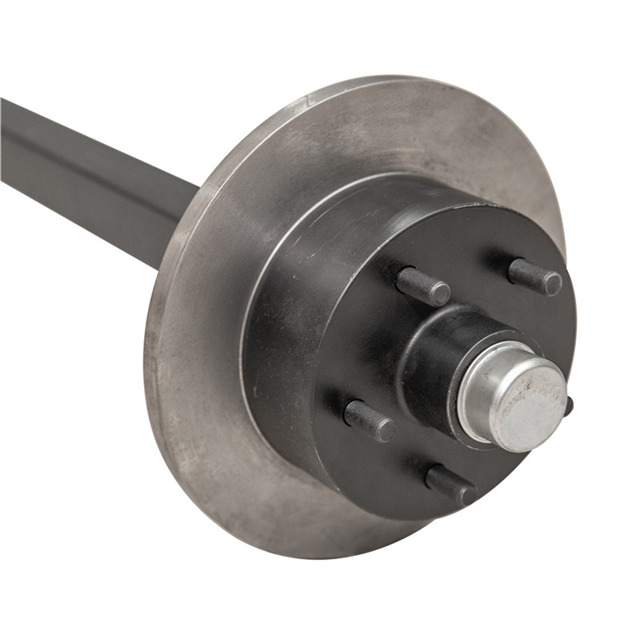

Trailer Straight Axle With Disc Brake Drum

Trailer Axle: 2 3/8" diameter x 3/16" nominal wall round tubing. Hub/Drum: Idler hubs and hub/drums available in a 5-4.5", 5-4.75", 5-5", 5-5.5", or 6-5.5"bolt circle. Lubrication: Grease. Spindle: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16". Includes brake flange - You can add brakes for future use. Trailer Axle price does not include springs, hangers, or u-bolts. Trailer Axles are available in different lengths and hub faces. Maximum Overhang = 17.5" Minimum Overhang = 14" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axle seats and lug nuts come loose with axle. Trailer axle assembly contains trailer axle beam with pressed in spindles and four bolt mount brake flange, hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

More specification of Pengyuan trailer axle:

Non-braked Straight Axle Assembly Capacity Axle Size Hub Stud/Nut PCD/mm 750KG 39mm Round 150 Hub 5x1/2" 114.3 750KG 39mm Round 150 Hub 5x1/2" 114.3 1000KG 40mm Square 190 Hub 6x1/2" 139.7 1000KG 40mm Square 190 Hub 6x1/2" 139.7 1500KG 45mm Square 190 Hub 6x1/2" 139.7 1500KG 45mm Square 190 Hub 6x1/2" 139.7 1500KG 45mm Round 190 Hub 6x1/2" 139.7 1500KG 45mm Round 190 Hub 6x1/2" 139.7 1500KG 40mm Square Parallel Hub 6x1/2" 139.7 1500KG 40mm Square Parallel Hub 6x1/2" 139.7 1800KG 45mm Round Parallel Hub 6x1/2" 139.7 1800KG 45mm Round Parallel Hub 6x1/2" 139.7 1800KG 50mm Square Dexter Hub 6x1/2" 139.7 1800KG 50mm Square Dexter Hub 6x1/2" 139.7 3000KG 63mm Round 3 Ton 6x8/5" 139.7 3000KG 63mm Round 3 Ton 6x8/5" 139.7

Guilin Pengyuan supplies the number one collection of axles, brakes and components built for all kinds of trailers. When you need superior brake or axle replacement components for your trailer, Guilin Pengyuan is your answer. We also carry the highest quality light duty trailer axle and brake assemblies when full on replacement brake and axle hardware is what you require. Guilin Pengyuan offers the top selection of trailer parts for your trailer maintenance or repairs.

Related Products

Company Information

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,

As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit
