Tea Vertical Packing Machine 169
Hangzhou Youngsun Intelligent Equipment Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Tea Vertical Packing Machine 169
Hangzhou Youngsun Intelligent Equipment Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: L1750*W740*H1950
- Color: Silvery
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: L1750*W740*H1950
- Color: Silvery
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | L1750*W740*H1950 |
| Color | Silvery |
Product details
| Materials | Metal |
|---|---|
| Size | L1750*W740*H1950 |
| Color | Silvery |
From the supplier
Vertical packing machine：

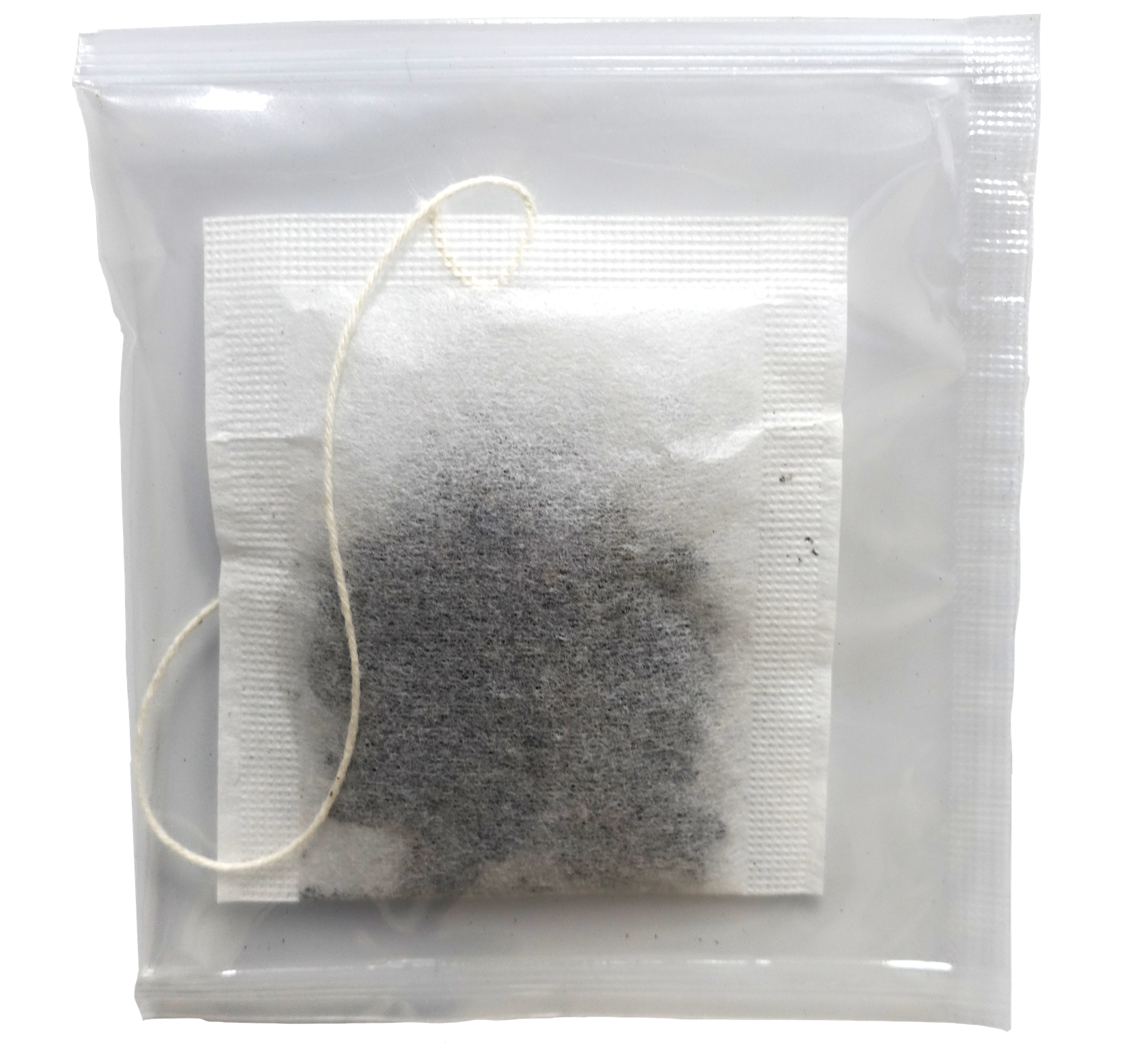

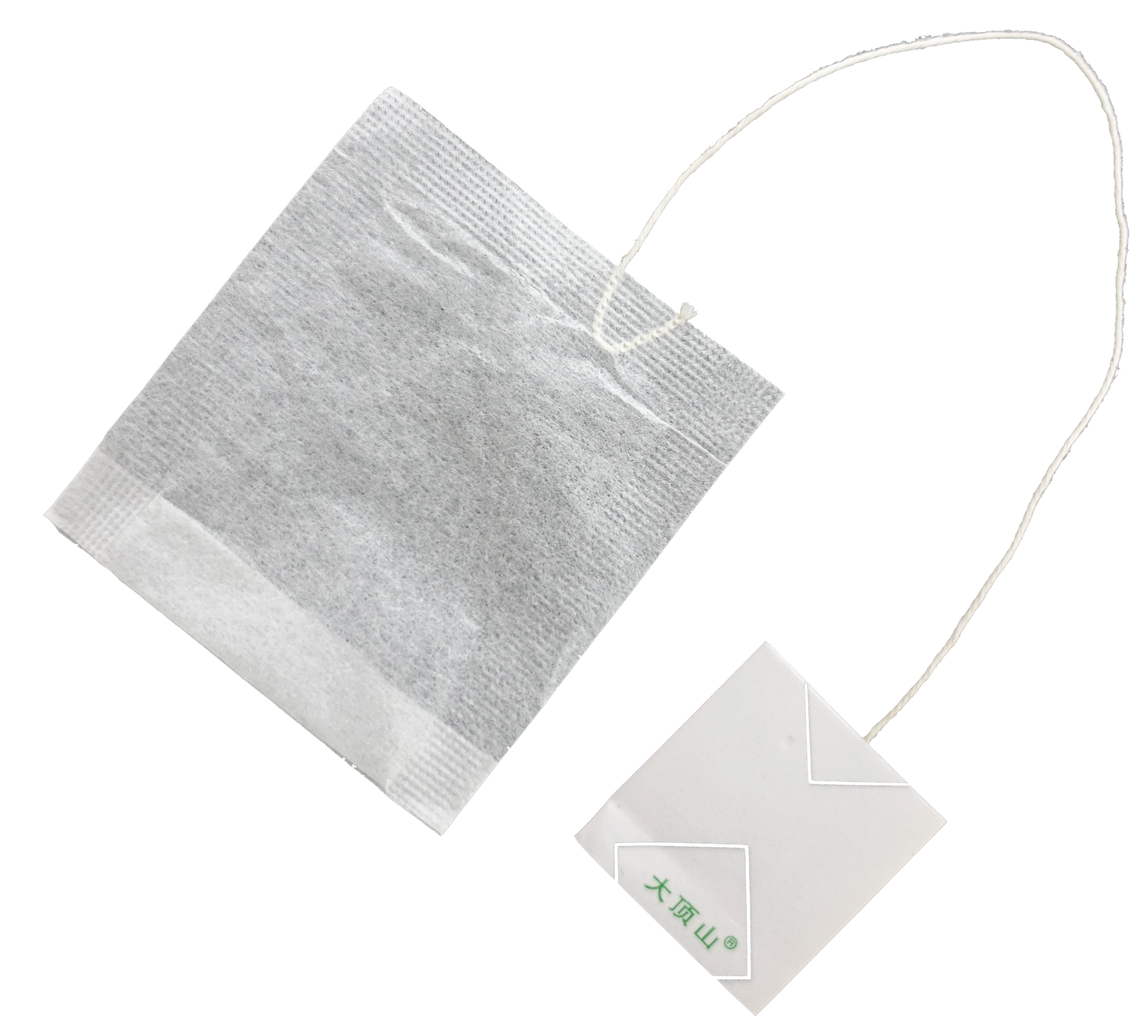

1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials,such as:tea,herbal tea, health tea grass-root type and so on.
2、Inner and outer bag's film drawing is controlled by the stepper motor,stable bag length and accurate positioning.
3、 The temperature controller is adjusted by PID to make the temperature control more accurate.
4、Overall machine movement is controlled by PLC, with human-machine interface display,ensure health of products
5、 Packing material：filter paper,thread,composite membrane and labels.
Sealing Type：Three sides Sealing
Technical parameters：
Measuring Scope：3 - 10 g（ 1.6 ~ 26 ml ）
Inner bag size： (L) ：50 - 70 mm ( W ) ：45 - 80 mm
Outer bag size： (L) ：80 - 120 mm ( W ) ：75 - 95 mm
Packing Speed ：30 - 40 bags / min
Dimension ( L*W*H )：1750*740*1950 mm
Weight：500 kg
Total Power：AC220V/ 50Hz /3.7kw
From the supplier
Vertical packing machine：
1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials,such as:tea,herbal tea, health tea grass-root type and so on.
2、Inner and outer bag's film drawing is controlled by the stepper motor,stable bag length and accurate positioning.
3、 The temperature controller is adjusted by PID to make the temperature control more accurate.
4、Overall machine movement is controlled by PLC, with human-machine interface display,ensure health of products
5、 Packing material：filter paper,thread,composite membrane and labels.
Sealing Type：Three sides Sealing
Technical parameters：
Measuring Scope：3 - 10 g（ 1.6 ~ 26 ml ）
Inner bag size： (L) ：50 - 70 mm ( W ) ：45 - 80 mm
Outer bag size： (L) ：80 - 120 mm ( W ) ：75 - 95 mm
Packing Speed ：30 - 40 bags / min
Dimension ( L*W*H )：1750*740*1950 mm
Weight：500 kg
Total Power：AC220V/ 50Hz /3.7kw
