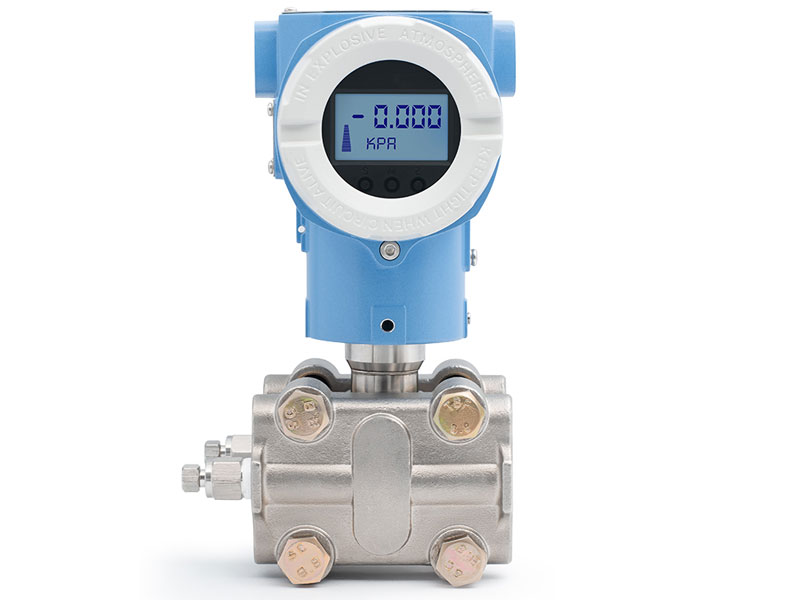

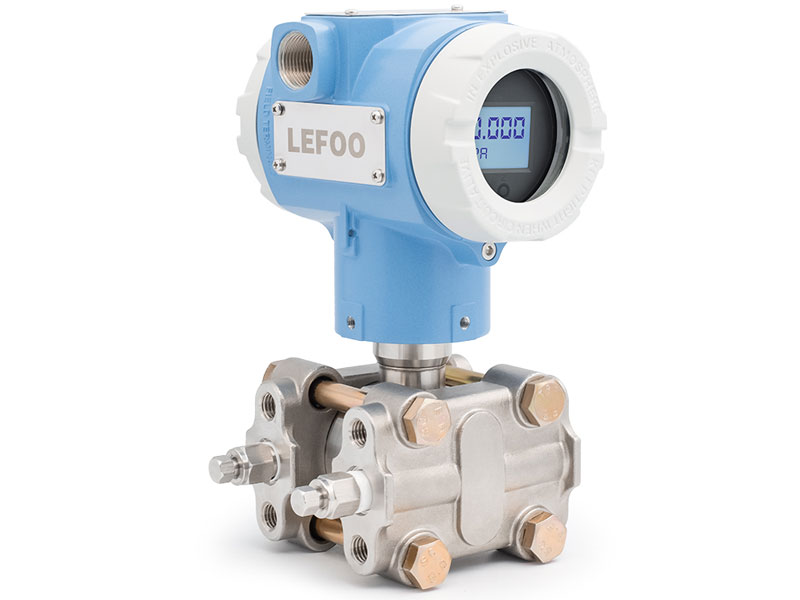

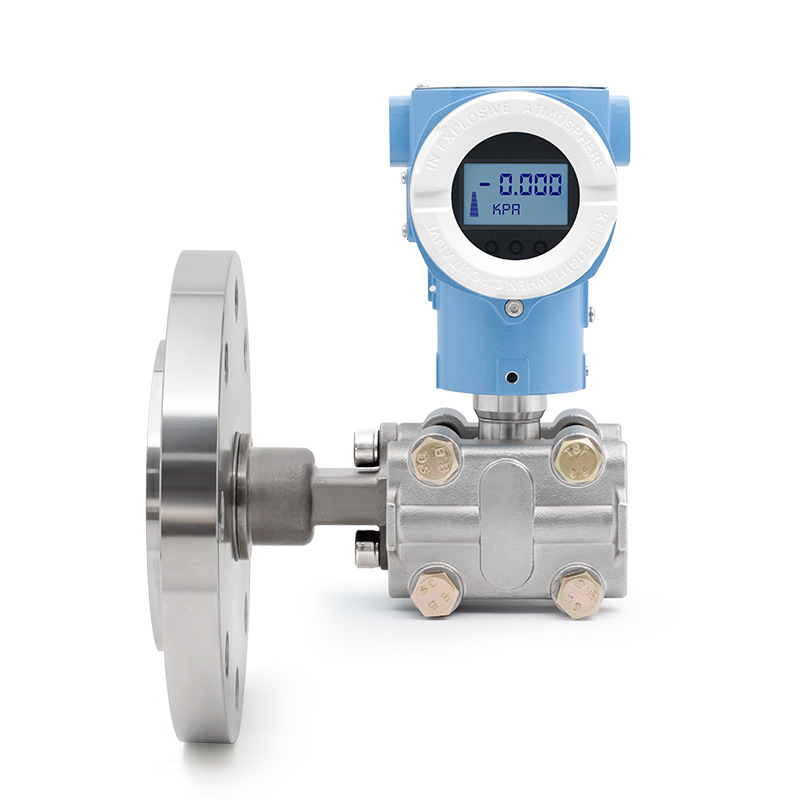

LEFOO Differential Pressure (DP) transmitters (transducer) measure the difference between two pressures. They feature 4-20mA+Hart technology to deliver accurate outputs for Data collection and control devices. With Protection Level IP66 that suitable for measuring liquid, gas, or steam characterized by the remote seal construction. The unique combination of several sensor systems in a single device allows simultaneous measurement of differential pressure and absolute pressure... Commonly used in areas of application for Monitoring filters and fans and level measurement of closed containers. Accuracy 0.05%, (Customizirable accuracy 0.025%~0.2%)

Application

Designed for water and high risk gas

Flow measurement Level monitoring

Filter or pump differential pressure

Critical process monitoring

Closed Tank Level, Density, Filter health

Description

Configurable using zero/span buttons mean no calibrator required reducing time to install and running

Range-ability and selectable engineering units, allows the transmitter to fit many applications reducing the number of different transmitters to meet specifications

High accuracy (±0.075%) provides an exceptional measurement for ensuring tight control and minimizing costly out of specification conditions

Automatic sensor temperature compensation improves the performance of the device for accurate measurement under different operating environments

Fail-mode process function stores configuration settings in the event of shutdown or power-loss provide for faster restart to getting application back on-line

A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication
