Product Description

Product Name
Synchronize MDF/Chipboard
Design
wood design, stone design , cement design
Available Size
1220*2440mm  1220*2800mm
Available Thickness
8-18mm
Substrate material
MDF/ Chipboard /Plywood
MOQ
50sheets per color
Board grade
E0/E1/E2
Edge Banding
suggest to match PVC/ ABS edge banding
Application
Kitchen Cabinets,Door,Wardrobes,Tables,Wall decoration
Package
pallet packing,  Loose Packing
Delivery Time
15-20 days

Product Details

What is synchronized board ?

Sychronized board is a kind of  lamination board but  looks and feels like real wood.

WQ synchronized MDF is produced by the double-side automatic WEMHONER machine imported from Germany, the best machine in the world, it is innovation of lamination technology.

We use high quality European design paper press on premium MDF with the same design plate by this machine. the designs of the paper and press plate matched exactly. then design come out on board very vivid and elegant .



Edge banding as a component of this board, it is very important. WQ produce the same color and same design PVC /ABS edge banding also, It makes synchronized board perfect.

Synchronize board  is trend in furniture and decoration field. it is very popular in the market all over the world.

Specifications:

Size: 1220*2440 mm(4*8') thickness:  8 mm-18 mm;

          1220*2800 mm(4*9') thickness: 8 mm-18 mm;

Density and Glue: 700-720 kg/m³; glue :E0/E1/E2 ,Hardness:3H

Package: Loose packing/Pallet packing

Delivery time: 15-20 days after deposit

Capacity of Synchronized MDF
Static bending strength
μL=23.0
Mpa
Internal Bond
μL=0.5
Mpa
Hardness
JISK-54006-14 pencil hardness
>3H
Alcohol resistance
Cloth wipe 100 times with 100% alcohol
Normal
Gas resistance
Cloth wipe 100 times with gas
Normal
Dimensional test(length,width,thickness)
Thickness:+/-0.2mmLength:+/-0.2mm
Width:+/-0.2mm
Normal

Advantages:1. The most advanced WEMHONER Machine. double -side automatic line. 2.  Many popular designs which are from European, and each design have diffferent colors. 3. the board is extremely flat , texture is vivid, 100% match with paper. 4. Can supply high matched edge banding, same design and same color with board.

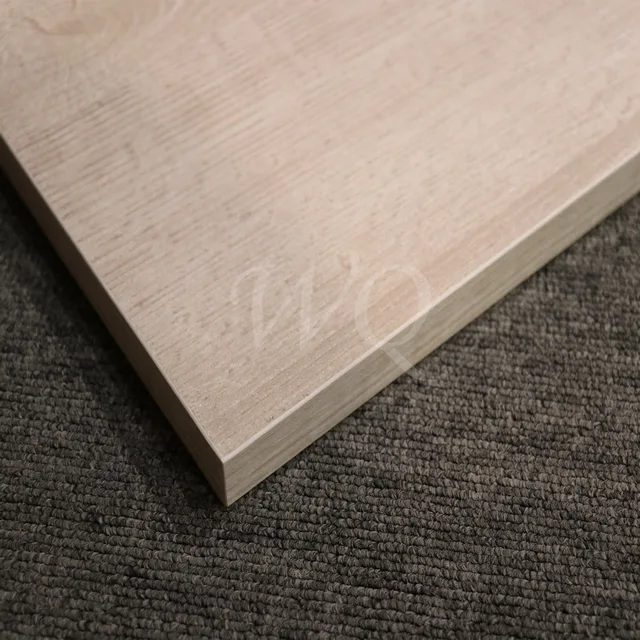

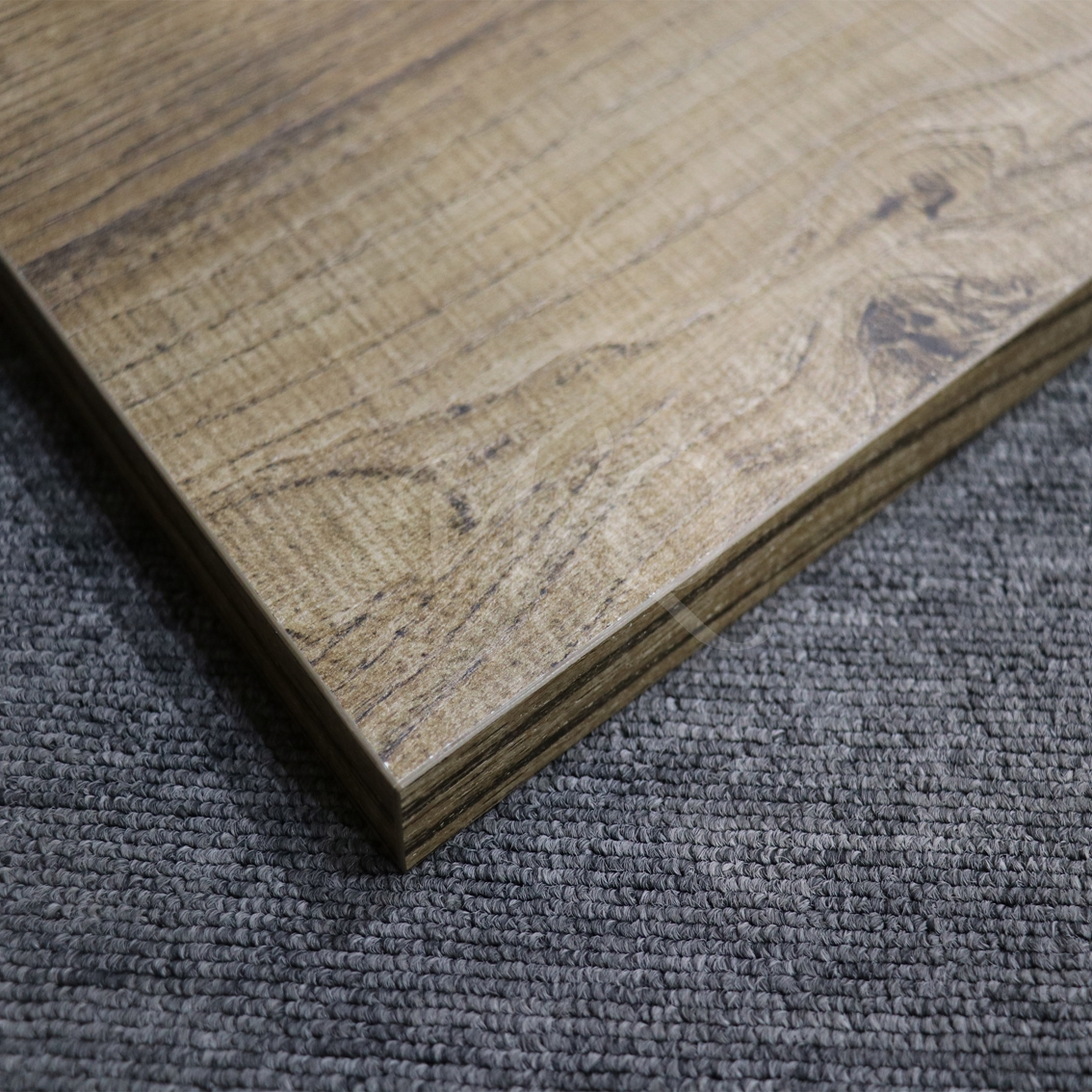

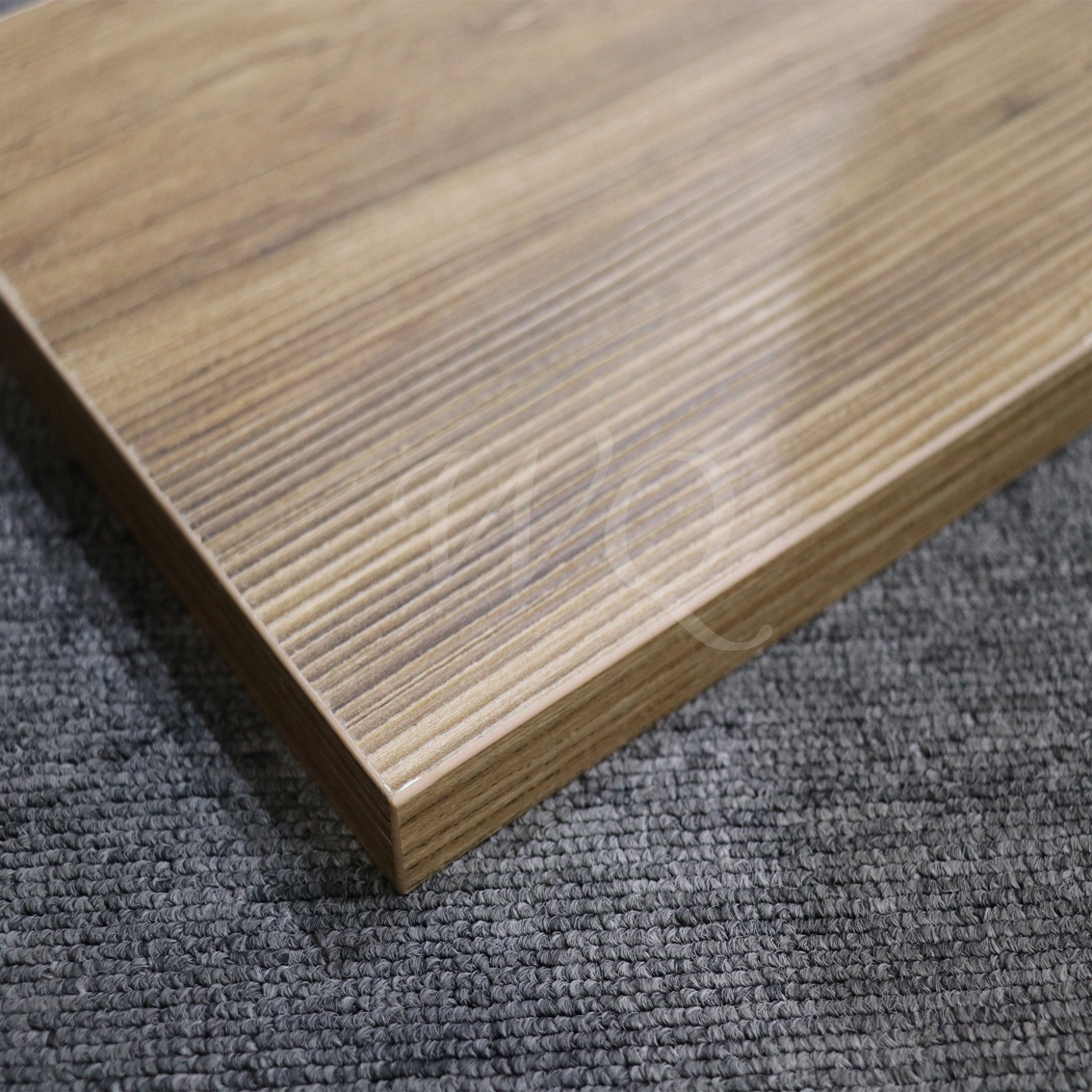

High Matched Edge Banding

1.PVC Proportion:arround 90%, imported PVC powder. 2.No whitish after trimming.  3.Good scuff resistance. 4.Own 20 Automatic Production Lines, ensure production capacity and delivery time.  5.Color matching : 99.99% same with board.

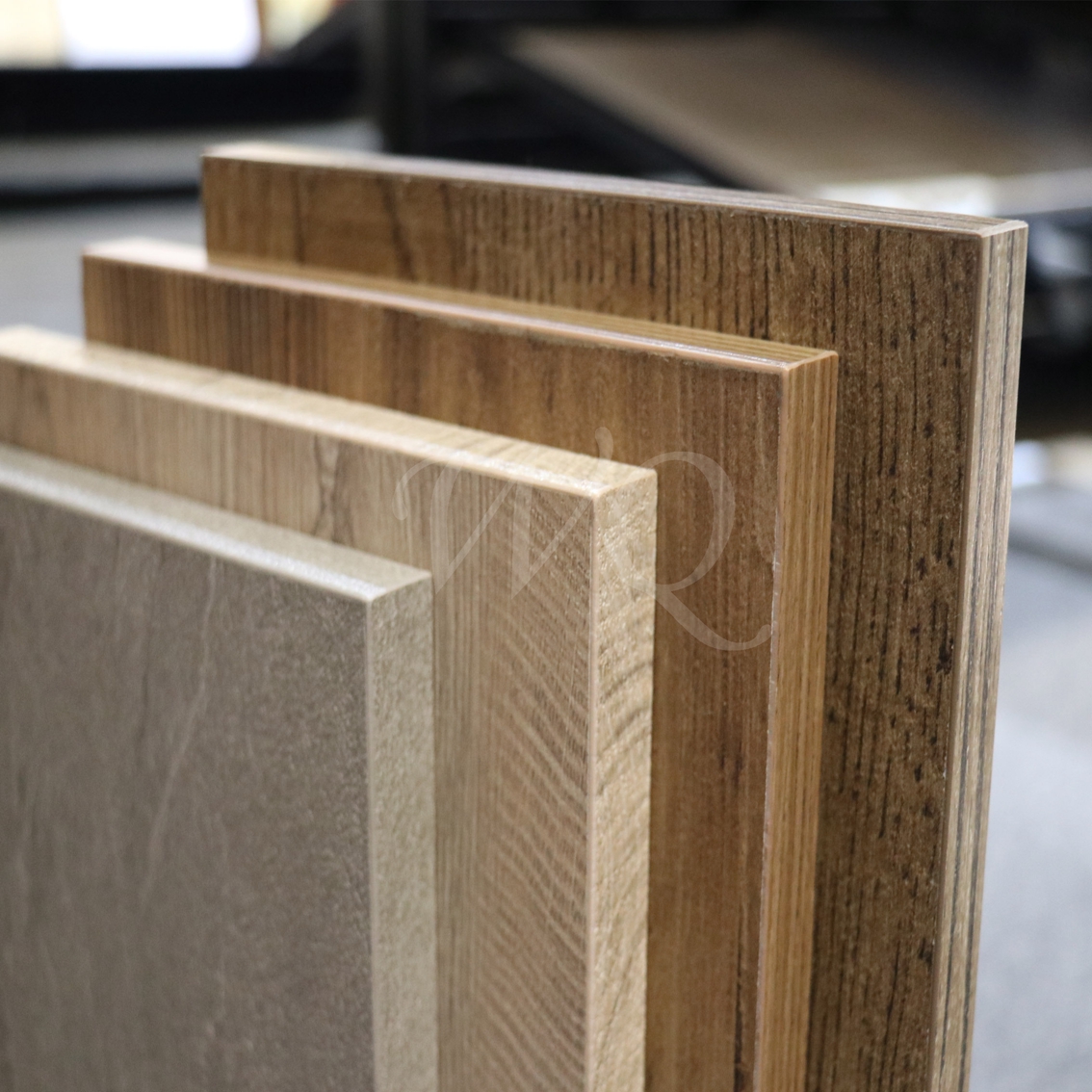

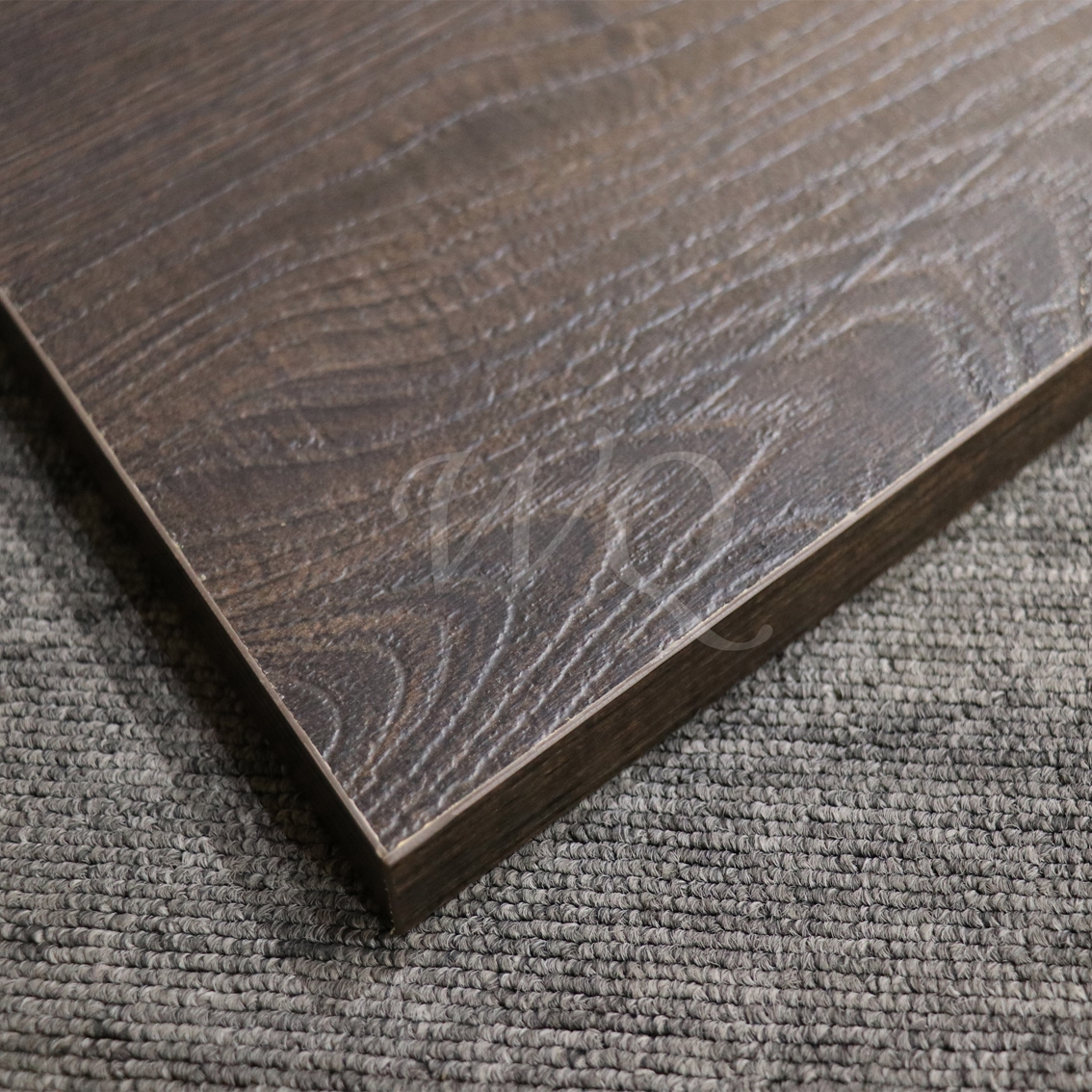

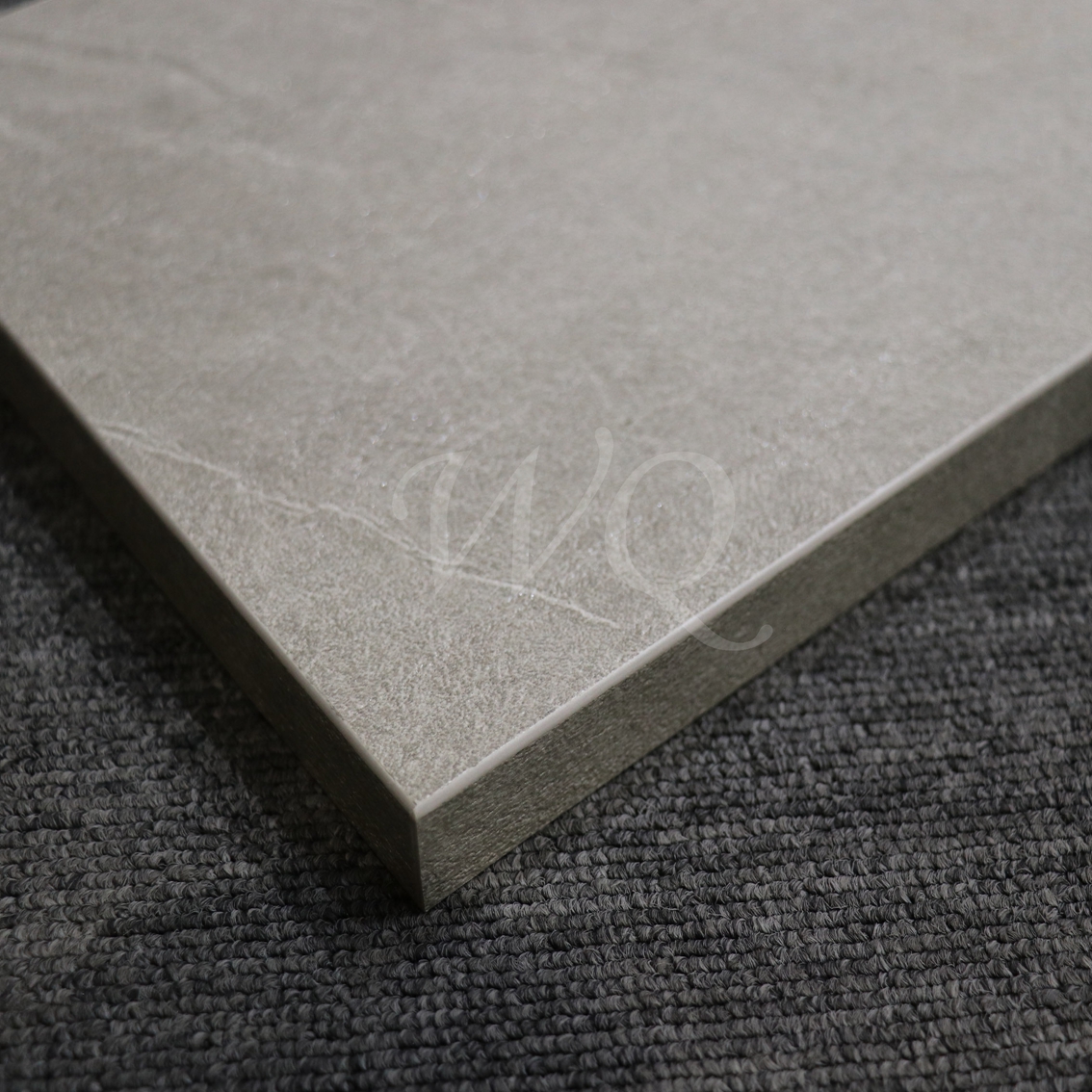

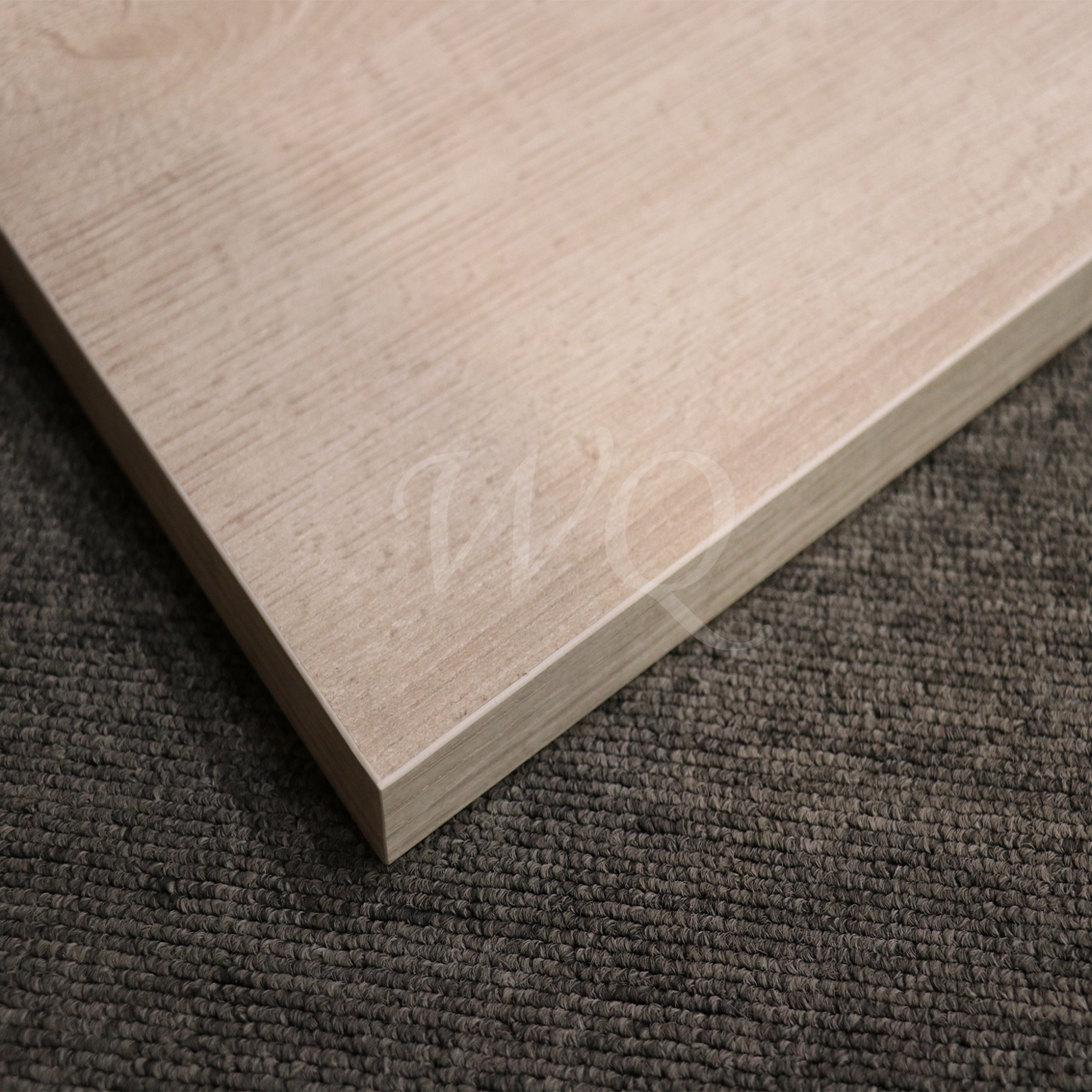

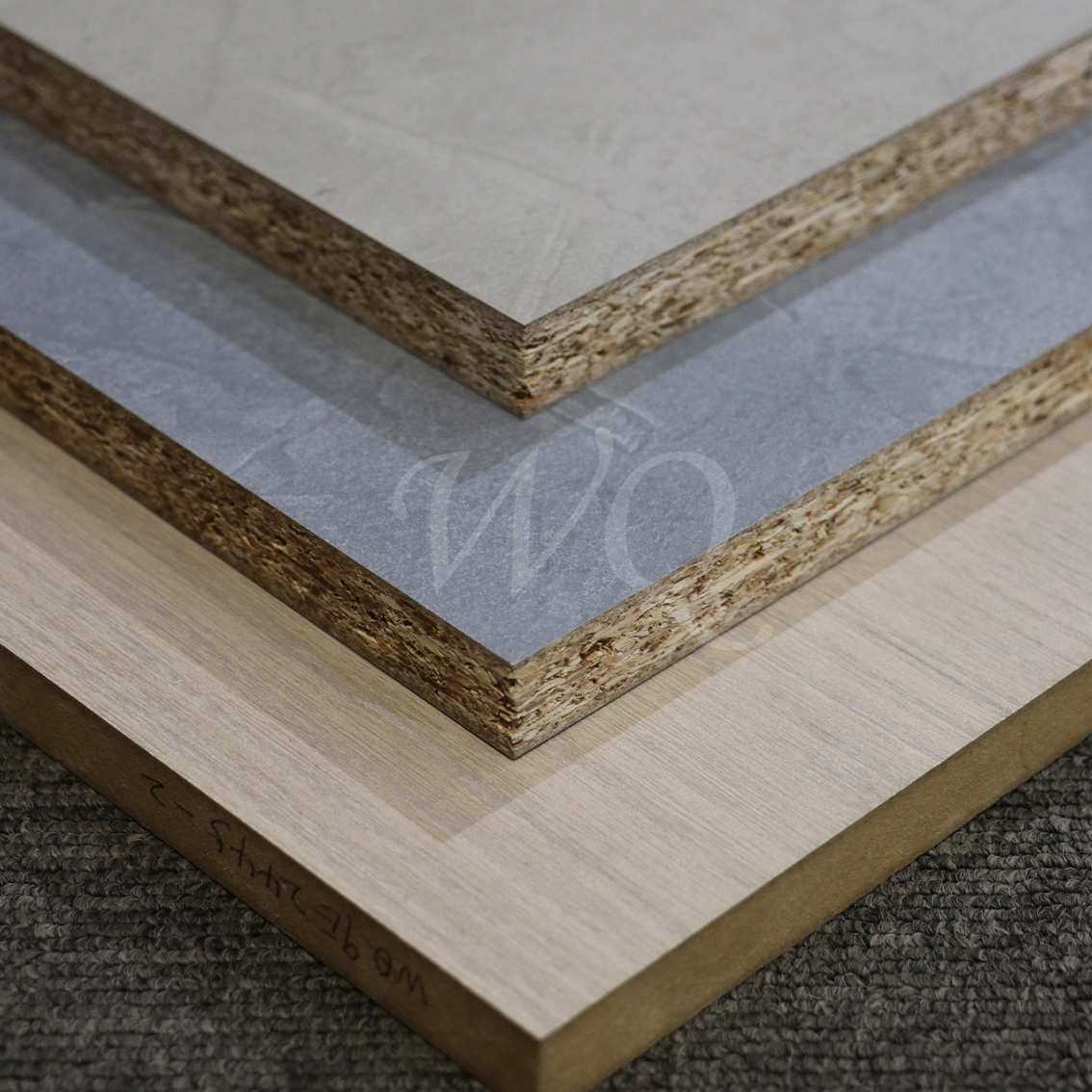

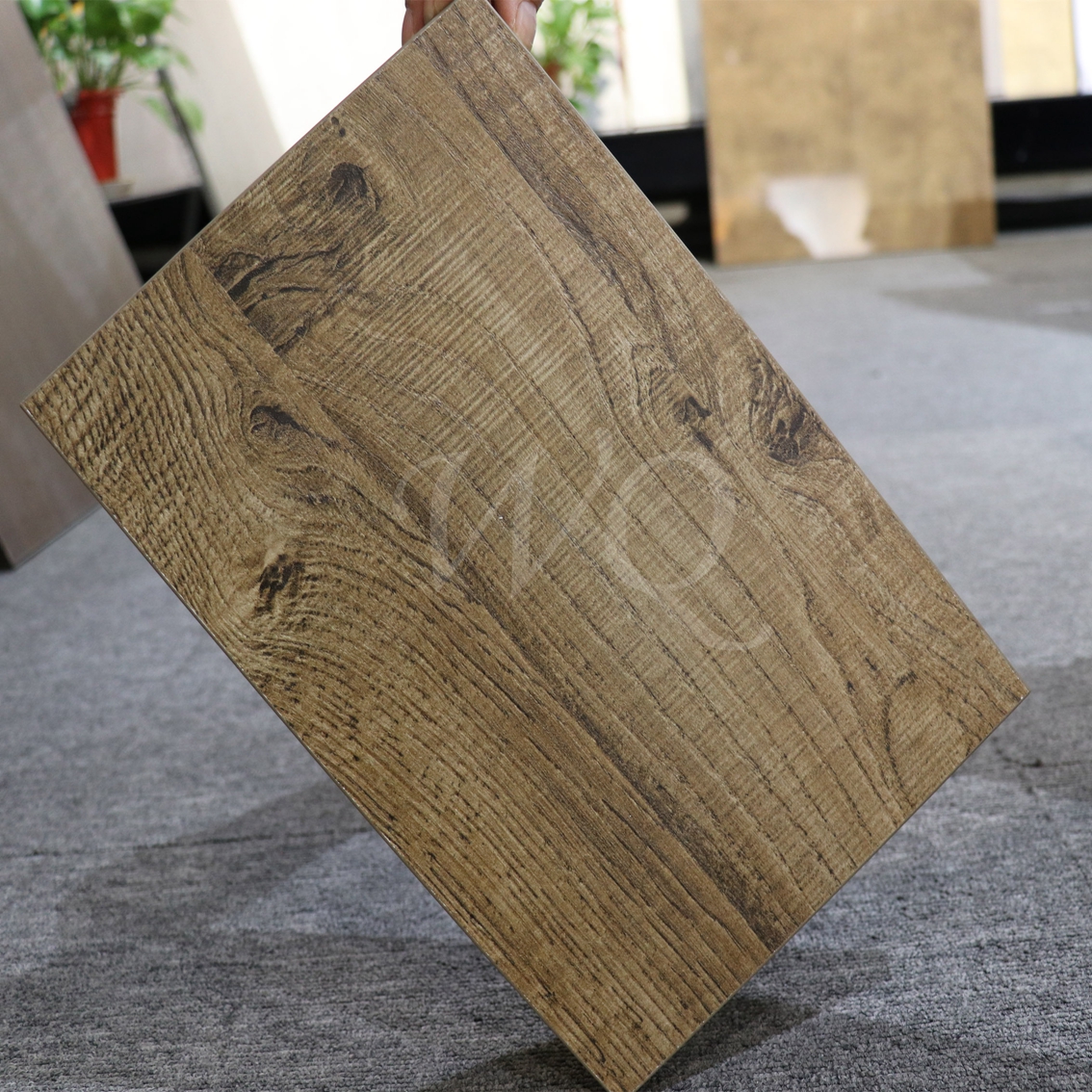

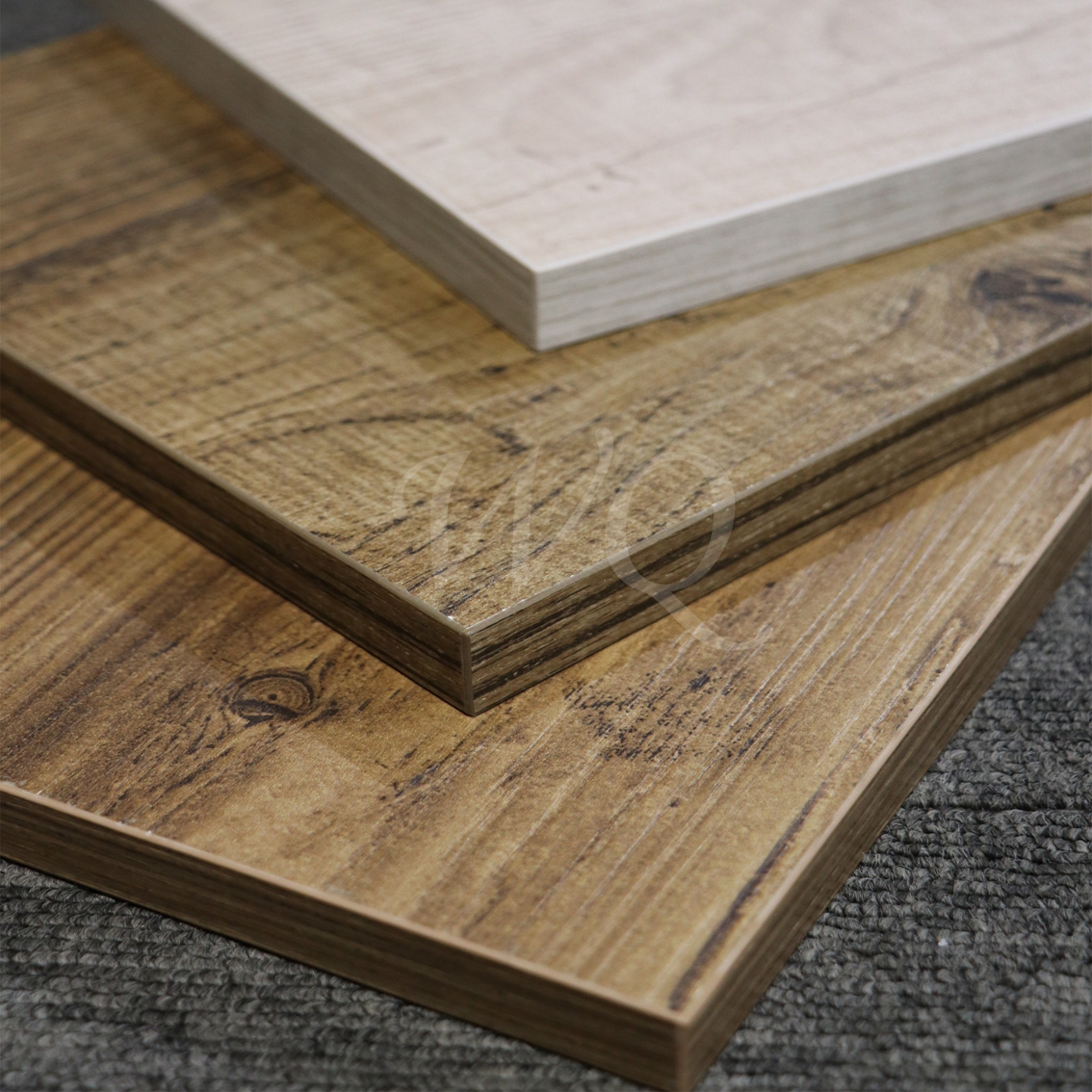

Color Collection




Full panel image


Packing & Loading






Loading quantity
Size
20GP(Loose PKG)
20GP(Pallet PKG)
40GP(Pallet PKG)
1 WAGON(Pallet PKG)
1220*2440*8mm
1080 Sheets
880 Sheets
1560 Sheets
1900 Sheets
1220*2440*16mm
520 Sheets
450 Sheets
780 Sheets
1480 Sheets
1220*2440*18mm
480 Sheets
400 Sheets
700 Sheets
1370 sheets
1220*2800*18mm
450 Sheets
400 Sheets
650 Sheets
/

synchronized application

Natual stone design -WQ9F1837-1 for kitchen cabinet

Elegant woodgrain WQ9E0824-7  for wall decoration

More Products

More Products are coming...

Company Information

Our company owns the most Advanced Wemhoner double-side automatical  machine

Automatic cooling system to keep the panel more flat and good quality

imported impregnated machine to guarantee premium paper.
