Swiss Type CNC Lathe CK1120

10/10 fairsForeign Trade CompanyModel CK1120

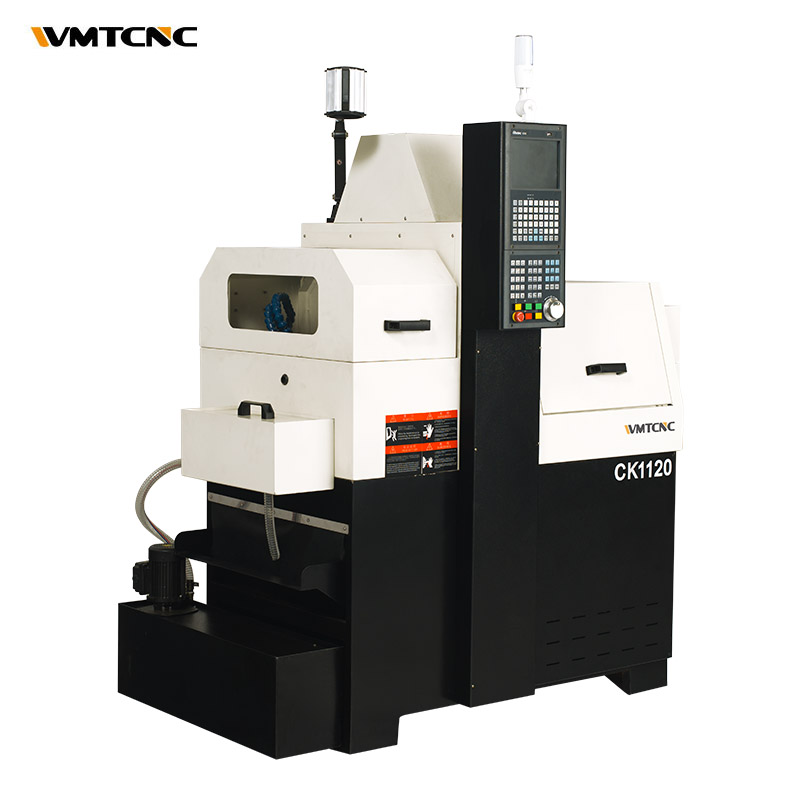

Swiss Type CNC Lathe CK1120
$13,00000$14,00000/ set FOB
MOQ 1 set
Estimated landed cost
$17,379 / set
range $16,736$18,022 · total ≈ $1,737,892
FOB goods (100)
$1,350,000
Ocean freight + handling (1.0 CBM)
$820
US duty (3.5%)
$47,250
Section 301 tariff (25.0%)
$337,500
Customs fees (MPF/HMF)
$2,322

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: Metal
  • Size: 1600x1170x1860mm
  • Color: Black+White
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China

Product details

MaterialsMetal
Size1600x1170x1860mm
ColorBlack+White

From the supplier

Main Features

1.Multiple number of tools, fast tool replacement.
2.Can process all kinds of super slim parts.
3.Power head meets the needs of mill-turn compound processing.
4.Reasonable layout, compact appearance and small footprint.

Specifications Specification CK1120 Capacity Max. Bar Dia. Φ20mm Max length of workpiece 330mm Slide guide mode Linear Guide Rail Spindle Spindlle bore Φ21mm Drilling Spindle Size ER11/20mm Spindle speed 0-6000r/min The height of spindle center from ground 980mm Axis X axis travel 80mm Y axis travel 150mm Z axis travel 330mm X/Y/Z Axis Fast Feed Rate 20m/min Cutting speed 1-4000mm/min Tool post Gang tool 14 Nos. Front drilling 4 Nos. Turning tool 10 Nos. Tool size 12x12mm Motor CNC controller model YZ190 Min. setting unit 0.001mm X Axis Pulse Equivalent 0.0005mm Y Axis Pulse Equivalent 0.001mm Z Axis Pulse Equivalent 0.001mm Max. Programming size ±9999.999 Input Pressure of Compressed Air 0.4--0.6Mpa Spindle power 2.2kw X/Y/Z Axis Servo Motor Power 0.75/0.75/0.75kw Cutting motor power 0.18kw Total input power 5kw Machine Dimensions Overal dimension (L×W×H) 1600x1170x1860mm Weight 1220kg Machine Details

About the supplier

WMT CNC INDUSTRIAL CO.,LTD

Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe

  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2014
  • 1 certificate on file
See all products from this supplier →
Supplier
WMT CNC INDUSTRIAL CO.,LTD
Chizhou, Anhui, China
65
trust
  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2014
  • 1 certificate on file
Canton Fair booth: 20.1I32-33 · Large Machinery & Equipment (140th session)
