About this product
- Materials: Ductile Iron/Cast Iron/Gray Cast Iron
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Ductile Iron/Cast Iron/Gray Cast Iron
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Ductile Iron/Cast Iron/Gray Cast Iron |
|---|---|
| Color | Blue |
Product details
| Materials | Ductile Iron/Cast Iron/Gray Cast Iron |
|---|---|
| Color | Blue |

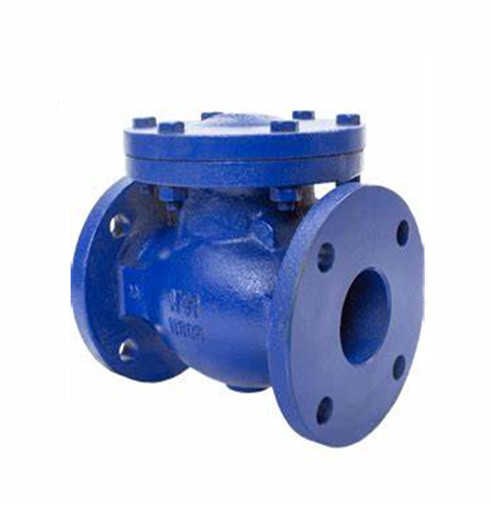

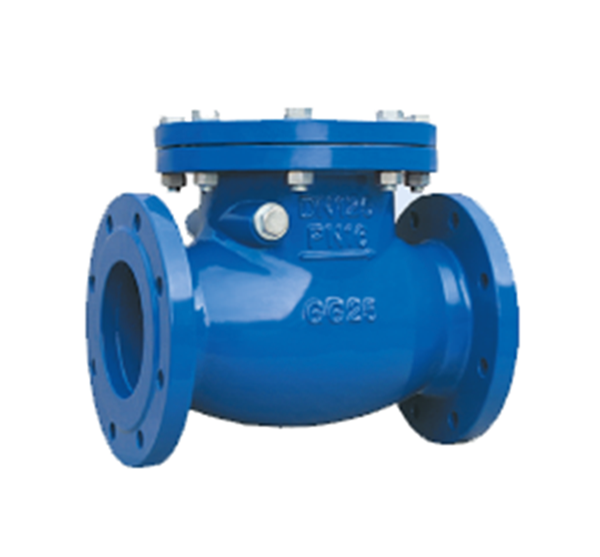

From the supplier
The disc is connected to the hinge via a flexible bush that allows disc and valve seat to adjust exactly
Bonnet gasket in a groove between bonnet and body to prevent blow-out
All seals and coatings with contact to the fluid are approved for drinking water - epoxy coated more than 300 microns.
Color is blue or as you need.
Disc mounted in a flexible rubber bushing which allows it to tilt slightly in all directions and adjust exactly to the valve seat
Flanges acc. to DIN EN 1092-1
Ductile Iron/Cast Iron/Gray Cast Iron with epoxy coating in compliance with DIN 3476 part 1 and EN 14901
There are many disk and seat designs available, in order to meet the requirements of different applications.
Material
Ductile Iron/Cast Iron/Gray Cast Iron
Design
DIN EN 12334-2004
Body
Ductile Iron/Cast Iron/Gray Cast Iron
Flange
DIN EN 1092-2
Disc seat ring
Brass
Stem nut
Brass/Carbon steel
Face to face
DIN 320， BS4090, API594, etc
Body seat ring
Brass
Washer
Carbon steel
Locking nut
Carbon steel
Hing pin
Stainless steel
Gasket
NBR
Bolt
Carbon steel
Working temperature
0 - 70℃
Pressure
PN10, PN16, PN25
Size
DN40 - DN600
Color
Blue or as per your requirments
Application
Working conditions: 0 - 70℃, PN10/PN16/PN25 rated.
Suitable medium: water, oil and gas
From the supplier
The disc is connected to the hinge via a flexible bush that allows disc and valve seat to adjust exactly
Bonnet gasket in a groove between bonnet and body to prevent blow-out
All seals and coatings with contact to the fluid are approved for drinking water - epoxy coated more than 300 microns.
Color is blue or as you need.
Disc mounted in a flexible rubber bushing which allows it to tilt slightly in all directions and adjust exactly to the valve seat
Flanges acc. to DIN EN 1092-1
Ductile Iron/Cast Iron/Gray Cast Iron with epoxy coating in compliance with DIN 3476 part 1 and EN 14901
There are many disk and seat designs available, in order to meet the requirements of different applications.
Material
Ductile Iron/Cast Iron/Gray Cast Iron
Design
DIN EN 12334-2004
Body
Ductile Iron/Cast Iron/Gray Cast Iron
Flange
DIN EN 1092-2
Disc seat ring
Brass
Stem nut
Brass/Carbon steel
Face to face
DIN 320， BS4090, API594, etc
Body seat ring
Brass
Washer
Carbon steel
Locking nut
Carbon steel
Hing pin
Stainless steel
Gasket
NBR
Bolt
Carbon steel
Working temperature
0 - 70℃
Pressure
PN10, PN16, PN25
Size
DN40 - DN600
Color
Blue or as per your requirments
Application
Working conditions: 0 - 70℃, PN10/PN16/PN25 rated.
Suitable medium: water, oil and gas
