OPERATING PRINCIPLE

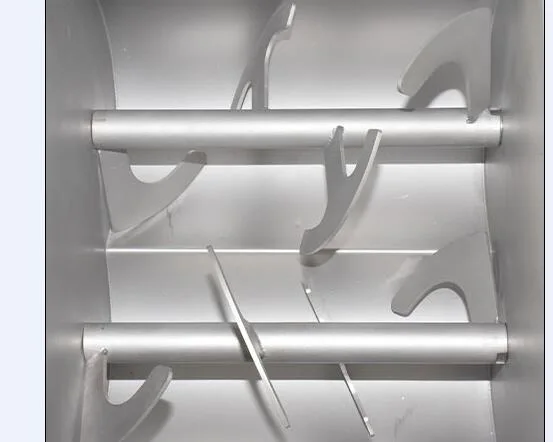

When the machine is working, please close the lid combination then put various ingredients such as roots, stems, leaf vegetables or meat into the stuffing pan. An angle of about 45 degrees is formed between the rotating shaft and the blades fixed on it. Through the rotation of the shaft, the inner filling is moved forward and backward. The blades at both ends ,which are at right angles to the end of the inside wall, will stir up the filling at far end of the slot and then transfer it to the center of the slot.

COME INTO USE

1 Open the cover assembly and put in proper amount of food,ingredients, be careful not to be too full, better not touch the top cover. Large vegetables should be cut into small pieces first, do not put foreign material into the filling pot, otherwise it will damage the mixer assembly.

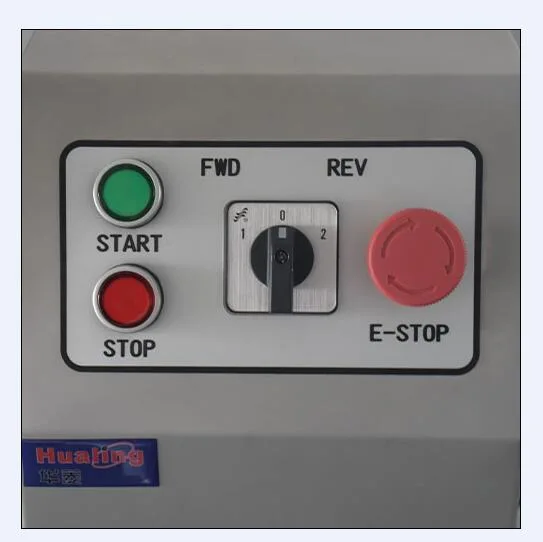

2 Close the cover assembly.Turn the changeover switch(3) to the proper direction,press the green start button(1),power on. Then the machine should running smoothly without abnormal sound

3 Setting reasonable technical parameters according to the use of raw materials, excessive loading or mixing will not achieve the desired process effect.

4 After processing, press the red stop button (2) to stop the machine.when accident happens, press the emergency stop(4) and machine will be stopped

5 When the machine is in use, unplug the power supply.

6 Clean after use, after each work is completed, the machine should be effectively cleaned and the inner side should be always kept dry .

Attention: every time before the machine works, check the mixing pan for foreign matter, and the cut material should not be mixed with hard foreign material, in order to avoid the mixer assembly damage or other equipment failure.
