product Overview

The flexible bending center is an advanced sheet metal processing equipment that integrates numerical control technology, automation technology and precision machinery manufacturing technology. It can efficiently and accurately complete the bending processing of various sheet metal parts. It is widely used in mechanical manufacturing, electrical equipment, automobiles, * and other industries.

product features

• Efficient bending speed: Using advanced drive system and control algorithm, the bending speed can reach 0.2 seconds/knife, which is several times higher than traditional bending machines, greatly shortening processing time and improving production efficiency.

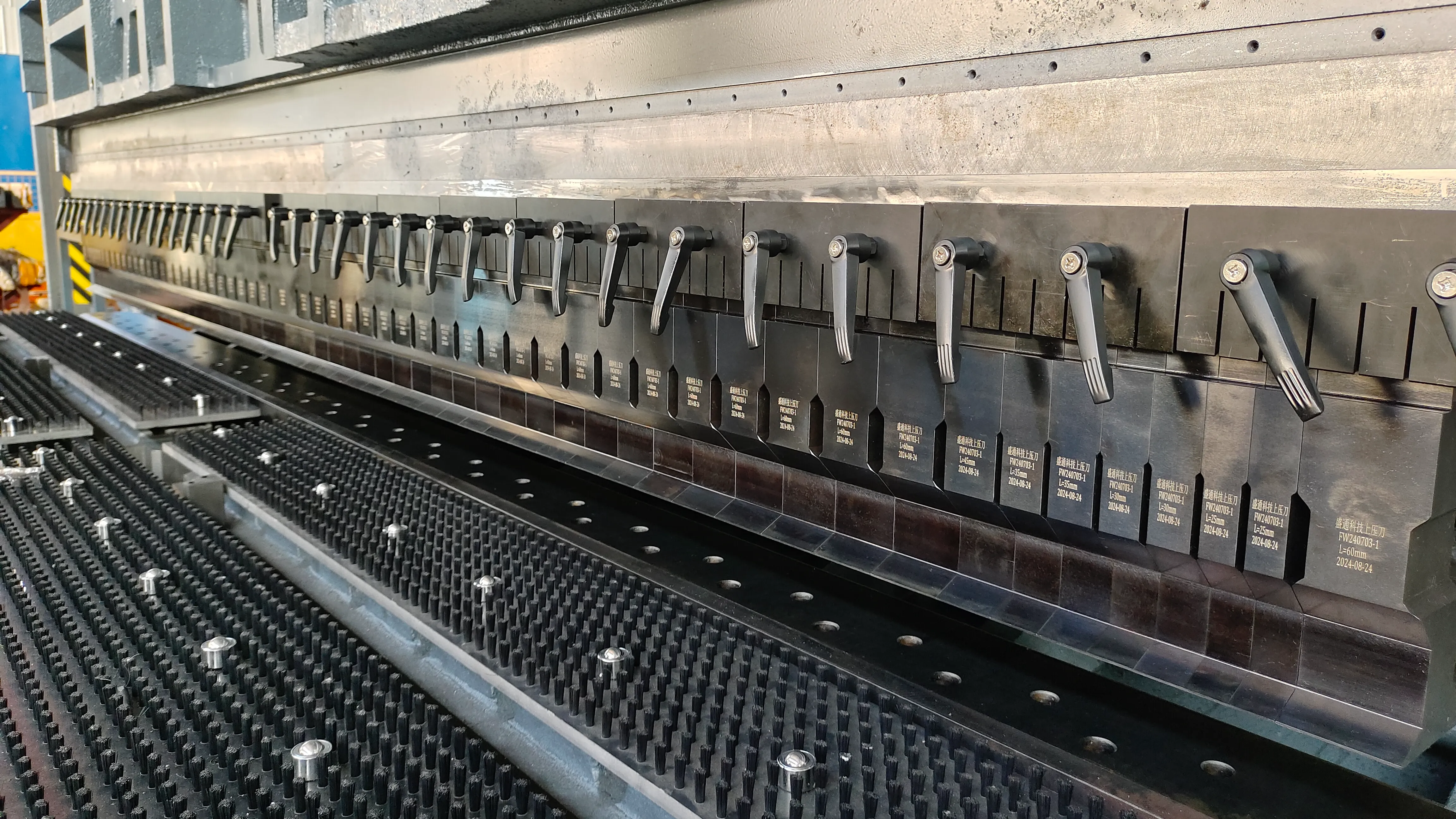

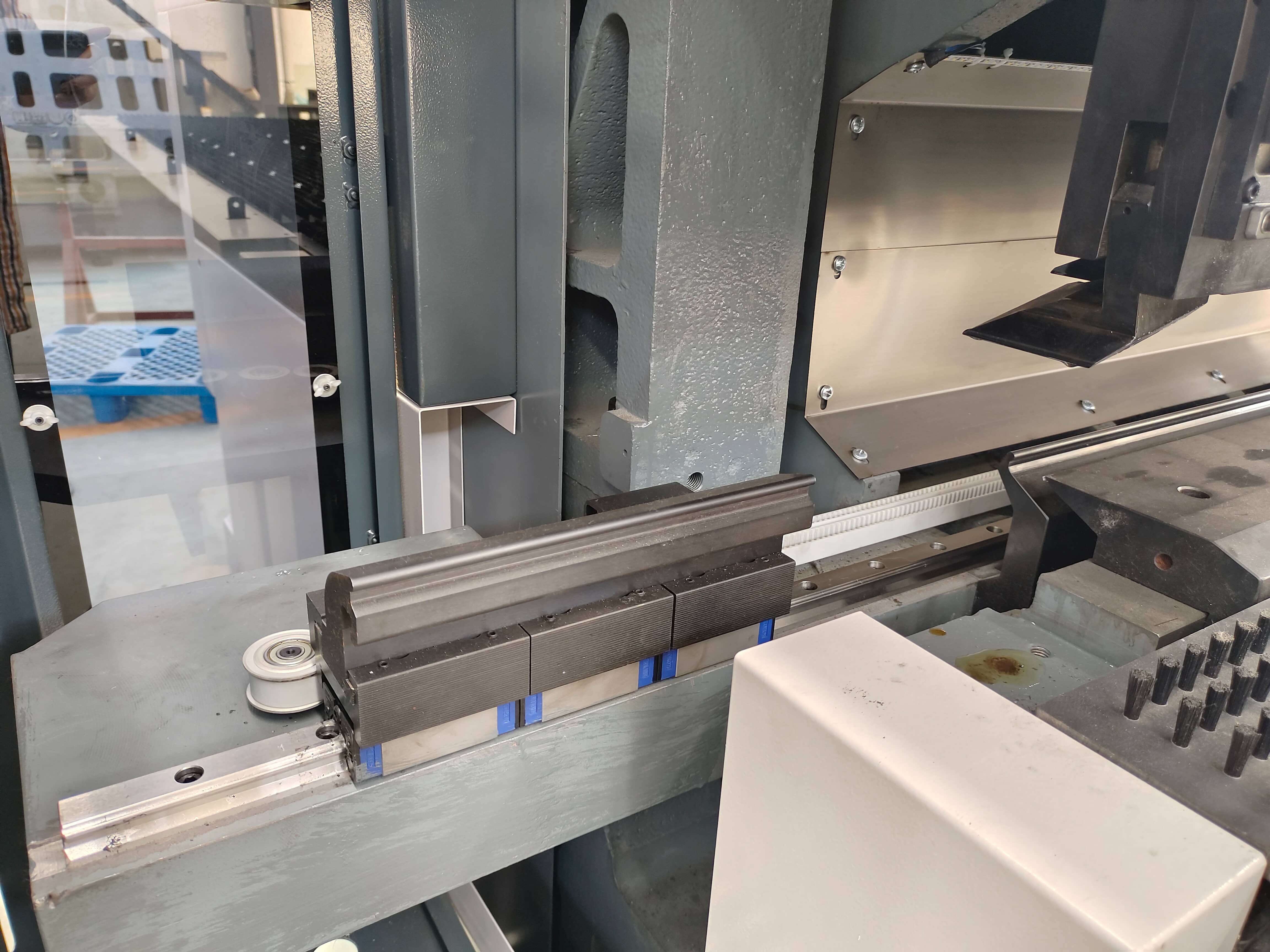

• Universal mold design: Equipped with a universal bending mold, there is no need to replace the mold frequently. Through multi-axis concurrent linkage full servo control, bending in various complex shapes such as arc, crushed edge, return, and closed type can be realized, reducing mold costs and improving processing flexibility.

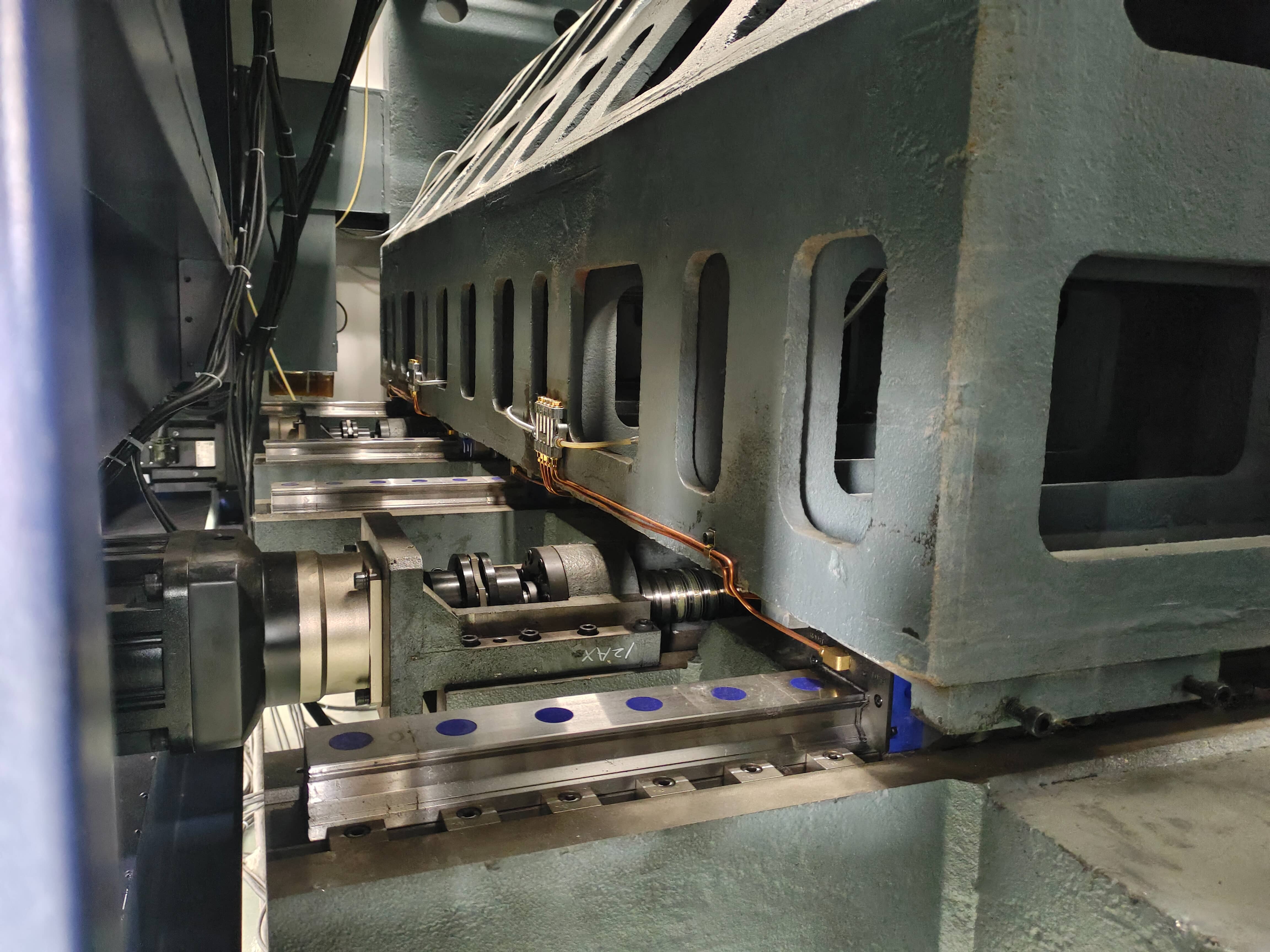

• high-precision machining: Using high-precision speed reducer and high-precision grinding heavy-duty screw to double improve the accuracy, rigidity and load capacity of the transmission system. With precision positioning system and CNC system, it can ensure that the bending accuracy is within ± 0.1mm, meeting various high-precision processing requirements for sheet metal parts.
• high degree of automation: It has functions such as automatic feeding, automatic positioning, and automatic bending. With less manual intervention, bending tasks can be completed in batches and automatically, saving a lot of labor costs and reducing errors and safety risks caused by manual operations.
• intelligent control system: Equipped with advanced CNC system, friendly man-machine interface, simple and convenient operation. Bending programs can be quickly generated through graphical programming, or CAD files can be directly imported for processing. It also has online compensation, fault diagnosis and other functions, improving the ease of use and stability of the equipment.
• Wide range of applicable materials: It can be used in various metal materials such as stainless steel, cold-rolled sheet, aluminum plate, and copper plate to meet the processing needs of customers in different industries.

technical parameters

STZ03-A2 STZ03-B1 STZ03-B1 STZ03-B2 STZ03-C2 STZ03-D2 STZ03-E2 Fastest bending speed 0.2 Seconds/knife 0.2 Seconds/knife 0.2 Seconds/knife 0.2 Seconds/knife 0.3 Seconds/knife 0.5 seconds/knife 0.6 Seconds/knife Maximum bend length (CM) 100*100 140*125 140*125 160*125 200*150 250*150 320*150 Maximum bending height (mm) 170/210 170/300 170/300 170/300 170/300 170/300 170/210 feeding mode pressure arm type suction disc type pressure arm type pressure arm type pressure arm type pressure arm type pressure arm type feeding table Brush, universal ball Brush, universal ball Brush, universal ball Brush, universal ball Brush, universal ball Brush, universal ball Brush, universal ball lubrication lines copper tube copper tube copper tube copper tube copper tube copper tube copper tube Minimum bend thickness (mm) 0.15 0.15 0.15 0.15 0.15 0.15 0.15 Minimum bend size 140*190mm 140*190mm 140*190mm 140*190mm 140*190mm 140*190mm 140*190mm one-sided forming 150mm 150mm 150mm 150mm 150mm 150mm 150mm page closing knife standard standard standard standard standard standard standard high-level instructions standard standard standard standard standard standard standard circular arc instruction standard standard standard standard standard standard standard presser foot lifting optional optional optional optional optional optional optional C-axis lifting standard standard standard standard standard standard standard Automatic lubrication function standard standard standard standard standard standard standard Offset load detection function standard standard standard standard standard standard standard Offset load servo function standard standard standard standard standard standard standard Board thickness detection function standard standard standard standard standard standard standard Automatic feeding interface standard standard standard standard standard standard standard High-speed control module standard standard standard standard standard standard standard flattening function standard standard standard standard standard standard standard Crushing the edge from top to bottom standard standard standard standard standard standard standard folding knife adjusting device standard standard standard standard standard standard standard operating hand wheel standard standard standard standard standard standard standard Cloud management capabilities standard standard standard standard standard standard standard rated voltage 380V 380V 380V 380V 380V 380V 380V Maximum bending thickness (mm)

Stainless steel 1.2

Cold plate 1.5

Aluminum plate 2.5

Stainless steel 1.0

Cold plate 1.2

Aluminum plate 2.0

Stainless steel 1.2

Cold plate 1.5

Aluminum plate 2.5

Stainless steel 1.2

Cold plate 1.5

Aluminum plate 2.5

Stainless steel 1.2

Cold plate 1.5

Aluminum plate 2.5

Stainless steel 1.2

Cold plate 1.5

Aluminum plate 2.5

Stainless steel 1.2

Cold plate 1.5

Aluminum plate 2.5

Overall size (CM)

Length * width * height 310 * 150 * 280

Length * width * height 350 * 200 * 280

Length * width * height 450 * 200 * 280

Length * width * height 450 * 250 * 280

Length * width * height 510 * 270 * 280

Length * width * height 570 * 310 * 280

Length * width * height 700 * 380 * 280

application field

• electrical equipment industry: Used to produce enclosures for electrical equipment such as distribution cabinets, control cabinets, and distribution boxes. It can ensure the size accuracy and appearance quality of the enclosure and improve the overall performance of the equipment.
• machinery manufacturing industry: It can process sheet metal structural parts of various mechanical parts, such as machine tool protective covers, workbench, chassis, etc., to meet the manufacturing needs of different mechanical products.
• automotive industry: It is suitable for bending sheet metal parts such as automobile body parts, hoods, and doors, providing high-precision parts for automobile manufacturing.
• * industry: It can process high-precision sheet metal parts in the * field, such as aircraft wings, fuselage structural parts, etc., meeting the strict requirements of * products on the quality and accuracy of parts.
• building decoration industry: It can be used to process aluminum veneer, stainless steel plate and other materials for architectural decoration, achieve various modeling and bending requirements, and provide high-quality material support for architectural decoration projects.

after-sales service

• warranty period: Provide a warranty period of [specific duration]. During the warranty period, if non-human failure occurs to the equipment, we will provide free repair and replacement services.
• technical support: It has a professional technical team to provide customers with 24-hour online technical support. It can solve problems encountered by customers during use through telephone, email, remote assistance, etc.
• training services: Provide customers with free operation training and maintenance training to ensure that customers 'operators can master equipment operation and maintenance skills and improve equipment efficiency.
• parts supply: A complete spare parts inventory system has been established to provide customers with various spare parts needed in a timely manner to ensure the normal operation of the equipment.
• regular return visits: Conduct regular return visits to customers to understand equipment usage and customer needs, provide customers with optimization suggestions and upgrade services, and continuously improve customer experience.
