Stereo Zoom Microscope Xts30+3511a
BEIJING TECH INSTRUMENT CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Stereo Zoom Microscope Xts30+3511a
BEIJING TECH INSTRUMENT CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Metal
- Color: White, Black
- Exports to: Mainland China, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU
About this product
- Materials: Metal
- Color: White, Black
- Exports to: Mainland China, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU
Product details
| Materials | Metal |
|---|---|
| Color | White, Black |
Product details
| Materials | Metal |
|---|---|
| Color | White, Black |
From the supplier

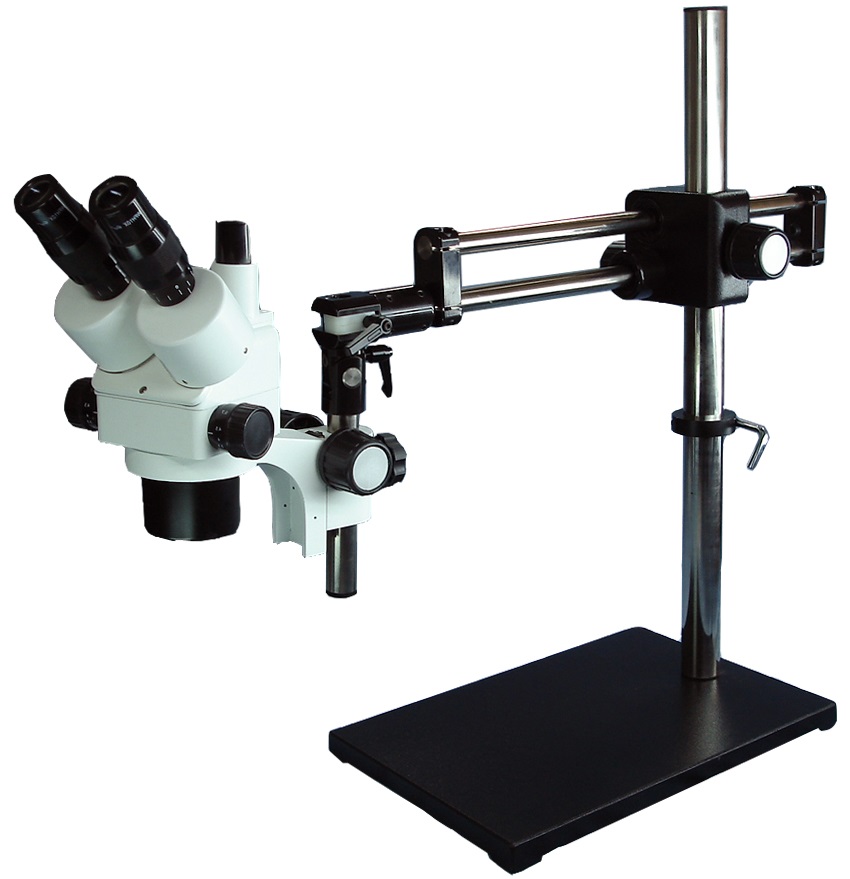

It provides excellent 3D images with high resolution. Once brought in focus, images remain clear throughout whole zoom range, it has large field of view, long working distance, and big depth of field, a wide variety of optical lenses and stands are available.
● Trinocular Viewing Head, Inclined 45 degree, can be rotated a full 360°
● Zoom Range: 0.7x-4.5x
● Zoom Ratio: 6.5:1
● Eyepiece: WF10X /23 high eyepiece point eyepiece (standard)
● Magnification: 7x-45x (with accessory lens: 2.1x-225X)
● Working distance: 108mm. It can be 38-314mm with optional Auxiliary Lens.
● Field of view: 31.5mm- 4.9mm
● Interpupillary distance: 55mm-75mm
● Diopter correction: ±5 degree
● Double Bar Boom Stand with Short Pillar and Focusing Mount
Base dimension: 386x260x25mm, the larger and heavy base best to help keep stand more stable.
Vertical Post: OD. 37mm, main post 375mm, a 185mm extension post can be attached. A Lock Ring on vertical post for stopping.
Horizontal Post: Smooth ball bearing movement, OD. 20mm for each shaft, Long 570mm (end to end), travel distance from vertical post to the end of horizontal post.
From the supplier
It provides excellent 3D images with high resolution. Once brought in focus, images remain clear throughout whole zoom range, it has large field of view, long working distance, and big depth of field, a wide variety of optical lenses and stands are available.
● Trinocular Viewing Head, Inclined 45 degree, can be rotated a full 360°
● Zoom Range: 0.7x-4.5x
● Zoom Ratio: 6.5:1
● Eyepiece: WF10X /23 high eyepiece point eyepiece (standard)
● Magnification: 7x-45x (with accessory lens: 2.1x-225X)
● Working distance: 108mm. It can be 38-314mm with optional Auxiliary Lens.
● Field of view: 31.5mm- 4.9mm
● Interpupillary distance: 55mm-75mm
● Diopter correction: ±5 degree
● Double Bar Boom Stand with Short Pillar and Focusing Mount
Base dimension: 386x260x25mm, the larger and heavy base best to help keep stand more stable.
Vertical Post: OD. 37mm, main post 375mm, a 185mm extension post can be attached. A Lock Ring on vertical post for stopping.
Horizontal Post: Smooth ball bearing movement, OD. 20mm for each shaft, Long 570mm (end to end), travel distance from vertical post to the end of horizontal post.
About the supplier
Main products: Microscopes
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1971
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1971
