Quick detail:

Product Name

steel wire rope with tape or strip

Diameter

3mm-60mmmm

Standard

GB, DIN, EN,AISI, ISO, JIS, BS, ASTM

Lay

R.H.R.L/R.H.L.L /L.H.R.L/L.H.L.L

Material

carbon steel #45 ,#60, #70, #72A

Core

FC fiber core or steel core

Nominal T/S

1570N/mm2, 1770N/mm2, 1960N/mm2

Lubrication

Strand greased, yellow grease. Or elevator oil

HS code

731210000

Shipping port

Nantong port, Shanghai port

Payment term

30% advanced by T/T,the balance against B/L copy ;100% L/C at sight;

Min Order

5000M

Delivery Time

Within 45-50 days after deposit

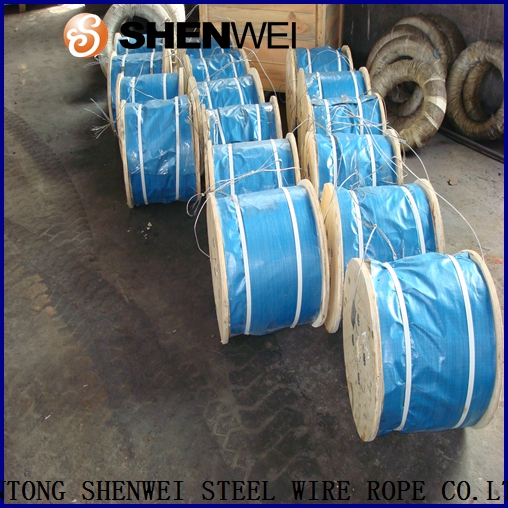

Packing

Plywood reels/Solid wooden reels/Plastic reels/soft coils

RFQ:

Q: When your factory established?

• Q. A:we established in 1994

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 45-50days if the goods are not in stock, it is according to quantity and sizes.

Q: What is your terms of payment ?

A: Payment ≤3000USD, 100% by TT before the production. Payment≥3000USD, 30% by T/T as deposit, then the balance payment against the copy of BL.

Q: Which countries do you export?

Our products mainly export to South America, Southeast Asia ,the Middle East etc.

Q：Do you have any certificate?

A: yes, we have API, CE, ISO9000 certificate

Q：Do you have any customer in Brazil?

A: yes, we have. But Brazil need Inmtro certificate, after customer get this certificate, then we can export.

Q：Factory’s capacity per month?

A: Our capacity is 1000tons per month , about 50 containers.

Q：Do you have Galvanized production line?

A: No. Unfortunately, Nantong city don’t have Galvanized production line now because of pollution. Now we are buying semi-finished galvanzied wire from other city.  Pls don’t worry, The quality is guaranteed.

How to OrderHow to order

● If you wish to order steel wire rope, please provide us with the following information

When you want to buy steel wire rope, Please give us complete imformation as follows

1, Purpose

Application of the Steel Wire Rope

Structure CONSTRUCTION:

Number of strands, wires per strand and strand structure type

     Number of strands, number of wires per strand

     and type of strand construction.

3, Model SIZE:

Wire Rope Diameter (mm or inches)

     Diameter of the rope in millimeters or inches.

4, Twist Direction LAY:

Right alternating twist, left alternating twist, right same-direction twist or left same-direction twist

     Right Hand Regular lay. Left Hand Regular Lay, Right

     Hand Lang Lay, or Left Hand Lang Lay.

5. Surface State COATING:

Smooth, galvanized or plastic-coated

     Bright (Black,Ungalvanized) or galvanized or

     PVC coated.

6, Core Type TYPE OF CORE:

Fiber Core, Metal Rope Core or Metal Strand Core

     Fiber Core (FC),Independent Wire Rope Core

     (IWRC) or Wire Strand Core(WSC).

7, Wire Strength Grade: GRADE OF WIRES

Wire Nominal Tensile Strength Grade

     Tensile Strength of Wires.

Minimum Breaking Load

Total rope minimum breaking force or calculated breaking force (kilonewtons or pounds)

     Minimum Breaking Load in KN or pounds.

Execution Standard:

Product must comply with or meet applicable standards and requirements

     Application of Standards.

10, Length:

Wire Rope Length (meters or feet)

     Length in meters or feet.

11, Lubrication Method

Packing Method:

13. Quantity:

14, Quality Assurance Certificate

Whether to provide factory warranty or other quality certificates.

     Mill certificate or other third party quality

     certificates, if needed.

Marks/Remarks:

Shipping Marks or Special Requirements

     Shipping Marks and any other special

     requirements.

If you have another question, pls feel free to contact us .
