Prefabricated steel structure  building

Lida Steel Structure Warehouse/Steel Structure Workshop



LIDA steel structure industrial building (pre-engineering building) is a new type of building structure system. The building structure system is formed by the main framework through linking up the H section, C section, Z section or U section steel components. Cladding system uses different kinds of panels as wall and roof together with other components such as windows and doors. LIDA Steel structure building has the advantages of wide span, high strength, light weight, low cost, temperature protection, energy saving, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.



Steel structure building is widely used as warehouse, workshop, showroom building, poultry farm, green house, mid-rise or high-rise steel building, airport terminal and hangar, etc.

We have done over 1000 units of steel structure warehouse and workshop in over 100 countries in last 26 years.

Product Description

 Pre engineered steel structure building is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system. Pre engineered steel structure building building is widely used as warehouse, workshop, hangar, shed, etc..

Component Specification



Main structure

H-section steel

Q345 steel H beam, Box column is also availableWeldingAutomatic Submerged Arc WeldingRust removingShot blastingsurface processingtwice primer and twice finish Alkyd Paint or hot dip galvanizedHigh strength boltGrade 10.9SubstructureAngle braceL50x4,Steel Q235,Process and paintingCross bracingDia.20 round bar,Steel Q235, process and pre-galvanizedTie barDia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanizedBatter braceDia.12 round bar,Steel Q235 process and pre-galvanizedOrdinary boltGalvanized boltRoofPurlinC channel or Z channel,steel Q235, galvanizedRoof panel(50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheetTransparent skylight1.2mm FRPAccessoriesSealant, self-tapping screw, etc.Edge coverMade of color steel sheetGutterMade of steel sheet thickness 0.8mm, or PVCRinspoutPVC pipeWallPurlinC channel or Z channel, steel Q235, galvanizedWall panel(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheetAccessoriesSealant, self-tapping screw etcEdge coverMade of GI color steelVentilator unpowered axial-flow ventilator or monitor roofDoor & window Electric rolling door/sliding door, PVC/Alu. alloy windowCrane

With or without crane, ranging from 5 tons to 20 tons

Advantages



1) Single span and multiple span are available, the max clear span is 36m without central column (post).

2) Service life is up to 70 years.

3) Cost effective, the average price is from USD 30/sqm to USD 90/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.

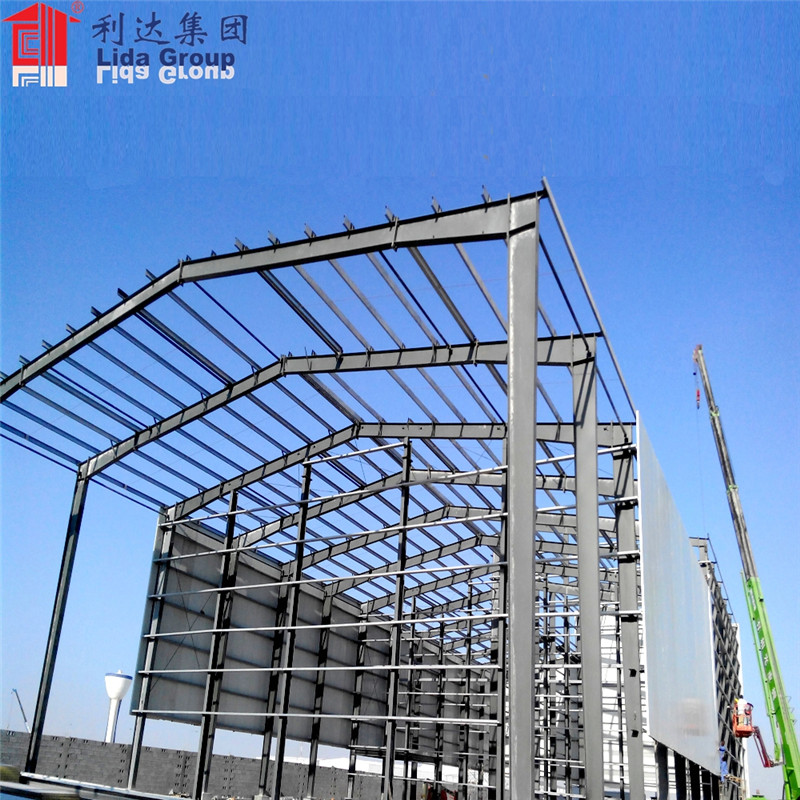

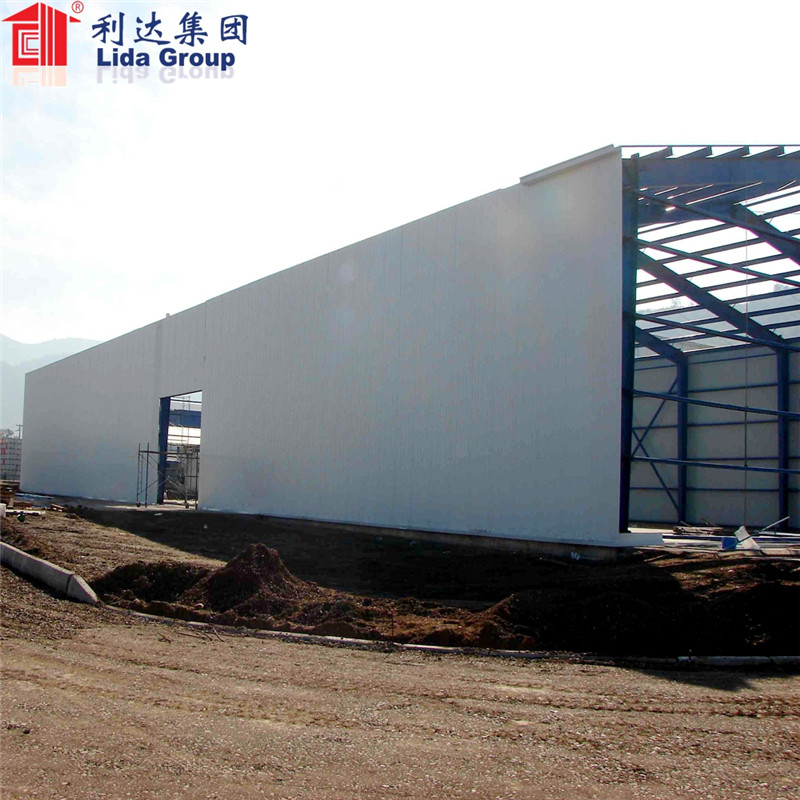

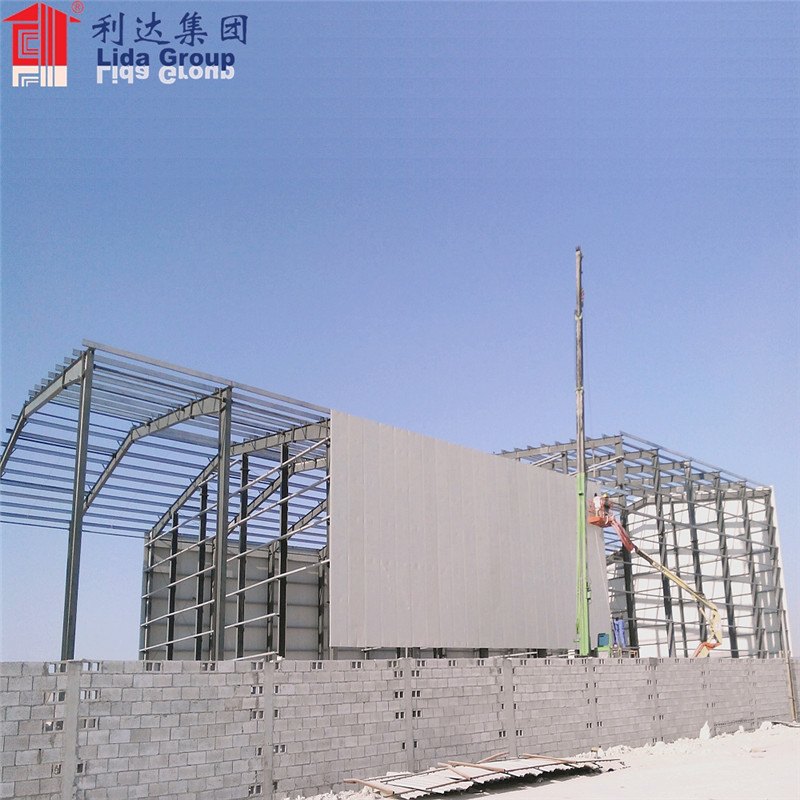

Installation

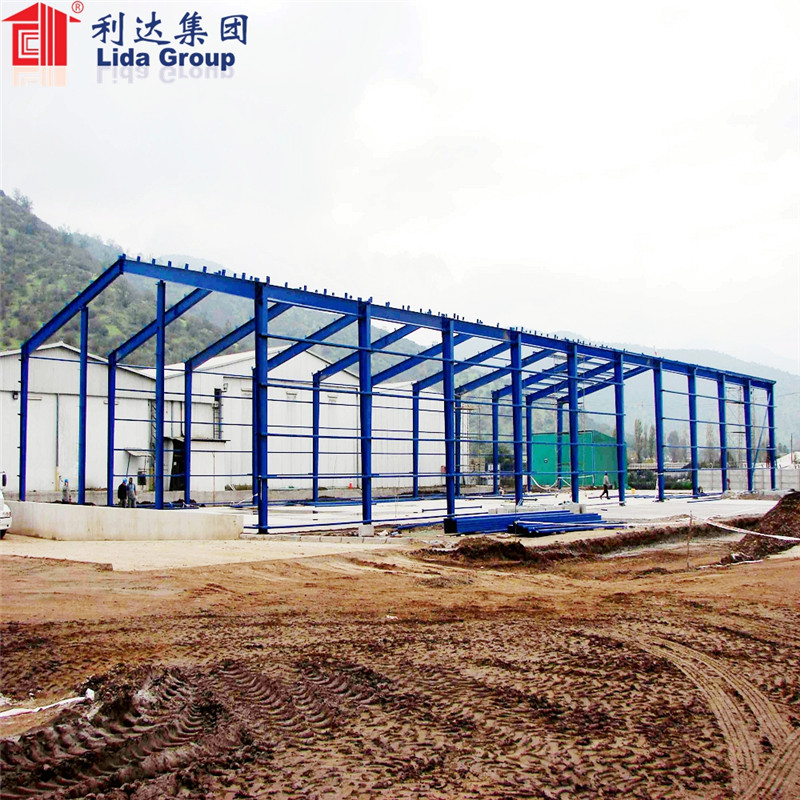

Project in Chile



Company Information



Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series

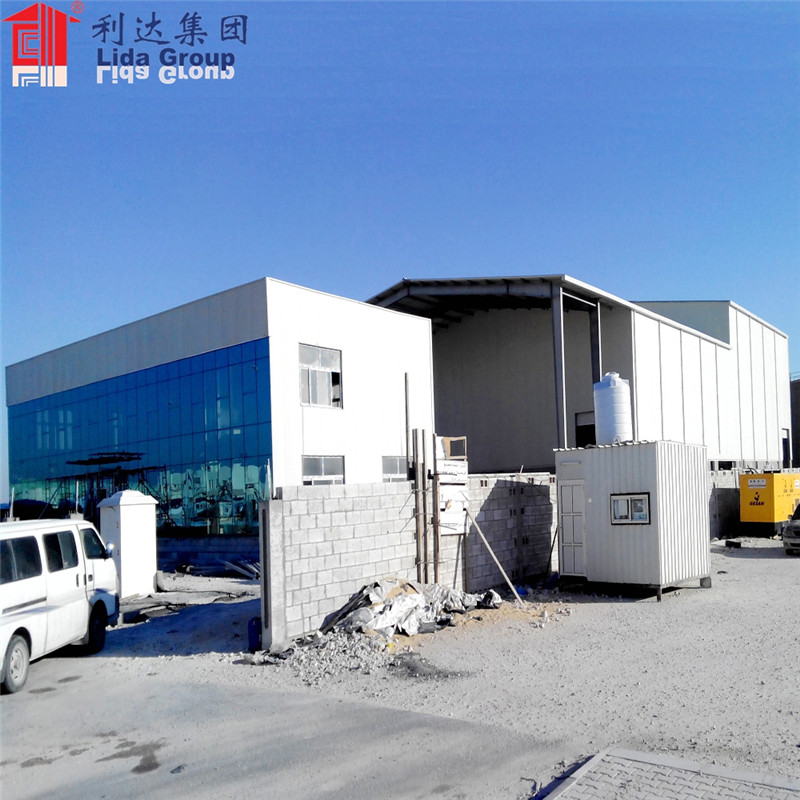

Finished Steel Structure Building Projects for Reference

 1. 10000 M2 steel structure warehouse---Saudi Arabia

 2. 12050 M2 steel structure workshop--- The United Arab Emirates

 3. 14081 M2 steel structure supermarket--- The Republic of Djibouti

 4. 7200 M2 steel structure warehouse--- The United Kingdom of Great Britain and Northern Ireland

 5. 6000 M2 steel structure poultry---- The United Arab Emirates

 6. 3300 M2 pig shed---India

 7. 2250 M2 steel structure warehouse---Belgium

 8. 1500 M2 steel structure market---Ethiopia

 9. 702 M2 steel structure warehouse---Georgia

 10. 36 M2 garage---500 sets---Norway

 11. 20ft&40ft container house for U N project---Sudan

 12. 22 M2 temporary house---1000 sets---Philippines

 13. 200 M2 prefabricated labor camp---100 sets---Saudi Arabia

 14. 157 M2 prefabricated site office---36 sets---Malaysia

 15. 60 M2 prefabricated dormitory---2000 sets---Indonesia
