Standard Polycrystalline Solar Panel 335watt-120 solar cells
Jiangxi Renjiang Technology Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Standard Polycrystalline Solar Panel 335watt-120 solar cells
Jiangxi Renjiang Technology Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product

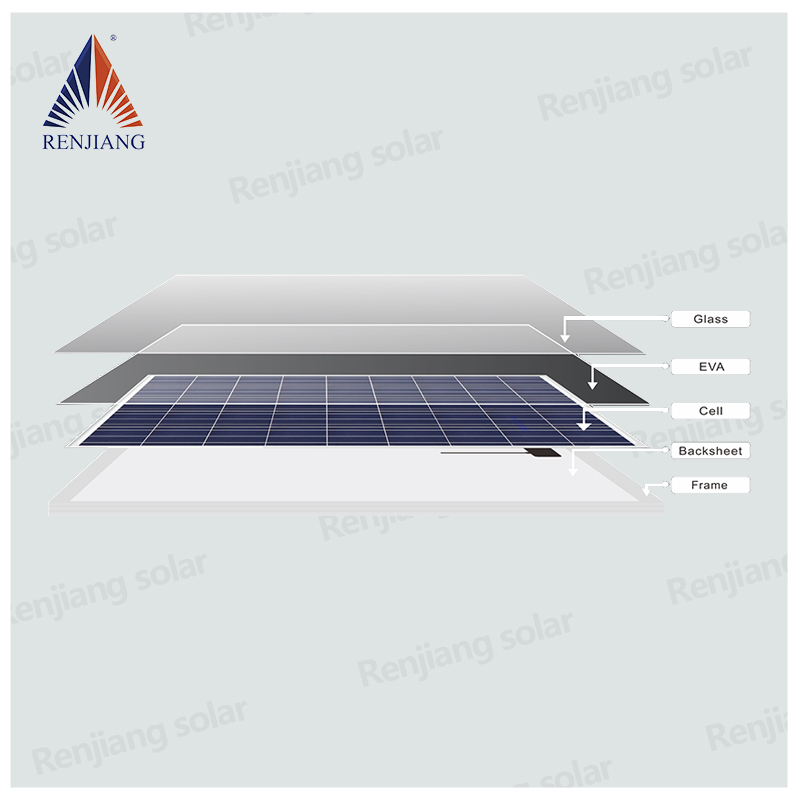

- Materials: Tempered glass, EVA sheet, solar cell, TPT back sheet, Aluminum frame
- Size: 1765*1065*35
- Color: silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Tempered glass, EVA sheet, solar cell, TPT back sheet, Aluminum frame
- Size: 1765*1065*35
- Color: silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Tempered glass, EVA sheet, solar cell, TPT back sheet, Aluminum frame |
|---|---|
| Size | 1765*1065*35 |
| Color | silver |
Product details
| Materials | Tempered glass, EVA sheet, solar cell, TPT back sheet, Aluminum frame |
|---|---|
| Size | 1765*1065*35 |
| Color | silver |
From the supplier
Product Model: Polycrystalline solar panel 335watt.
Application:
Grid-connected photovoltaic application areas:
1. Household power station: various household roof power stations 3KW-30KW.
2. Industrial and commercial roofs: architectural integration, industrial parks, enterprises, schools, shopping malls, high-speed service areas, etc., under 6MW.
3. Medium / large ground power stations: use idle desert areas, barren mountains / barren slope areas, deforestation areas, etc.
4. Other application areas: eco-agricultural photovoltaic power station, fish and light complementary power station, floating photovoltaic power station.
Product advantage:
1. The max power output of 120cells can be up to 335Wp
2. Better the temperature coefficient of components under high temperature power attenuation less
3. By using excellent glass and battery surface texturing technology, in order to achieve excellent environment under the low light environment
4. Integral component by the approval of 2400Pa wind load and 5400Pa snow load
5. The unique circuit design reduces the hot spot temperature and reduce the power loss, improving power generation
6. Guaranteeing the components of large-scale production under the condition of 60°C, PID(potential induced attenuation)phenomenon caused by the attenuation rate fell to a minimum.
Features:
1. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
2. IP65 rated junction box provides complete protection against environmental particles.
3. 25-year linear output power warranty, after 25 years, the cells still provide 80% power.
4. Conversion rates above 18%.
5. Certificates: TUV/ CE/ SGS/ IEC/ ISO/ CQC/ INMETRO.
Product Performance Table
Temperature Coefficient of Voc: -0.38%/°C
Temperature Coefficient of Isc: +0.04%/°C
Temperature Coefficient of Power: -0.47%/°C
NOCT: 45±3℃
Working Temperature Range: -40℃~＋80℃
Maximum Series Fuse Rating(A): 15
Maximum System Voltage(V): 1000
Standard Test Conditions: 1000W/㎡; 25℃; AM1.5
No. of cells and Connections: 120(6*10+6*10)
Company Profile:
Founded in 1998, Renjiang Technology is headquartered in Xiangdong Industrial Park, Pingxiang City, Jiangxi Province, with a land area of 50,000 square meters and a registered capital of 50 million yuan. Main products: silicon wafers, solar cells, photovoltaic modules (polycrystalline silicon), photovoltaic modules (monocrystalline silicon), flexible modules (Sunpower), foldable solar panel, solar street lights, solar mobile power, photovoltaic power plant design, development, production, sales ,after-sales integrated manufacturing enterprise. The company's products are sold to Germany, the United Kingdom, the United States, Chile, Peru, Tanzania, Kenya and other more than 20 countries around the world. It is one of the most complete solar photovoltaic module companies in China.
Won the "CQC", "TUV", "IEC", "CB", "CE", "COC", "PVOC", "SEC", "leader", "high-tech enterprises" and other authoritative organizations certification.
While pursuing product quality and market influence, the company adheres to the concept of "providing quality products and services and bringing solar energy into life" with a culture of "customer-centric, striving-oriented, long-term hard work". . Efforts to provide mass customization and personalized services for solar modules for customers around the world. Renjiang Group is willing to go hand in hand with you to achieve unlimited career and dream
Q & A
- 1. What is your delivery time?
15days after order confirmed.
- 2. Are you manufacturer or trading company? / mainly market?
We are a manufacturer of solar module since 2011, our customer mainly from Africa, Mid-East, Europe and North America.
- 3. How about your capacity?
200/300 Megawatt per year.
- 4. How many employees in your company?
300-500 employees in factory.
- 5. Do you support customization?
Certainly, customization is our strength, please let us know your required power, voltage,
and module dimension, then we'll design the drawing to you.
- 6. How about the packing details?
Big module usually by pallet packing, smaller panel by inner and outer carton, as you required.
Enterprise Image:
From the supplier
Product Model: Polycrystalline solar panel 335watt.
Application:
Grid-connected photovoltaic application areas:
1. Household power station: various household roof power stations 3KW-30KW.
2. Industrial and commercial roofs: architectural integration, industrial parks, enterprises, schools, shopping malls, high-speed service areas, etc., under 6MW.
3. Medium / large ground power stations: use idle desert areas, barren mountains / barren slope areas, deforestation areas, etc.
4. Other application areas: eco-agricultural photovoltaic power station, fish and light complementary power station, floating photovoltaic power station.
Product advantage:
1. The max power output of 120cells can be up to 335Wp
2. Better the temperature coefficient of components under high temperature power attenuation less
3. By using excellent glass and battery surface texturing technology, in order to achieve excellent environment under the low light environment
4. Integral component by the approval of 2400Pa wind load and 5400Pa snow load
5. The unique circuit design reduces the hot spot temperature and reduce the power loss, improving power generation
6. Guaranteeing the components of large-scale production under the condition of 60°C, PID(potential induced attenuation)phenomenon caused by the attenuation rate fell to a minimum.
Features:
1. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
2. IP65 rated junction box provides complete protection against environmental particles.
3. 25-year linear output power warranty, after 25 years, the cells still provide 80% power.
4. Conversion rates above 18%.
5. Certificates: TUV/ CE/ SGS/ IEC/ ISO/ CQC/ INMETRO.
Product Performance Table
Temperature Coefficient of Voc: -0.38%/°C
Temperature Coefficient of Isc: +0.04%/°C
Temperature Coefficient of Power: -0.47%/°C
NOCT: 45±3℃
Working Temperature Range: -40℃~＋80℃
Maximum Series Fuse Rating(A): 15
Maximum System Voltage(V): 1000
Standard Test Conditions: 1000W/㎡; 25℃; AM1.5
No. of cells and Connections: 120(6*10+6*10)
Company Profile:
Founded in 1998, Renjiang Technology is headquartered in Xiangdong Industrial Park, Pingxiang City, Jiangxi Province, with a land area of 50,000 square meters and a registered capital of 50 million yuan. Main products: silicon wafers, solar cells, photovoltaic modules (polycrystalline silicon), photovoltaic modules (monocrystalline silicon), flexible modules (Sunpower), foldable solar panel, solar street lights, solar mobile power, photovoltaic power plant design, development, production, sales ,after-sales integrated manufacturing enterprise. The company's products are sold to Germany, the United Kingdom, the United States, Chile, Peru, Tanzania, Kenya and other more than 20 countries around the world. It is one of the most complete solar photovoltaic module companies in China.
Won the "CQC", "TUV", "IEC", "CB", "CE", "COC", "PVOC", "SEC", "leader", "high-tech enterprises" and other authoritative organizations certification.
While pursuing product quality and market influence, the company adheres to the concept of "providing quality products and services and bringing solar energy into life" with a culture of "customer-centric, striving-oriented, long-term hard work". . Efforts to provide mass customization and personalized services for solar modules for customers around the world. Renjiang Group is willing to go hand in hand with you to achieve unlimited career and dream
Q & A
- 1. What is your delivery time?
15days after order confirmed.
- 2. Are you manufacturer or trading company? / mainly market?
We are a manufacturer of solar module since 2011, our customer mainly from Africa, Mid-East, Europe and North America.
- 3. How about your capacity?
200/300 Megawatt per year.
- 4. How many employees in your company?
300-500 employees in factory.
- 5. Do you support customization?
Certainly, customization is our strength, please let us know your required power, voltage,
and module dimension, then we'll design the drawing to you.
- 6. How about the packing details?
Big module usually by pallet packing, smaller panel by inner and outer carton, as you required.
Enterprise Image:
About the supplier
Main products: Solar Cell and Module,Crystalline Silicon Photovoltaic Panel,Photovoltaic Application Products,Inverter,Polycrystalline silicon solar PV module,Photovoltaic module (monocrystal silicon),Silicon wafer,Solar lamp
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1998
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1998
