About this product
- Materials: Stainless steel
- Size: DN25
- Color: polishing
- Exports to: Mainland China, Central Asia, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Stainless steel
- Size: DN25
- Color: polishing
- Exports to: Mainland China, Central Asia, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Stainless steel |
|---|---|
| Size | DN25 |
| Color | polishing |
From the supplier
Stainless steel manifolds with flow meter

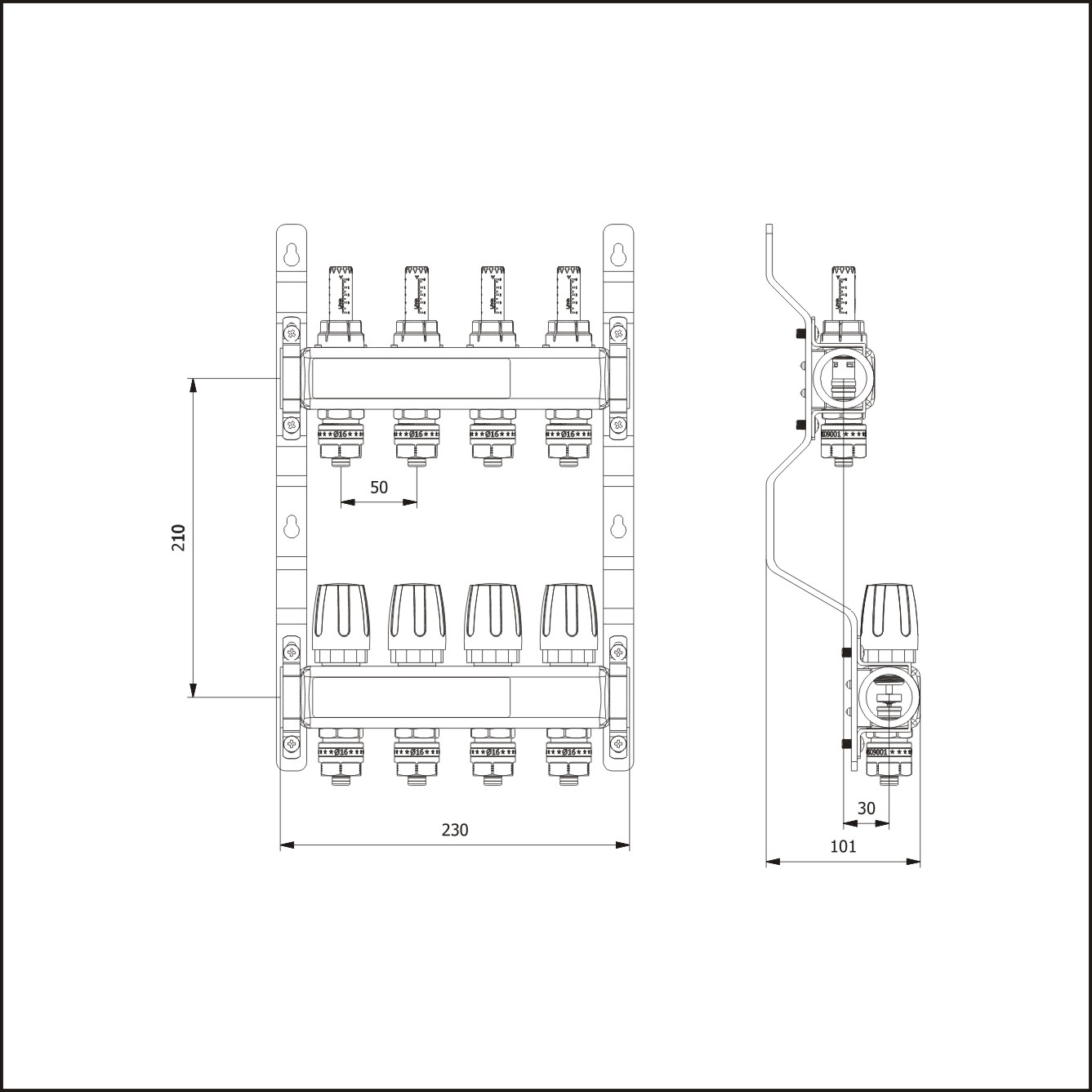

Technical parameter
Number of routes: 2-8
Main pipe diameter: 1 inch
Material: Brass h62-3
Branch pipe diameter: 16 / 20
Center distance of branch: 50mm
Surface treatment: polishing
Medium temperature: 0-110 ℃
Nominal pressure: 1.0Mpa

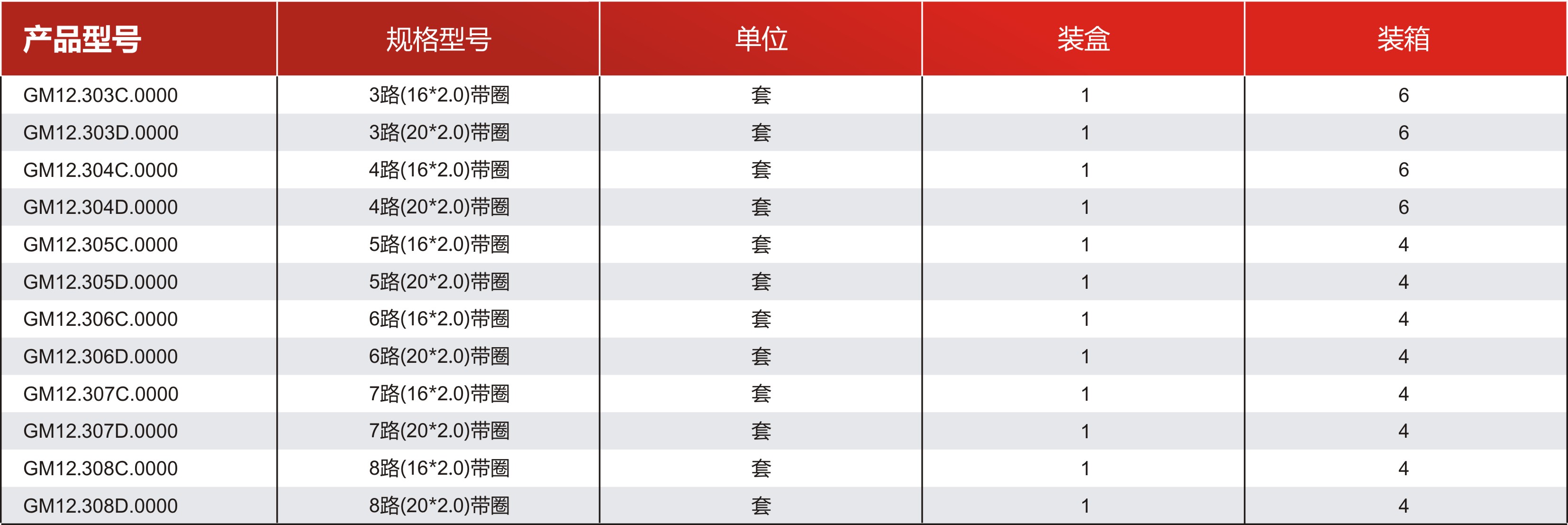

Code and Spec：
Product features：
1. With external flowmeter and water diversity device,
The external flow meter diversity device, which is an external diversity device of the flow meter, can adjust the flow of the floor heating circuit by rotating the flow meter control knob installed above the water collector. The sealing surface is higher than the bottom of the main pipeline, which can effectively prevent sediment from entering the ground heating pipeline and reduce the scaling of the ground heating pipeline.
2. Return water collector with temperature control valve core
The return water collector with electric actuator can be equipped. Each circuit of the return water collector is equipped with temperature control valve core. The normally closed electric actuator can be equipped to automatically control the temperature of each room.
3. Configure the world's first brand flowmeter tacnova, Switzerland, to accurately adjust the flow of each branch.
4. Cold working production process, no internal stress, can be used in the new floor radiant heating system
5. Large flow, better adjust the balance of each way.
