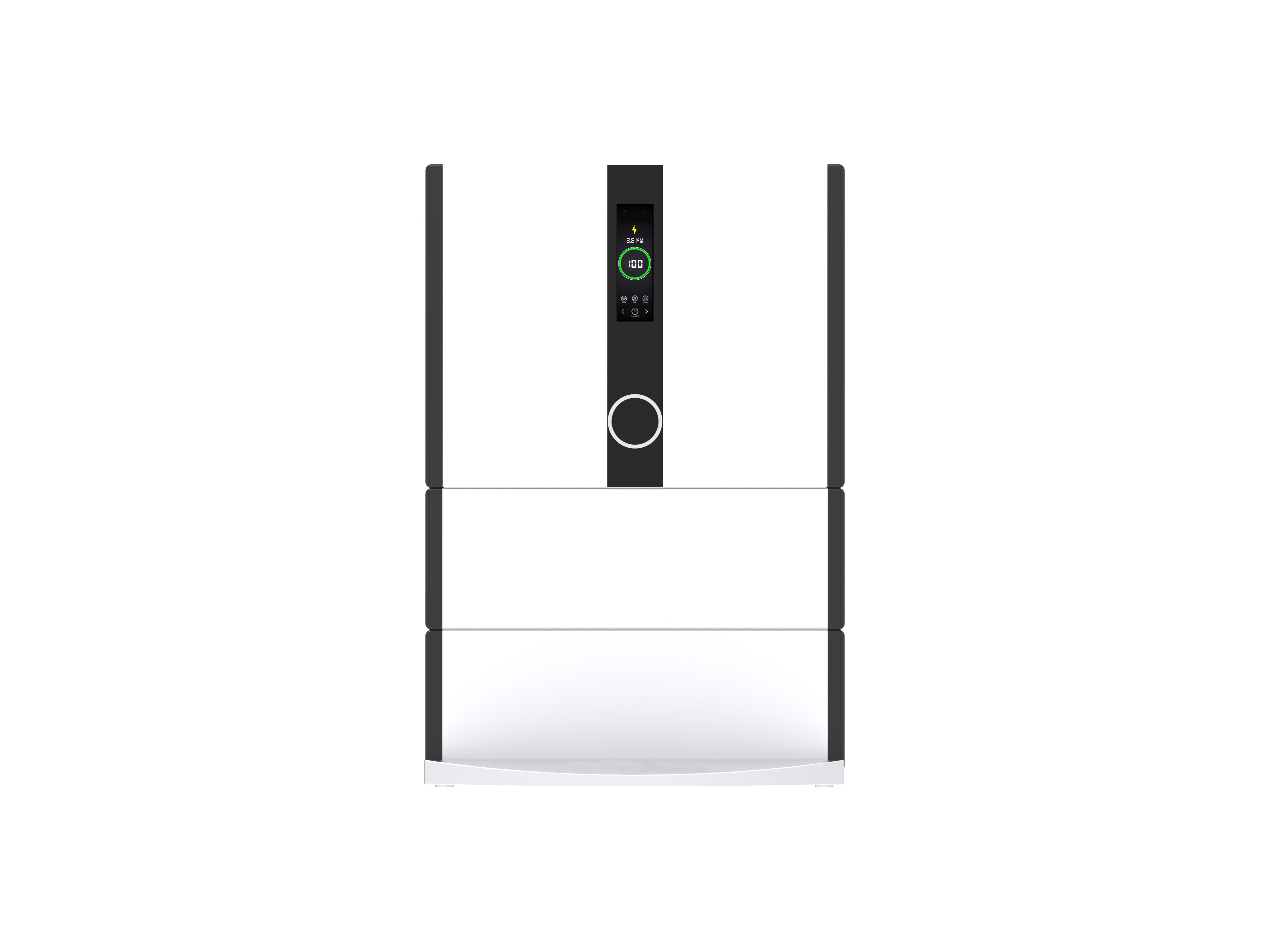

Stacked household energy storage
Wanhe Photonics Group Co.Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Stacked household energy storage
Wanhe Photonics Group Co.Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: 680*178*460
- Color: black and white
- Exports to: Mainland China, Middle East, Southeast Asia, Russia
About this product
- Size: 680*178*460
- Color: black and white
- Exports to: Mainland China, Middle East, Southeast Asia, Russia
Product details
| Size | 680*178*460 |
|---|---|
| Color | black and white |
Product details
| Size | 680*178*460 |
|---|---|
| Color | black and white |
From the supplier
Core parameters of NB+LV5KW-2P photovoltaic energy storage integrated machine
1. Basic specifications
Model: NB+LV5KW-2P
Rated AC power: 5000W
AC input/output: 220/230V, 50/60Hz, input/output current 21.7A
Power factor / Harmonics: 0.81 leading to 0.81 lagging, harmonics < 3%
II. Photovoltaic input
Maximum input: power 6000W, voltage 580V, current 12.5A
PV parameters: Short-circuit current 15A; MPPT operating voltage 125~550V, number of strings 2, efficiency 99.90%
III. Battery Pack and Load Output
Battery pack: quantity: 2 sets (5.04kWh×2), nominal capacity: 10.08kWh; voltage: 48V, operating voltage: 37.5~54.75V; maximum discharge: 100A, charging: 70A; dimensions: 680×178×460mm, weight: 82KG
Load output: grid-connected 5000W, off-grid 4600W; voltage 220/230V, frequency 50/60Hz, current 21.7A
IV. Equipment Parameters
Communication / Cooling: WIFI, Bluetooth 4.0, CAN2.0; natural cooling
Protection: Protection level IP65; supports insulation detection, overcharge/overdischarge/lightning protection, and failure protection
Inverter: Dimensions: 680×178×525mm, Weight: 40KG; Operating Temperature: -15℃~58℃
