Spring lock washer / Arandela de Presion

10/10 fairsForeign Trade CompanyModel DIN127B
Spring lock washer / Arandela de Presion
$001$009/ unit FOB
The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.
MOQ 500 unit
Estimated landed cost
$1.89 / unit
range $1.84$1.94 · total ≈ $945
FOB goods (500)
$25
Ocean freight + handling (1.5 CBM)
$880
US duty (3.0%)
$0.75
Section 301 tariff (25.0%)
$6.25
Customs fees (MPF/HMF)
$33

Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: high carbon steel
  • Color: PLAIN, ZINC PLATED, BLACK, HDG, Dacromet, etc.
  • Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
  • Made in: Shanghai, China

Product details

Materialshigh carbon steel
ColorPLAIN, ZINC PLATED, BLACK, HDG, Dacromet, etc.

From the supplier

公制弹簧垫圈

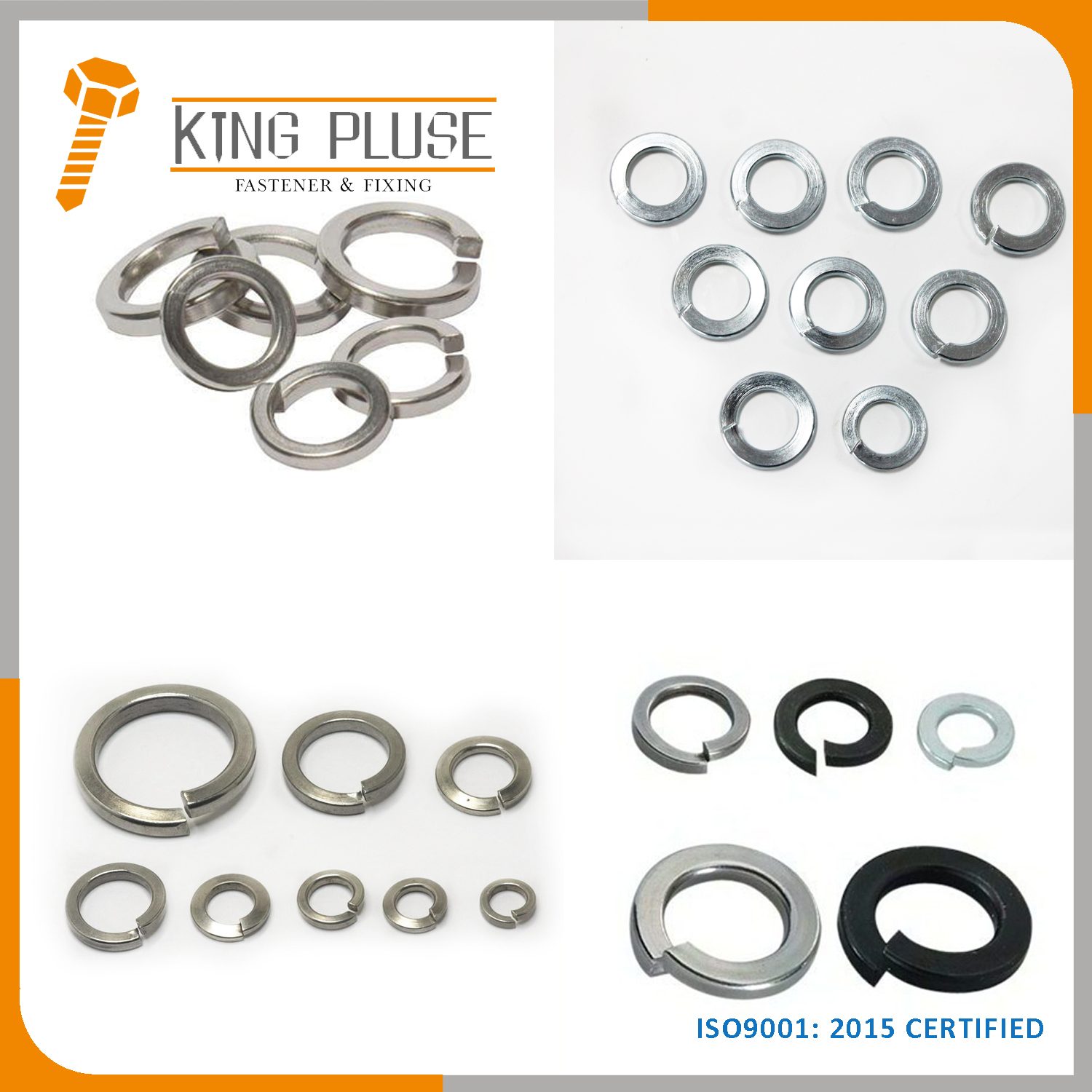

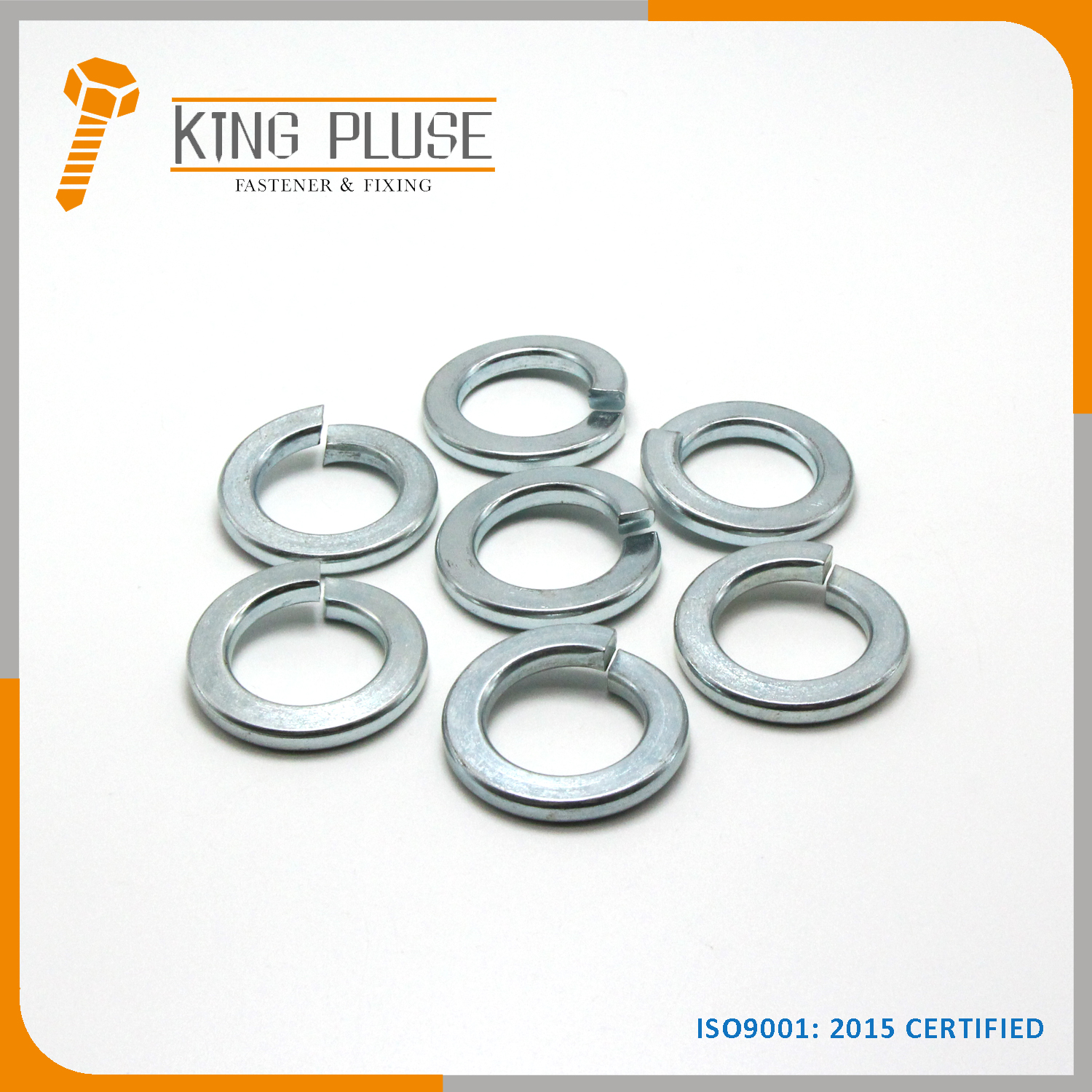

Spring Lock Washer

Arandela De Presion



Dimensions: DIN127B

Material: high carbon steel

Treatment: Tempered & Quenched



Dimensiones: DIN127B

Material: Acero alta carbono

Tratamiento: Templado y revenido

PART No: WSH0007

Dimensions / Dimensiones

Nominal Size /

Dimension Nominal

Φd1 min.

Φd2 max.

Φs nominal

Ref. inside / Interior

Ref. outside / exterior

Ref. thinkness / espesor

M3

3.1

6.2

0.8

M4

4.1

7.6

0.9

M5

5.1

9.2

1.2

M6

6.1

11.8

1.6

M8

8.1

14.8

2

M10

10.2

18.1

2.2

M12

12.2

21.1

2.5

M16

16.2

27.4

3.5

M20

20.2

33.6

4

Up to M56







Unit: mm

表面处理:

Natural Color

发黑

蓝白锌

黄锌

Hot Dip Galvanized

达克罗

FINISH:

Plain

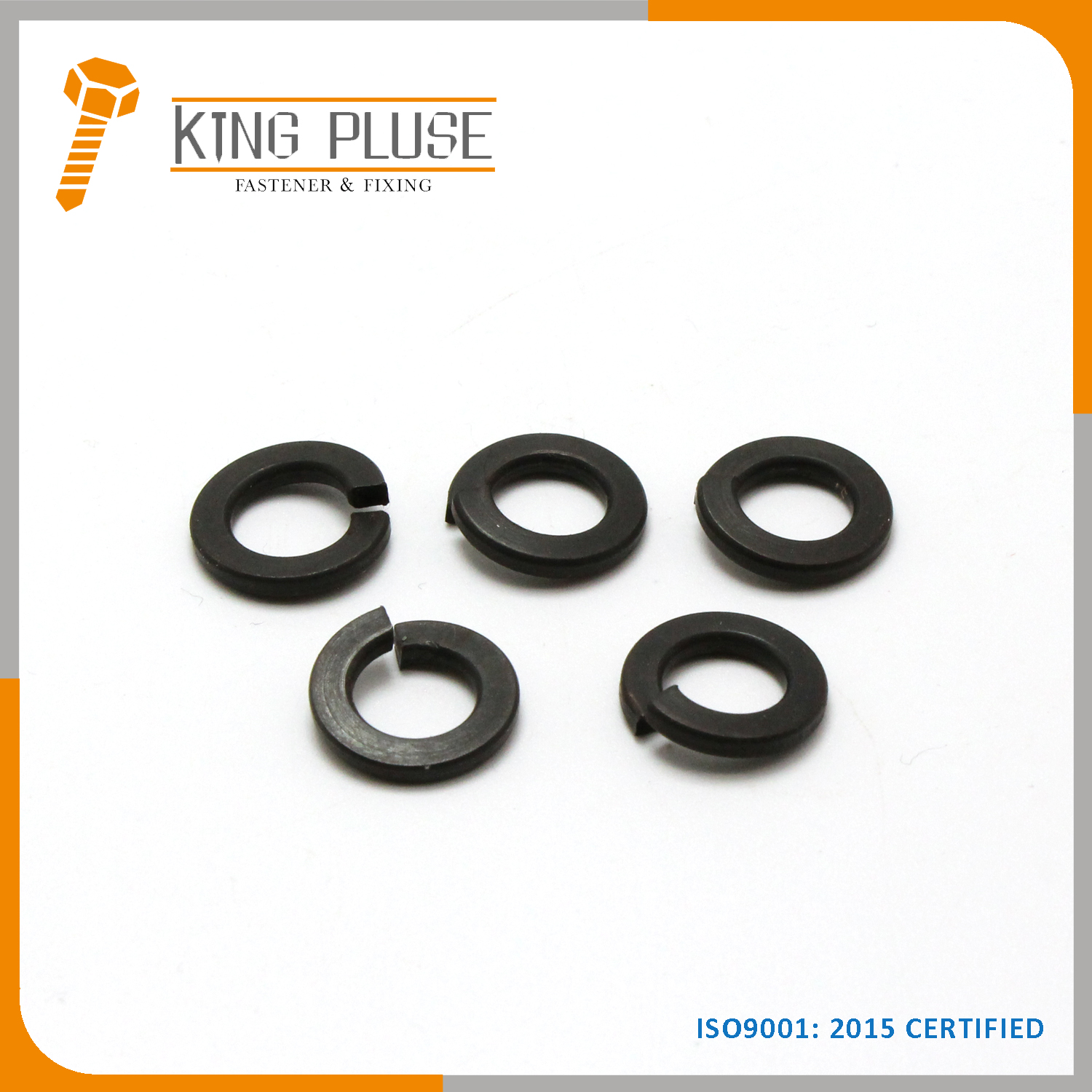

Black Oxide

Zinc Plated

Yellow Zinc

Hot Dip Galvanized

Dacromet

ACABADO:

Natural

Templado Negro

Zincado Blanco

Zincado Amarillo

Galvanizedo en caliente

Dacromet






About the supplier

Shanghai Kingpluse Industry Co., Ltd.

Main products: Bolts,Drilling Screw,Washer,Nut,Typeit,Hardware fittings,Jacks,Thread bars,Regular Screw,Structural Frame

  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2011
See all products from this supplier →
Supplier
Shanghai Kingpluse Industry Co., Ltd.
City, Shanghai, China
60
trust
  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2011
Canton Fair booth: 9.1J32 · Hardware (140th session)
