Materials: stainless steel,carbon steel,iron
Size: 1860*740*1275
Color: blue
Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
Made in: Sichuan, China

About this product

Materials: stainless steel,carbon steel,iron
Size: 1860*740*1275
Color: blue
Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
Made in: Sichuan, China

Product details

Materials	stainless steel,carbon steel,iron
Size	18607401275
Color	blue

Product details

Materials	stainless steel,carbon steel,iron
Size	18607401275
Color	blue

From the supplier

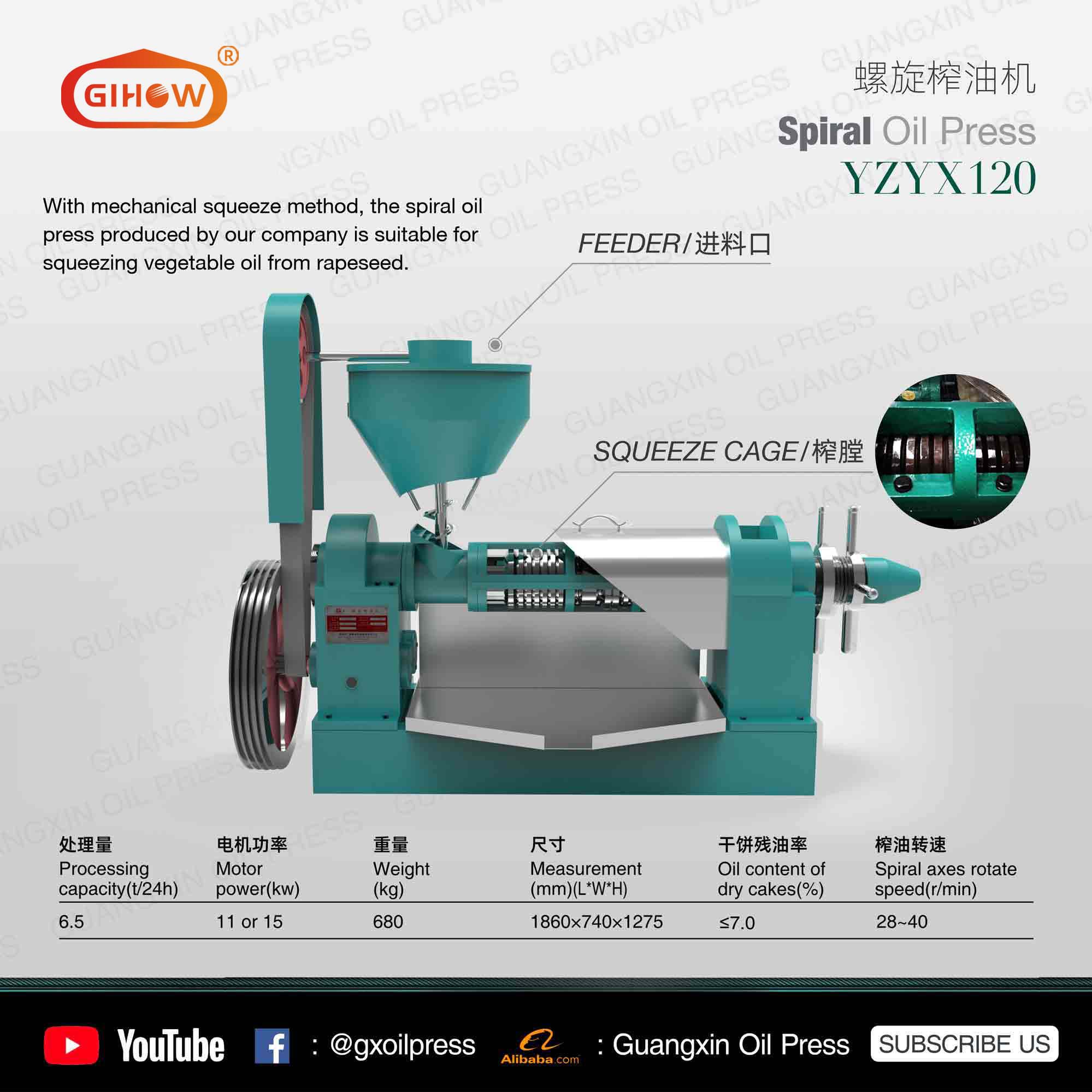

The series YZYX120 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

YZYX120 is the basic 2-step-squeezing spiral oil press. YZYX120-8 is 3-step-squeezing spiral oil press, which has larger press chest cavity, suitable for the users who have operating experience and stress on the oil content of dry cakes.

YZYX120-9 is 4-step-squeezing spiral oil press with lengthened press chest.

Main Features：

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

Oil Plants

Processing

Capacity

(t/24h)

Oil content of

Dry cakes (%)

Oil yield efficiency (%)

Electric power consumption (kw.h/t)

Rapeseed

≥6.0

≤8.0

≥80

≤35

Cotton seeds

≥6.0

≤7.5

≥75

≤55

Soybean

≥5.0

≤7.0

≥65

≤52

Peanut

≥6.0

≤8.0

≥91

≤35

Note:

① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

Technical Specification：

Revolving speed of spiral axis(r/min)

32-40

Power required（kw）

11or15

Measurement(mm)

1860 x 622 x 1275

Weight(kg)

680

Note:

This weight is without electro-motor’s weight.

From the supplier

The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

YZYX120-9 is 4-step-squeezing spiral oil press with lengthened press chest.

Main Features：

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

Oil Plants

Processing

Capacity

(t/24h)

Oil content of

Dry cakes (%)

Oil yield efficiency (%)

Electric power consumption (kw.h/t)

Rapeseed

≥6.0

≤8.0

≥80

≤35

Cotton seeds

≥6.0

≤7.5

≥75

≤55

Soybean

≥5.0

≤7.0

≥65

≤52

Peanut

≥6.0

≤8.0

≥91

≤35

Note:

① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

Technical Specification：

Revolving speed of spiral axis(r/min)

32-40

Power required（kw）

11or15

Measurement(mm)

1860 x 622 x 1275

Weight(kg)

680

Note:

This weight is without electro-motor’s weight.
