About this product
- Materials: Carbon steel, stainless steel, iron
- Size: 2100x820x1370
- Color: green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
About this product
- Materials: Carbon steel, stainless steel, iron
- Size: 2100x820x1370
- Color: green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
Product details
| Materials | Carbon steel, stainless steel, iron |
|---|---|
| Size | 2100x820x1370 |
| Color | green |
From the supplier

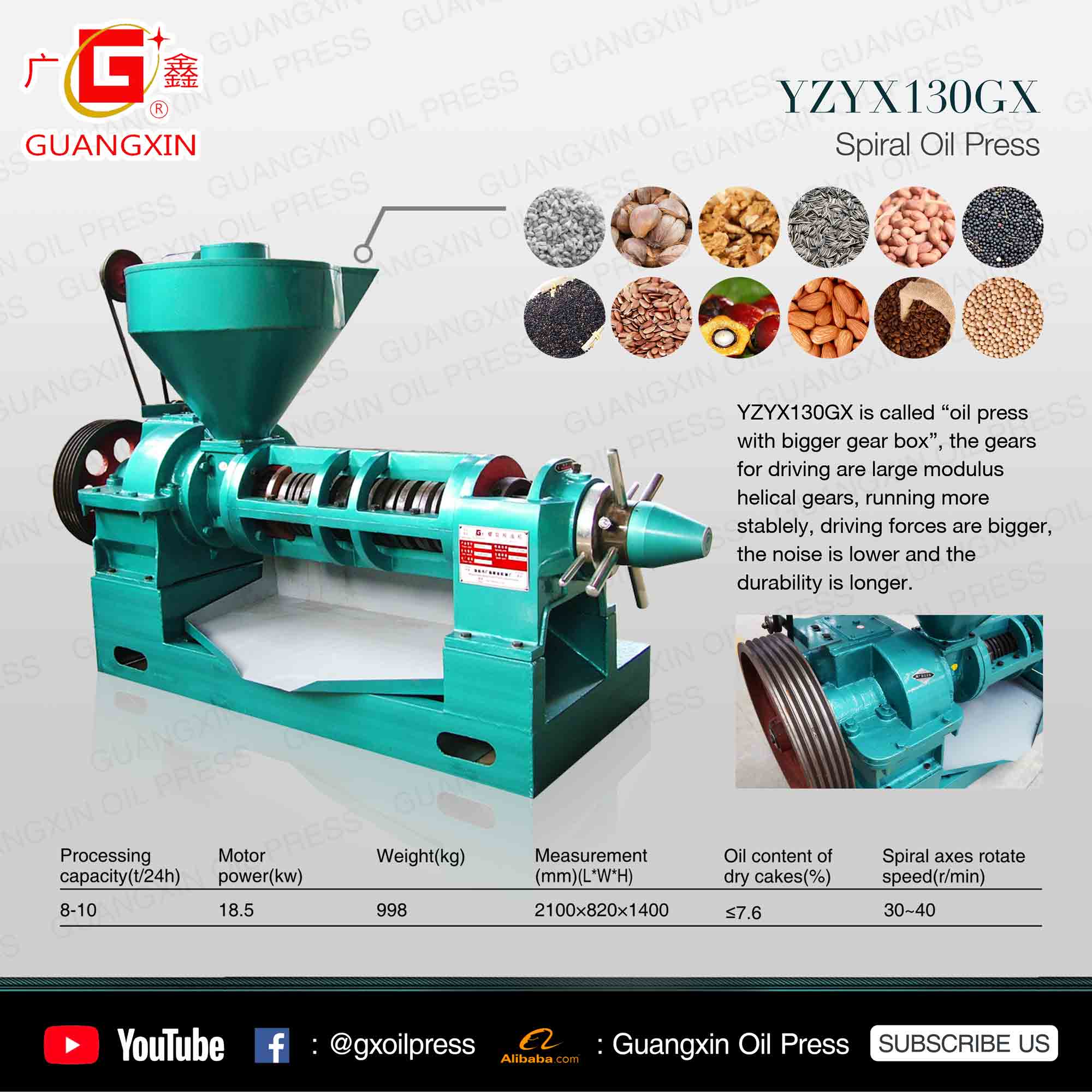

Our series YZYX130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
YZYX130-12 is new 3-steps squeezing spiral oil press with bigger compression ratio in the press chest，lower oil content less than 6.0% in cake.
YZYX130-12D is special model for soybean oil extraction with oil content in cake less than 5.5%.
YZYX130GX is oil press with bigger gear box which has slant tooth. It works smoothly, has longer work life and lower noice.
Above models are without cake cracking device. The models with cake cracking device have S at the end of the model number. The model numbers will have WK when the machine is equipped with electric heating instrument.
Main Features:
Below features are based on oil plants with above medium quality smoothly and continuously squeezed after good pretreatments as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity(t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
≥8.0
≤7.6
≥82
≤34
Cotton seeds
≥8.0
≤6.8
≥77
≤54
Soybean
≥7.0
≤6.5
≥67
≤51
Peanut
≥8.0
≤6.5
≥92.3
≤34
Note:
① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
Technical Specification:
Item
YZYX130-8(12)
YZYX130GX-8(12)
Revolving speed
of spiral axis (r/min)
28-40
Transmission type
Triangle belt Transmission
Power required（kw）
15（Y160L-4）or 18.5(Y18M-4)
Measurement (mm)
2020x742x1420
2100x820x1370
Weight (kg)
886
998
Note:
This weight is without electro-motor’s weight.
